Summary of Contents for GVI Security AID-112N
-

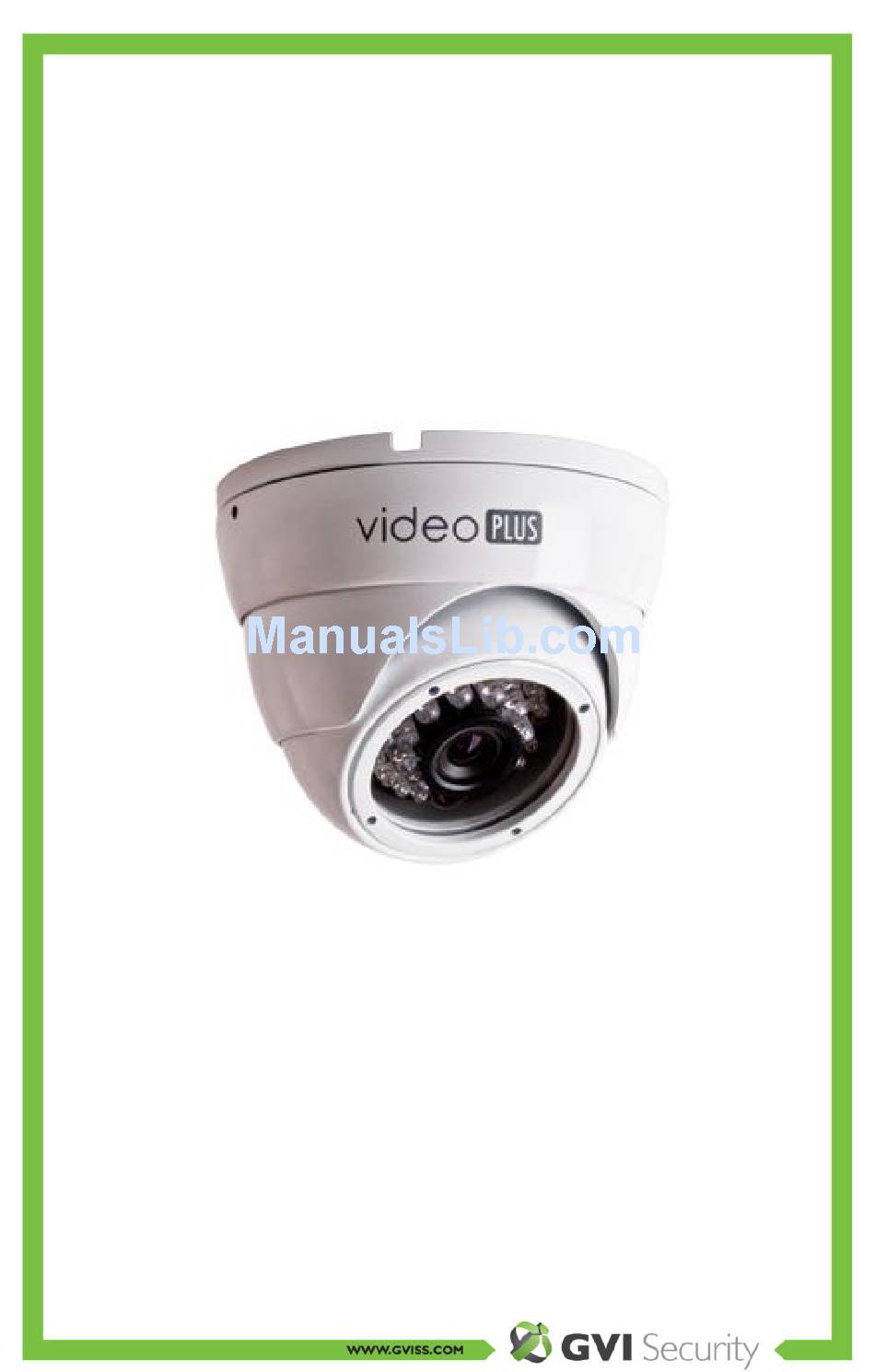

Page 1: Quick Start Guide

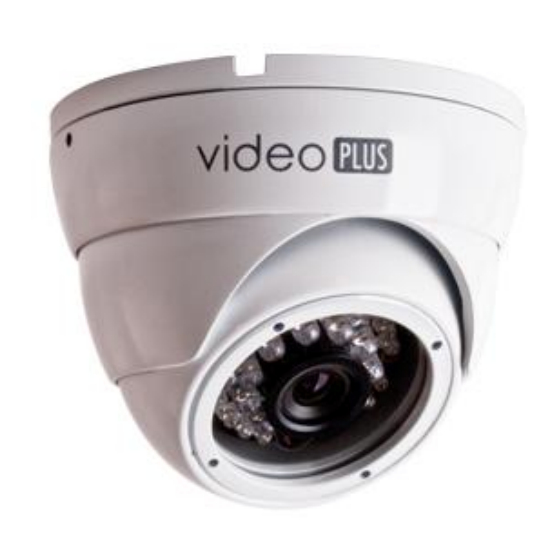

AID–112N / AOD-112N 1/3” CCD Dome Camera (AID-112N: indoor / AOD-112N: outdoor) QUICK START GUIDE... -
Page 2: Safety Warning
© 2011 GVI Security; All rights reserved. GVI Security makes no warranty of any kind with regard to this material, including but not limited to the documentation, function, and performance of these programs and their suitability for any purpose. GVI Security shall not be liable for any errors contained herein for incidental or GVI Security consequential damages in connection with the use of this material. -
Page 3: Table Of Contents
Installation ..........................5 Specifications ......................... 6 Dimension ..........................6 GVI Security • Toll Free: 888-595-2288 • Fax: 972-245-7333 GVI Security This product specifications and manual are also available in pdf format at www.gviss.com The information is subject to change without notice • v6.3.11... -
Page 4: Composition
540 TV Lines Resolution Minimum Scene Illumination 0.5 Lux@30IRE(F1.2) Color & B/W Auto switchable by Photocell and Sensitivity 25IR LED(30 IR LED for AOD-112N) with 30ft (Effective) IR illumination distance AOD-112N only: Weather Resistant (IP66) DC12V GVI Security... -
Page 5: Installation
Place the camera in a cool area that is not exposed to the direct sunlight. Camera Installation Attach the bracket to the mounting surface by drilling with the supplied screws. Remove the protective sheet from the camera window. GVI Security... -
Page 6: Specifications
4. Specifications Model AID-112N / AOD-112N Signal System NTSC Image Sensor 1/3” Super HAD Sony CCD Effective Pixels 768H×494V Scanning System 525lines, 2:1 Interlace Scanning Frequency 15.734KHz (H), 59.94Hz (V) Resolution 540 (Color) TV Lines Shutter Speed 1/60 ~ 1/100,000 sec.
