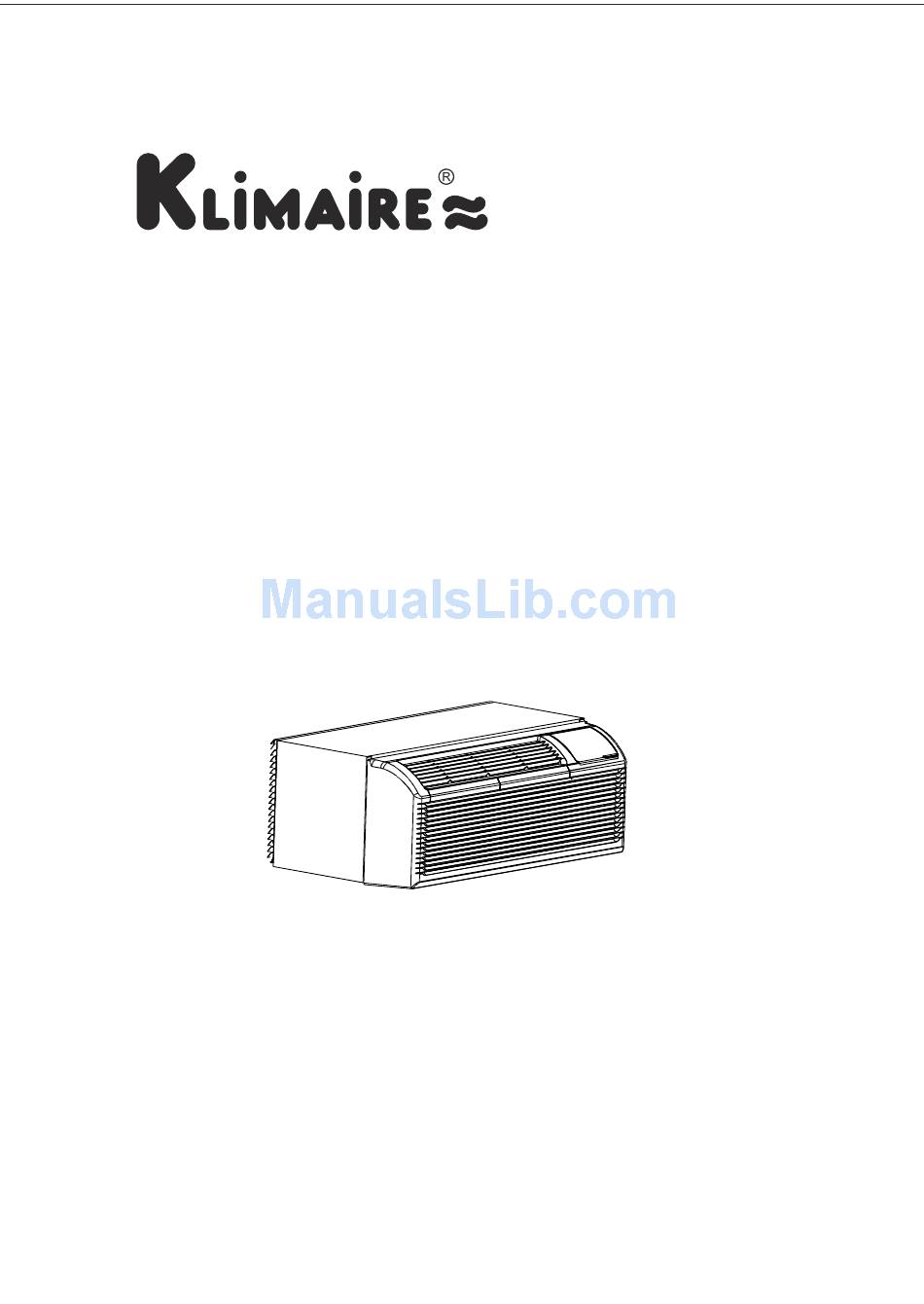

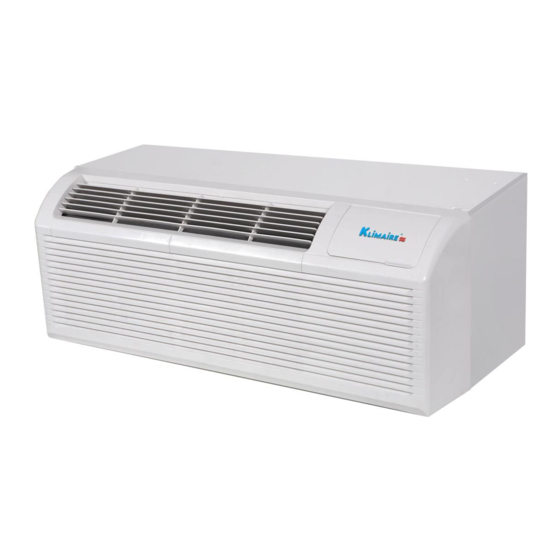

  • Page 1 PACKAG E D T E R M IN AL A IR C O N D ITI O N ER Before using your air condition er, plea se read this m anual carefully and kee p it for future reference.

  • Page 2: Table Of Contents

    CONTENTS 1. SAFETY PRECAUTIONS..............2 2. IMPORTANT SAFETY INSTRUCTIONS ..........4 3. AIR CONDITIONER FEATURES............5 4. CONTROL PANEL OPERATION............6 5. INSTALLATION .................7 6. CARE AND CLEANING..............9 7. TROUBLESHOOTING...............10 ead This Manual Inside you will find many helpful hints on how to use and maintain your air conditioner properly.

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classified by the following indications. This symbol indicates the possibility of death or serious injury.
  • Page 4 ! CAUTION Do not clean the air Ventilate the room well when When the air filter is to be conditioner with water. used together with a stove, removed, do not touch the metal parts of the unit. etc. It may cause an injury. Water may enter the unit and An oxygen shortage may occur.

  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS For your safety WARNING NOTE The power supply cord with Do not store or use gasoline or other flammable vapors and liquids in this air conditioner contains a current the vicinity of this or any other appliance. detection device designed to reduce Avoid fire hazard or electric shock.

  • Page 6: Air Conditioner Features

    AIR CONDITIONER FEATURES This unit has many featrues.The servicer must be High Temperature Protection In Heating familiar with these features in order to properly Operation service the unit. The compressor and(or) electric heater will be switched off to prevent damage in high indoor Compressor Restart Delay blow air temperature or error indoor temperature This feature extends the overall life of compre-...

  • Page 7: Control Panel Operation

    CONTROL PANEL OPERATION The control pane l keypad will look like the following FAN (FAN SPEED) Fig.1: - Every time you push this button,the fan speed cycles through the settings as follows:HIGH-M ED- LOW -HIGH. DISPLAYS: Shows the set tem perature in C or F. While on HIGH MED LOW Fan only m ode ,it shows the room temperature.

  • Page 8: Installation

    INSTALLATION HOW TO INSTALL THE UNIT Dim ension of air cond itioner CAUTION 1067mm/ 42i nch There are sharp edges that can cause serious cuts. When lifting the air conditioner,it is HEAVY.Use 2 408mm/16inc h peo ple to lift. - For existing sleeve,you shou ld measure the wall sleeve dimensions.
  • Page 9 （ ） INSTALLATION CONTINUED UNIT INSTALLATION (CONTINUED) CAUTION - Rotate the vent control lever to either open or close the vent door.(See Fig.6) Do not put obstacles around air-inlet or inside of air-outlet of the unit, such as window curtain etc. Vent control lever Always insert the filter securely, clean filter once every two weeks as required.

  • Page 10: Care And Cleaning

    CARE AND CLEANING - Rem oving Air Filter FRONT PANEL AND CASE - Turn unit off and disconnect power supply.To clean, 2 Air filters use water and a mild detergent. DO NOT use bleach and abrasivers.Som e commercial cleane rs may Pull up damag e the plastic parts.

  • Page 11: Troubleshooting

    TROUBLESHOOTING POSSIBLE CAUSES SOLUTONS UNIT DOES NOT START Check that plug is plugged securely in wall receptacle. Unit ma y have become unp lugged Note: Plug has a test/reset button on it.M ake sure that the plug has Fuse may have blown not tripped.
  • Page 12 The Klimaire logo is a registered Trademark of Klimaire Products inc. Copyright 2010 Klimaire Products inc. 2190 NW 89 Place, Doral, FL 33172 - USA Tel: (305)594-4972 Fax (305) 675-2212 www.klimaire.com sales@klimaire.com The design and specifications are subject to change without prior notice for product...
