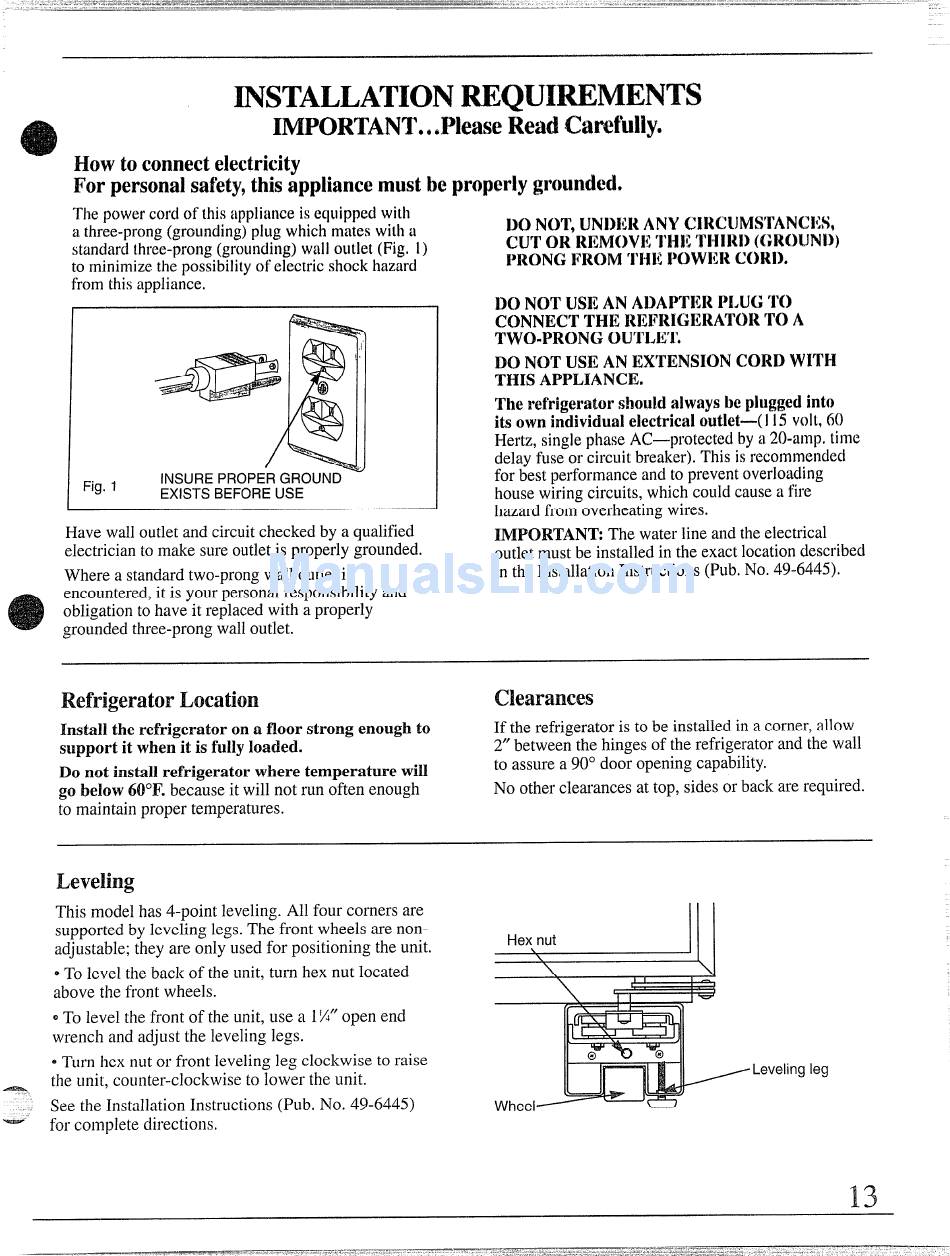

INSTALLATION
IMPORTANT... P leaseReadCkwfuliy.
—
How to connectelectricity
For personalsafety,this appliancemust be properlygrounded.
The power corclof this applianco is equipped with
a three-prong (grounding)
phg
which mates with a
standard three-prong (grounding)wall outlet (Fig, 1)
to minimize the possibility of electric shock hazard
from this appliance.
I
DONOT,UNDERANYCIRCUMSTANC1;S,
CUT OR REMOVUTHE THIRB (GROUND)
PRONG FROM THE POWER CORD.
DO NOT~JSEAN ADAPTERPLUGTO
CONNECTTHE REFRIGERAT(~IlTO A
TWO*PRONGOUTLET.
DO NOT USE AN EXTM'+S1ON C ORD WIrlW
THIS APPLIANCE.
The refrigerator shmddalwaysbe pluggedinto
its ownindividualeiectl"ical outlet—(1 15volt,60
Hertz, single phase AC—protected by a 20-amp. time
delay fuse or circuit breaker). This is rccornmendecl
~
Fig. 1
INSUREPROPE"R GROUND"
for best performance and to prevent overloading
EXISTSBEFOREUSE
house
wiringcircuits,whichcouldcausea fire
hazardfromoverheatingwires.
Have wall outlet and circuit checked by a qualified
IMPORTANT:
The water line and the electrical
electrician to make sure outlet is properly grounded.
outlet must be installed in the exact location described
Where a standard two-prong wall outlet is
in the Installation Instructions (Pub. No. 49-6445).
encountered, it is your personal responsibility and
obligation to have it replaced with a properly
grounded three-prong wall outlet.
Location
Clearances
Install
the refrigeratoron a floor strongenoughto
If the refrigeratoris to be installedin a corner,allow
supportit whenit is
fuliy loaded.
2" between the hinges of the refrigerator and the wall
Do
not install refrigerator where temperature wiII
to assure a
90°
door opening capability.
go behw 6~0~. because it will not run often enough
No other clearances at top, sides or back are required.
to maintain proper temperatures.
Leveling
This model has 4-point leveling. All four corners are
II I
supported by leve~inglegs. The front wheels are non-
Hexnut
adjustable; they are only used for positioning the unit.
\
o
To level the
back of the unit, turn hex nut located
above the front wheels.
o
To level
the front of the unit,use a 1YJ" o pen end
wrenchand adjustthe levelinglegs.
~TLH"II hex nut or
front levelingleg clockwiseto raise
the unit, counter-c] o ckwiseto lower the unit.
See the InstallationInstructions(pub. No. 49-6445)
for completedirections.
\
v
Wheel
Levelingleg
