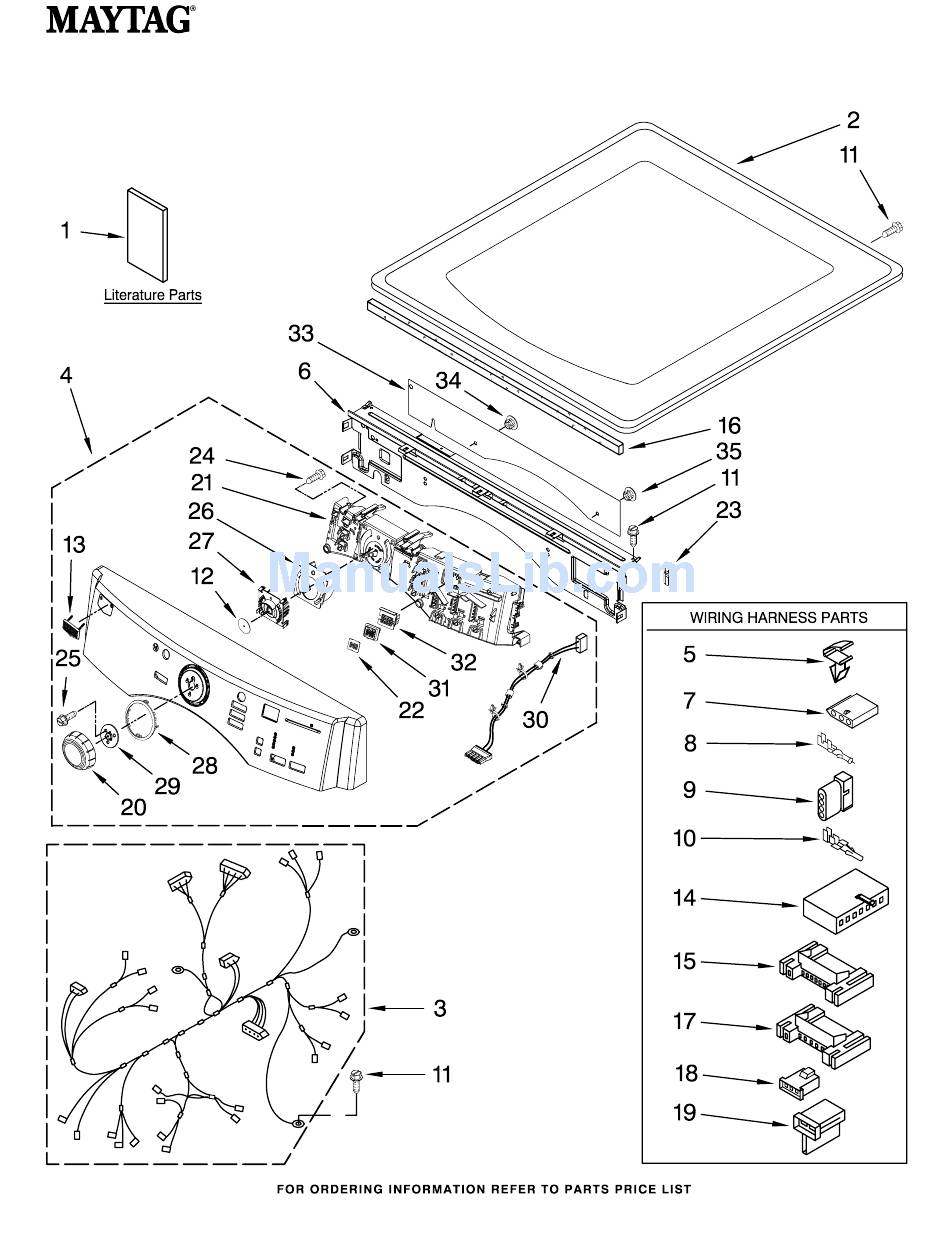

- Page 1 TOP AND CONSOLE PARTS 29" GAS DRYER For Models:MGDE500WR1, MGDE500WJ1 (Magna Red) (Oxide) Part No. W10303330 Rev. A 12−09 Printed in U.S.A. (MP)(bay)
- Page 2 W10269245 Red 3394427 Clip, Harness 6 W10215656 Bracket, Console (Includes No. 16) 353424 Connector, Sensor 94614 Terminal 3936144 Plug, Terminal 94613 Terminal For Models:MGDE500WR1, MGDE500WJ1 (Magna Red) (Oxide) Illus. Part DESCRIPTION 3390647 Screw, 8−18 x 1/2 8572039 Seal, User Interface...
-
Page 3: Cabinet Parts
CABINET PARTS For Models:MGDE500WR1, MGDE500WJ1 (Magna Red) (Oxide) W10303330... - Page 4 49252 White W10151499 Midnight Grey 3388672 Pulley Assembly 3978776 Bracket, Gas Pipe 343641 Screw, 10−16 x 1/2 15 W10244142 Panel, Rear CABINET PARTS For Models:MGDE500WR1, MGDE500WJ1 (Magna Red) (Oxide) Illus. Part DESCRIPTION 16 W10123956 Sound Panel 17 W10121334 Washer, Flat...
- Page 5 BULKHEAD PARTS For Models:MGDE500WR1, MGDE500WJ1 (Magna Red) (Oxide) W10303330...
- Page 6 3387459 Washer, Support 8575325 Shaft, L.H. Thread 690997 Ring, Tri 8536973 Roller, Support 8563745 Exhaust Pipe 22 W10253353 Outlet Grill Housing Assembly BULKHEAD PARTS For Models:MGDE500WR1, MGDE500WJ1 (Magna Red) (Oxide) Illus. Part DESCRIPTION 489463 Screw, 8−18 x 5/8 24 W10181466 Complete Drum Assembly 25 W10219342 Screw, 8−16 x 1/2...
- Page 7 W10293911 BURNER ASSEMBLY For Models:MGDE500WR1, MGDE500WJ1 (Magna Red) (Oxide) USE WITH TYPE 1 − NATURAL, TYPE 2 − MIXED, AND TYPE 4 − LIQUEFIED PROPANE AND BUTANE GASES BA−159 W10303330...
- Page 8 W10293911 BURNER ASSEMBLY For Models:MGDE500WR1, MGDE500WJ1 USE WITH TYPE 1 − NATURAL, TYPE 2 − MIXED, AND TYPE 4 − LIQUEFIED PROPANE AND BUTANE GASES (Magna Red) (Oxide) Illus. Part DESCRIPTION 1 W10293911 Burner Assembly 60 Hz. (Type 1 & 2)
-
Page 9: Door Parts
3 W10180119 Cover, Door Hinge 3400224 Screw,1/4−20 x 0.5 8519356 Retainer−Window (Upper) 8519354 Retainer−Window (Lower) 7 W10193522 Handle Ring DOOR PARTS For Models:MGDE500WR1, MGDE500WJ1 (Magna Red) (Oxide) Illus. Part DESCRIPTION 8 W10159996 Screw, 10−24 x 5/16 9 W10048910 Screw−Plug 8578229 Inner Door 355515 Screw, 8−18 x 11/16... - Page 10 OPTIONAL PARTS (NOT INCLUDED) For Models:MGDE500WR1, MGDE500WJ1 (Magna Red) Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) W10202939 Oxide W10218245 Magna Red PAINT, PRESSURIZED SPRAY (12 oz.) 350930 White 350938 Primer, Gray PAINT, BULK (1 qt.) 799344 White (Uncut) ACCESSORY PARTS 8529894 Hold Down Kit...
