Summary of Contents for Hoover DYN D8P

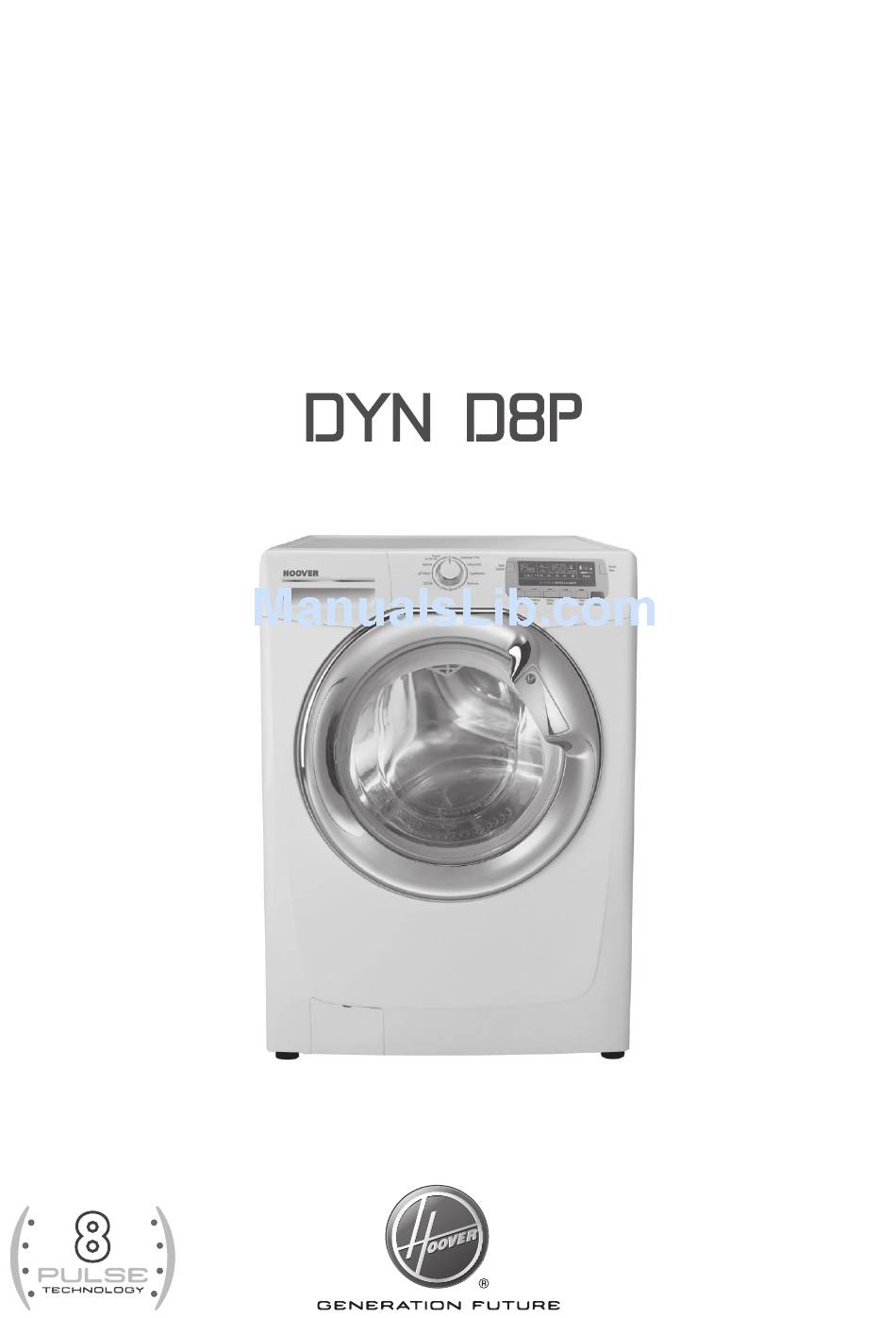

- Page 1 Instruction Book Instructions for installation and use...
- Page 4 8 kg 0.05 ÷ 0.8 MPa 85 cm 60 cm 52 cm...
-
Page 8: Unpacking The Product
Unpacking the Product Remove the machine from its packaging close to the final location of the machine. Step 1. Remove all outer packaging from the machine. Check there is no damage to the machine before continuing the installation process. Step 2. Carefully cut through the hose-retaining clip at the rear of the machine, taking care not to cut the hose itself. -
Page 9: Installation
Installation Before installing the machine, ensure that the mains plug and water supply valves are easily accessible from your chosen machine location. Make sure there is enough space for the machine. Select a space at least 600mm wide and 850mm high. Also leave enough space to open the door fully so you can load and unload it easily. -
Page 10: Water Supply
Water Supply This machine should only be connected to a cold-water supply. The cold-water pressure should be between 0.5 and 8 bar (0.05-0.8 Mpa). Do not connect the machine to a single outlet instantaneous water heater. Before connecting the fill hose, check that the water is running from the water supply tap to be used. -
Page 11: Connecting The Cold Water Supply
Connecting the Cold Water Supply Only one hose is required to install this machine to a cold water supply. Cold fill is an energy efficient system. Only the water required to wash the laundry is heated. There is no loss of heat in the pipeline from the hot water tank or the boiler. If your previous machine installation was hot and cold fill ensure that the hot tap is firmly closed to prevent leakage. -
Page 12: Connecting The Drainage Pipe
Connecting the drainage pipe This machine must be connected in accordance with the water supply regulations. Water bylaws prohibit connection to a surface water drain. Decide which plumbing option suits you best then follow the instructions below: Option 1 - Waste pipe connection (waste trap) Fit the hooked end support to the outlet pipe and position it at least 800mm off the floor. -
Page 13: Levelling The Machine
Levelling The Machine Your machine is heavy so care must be taken when moving it. We recommend that two people move the machine to avoid strain and possible injury. Take care not to damage flooring when moving the machine and do not drag or lift the machine by its door. - Page 14 Step 5. Switch off the machine at the end of the cycle by turning the Programme Selector to the OFF position. Step 6. Select the spin programme and press the Start Pause button to start the machine. If the machine takes longer than one minute to empty check the drain hose for kinks.
-
Page 15: Description Of The Machine
Description of the Machine The Hoover washing machine details are indicated below: Detergent Control Dispenser Panel Door Handle Porthole Door Filter Adjustable Feet... -
Page 16: The Control Panel
The Control Panel Door Lock Indicator Wash Time Spin Speed Digital Programme Selector Selector Display Selector Temperature Start/Pause Sensitive Selector Button Care Stain Easy Delay Blaster Iron Start Turning the Machine On Turning the Programme Selector to your chosen programme will turn the machine on. The Programme Selector must be returned to the OFF position between each wash cycle in order to reset the controls. -
Page 17: Digital Display
Digital Display The easy-to-use Digital Display gives you total control of your wash cycle, whether it is adjusting the wash length using our Wash Time Selector, delaying the start of your wash, or adjusting the temperature and spin speed of your selected programme. The simplicity of the Digital Display understates the advanced technology, which clearly displays all the wash cycle information, putting you in control. -
Page 18: Wash Options
Spin Speed When a programme is selected the maximum spin speed allowed for that programme appears on the display. Pressing the Spin Speed button will reduce the speed by 100rpm each time the button is pressed. The minimum speed is 400rpm, or continuing to press the button will eliminate the final spin completely. - Page 19 Sensitive Care The Sensitive Care option washes your clothes in a deeper than normal water level to provide gentler washing for especially delicate fabrics, while detergent is removed thoroughly with five extra rinses. Perfect for people with delicate skin, this option can be selected on all Cotton and Synthetic cycles.
- Page 20 Easy Iron This function is designed to reduce creasing of your clothes during your wash cycle, and is tailored to specific fabric types. This option is only available on Synthetics, Delicates, Woolmark and Silk programmes. Easy Iron Function Action Required to Complete the Programme Cycle Mixed...
-
Page 21: Automatic Features
Automatic Features KG Mode (Half Load) Available on the Cottons and Synthetics cycles, the intelligent sensor adjusts the water level and programme length throughout each phase of the cycle according to how much laundry you load into the machine. The KG Mode indicator will light up when the intelligent sensor is weighing the laundry. -
Page 22: Programme Descriptions
Programme Descriptions For handling the various types of fabric and their level of dirtiness in your laundry the washing machine has different programme groups according to type of wash, temperature, spin speed and duration (see Programme Guide). Once the programme is selected, the intelligent sensor will weigh the laundry using the KG Mode and adjust the critical elements of the wash cycle depending on the weight of the laundry to ensure perfect results (available on Cotton and Synthetic cycle). - Page 23 Spin The Spin programme completes the spin at the maximum spin speed, this can be reduced by using the Spin Speed option button. Drain This programme drains out the water from the machine. Wool & Silk This programme allows a complete washing cycle for garments specified as “Machine- Washable”...
-
Page 24: Programme Guide
Programme Guide Programme Guide Programme Programme Fabric Type Fabric Type Water Water Water Water Spin Spin Temp Temp Temp Temp Speed Speed Load Load Recommended Recommended Size Size (C°) (C°) (C°) (C°) (RPM) (RPM) (kg) (kg) Cottons, Cottons, Colourfast and Colourfast and 1600 1600... - Page 25 Length of Programme Detergent Short Med. Long 1:48 2:23 3:01 ✓ ✓ ✓ 2:14 2:49 3:27 ✓ ✓ 1:22 1:52 2:02 ✓ ✓ 1:08 ✓ ✓ ✓ 0:24 0:07 0:04 ✓ ✓ 1:06 0:14 ✓ ✓ 0:30 ✓ ✓ 0:44 ✓...
- Page 26 Refer to the programme guide (pag.24) ** STANDARD COTTON PROGRAMMES ACCORDING TO (EU) No 1015/2010 and No 1061/2010 COTTON PROGRAMME with a temperature of 60°C COTTON PROGRAMME with a temperature of 40°C These programmes are suitable to clean normally soiled cotton laundry and they are the most efficient programmes in terms of combined energy and water consumptions for washing cotton laundry.
-
Page 27: Dispensing Instructions
The level of dirtiness ● It is possible to reduce the amount of detergent used depending on how dirty the laundry is. Use less detergent for items that are not very dirty. Amount of laundry ● It is possible to reduce the amount of detergent when washing only a small amount of laundry. -
Page 28: Washing Advice
Laundry Items to avoid We recommend that you do not wash underwired bras in the machine. Should the wires become detached they could cause damage to your clothes and the machine. If the wash care label states that the bra is machine washable then we advise placing it in a wash bag. Recommendations Always follow the wash care labelling on the garments. -
Page 29: Running A Wash Cycle
Running a Wash Cycle This section summarises the main points when completing a wash cycle. For detailed explanations of features, options and details of the machine refer to the relevant section in the instruction manual. Preparing the laundry Select and sort the laundry according to the wash care labels found on each garment. Loading the laundry Open the door. - Page 30 the wash cycle, the KG Mode will weigh the clothes and update the wash time remaining on the display every five seconds until the weight has been determined. In some programs in the initial phase of the cycle there are planned spin sequences to ensure optimal wash results.
-
Page 31: Care And Maintenance
Care and Maintenance The washing machine needs very little maintenance, but regular attention to a few small details will ensure the continued performance of your washing machine. Do not use abrasive cleaners, scouring pads, solvent-based cleaners or polishes; wiping the outside of the machine with a damp cloth will suffice. Cleaning the soap dispenser It is advisable to clean the compartments occasionally to remove detergents and additives. -
Page 32: Maintenance Wash
Step 4. Turn the filter anti-clockwise until it stops in the vertical position. Remove the filter and clean. Step 5. Replace the filter and turn in a clockwise direction until locked in position. Replace the stopper in the hose and close the filter cover. We recommend that the filter be cleaned frequently, at least once a month. -
Page 33: Problem Solving Guide
A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly. If the problem persists after completing the recommended checks, please call Hoover Service (tel: 08705 400 600); they may be able to assist you over the telephone. - Page 34 Water on the floor around the washing machine... Is the fill hose tightened? If so, replace the rubber washers and re-tighten. ● Is the standpipe or the household drain blocked? If so, clear the blockage yourself ● or call a plumber. Is there clothing or dirt between the door gasket and the door glass? Ensure that ●...
- Page 35 Remember, you may be charged for the service call if incorrect installation or misuse causes a problem with your machine. If the following error codes are displayed, switch OFF the machine and contact Hoover Service: 0, 1, 4, 5, 7 and 8.
-
Page 36: Power Failure
Open the door and remove the load. The door can be opened approximately 2 minutes after the power failure. Do not force open the door. Further Problem Solving advice can be found on the After Sales Service pages of our website www.hoover.co.uk... -
Page 37: After Sales Service
After Sales Service Customer Service At Hoover, we aim to make appliances that are reliable and long lasting. However, should your appliance need to be serviced during its working life, no one is more qualified to maintain your appliance than our own Hoover Service engineers. To book... - Page 38 A number of accessories can also be purchased using the above contact details. Brochures At Hoover, we produce a range of home appliances including vacuum cleaners, cooling appliances, washing machines, tumble dryers, dishwashers, cookers and built-in appliances. If you would like a brochure for any of our product ranges please call our head office...
