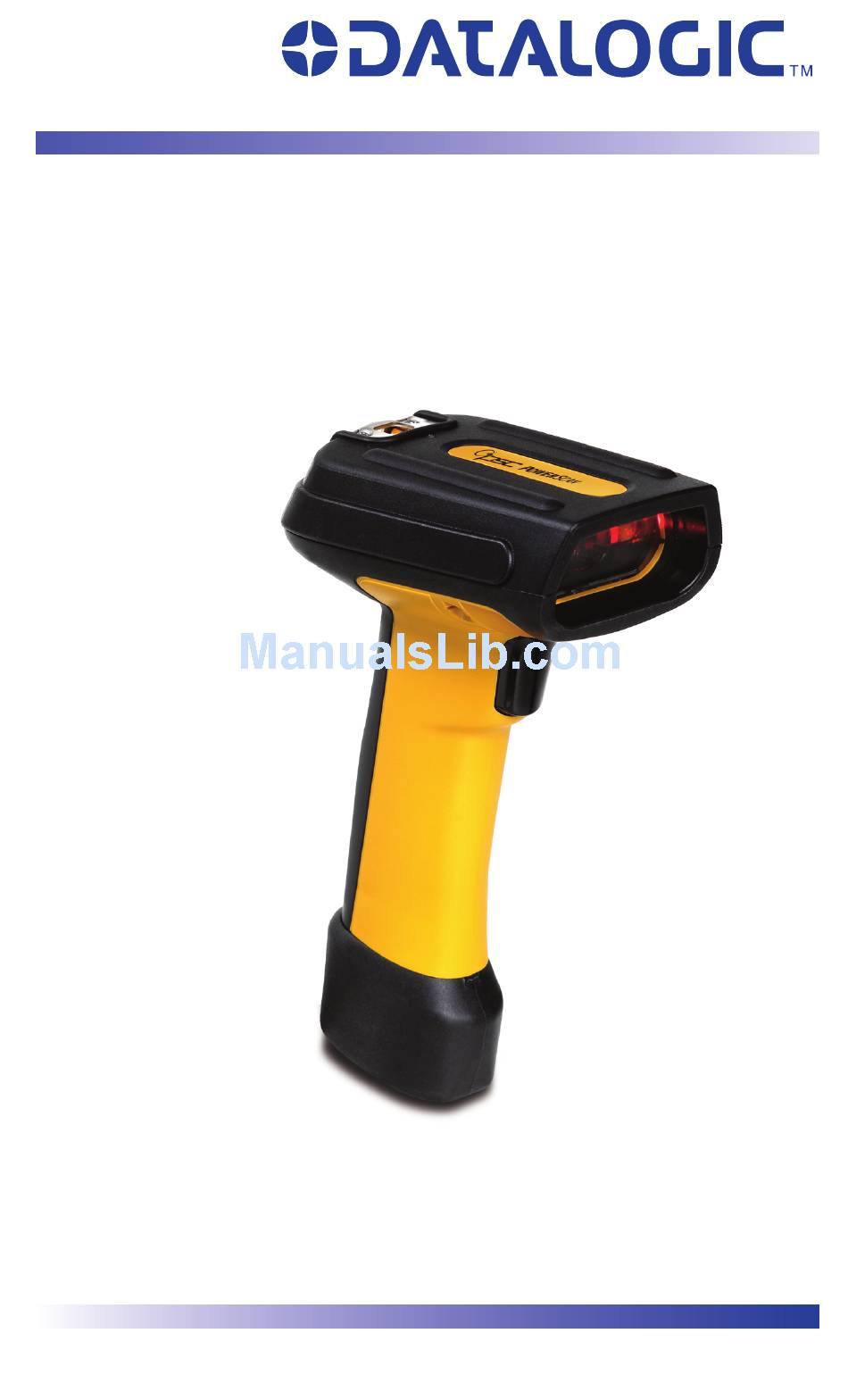

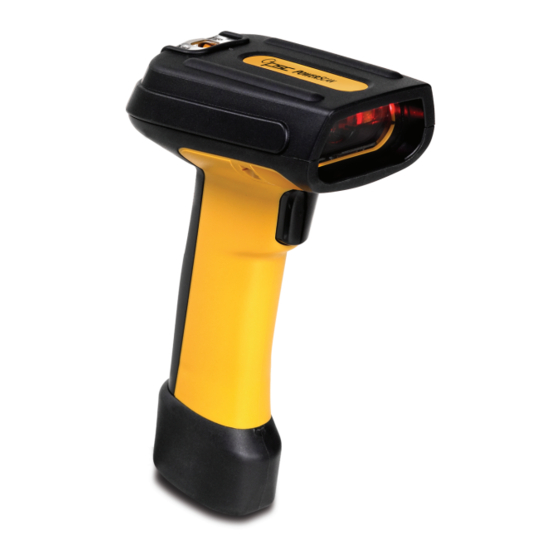

- Page 1 ® PowerScan 7000 Linear Imager Quick Reference Guide...
- Page 2 Datalogic representative. Electronic versions may either be downloadable from the Datalogic website (www.scanning.datalogic.com) or provided on appropriate media. If you visit our website and would like to make comments or suggestions about this or other Datalogic publications, please let us know via the "Con- tact Datalogic" page.
-
Page 3: Statement Of Agency Compliance
Statement of Agency Compliance Statement of Agency Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the follow- ing two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 4 Agreement. If you do not intend to be bound to the terms of this Agree- ment, Datalogic is not willing to license the Software to you, you may not use the Datalogic Product or the Software, and you must contact the party from whom you acquired the Datalogic Product for instructions.
- Page 5 Datalogic Scanning, Inc., Legal Department, 111 SW Fifth Ave. Suite 4100, Portland, OR 97204-3644. In the defense or settlement of any such claim, Datalogic may, at its option, 1) procure for End User the right to continue using the Datalogic Product, 2) modify the Datalogic Product so that it becomes non-infringing,...
-
Page 6: Software Product Policy
Notice. All notices required or authorized under this Agreement shall be given in writing, and shall be effective when received, with evidence of receipt. Notices to Datalogic shall be sent to the attention of Contract Admin- istration, Datalogic Scanning Inc., 959 Terry Street, Eugene, OR 97402, or such other address as may be specified by Datalogic in writing. -
Page 7: Laser Cautions
Laser Cautions Laser Cautions The imager may contain a laser pointer (this is a value-added option), which is certified in the U.S. to conform to the requirements of DHHS/CDRH 21CFR Subchapter J for Class II and IEC 60825-1 for Class 2 products. Class II (2) products are not considered to be hazardous. - Page 8 ® PowerScan 7000...
-
Page 9: Getting Started
Getting Started Getting Started Connection Use the appropriate instructions below to connect the scanner to the ter- minal, PC or other host device. The scanner kit you ordered to match your interface should provide a compatible cable for your installation. The scanner cable connection is secured using the “clamshell”... - Page 10 USB Connection — Connect the scanner to a USB port on the termi- nal/PC using the correct USB cable for the interface type you ordered. Reference Figure 2 Figure 2. USB Connection or... or... or... Wand Emulation Connection — Connect the scanner to the appro- priate port on the terminal/PC using the correct cable for the interface type you ordered.
- Page 11 Getting Started Select the desired interface by scanning the associated bar code below. INTERFACE SELECTION BARCODE RS-232 Standard RS-232 Wincor-Nixdorf Wand Emulation IBM 4683 Port 5B IBM 4683 Port 9B IBM 4683 Port 17 IBM USB USB HID Keyboard USB HID POS Quick Reference Guide...
- Page 12 Table 1-1. Keyboard Wedge Interface Reference I/F Type PCs Supported PC/XT w/Alternate Key Encoding AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/Alternate Key Encoding PS/2 25 and 30 w/Alternate Key Encoding PC/XT w/Standard Key Encoding AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 &...
- Page 13 Getting Started Keyboard Wedge A Keyboard Wedge B Keyboard Wedge C Keyboard Wedge D Keyboard Wedge E Keyboard Wedge F Keyboard Wedge G Keyboard Wedge H Keyboard Wedge I Keyboard Wedge J Keyboard Wedge K Quick Reference Guide...
- Page 14 Keyboard Wedge L Keyboard Wedge M Keyboard Wedge N Keyboard Wedge O Keyboard Wedge P Keyboard Wedge Q Keyboard Wedge R Keyboard Wedge S Keyboard Wedge T Keyboard Wedge U ® PowerScan 7000...
-
Page 15: How To Scan
How to Scan Keyboard Wedge V Keyboard Wedge W Keyboard Wedge X Resetting the Standard Product Defaults If programming settings for your scanner are in an unknown condition, factory settings can be restored by scanning the “Standard Product Default Settings” bar code below. A listing of factory default settings is available in the PRG. - Page 16 Linear Bar Codes — To scan a linear bar code, center the illumination beam over the bar code as shown in a. The scanner must “see” Figure 3 across the width of all of the bars. Move the scanner further away from the bar code to increase the scanning coverage area, and closer in to read very small bar codes.
-
Page 17: Troubleshooting
How to Scan Troubleshooting The scanner will automatically perform a set of self-tests whenever you turn it on. If your scanner doesn’t seem to be functioning properly, fol- low these steps to try and isolate the problem. 1. Is the power on? Does the illumination beam come on? If no illumination beam, check that... - Page 18 • The scanner may not be programmed to output your bar code data properly. For example, you scan “12345” and the host dis- plays “A12345B.” Reprogram the scanner with the proper Data Editing selections. Reference the PRG. 5. The scanner won’t read your bar code at all. •...
-
Page 19: Declaration Of Conformity
EN61000-3-3:2001 - Voltage Fluctuation/Flicker Equipment Type: Barcode Scanning Equipment Products: PowerScan 7000 family Placed into EU Service: April 2007 under the Datalogic trademark. December 2005 under the PSC trademark. Responsible Datalogic Scanning, Inc. 959 Terry St. Eugene, OR USA Manufacturer:... - Page 20 Fax: [33].01.64 46.72.44 Fax: (305) 591-3007 Germany Spain and Portugal Datalogic Scanning GmbH Datalogic Scanning Sarl Sucursal en España Darmstadt, Germany Madrid, Spain Telephone: 49 (0) 61 51/93 58-0 Telephone: 34 91 746 28 60 Fax: 49 (0) 61 51/93 58 58...
