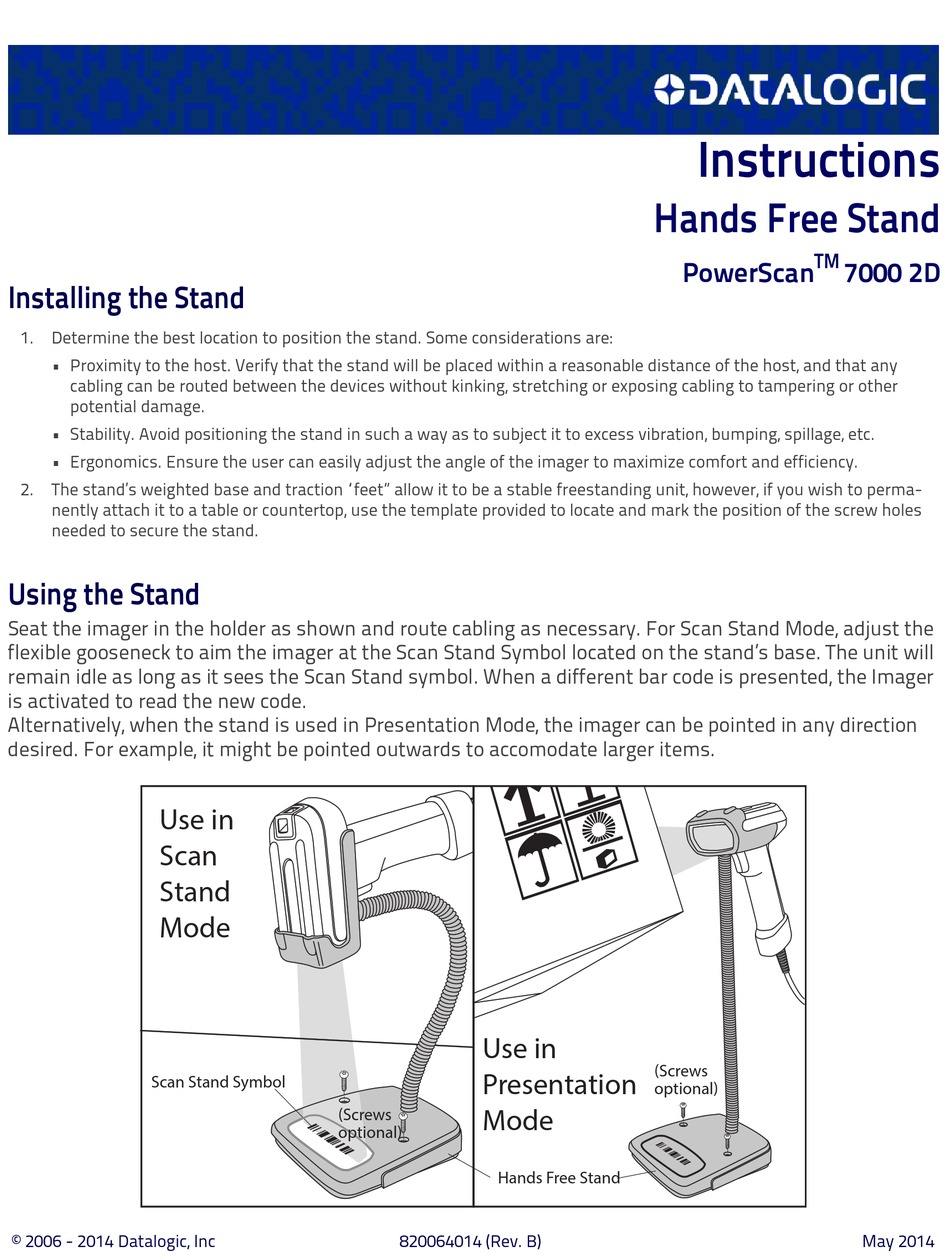

Datalogic PowerScan 7000 2D Instructions

Installing the Stand
1. Determine the best location to position the stand. Some considerations are:
• Proximity to the host. Verify that the stand will be placed within a reasonable distance of the host, and that any
cabling can be routed between the devices without kinking, stretching or exposing cabling to tampering or other
potential damage.
• Stability. Avoid positioning the stand in such a way as to subject it to excess vibration, bumping, spillage, etc.
• Ergonomics. Ensure the user can easily adjust the angle of the imager to maximize comfort and efficiency.
2. The stand's weighted base and traction "feet" allow it to be a stable freestanding unit, however, if you wish to perma-
nently attach it to a table or countertop, use the template provided to locate and mark the position of the screw holes
needed to secure the stand.
Using the Stand
Seat the imager in the holder as shown and route cabling as necessary. For Scan Stand Mode, adjust the
flexible gooseneck to aim the imager at the Scan Stand Symbol located on the stand's base. The unit will
remain idle as long as it sees the Scan Stand symbol. When a different bar code is presented, the Imager
is activated to read the new code.
Alternatively, when the stand is used in Presentation Mode, the imager can be pointed in any direction
desired. For example, it might be pointed outwards to accomodate larger items.
Use in
Scan
Stand
Mode
Scan Stand Symbol
