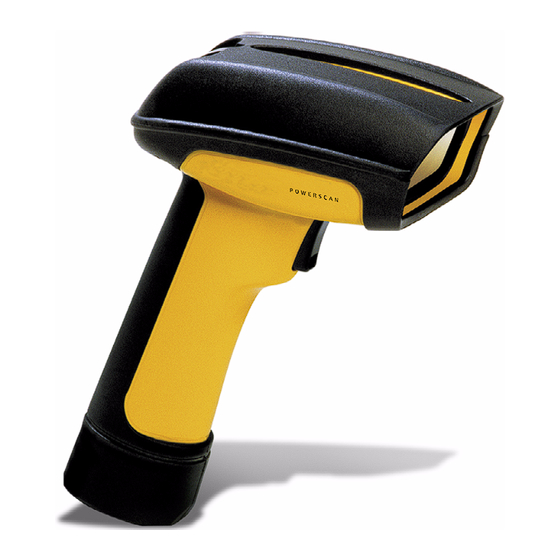

- Page 1 ® PowerScan Handheld Bar Code Scanner Models SR, HD, LR and XLR User’s Guide...
- Page 2 Datalogic reserves the right to change any specification at any time without prior notice. Datalogic is a registered trademark of Datalogic S.p.A. and the Datalogic logo is a trademark of Datalogic S.p.A. all licensed to Datalogic Scanning, Inc. All other trademarks and trade names referred to herein are property of their respective owners.
- Page 3 Datalogic Scanning, Inc. POWERSCAN Notice to End User: The Datalogic Product you have acquired contains embedded Software, which is inte- gral to the product’s operation. This Software is being provided to you under license, subject to the terms and conditions of this Agreement. If you use the Datalogic Product, you will be deemed to have accepted the terms and conditions of this Agreement.
- Page 4 User cooperates fully with Datalogic in such defense or settlement. All notices of a claim should be sent to Datalogic Scanning, Inc., Legal Department, 111 SW Fifth Ave. Suite 4100, Portland, OR 97204-3644. In the defense or settlement of any such claim, Datalogic may, at its option, 1) procure for End User the right...
- Page 5 Notices to Datalogic shall be sent to the attention of Contract Admin- istration, Datalogic Scanning Inc., 959 Terry Street, Eugene, OR 97402, or such other address as may be specified by Datalogic in writing.
-
Page 6: Standard Warranty
Standard Warranty Datalogic warrants to Customer that Datalogic's products will be free from defects in materials and workmanship for a period of three years from product shipment. In order to obtain service under this Warranty, Customer must notify Datalogic of the claimed defect before the expi- ration of the Warranty period and obtain from Datalogic a return authorization number for return of the product to designated Datalogic service center. -
Page 7: Table Of Contents
Table of Contents Unpacking and Inspecting Your Scanner... 3 Installation ... 4 How to Scan... 6 Scanning Range ... 7 Active Symbologies ... 11 Enhanced Scanning for Hard-to-Read Bar Codes ... 11 Test Your Scanner ... 12 Laser Cautions ... 13 Radio Frequency Interference... - Page 8 NOTES ® PowerScan Scanner...
-
Page 9: Unpacking And Inspecting Your Scanner
Unpacking and Inspecting Your Scanner After unpacking your new scanner, check the contents of the ship- ping carton to ensure all the items you ordered are included: ® • PowerScan • Interface Cable • Power Supply (if you ordered one) •... -
Page 10: Installation
Refer to Figure 1 and follow these steps to install the scanner: Consult your host terminal manual to determine if power must be turned off before connecting peripheral devices such as the scanner. Should you need to disconnect the interface (I/F) cable from the scanner, loosen the Phillips head screw at the bottom of the handle and rotate the cable restraint clip away from the cable to release it. - Page 11 Figure 1. Installing the Scanner User’s Guide...
-
Page 12: How To Scan
Figure 2 illustrates some tips to help get the best scanning results: The scanner must be pointed at a slight angle to the bar code. Do not hold the scanner perpendicular to the bar code. The laser beam must cross the entire bar code. The scanner cannot correctly read if the entire bar code is not scanned. -
Page 13: Scanning Range
Scanning Range There are currently four different model types for this scanner. Depending upon the model type of your scanner, you’ll need to hold the unit at a given distance from the bar code to achieve optimum scanning results. The following diagrams provide range of field infor- mation for each of the models when scanning grade A, Code 39 bar codes: Standard Range (SR), High Density (HD), Long Range (LR) and Extra Long Range (XLR). - Page 14 In the context of the illustration below, a "mil" repre- sents the minimum bar code element width. Mea- surements are based on HD models set with the standard 28° scan width (as opposed to the Half Angle setting of 14°). Reference the PowerScan Pro- gramming Manual for more information about the NOTE Half Angle feature.
- Page 15 In the context of the illustration below, a "mil" repre- sents the minimum bar code element width. Mea- surements are based on LR models set with the a 14° scan width (as opposed to the alternate Full Angle setting of 28°). Reference the PowerScan Pro- gramming Manual for more information about the NOTE Half Angle feature.
- Page 16 In the context of the illustration below, a "mil" repre- sents the minimum bar code element width. Mea- surements are based on XLR models set with a 10° scan angle width. NOTE Specifications are subject to change without notice. Figure 6. Depth of Field (XLR) Depth of Field Paper Labels (XLR decoded model, Code 39) 15 mil...
-
Page 17: Active Symbologies
Active Symbologies The active (enabled) bar code symbologies in the factory defaults are: • Code 39 (C39) • Code 128 (C128) • Interleaved 2 of 5 (I 2 of 5) Your scanner should be pre-programmed with these standard factory default settings, unless..it was shipped to you programmed with unique, customer con- figuration settings. -
Page 18: Test Your Scanner
The bar code below (Figure 7) is provided to test your scanner’s abil- ity to read a typical Code 39 label. Figure 7. Code 39 Bar Code Sample Figure 8 above shows label placement ONLY. For actual regulatory, patent and other applicable infor- mation, view the labels on the product itself, or call your nearest sales or service representative. -
Page 19: Laser Cautions
The PowerScan bar code scanner is certified in the U.S. to conform to the requirements of DHHS/CDRH 21CFR Subchapter J for Class II laser products (SR and LR) and Class IIIa (XLR). Class II and IIIa products are not considered to be hazardous. The scanner contains a Visible Laser Diode (VLD) at a wavelength of 650-670 nanometers and is designed so that there can be no human access to harmful levels of laser light during normal operation, user maintenance, or during pre-... -
Page 20: Troubleshooting
You can isolate problems with your scanning system by performing these checks (refer to Figure 9): If your scanner’s cable is designed to receive Power Off the Terminal (P.O.T.), it will not operate unless it is connected to a working host terminal that is powered on. Ensure that the interface cable is securely attached to the host. - Page 21 Figure 9. Troubleshooting the Scanner O F F O FF User’s Guide...
- Page 22 NOTES ® PowerScan Scanner...
-
Page 23: Declaration Of Conformity
EN60950:2000 - ITE Safety EN60825-1/A2:2001 - Laser Safety Handheld Barcode Scanning Equipment PowerScan Family (Std, HD, LR, and XLR) April 2007 under the Datalogic Trademark. Feb. 1998 under the PSC Trade- mark. Datalogic Scanning, Inc. 959 Terry St. Eugene, OR USA... - Page 24 Datalogic Scanning, Inc Miami, Florida, USA Telephone: (305) 591-3222 Fax: (305) 591-3007 Spain and Portugal Datalogic Scanning Sarl Sucursal en España Madrid, Spain Telephone: 34 91 746 28 60 Fax: 34 91 742 35 33 United Kingdom Datalogic Scanning LTD...
