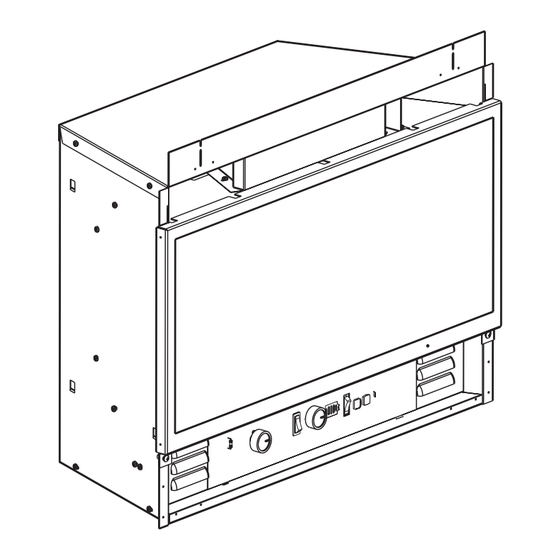

Electric
Fireplace
Model
HE32EF
Installation Instructions & Homeowner's Manual
WARNING! IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY,
AN ELECTRICAL SHOCK OR FIRE MAY RESULT CAUSING PROPERTY DAMAGE,
PERSONAL INJURY OR LOSS OF LIFE.
FOR YOUR SAFETY
DO NOT STORE OR USE GASOLINE OR OTHER
FLAMMABLE VAPOURS OR LIQUIDS IN THE VICINITY
C
US
OF THIS OR ANY OTHER APPLIANCE.
™
The Vermont Castings
Majestic Products Company
410 Admiral Blvd. • Mississauga, Ontario • Canada L5T 2N6
www.vermontcastings.com • www.majesticproducts.com
INSTALLER: DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER
10003395
07/01 Rev.0
- 1 -
Advertisement
Table of Contents
Related Manuals for Majestic Vermont Castings HE32EF
Summary of Contents for Majestic Vermont Castings HE32EF
-
Page 1: For Your Safety
Electric Fireplace Model HE32EF Installation Instructions & Homeowner's Manual WARNING! IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, AN ELECTRICAL SHOCK OR FIRE MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. FOR YOUR SAFETY DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPOURS OR LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. -
Page 2: Table Of Contents
Please read the Installation & Operating Instructions before using this appliance. Thank you and congratulations on your purchase of a Vermont Castings Majestic Products Company fireplace. IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible electric shock, fire hazard and/or injury and will void the warranty. -
Page 3: Installation Instructions
INSTALLATION INSTRUCTIONS GENERAL 1 . Read all instructions before using this appliance. 2. This appliance is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this appliance. Keep combus- tible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet (1m) from the front of this appliance. -
Page 4: Fireplace Dimensions
FIREPLACE DIMENSIONS HE32EF Fig. 1 5/8" 676 mm 3/8" 975 mm 29" 737 mm 1= SS or SSD Trim 15/16" 1065 mm 2= SL or SLD Trim 33" 838 mm 3= SXL Trim 44" 1118 mm 4= BSL Trim 28"... -
Page 5: Mantels
MANTELS When the fireplace is being installed into a woodburning fireplace the minimum the mantel can be above the fire- place is governed by local building codes applicable to woodburning fireplaces. Consult local authorities having jurisdiction for these clearances. The underside of the mantel will get quite warm. -
Page 6: Electrical Connection
2. Remove front glass (See "Glass Removal" section). 3. The log bottom is shipped in place. No adjustment is necessary. HE32EF / DEF33 * * HE32EF / DEF33 is a unitized log set. Immediately call a CERAMIC REFRACTORY INSTALLATION 1. Remove the glass assembly. -
Page 7: Service Instructions
Disconnect power before attempting any maintenance or cleaning to reduce the risk of fire, electrical shock or personal injury. LOUVRE REMOVAL To remove top louvre pull louvre up and then lift out. See Figure 5. GLASS FRAME REMOVAL 1. Remove the top louvre. (See "Louvre Removal" section) 2. -
Page 8: Maintenance Of Motors
MAINTENANCE OF MOTORS The motors used on the fan and the drum assembly are prelubricated for extended bearing life and require no further lubrication. However, periodic cleaning/vacuuming of the fan/heater is recommended. Make sure that the power is turned off before proceeding. -
Page 9: Operating Instructions
OPERATING INSTRUCTIONS The control compartment is located behind the lower louvre panel. To access the controls, simply flip down the lower louvre panel. To locate the position of each control de- scribed below, refer to Fig. 7. 1. MAIN ON/OFF SWITCH The On/Off switch supplies power to all of the functions of the fireplace. -
Page 10: Replacement Parts Pictorial
REPLACEMENT PARTS - ELECTRIC FIREPLACE 4 / 5 216mm [8 1/2"] (DISTANCE BETWEEN TWO SOCKETS) 216mm [8 1/2"] (DISTANCE BETWEEN TWO SOCKETS} 305mm [12"] #1 COMPLETE LOG SET HE32EF #2 COMPLETE LOG SET - 10 -... -
Page 11: Replacement Parts List
Flame Generator Assembly Facia Control Assembly Breaker Circuit Manual Reset Cord Power 16 / 3 HPN w/Terminals Receptacle .093" Pin & Socket Plug .093" Pin & Socket Socket Light Bulb Lower Assy HE32EF 10003628 10001815 10001978 53606 10001393 10001971 10001168... -
Page 12: Fan Heater Installation
FAN HEATER INSTALLATION INSTALLATION WARNING: UNPLUG OR TURN THE POWER TO THE APPLIANCE OFF PRIOR TO BEGIN- NING THE INSTALLATION. IT IS NOT ACCEPTABLE TO USE THE “ON/OFF” SWITCH TO MEET THIS REQUIREMENT. 1. Turn the power to the appliance off, or unplug it from the power supply. 2. -
Page 13: Trim Options
TRIM OPTIONS FOR HE32EF 1) RHESS, RHESL, RHESSD, RHESLD & RHESXL TRIMS FRAME ASSEMBLY RHESS, RHESL, RHESSD, RHESLD and RHESXL 1. Lay Trim Top Facing and Trim Side Facings, face down on to an even surface such as a table or floor. Be sure not to scratch the painted surfaces. - Page 14 FRAME MOUNTING GENERAL INFORMATION The Decorative Front Frame should be installed last after all other work, has been completed and thoroughly checked and tested for operation and proper installation requirements. 1. Fit Decorative Frame to the fireplace and fasten (Fig. 12) AS SHOWN FROM FRONT Plastic on the trim must be removed before mounting onto the fireplace.
-
Page 15: Beveled Surround
TRIM REPLACEMENT PARTS LIST ALL repair parts will be available from your local dealer. When ordering, always give the following information: Model and serial number, part description with finish and part number; KEY DESCRIPTION Trim Frame Top, Flat Black Trim Frame Left, Flat Black Trim Frame Right, Flat Black Trim Top Deflector Trim Top Channel... -
Page 16: Louvre Kits
2) RHEBSL & RHEBXL TRIMS TRIM ASSEMBLY RHEBSL 1. Install trim channels (left and right sides). Use two screws to assemble each piece. 2. Slide on the trim top channel and fasten it from the back side. 3. Install the trim top deflector and use two screws to fasten it. - Page 17 3) RHEFA and RHEFP TRIMS TRIM ASSEMBLY 1. Remove the front glass (see "Glass Frame Re- moval" section). 2. Install support window trim channel, top and bottom brass trim by using the shortest black screw. (Fig. 14 & 15). TRIM-TOP GLASS FRAME TRIM-BOTTOM Louvre...
-
Page 18: Bay Window Trim
4) HEBTKP, HESBTKP, HECBTK, HECBTKMB & HEBTA TRIMS HECBTK Cast bay window and grills in classic black trim kit HECBKMB Cast bay window and grills in midnight black porcelain enamel trim kit HESBTKP Steel bay window with polished brass and cast grills in classic black trim kit HEBTKP Steel bay window and bay louvres with polished brass trim kit Install the bay window after all other installation work has been completed, thoroughly checked, and tested for operation, leaks... - Page 19 HEBTKP Trim Assembly 1) Install the hanging brackets, as per Fig. 20 2) Install bracket on each side of the cabinet as per Fig. 24. 3) Install the two ceramic pieces inside the bay window, as per Fig. 19. 4) Install the bay window by hanging it onto the lower tabs of the hanging brackets, as per Fig. 21. 5) Install top louvre by engaging the obround holes with the upper tabs of the hanging brackets, as per Fig.
- Page 20 TRIM REPLACEMENT PARTS LIST ALL repair parts will be available from your local dealer. When ordering, always give the following information: Model and serial number, part description with finish and part number; HEBTKP KEY DESCRIPTION Trim Window Top/Bottom Plate Decorative Bottom Top Louvre (Grill) Assembly Bottom Louvre (Grill) Assembly Control Door...
-
Page 21: Cast Trim
CAST SURROUND AND FLAT FACE HECBL Cast Surround Black HECBLUE Cast Surround Blue HECCG Cast Surround Charcoal Grey HECGR Cast Surround Green CSSP Polished Brass Small Trim for Cast Surround CSLP Polished Brass Large Trim for Cast Surround (to be used with CSSP) DESCRIPTION •...
