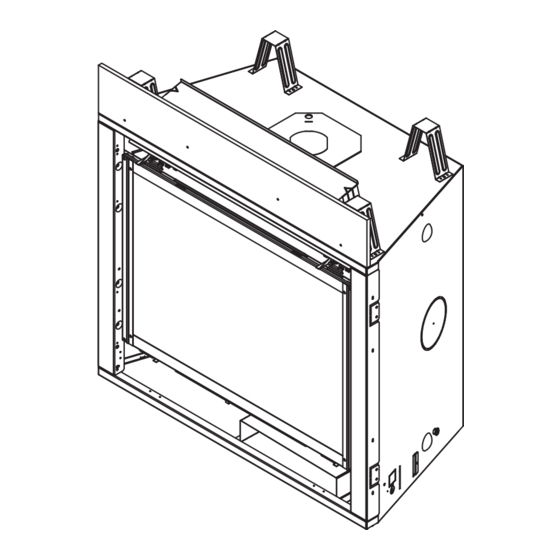

Majestic DBDV36PLATIL Installation Manual

Hide thumbs Also See for DBDV36PLATIL:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
NOTICE: DO NOT discard this manual!
MERIDIAN
PLATINUM
SERIES
Models:
Models:
DBDV36PLATIN
DBDV36PLATIL
DBDV42PLATIN
DBDV42PLATIL
This appliance may be installed as an OEM
installation in manufactured home (USA
only) or mobile home and must be installed
in accordance with the manufacturer's
instructions and the Manufactured Home
Construction and Safety Standard, Title 24
CFR, Part 3280 in the United States, or the
Standard for Installation in Mobile Homes,
CAN/CSA Z240 MH Series, in Canada.
This appliance is only for use with the type(s)
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certifi ed kit is used.
In the Commonwealth of Massachusetts installation must be
performed by a licensed plumber or gas fi tter.
See Table of Contents for location of additional Commonwealth
of Massachusetts requirements.
Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16
Installation Manual
Installation and Appliance Setup
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
• DO NOT store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from
a neighbor's phone. Follow the gas sup-
plier's instructions.
- If you cannot reach your gas supplier, call
the fi re department.
• Installation and service must be performed
by a qualifi ed installer, service agency, or the
gas supplier.
DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and shall be installed for
the protection of children and other at-risk
individuals.
HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
1

Advertisement

Table of Contents
loading

Related Manuals for Majestic DBDV36PLATIL

Summary of Contents for Majestic DBDV36PLATIL

  • Page 1 In the Commonwealth of Massachusetts installation must be performed by a licensed plumber or gas fi tter. See Table of Contents for location of additional Commonwealth of Massachusetts requirements. Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 2: Table Of Contents

    B. Securing and Leveling the Appliance ....37 C. Non-Combustible Material Installation ....37  = Contains updated information. Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 3: Installation Standard Work Checklist

    _____________________________________________________________________________________ _________________________________________________________________________________________________ _________________________________________________________________________________________________ Comments Communicated to party responsible ____________________ by ______________________on ___________ (Builder / Gen. Contractor/) (Installer) (Date) = Contains updated information. 2454-982 5/16 Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 4: Product Specifi C And Important Safety Information

    • A 110-120 VAC circuit for this product must be pro- tected with ground-fault circuit-interrupter protection, in compliance with the applicable electrical codes, when it is installed in locations such as in bathrooms or near sinks. Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 5: Requirements For The Commonwealth Of Massachusetts

    VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OB- of the installation. STRUCTIONS”. See Gas Connection section for additional Common- wealth of Massachusetts requirements. Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 6: Getting Started

    Flat blade screwdriver 1/2 - 3/4 in. length, #6 or #8 Self-drilling screws Caulking material (300ºF minimum continuous exposure rating) One 1/4 in. female connection (for optional fan). Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 7: Inspect Appliance And Components

    Call a qualifi ed service technician to inspect the appliance and to replace any part of the control system and/or gas control which has been under water. Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 8: Framing And Clearances

    34-5/8 36-5/8 2-7/8 2-7/8 2-1/4 2-3/8 8-1/2 8-1/2 26-7/8 28-7/8 40-7/8 1038 42-7/8 1089 39-7/8 1013 41-7/8 1064 21-9/16 23-5/8 11-11/16 11-11/16 Figure 3.1 Appliance Dimensions Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 9 Refer to Section 10 for fi nishing details. 28-5/8 22-3/16 37-1/16 1-3/4 6-1/2 32-3/8 34-1/8 CRD36 DBDV36PLATIN/IL 35-11/16 25-1/8 44-1/16 1-5/8 6-3/8 34-3/8 CRD42 DBDV42PLATIN/IL 1119 Figure 3.2 Decorative Front Dimensions Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 10: Clearances To Combustibles

    See Section 10.B. DBDV36PLATIN/IL Mantel Projections 1295 1067 1829 1438 55-7/8 61-1/2 19-3/4 See Section 10.B DBDV42PLATIN/IL Mantel Projections 1419 1245 2007 1562 Figure 3.3 Appliance Locations Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 11 * Adjust framing dimensions for interior sheathing (such as sheetrock) C** Add 12 inches for rear venting with one 90º elbow. Figure 3.4 Clearances to Combustibles Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 12: Constructing The Appliance Chase

    fi replace or chimney. • Failure to maintain airspace may cause overheating and a fi re. Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 13: Termination Location And Vent Information

    Over 20/12 to 21/12 ..........8.0 * H minimum may vary depending on regional snowfall. Refer to local codes. Figure 4.1 Minimum Height From Roof to Lowest Discharge Opening Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 14: Chimney Diagram

    Figure 4.3 Minimum Clearances for Termination • Vinyl protection kits are suggested for use with vinyl siding. Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 15: Approved Pipe

    WARNING! Risk of Fire or Asphyxiation. This appli- ance requires a separate vent. DO NOT vent to a pipe serving a separate solid fuel burning appliance. Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 16: Use Of Elbows

    8-1/2 DVP24 DVP36 25-1/2 DVP48 1219 DVP6A 3 to 6 76 to 152 2-1/8-4-1/4 54-108 DVP12A 3 to 12 76 to 305 2-1/8-8-1/2 54-216 Figure 4.4 Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 17: Measuring Standards

    (OUTSIDE MOUNTING SURFACE) Figure 4.6 Measure to Outside Mounting Surface 1/4 in. max. (6 mm) Figure 4.8 Figure 4.7. Measure to Top of Last Section of Pipe Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 18 40 ft (12.19 m) max. 3 ft (914 mm) min. 40 ft (12.19 m) max. 2 ft. SLP (305 mm) 4 ft. SLP DVP-SLP24 Adapter DVP-2SL Figure 4.9 DVP-SLP24 Adapter Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 19 = 40 ft. (12.2 m) Maximum = 40 ft. (12.2 m) Maximum = 20 ft. (6.1 m) Maximum = 20 ft. (6.1 m) Maximum Figure 4.10 Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 20 = 40 ft. (12.2 m) Maximum = 1 ft. (305 mm) Minimum = 20 ft. (6.0 m) Maximum = 1 ft. (305 mm) Minimum Figure 4.11 Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 21 16 ft * 4.9 m* 3 ft. 914 mm 14 ft.* 4.3 m* = 20 ft. (6.1 m) Maximum = 40 ft. (12.2 m) Maximum Figure 4.12 Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 22 = 3 ft. Min. (914 mm) Note: If installing a vertical vent/ termination off the top of the ap- pliance, the fl ue restrictor should be used. Figure 4.13 Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 23 Example: Top vent NG 40 ft vertical with DVP pipe = 3-3 Top vent 40 ft NG vertical with SLP pipe = 2-2 Figure 4.15 Setting the Flue Restrictor Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 24 20 ft. 6.1 m = 40 ft. (12.2 m) Maximum *No specifi c restrictions on this value EXCEPT cannot exceed 40 ft (12.2 m) Figure 4.16 Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 25 = 20 ft. (6.1 m) Maximum = 40 ft. (12.2 m) Maximum *No specifi c restrictions on this value EXCEPT V cannot exceed 40 ft (12.2 m). INSTALLED HORIZONTALLY Figure 4.17 Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 26 Rear Vent - Horizontal Termination = 16 in. (406 mm) Maximum No Elbow Figure 4.18 Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 27 3.7 m 15 ft. 4.6 m = 40 ft. (12.2 m) Maximum = 3 ft. (914 mm) Maximum = 20 ft. (6.1 m) Maximum Figure 4.20 Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 28 3.7 m 8 ft. 2.4 m 15 ft. 4.6 m = 40 ft. (12.2 m) Maximum = 15 ft. (4.6 m) Maximum INSTALLED HORIZONTALLY Figure 4.22 Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 29 = 40 ft. (12.2 m) Maximum *No specifi c restrictions on this value EXCEPT cannot exceed 40 ft. (12.2 m) Maximum = 8 ft. (2.4 m) Maximum INSTALLED HORIZONTALLY Figure 4.24 Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 30 DV-46DVA-GCL adapter and LINK-DV30B Exhaust Vent Pipe 5 IN. kit. This may result in poor fl ame appearance, sooting, pilot malfunction, or overheating. Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 31 3.05 m 0 ft. 0 mm Minimum 10 ft. 3.05 m Maximum 40 ft. 12.2 m 2 ft. 610 mm Maximum 40 ft. 12.2 m Figure 4.27 Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 32: Vent Clearances And Framing

    Top: 2-1/2 in. (64 mm) Bottom: 1/2 in. (13 mm) Sides: 1 in. (25 mm) Figure 5.1 Horizontal Venting Clearances To Combustible Materials Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 33: Wall Penetration Framing/Firestops

    * Shows center of vent framing hole for top or rear venting. The center of the hole is one (1) in. (25.4 mm) above the center of the horizontal vent pipe. Figure 5.3 Wall Penetration Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 34: Ceiling Firestop/Floor Penetration Framing

    INSTALL ATTIC INSULATION SHIELDS BEFORE OR AFTER INSTALLATION OF VENT SYSTEM CEILING FIRESTOP CEILING FIRESTOP INSTALLED BELOW CEILING INSTALLED ABOVE CEILING Figure 5.5 Installing the Attic Shield Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 35: Appliance Preparation

    For rear venting there is no insulation in the outer vent pipe. Figure 6.3 (Generic Fireplace Shown) Remove the seal cap. Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 36 Figure 6.7 (Generic Fireplace Shown) Cut the metal retaining band and fold the sides out. Figure 6.9 (Generic Fireplace Shown) Discard the vent cap, remove and discard the insulation basket. Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 37: Securing And Leveling The Appliance

    • Optional: Secure the appliance to the fl oor by inserting two screws through the pilot holes at the bottom of the appliance. Figure 6.13 Non-combustible Board Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 38: Venting And Chimneys

    If predrilling holes, DO NOT penetrate inner pipe. Figure 7.4 Seams INCORRECT For 90º and 45º elbows that are changing the vent direction Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 39: Assemble Slip Sections

    “Assembling Pipe Sections.” NOTICE: If slip section is too long, the inner and outer fl ues of the slip section can be cut to the desired length. Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 40: Secure The Vent Sections

    DO NOT allow vent to sag below Figure 7.10 Rotate Seams for Disassembly connection point to appliance. 120º Figure 7.11 Align and Disassemble Vent Sections Figure 7.8 Securing Vertical Pipe Sections Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 41: Vertical Termination Requirements

    • Caulk the perimeter of the fl ashing where it contacts the roof surface. See Figure 7.13. • Caulk the overlap seam of any exposed pipe sections that are located above the roof line. Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 42: Horizontal Termination Requirements

    Figure 7.15 Figure 7.15 Important Notice: Heat shields may not be fi eld constructed. Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 43 DVP-TRAP1 can adjust 1-1/2 in. (3-1/8 to 4-5/8 in.) DVP-TRAP2 can adjust 4 in. (5-3/8 to 9-3/8) DVP-HPC1 can adjust 2-1/8 in. (4-1/4 to 6-3/8) DVP-HPC2 can adjust 4-1/8 in. (6-3/8 to 10-1/2) Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 44: Electrical Information

    Verify proper operation after servicing. WARNING! Risk of Shock! Replace damaged wire with type 105º C rated wire. Wire must have high temperature insulation. Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 45: Wiring Requirements

    RC100 RC200 RC300 (OPTIONAL WIRELESS REMOTE CONTROLS) FLAME MODULATION BATTERY PACK 6V DC THERMOSTAT WIRE ASSEMBLY / WALL SWITCH WIRE Figure 8.2 IPI Plus Wiring Diagram Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 46 Figure 8.3. Junction Box Wired to Wall Switch (1/4 in. male) as shown. Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 47: Gas Information

    4500 feet (1370 m). • If substituting for these components, please consult local codes for compliance. Check with your local gas utility to determine proper orifi ce size. Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 48: Air Shutter Setting

    Maximum vent run consists of “H Maximum” on Figure 4.18. Note: All vent runs may need to be evaluated for ideal shutter settings. Shutter distances may vary due to vent run, fuel quality, and elevation. Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 49: Finishing

    FACTORY-INSTALLED NON-COMBUSTIBLE BOARD DO NOT REMOVE inches 40-7/8 DBDV36PLATIN/IL millimeters 1038 1041 inches 42-7/8 DBDV42PLATIN/IL millimeters 1089 1219 Figure 10.1 Noncombustible Facing Diagram Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 50: Mantel And Wall Projections

    Figure 10.5 Non-Combustible Mantel Leg or Wall Projections = 35-1/2 IN. (DBDV42PLATIN/IL) (Acceptable on both sides of opening) Figure 10.3 Minimum Vertical and Maximum Horizontal Dimensions of Non-Combustibles Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 51: Decorative Front Dimensions For Finishing

    FINISHING STRIP NOT USED (See Figure 10.9 for removal instructions) NON-COMBUSTIBLE FINISHING MATERIAL 1 IN. MAX. Figure 10.6 Overlap Fit Decorative Front - Finish Material 0-1 Inch Thick Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 52 Finishing material thickness, 1-4 inches maximum B = Bottom of Finishing Material to Bottom of Fireplace Figure 10.7 Inside Fit Decorative Front - Finish Material 1-4 Inches Thick Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 53: Elevated Hearth Systems

    Note 1. Add dimensions to Wall Penetration (Figure 5.3) and Rough Opening Height (Figure 3.4). Note 2. Verify Marble Cut Lengths on site prior to cutting. Note 3. Dimensions assume use of a 3/4 in. Hearth Pad. Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 54: Appliance Setup

    GRATE TINE PARALLEL WITH BURNER GRATE TINE PARALLEL WITH BURNER LATCHES (BOTH BOTTOM AND TOP) GLASS ASSEMBLY Figure 11.1 Fixed Glass Assembly Figure 11.2 Grate Tine Parallel to Burner Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 55: Clean The Appliance

    Failure to follow this procedure will likely cause lighting and sooting problems. = LAVA ROCK = EMBERS = NO EMBERS IN THIS AREA Figure 11.3 Placement of Embers Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 56: Install The Log Assembly

    PIN 2 LOG E LOG B PIN 1 LOG A LOG H LOG C Figure 4. LOGSDBDV36PLAT Log Pin Locations Figure 3. LOGSDBDV36PLAT Log Set Assembled Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 57 NOTCH FOR LOG C NOTCH FOR LOG C Figure 8. Log D Installed LOG CONTACTS LOG CONTACTS LEFT GRATE TINE LEFT GRATE TINE Figure 6. Log B Installed Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 58 Figure 10. Log F Installed Figure 12. Log H Installed Note: See section 11.E of appliance installation manual for details on placement of lava rock and embers. Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 59 LOG F PIN 1 LOG A LOG C1 PIN 2 LOG H LOG D Figure 4. LOGSDBDVPLAT42 Log Pin Locations Figure 3. LOGSDBDVPLAT42 Log Set Assembled Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 60 NOTCH FOR LOG D LOG PIN LOG PIN LOG CONTACTS GRATE TINE LOG CONTACTS GRATE TINE Figure 8. Log D Installed Figure 6. Log B Installed Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 61 LOG CONTACTS LOG PIN LOG CONTACTS LOG PIN Figure 10. Log E Installed NOTCH ON HORIZONTAL GRATE TINE NOTCH ON HORIZONTAL GRATE TINE Figure 12. Log C2 Installed Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 62 NEARLY EQUAL SPACES Figure 14. Log E2 Installed Note: See section 11.E of appliance installation manual for details on placement of lava rock and embers. 2454-935B Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 63: Reference Materials

    6 in. (152 mm) 14 IN. (356 MM) 12 IN. (305 MM) DVP-WS (Wall Shield Firestop) DVP-RDS ROOF DECK INSULATION SHIELD Figure 12.1 DVP Vent Components Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 64 117 mm Length DVP-TRAP 5-3/8 in. 9-3/8 in. Trap2 Horizontal Termination Cap 137 mm 238 mm DVP-TRAP2 DVP-TRAP1 DVP-TRAPK2 DVP-TRAPK1 DVP-HPC1 DVP-HPC2 Figure 12.2 DVP Vent Components Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 65 9-1/2 in. (352 mm) (241 mm) 26 in. 660 mm 14 in. (356 mm) DVP-HSM-B DRC-RADIUS Extended Heat Shield Cap Shield Figure 12.3 DVP Vent Components Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 66 High Performance Cap 3/8 in. (10 mm) 1 in. (25 mm) 7-3/4 to 10-3/8 in. (197 to 264 mm) DVP-FBHT FireBrickTermination Cap Figure 12.4 DVP Vent Components Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 67 13-5/8 IN. 16-11/16 IN. 16-11/16 IN. (346 mm) 424 mm (424 mm) SLP-LPC 12-1/2 IN. SLP Low Profi le Cap (318 mm) Figure 12.5 DVP Vent Components Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 68 100 FT PV Wire Harness PVI-WH100 separately. Use if the PVLP-SLP is installed in a high traffi c area. PVLP-HS PVLP-BEK Heat Shield Brick Kit Figure 12.6 PVLP-SLP Vent Components Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 69 1-1/2 in. 12 in. 5-1/2 in. 220 mm 38 mm 305 mm 146 mm SLP-WS SLP-FS Wall Shield Firestop Ceiling Firestop Figure 12.7 SLP Series Vent Components Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 70 14-7/16 in. 59 mm 13-1/2 in. 4-3/4 in. 367 mm 343 mm 121 mm SLP-WT-BK SLK-SNKD Wall Thimble-Black Snorkel Termination Cap Figure 12.8 SLP Series Vent Components Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 71 7-3/4 to 10-3/8 in. 10-5/8 IN. (197 to 264 mm) (321 mm) (270 mm) SLP-RDS DVP-FBHT ROOF DECK INSULATION SHIELD FireBrickTermination Cap Figure 12.9 SLP Series Vent Components Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
  • Page 72 COAXIAL to COLINEAR VENTING LINK-DV30B 768-380A DV-46DVA-GCL Flex Liner Kit Stainless Steel Flex Pipe Coaxial/Colinear Appliance Connector DVP-2SL Adapter Figure 12.11 Coaxial to Colinear Vent Components Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...

  • Page 73: Accessories

    Please contact your Majestic dealer with any questions or concerns. For the location of your nearest Majestic dealer, please visit www.majesticproducts.com. Printed in U.S.A. - Copyright 2016 Majestic • DBDV36PLATIN, DBDV36PLATIL, DBDV42PLATIN, DBDV42PLATIL Installation Manual • 2454-980 Rev. B • 5/16...
