Mounting the ENH1750EXT

Using the provided hardware, the ENH1750EXT can be
attached to a wall or a pole.

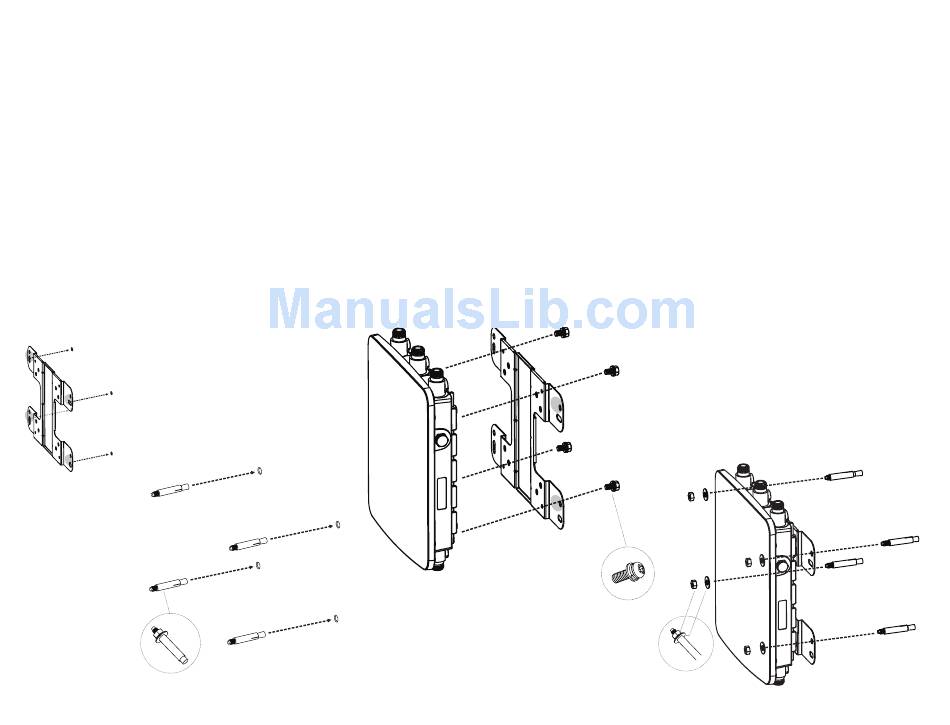

To attach the ENH1750EXT to a wall using wall
mounting kit:
1. Mark the four locations of the mounting holes on the
flat mounting surface.
2. Drill a 37 mm deep 8 mm hole in the markings and
hammer the bolts into the openings.
1.
2.
3. Place the lock and flat washers on the four hex cap screws
and drive the screws to attach the bracket to the back of
the Access Point.
4. Tighten the flat washers to secure the bracket to the
mounting surface.
3.
16
4.
