Summary of Contents for EnGenius ENH1750EXT

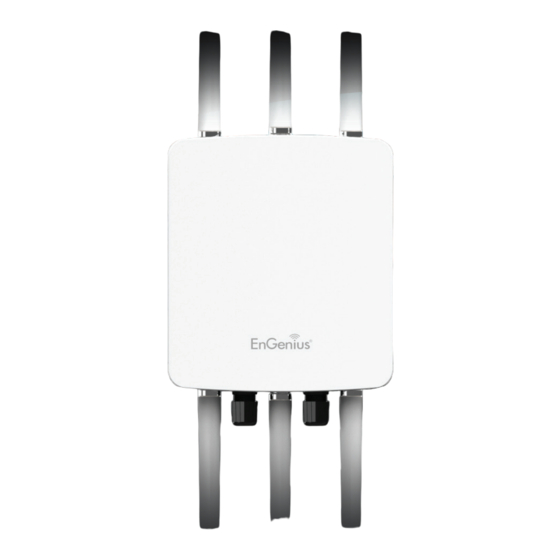

- Page 1 Business Solutions User Manual ENH1750EXT version 1.0 Dual Band Long Range Wireless AC1750 Outdoor Access Point...
- Page 2 IMPORTANT To install this Access Point please refer to the Quick Installation Guide included in the product packaging.
-
Page 3: Table Of Contents
Chapter 2 Before You Begin..........11 2.4 GHz Mesh Link Settings/Mesh Settings......48 Computer Settings............... 12 Guest Network Settings/Fast Handover....... 49 Hardware Installation..............15 Mounting the ENH1750EXT............16 Chapter 8 Management ............50 Management VLAN Settings..........51 Chapter 3 Configuring Your Access Point......18 Advanced Settings............... 52 Default Settings/Web Configuration........ 19 CLI Settings/Email Alerts............. -
Page 4: Chapter 1 Product Overview
Chapter 1 Product Overview... -
Page 5: Key Features/Introduction
Features and specifications subject to change without notice. Trademarks and registered trademarks are the property of their respective owners. For United States of America: Copyright © 2014 EnGenius Technologies, Inc. All rights reserved. -
Page 6: System Requirements
• Computer with an Ethernet interface or wireless network capability The ENH1750EXT is easy to install in virtually any location • Windows OS (XP, Vista, 7), Mac OS, or Linux-based operating systems with its included PoE (Power over Ethernet) injector for •... -
Page 7: Package Contents
Package Contents The ENH1750EXT package contains the following items:* • ENH1750EXT Access Point • 3 detachable 5 dBi 2.4 GHz omni-directional antennas • 3 detachable 7 dBi 5 GHz omni-directional antennas • Power Adapter (48V/0.8A) • PoE Injector (EPE-48GR) • Grounding Cable • Pole Mount Bracket •... -
Page 8: Technical Specifications
Technical Specifications WDS Detail Standard: WDS AP IEEE802.11ac/a/n on 5 GHz WDS Bridge IEEE802.11b/g/n on 2.4 GHz WDS Station IEEE802.3at Antenna Mesh Detail 6 External N-type Antennas Mesh AP Mesh Only (2.4 GHz) 3 x detachable 5 dBi 2.4 GHz omni-directional antennas 3 x detachable 7 dBi 5 GHz omni-directional antennas Management Auto Channel Selection Physical Interface... - Page 9 Control Physical/Environment Conditions CLI Supported Operating: Distance Control (Ack Timeout) Temperature: -4 °F to 158 °F (-20 °C to 70 °C) 802.1X Supplicant (CB Mode) Humidity (non-condensing): 90% or less Multicast Supported Storage: Auto Reboot Temperature: -22 °F to 176 °F (-30 °C to 80 °C) Humidity (non-condensing): 90% or less Security WEP Encryption - 64/128/152 bit WPA/WPA2 Personal (WPA-PSK using TKIP or AES) WPA/WPA2 Enterprise (WPA-PSK using TKIP or AES) Hides SSID in beacons MAC address filtering, up to 50 MACs Wireless STA (Client) connection list Https Support...
-
Page 10: Physical Interface
4 LAN Port 2 (802.3af PSE Output): Ethernet port for RJ-45 cable. 5 LED Indicators: LED lights for Power, LAN Port 1, LAN Port 2, 2.4 GHz Connection and 5 GHz Connection. 6 Ground 7 Mounting Holes: Using the provided hardware, the ENH1750EXT can be attached to a wall or pole. -
Page 11: Chapter 2 Before You Begin
Chapter 2 Before You Begin... -
Page 12: Computer Settings
Computer Settings Windows XP/Windows 7 2b. In Windows 7, click View Network Status and Tasks in In order to use the ENH1750EXT, you must first configure the TCP/IPv4 connection of your Windows OS computer the Network and Internet section, then select Change system. adapter settings. 1. Click the Start button and open the Control Panel. - Page 13 ENH1750EXTand Subnet mask, then click OK. Note: Ensure that the IP address and Subnet mask are on the same subnet as the device. For example: ENH1750EXT IP address: 192.168.1.1 PC I P a ddress: 1 92.168.1.2 – 1 92.168.1.255 PC Subnet mask: 255.255.255.0...
- Page 14 5. Enter an IP address that is different from the Applications folder or selecting it in the Apple Menu). ENH1750EXT and Subnet mask then press OK. 2. Select Network in the Internet & Network section. Note: Ensure that the IP address and Subnet mask are on the same subnet as the device.
-
Page 15: Hardware Installation
Ensure that the 2.4 GHz/5 GHz WLAN light is on (it will Ethernet be green for both 5 GHz and 2.4 GHz). Computer c) Ensure that the LAN (Computer/ENH1750EXT Power Connection) light is on (it will be green). Outlet d) Once all three lights are on, proceed to set up the Note: The Access Point supports both IEEE 802.3at PoE... -
Page 16: Mounting The Enh1750Ext
Mounting the ENH1750EXT Using the provided hardware, the ENH1750EXT can be attached to a wall or a pole. To attach the ENH1750EXT to a wall using wall 3. Place the lock and flat washers on the four hex cap screws mounting kit: and drive the screws to attach the bracket to the back of the Access Point. - Page 17 To attach the ENH1750EXT to a pole using the provided pole mounting kit: 1. Place the lock and flat washers on the four hex cap screws 3. Thread the open end of the Pole Strap through the two and drive the screws to attach the bracket to the back of tabs on the Pole Mount Bracket .
-
Page 18: Chapter 3 Configuring Your Access Point
Chapter 3 Configuring Your Access Point... -
Page 19: Default Settings/Web Configuration
3. If successful, you will be logged in and see the Chrome) and enter the IP Address http://192.168.1.1. ENH1750EXT User Menu. Note: If you have changed the default LAN IP Address of the Access Point, ensure you enter the correct IP Address. -
Page 20: Chapter 4 Building A Wireless Network
Chapter 4 Building a Wireless Network... -
Page 21: Access Point Mode
The ENH1750EXT has the ability to operate in various modes. This chapter describes the operating modes of the ENH1750EXT. Access Point Mode In Access Point Mode, ENH1750EXT behaves likes a central connection for stations or clients that support IEEE 802.11ac/a/b/ g/n networks. The stations and clients must be configured to use the same SSID (Service Set Identifier) and security password to associate with the ENH1750EXT. The ENH1750EXT supports up to eight (8) SSIDs per band at the same time for secure access. ENH1750EXT Access Point Client Client 2.4 GHz 5 GHz Client Client Client Client... - Page 22 The ENH1750EXT can be used as a centralized Outdoor Access Point with which other EnGenius Wireless N 2.4 or 5 GHz Outdoor Client Bridges can associate; leveraging the long-range capability of their internal high-gain directional antennas, resulting in a very cost-effective solution to expand a company network over a multiple building campus.
-
Page 23: Wds Ap Mode
WDS AP Mode The ENH1750EXT also supports WDS AP mode. This operating mode allows wireless connections to the ENH1750EXT using WDS technology. In this mode, configure the MAC addresses in both Access Points to enlarge the wireless area by enabling WDS Link settings. WDS supports up to four (4) AP MAC addresses. ENH1750EXT ENH1750EXT WDS AP 5 GHz 5 GHz... -
Page 24: Wds Bridge Mode
ENH1750EXT device. Use this mode when two wired LANs located a small distance apart want to communicate with each other. The best solution is to use the ENH1750EXT to wirelessly connect two wired LANs, as shown in the following diagram. WDS Bridge Mode can establish up to four (4) WDS links, creating a star-like network. -
Page 25: Wds Station Mode
WDS Station Mode Station mode expands the WDS by receiving a wireless signal/service and sharing it through the Ethernet port. ENH1750EXT WDS AP on both 5 GHz & 2.4 GHz ENH1750EXT ENH1750EXT WDS Station WDS Station ENH1750EXT WDS Station... -
Page 26: Ap Mesh Mode
AP Mesh Mode Under the AP Mesh mode, the ENH1750EXT can be used as the central connection hub for station or clients that support IEEE 802.11 b/g/n network. Under this mode, the ENH1750EXT can be configured with the same Mesh SSID and security password in order to associate with other ENH1750EXTs, as well as connect with clients under the same SSID and encryption signatures. -
Page 27: Mesh Only Mode
Mesh Only Mode Under the Mesh-only mode, the ENH1750EXT can be configured with the same Mesh SSID and security password in order to associate with other Mesh enabled ENH1750EXT ENH1750EXTs, instead of connecting with clients. Access Point ENH1750EXT ENH1750EXT Access Point... -
Page 28: Chapter 5 Status
Chapter 5 Status... -
Page 29: Main Status
Main Status Save Changes Device Status This page lets you save and apply the settings shown under Clicking the Device Status link under the Overview menu Unsaved changes list, or cancel the unsaved changes and shows the status information about the current operating revert to the previous settings that were in effect. - Page 30 DNS Address. • The Wireless LAN Information 2.4 GHz/5 GHz section shows wireless information such as Operating Mode, Frequency, and Channel. Since the ENH1750EXT supports multiple-SSIDs, information about each SSID, • The Statistics section shows Mac information such as the ESSID, and security settings, are displayed SSID, MAC address, RX and TX.
- Page 31 The Wireless Mesh Information - 2.4 GHz section • shows wireless information such as Operation Mode, Wireless Mode, Channel Bandwidth, Frequency/ Channel, Mesh SSID and Mesh Security.
-
Page 32: Connection
WDS link, including ENH1750EXT’s 2.4 GHz/5 GHz bands, along with the MAC WDS Link ID, MAC Address, Link Status and RSSI. addresses and signal strength for each client. Clicking Note: Only applicable in WDS AP and WDS Bridge modes. - Page 33 The Mesh Link List You can monitor the 2.4GHz Mesh Link List under the Status menu. The page will display the current status of the Mesh Links under Mesh AP mode and the Mesh nodes under Mesh Only mode. Note: Only applicable in the Mesh AP and Mesh Only modes.
-
Page 34: Chapter 6 Network
Chapter 6 Network... -
Page 35: Basic Ip Settings
Basic IP Settings IPv4/IPv6 Settings IP Network Settings: Select whether the device IP address This page allows you to modify the device’s IP settings. will use a static IP address specified in the IP address field or be obtained automatically when the device connects to a DHCP server. IP Address: Displays the IP address of this device. Subnet Mask: Displays the IP Subnet mask of this device. -
Page 36: Spanning Tree Protocol Settings
Spanning Tree Protocol (STP) Settings Spanning Tree Status: Enables or disables the Spanning Tree feature. This page allows you to modify the Spanning Tree settings. Enabling the Spanning Tree protocol will prevent network Hello Time: Specifies Bridge Hello Time in seconds. This loops in your LAN network. -
Page 37: Chapter 7 2.4 Ghz/5 Ghz Wireless
Chapter 7 2.4 GHz & 5 GHz Wireless... -
Page 38: Wireless Settings
Wireless Wireless Settings Device Name: Enter a name for the device. The name you type appears in SNMP management. This name is not the SSID and is not broadcasted to other devices. Band Steering: Enable Band Steering to send 802.11n clients to the 5 GHz band, where 802.11b/g clients cannot go, and leave 802.11b/g clients in 2.4 GHz band to maintain optimal data traffic flow. Band Steering works... -
Page 39: 2.4 Ghz/5 Ghz Wireless Network
Data Rate: Select a data rate from the drop-down list. The data rate affects throughput of data in the ENH1750EXT. Select the best balance for you and your network but note that the lower the data rate, the lower the throughput, though transmission distance is also lowered. - Page 40 speed connections. Save: Click Save to confirm the changes or Cancel to cancel and return to previous settings.
-
Page 41: 2.4 Ghz/5 Ghz Ssid Profiles
2.4 GHz/5 GHz SSID Profiles Current Profile: You can configure up to sixteen (16) different SSIDs (eight (8) per band). If multiple client devices will be accessing the network, you can arrange the devices into SSID groups. Click Edit to configure the profile and check whether you wish to enable extra SSIDs. SSID: Specifies the SSID for the current profile. -
Page 42: Wireless Security
Wireless Security The Wireless Security section lets you configure the Auth Type: Select Open System or Shared Key. ENH1750EXT’s security modes: WEP, WPA-PSK, WPA2- Input Type: PSK, WPA-PSK Mixed, WPA, WPA2, and WPA Mixed. It is ASCII: Regular Text (recommended) strongly recommend that you use WPA2-PSK. -
Page 43: Wireless Mac Filtering
MAC address to restrict permission to Deny MAC in the list, or Allow MAC in the list. access the ENH1750EXT. The default setting is: Disable MAC Address: Enter the MAC address of the wireless client. Wireless MAC Filter. -
Page 44: Wireless Advanced
Wireless Advanced WPA-PSK (WPA Pre-Shared Key) Encryption: Wireless Traffic Shaping Traffic shaping regulates the flow of packets leaving an interface to deliver improved Quality of Service. Encryption: Select the WPA encryption type you would like to use. Please ensure that your wireless clients use the same settings. -
Page 45: Wps Mixed-Enterprise: Ap/Wds Ap Mode
WPA Mixed-Enterprise: Access Point / WDS AP Mode Radius Accounting: Enables or disables the accounting feature. Radius Accounting Server: Enter the IP address of the Radius accounting server. Radius Accounting Port Enter the port number used for connections to the Radius accounting server. Radius Accounting Secret: Enter the secret required to connect to the Radius accounting server. -
Page 46: Fast Roaming
Fast Roaming Enable this feature to serve mobile client devices that roam from Access Point to Access Point. Some applications running on client devices require fast re-association when they roam to a different Access Point Please enter the settings of the SSID and initialize the Security Enable Fast Roaming: Enables or disables the Fast mode to WPA Enterprise, as well as setting the Radius Server. -
Page 47: Wds Link Settings
WDS Link Settings 2.4 GHz/5 GHz WDS Link Settings Using the WDS (Wireless Distribution System) feature will allow a network administrator or installer to connect to Access Points wirelessly. Doing so will extend the wired infrastructure to locations where cabling is not possible or inefficient to implement. -
Page 48: Ghz Mesh Link Settings/Mesh Settings
2.4 GHz Mesh Link Settings AES Passphrase: Enter the Key Values you wish to use. Other Access Points must use the same Key to establish Users can choose the 2.4 GHz band for Mesh Mode. a Mesh Link. Mesh Settings Mesh SSID: To create a Mesh network, please enter the Mesh SSID of the Access Point that you wish to include in the Mesh network. -
Page 49: Guest Network Settings/Fast Handover
Guest Network Settings the addresses used by the DHCP server. Ending IP Address: The last IP Address in the range of Adding a guest network allows visitors to use the Internet without giving out your office or company wireless addresses assigned by the DHCP server. security key. -
Page 50: Chapter 8 Management
Chapter 8 Management... -
Page 51: Management Vlan Settings
Note: If you reconfigure the Management VLAN ID, you located next to one another on the LAN. may lose your connection to the ENH1750EXT. Verify that the DHCP server supports the reconfigured VLAN Note: Only applicable in Access Point and WDS AP ID and then reconnect to the ENH1750EXT using the modes. new IP address. -
Page 52: Advanced Settings
Advanced Settings SNMP Settings Location: Specifies the location of the device. Community Name (Read Only): Specifies the password This page allows you to assign the Contact Details, Location, for the SNMP community for read only access. Community Name, and Trap Settings for a Simple Network Management Protocol (SNMP). SNMP is a networking Community Name (Read/Write): Specifies the password management protocol used to monitor network attached for the SNMP community with read/write access. -
Page 53: Cli Settings/Email Alerts
CLI Settings Email Alerts You can use the Email Alert feature to send messages to the configured email address when particular system events occur. Note: Do NOT use your personal email address as it can unnecessarily expose your personal email login credentials. Use a separate email account made for this feature instead CLI: The Command Line Interface (CLI) allows you to type commands instead of choosing them from a menu or... - Page 54 Username: Enter the username for the email account that will be used to send emails. Password: Enter the password for the email account that will be used to send emails. SMTP Server: Enter the IP address or hostname of the outgoing SMTP server.
-
Page 55: Time Zone
This page allows you to set the internal clock of the End: Select the day, month, and time when daylight sav- ENH1750EXT. ings times ends in your region. Manually Set Date and Time: Manually specify the date and time. -
Page 56: Auto Reboot Settings
Auto Reboot Setting: Enables or disables the Auto Reboot feature. Frequency of Auto Reboot: Specifies how often you wish to reboot the ENH1750EXT by Min, Hour, Day or Week. Timer: Select the day and enter the time you would like to reboot automatically. -
Page 57: Wi-Fi Scheduler
Wi-Fi Scheduler regulated. Schedule Templates: Select a schedule template from the The Wi-Fi Scheduler can be created for use in enforcing drop-down list. rules. For example, if you wish to restrict web access to Mon-Fri from 3pm to 8pm, you could create a schedule Day(s): Place a checkmark in the boxes for the desired days selecting Mon, Tue, Wed, Thu and Fri while entering a Start or select the All Week from the drop-down list to select all... -
Page 58: Tools
This page allows you to analyze the connection quality of you wish to trace. the ENH1750EXT and trace the routing table to a target in the network in the event of an issue. Start Traceroute: Click Start Traceroute to begin the trace route operation. - Page 59 Power: Enables or disables the Power LED indicator. LAN interface, or 2.4 GHz/5 GHz WLAN interface for the LAN: Enables or disables the LAN LED indicator. ENH1750EXT. WLAN-2.4 GHz: Enables or disables the WLAN 2.4 GHz LED indicator. WLAN-5 GHz: Enables or disables the WLAN 5 GHz LED indicator.
-
Page 60: Account/Firmware
Firmware Account This page allows you to change the ENH1750EXT username Firmware Upgrade and password. By default, the username is: admin and the This page allows you to upgrade the firmware of the password is: admin. The password can contain from 0~12 ENH1750EXT. Download the latest firmware from alphanumeric characters and is case sensitive. -
Page 61: Backup/Restore
If extreme problems occur, or file, and click Restore. if you have set the ENH1750EXT incorrectly, you can Restore to User Default: Click Reset button to restore use the Reset button in the Revert to Factory Default the ENH1750EXT to its factory default settings. -
Page 62: Log
System Log Remote Log The ENH1750EXT automatically logs (records) events This page allows you to setup the Remote Log service of possible interest in its internal memory. To view the for the ENH1750EXT. logged information, click the Log under the System Manager menu. -
Page 63: Logout/Reset
In some circumstances, it may be required to force the device by clicking OK. to reboot. Click on Reset to reboot the ENH1750EXT. Note that this will delete any configurations to their default settings. Please refer to page 61 to learn how to backup and save your customized configuration settings in the event of a Restore. Click Reboot the Device to confirm a... -
Page 64: Appendix
Appendix... -
Page 65: Fcc Interference Statement
Appendix A Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 66: Ce Interference Statement
Appendix B - CE Interference Statement Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: •... - Page 67 This device is a 5GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies. In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services.
- Page 68 Français [French] Par la présente [nom du fabricant] déclare que l’appareil [type d’appareil] est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. Italiano [Italian] Con la presente [nome del costruttore] dichiara che questo [tipo di apparecchio] è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
-
Page 69: Professional Installation Instructions
Appendix C - Professional Installation Instruction Installation Personal This product is designed for specific application and needs to be installed by a qualified personal who has RF and related rule knowledge. The general user shall not attempt to install or change these settings. Installation Location The product shall be installed at a location where the radiating antenna can be kept 41cm from nearby person in normal operation condition to meet regulatory RF exposure requirement. - Page 70 Instructions d’installation professionnelle Installation Ce produit est destine a un usage specifique et doit etre installe par un personnel qualifie maitrisant les radiofrequences et les regles s’y rapportant. L’installation et les reglages ne doivent pas etre modifies par l’utilisateur final. Emplacement d’installation En usage normal, afin de respecter les exigences reglementaires concernant l’...
