Summary of Contents for EnGenius ENH700EXT

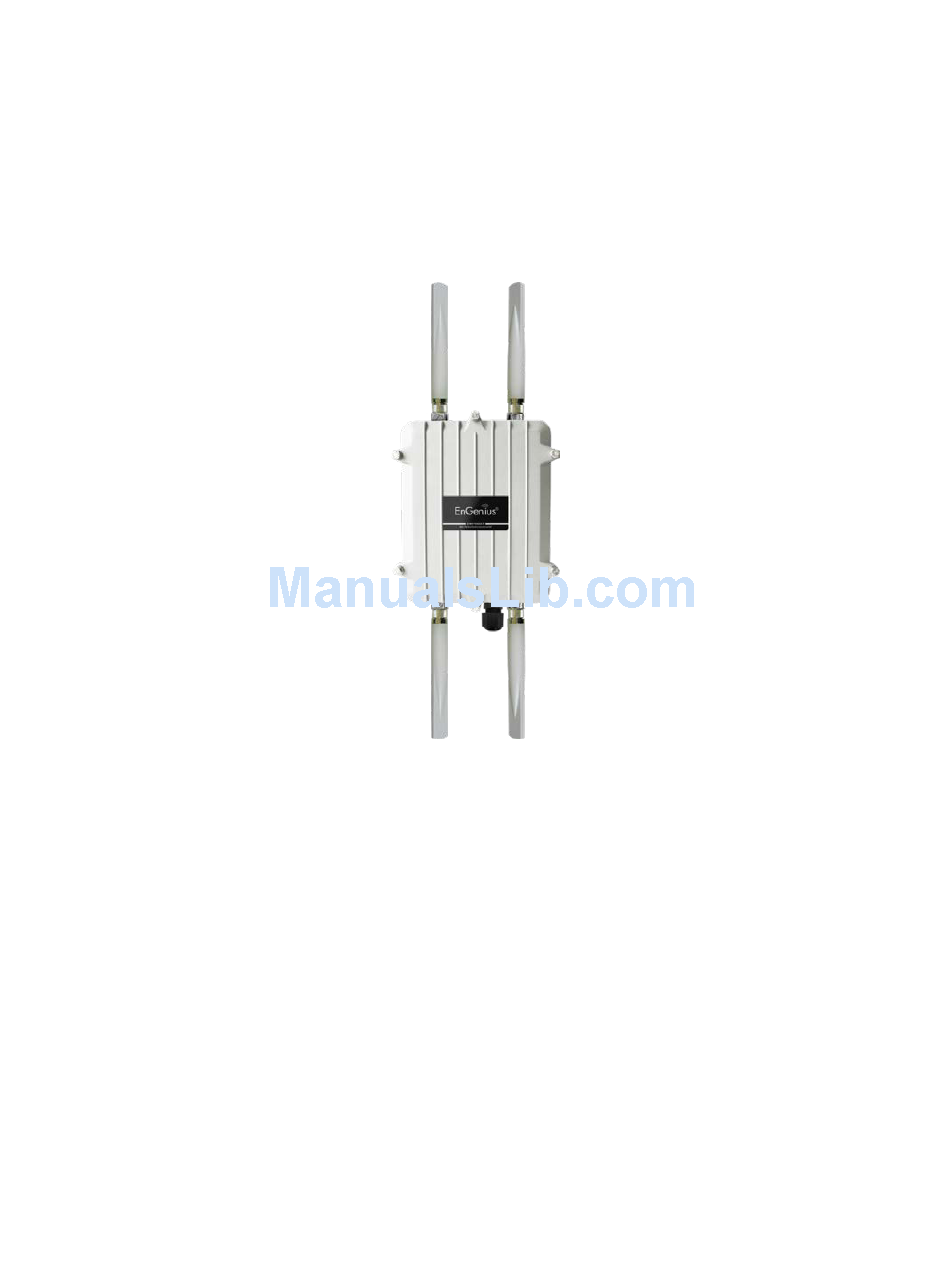

- Page 1 WIRELESS OUTDOOR DUAL RADIO 802.11a/b/g/n ACCESS POINT Model: ENH700EXT User Manual Version 1.1...
-
Page 2: Table Of Contents
Configuring Microsoft® Windows Vista ....................14 Configuring a TCP/IP connection on Windows® XP ..............17 2.4.1 Configuring Apple® Mac OS X ....................... 18 Logging onto the ENH700EXT ....................19 Wireless Network Modes ......................19 Access Point Mode (AP mode) ....................19 Client Bridge Mode ........................ - Page 3 5GHz Wireless Client List ......................25 System Log ..........................25 System ............................26 Operation Mode ........................26 IP Settings ..........................27 Spanning Tree Settings ......................27 2.4GHz Wireless and 5GHz Wireless.................... 28 Access Point Mode ........................29 7.1.1 Wireless Network ......................... 30 7.1.2 SSID Profile ..........................
- Page 4 ....... 41 Example diagram of ENH700EXT supports 802.1x with RADIUS server (sample encryption: WPA2 AES) ................................. 41 WEP ............................41 Management ..........................43 Administration .......................... 43 Management VLAN ........................44 Wireless Traffic Shaping ......................45 SNMP Settings ........................... 45 Backup / Restore Settings......................46 Auto Reboot Settings ........................
- Page 5 10.3 Benefits ............................. 51 10.4 Compatible Devices ........................52 10.5 System Requirements ....................... 52 Appendix A – Troubleshooting ......................53 Appendix B – Specification ......................... 54 Appendix C – Contacting Technical Support ..................58 Appendix D – Glossary ........................59 Appendix E –...
-
Page 6: About This Document
ENH700EXT by EnGenius Technologies, Inc. Please read this document carefully before setting up the ENH700EXT. Any damage which is caused by inappropriate use will not be covered under the warranty. -
Page 7: Product Overview
2.4 GHz and 5 GHz frequency spectrums and is also backwards compatible with legacy 802.11a/b/g networking equipment. The ENH700EXT is easy to install in virtually any locations with its included PoE (Power over Ethernet) injector for quick outdoor installation. In addition, the ENH700EXT enables network administrators to control its transmit power and features settings for selecting narrow bandwidth and traffic shaping. -
Page 8: Features And Benefits
Do not discard the packing materials in case of a return. The unit must be shipped in its original packaging for a valid return. If any of the contents are missing, please contact your reseller. Using a power adaptor other than the one included with the ENH700EXT may cause damage to the device and void the product warranty. - Page 9 (NOTE: The ENH700EXT includes the proprietary PoE Adaptor, EPE-48GR). IP 68 The ENH700EXT'S housing is rated with IP68, which is highest IP rating with total water and dust proof. so it to be placed on a building’s exterior for maximum range and coverage and allows...
-
Page 10: A Cost-Effective Wireless Solution To Extend And Expand An Existing Network
1.3 A Cost-Effective Wireless Solution to Extend and Expand an Existing Network The following list describes the solutions that the ENH700EXT offers as a flexible, robust and powerful Outdoor Access Point or Bridge: • Difficult-to-Wire Environments - In outdoor environments sometimes extending a network by laying Ethernet or fiber cabling is either cost prohibitive or physically not possible. -
Page 11: Hardware Overview
• An Internet browser the supports HTTP and JavaScript. 2 Installation and Setup This chapter will describe how to assemble and set up the ENH700EXT. It will also cover where to place the ENH700EXT to allow for maximum range and signal. -
Page 12: Installation Considerations
Ensure that all antennas screw on straight. Failure to do so may damage the ENH700EXT antenna connectors 3. Insert a shielded Ethernet cable into the RJ-45 port on the ENH700EXT. You need to consider the length of this cable based on the distance from where the PoE injector is which in a weather protected place such as indoor or a water tight box to the ENH700EXT. - Page 13 7. Plug the power cord of the power adapter into the EPE-48GR port labeled DC IN. 8. Plug the power adaptor into the power outlet. The ENH700EXT provides a proprietary PoE adapter. Please only use the supplied PoE adapter and its power adapter.
-
Page 14: Configuring A Tcp/Ip Connection On Windows® 7/Vista
2.3 Configuring a TCP/IP connection on Windows® 7/Vista ® Use the following procedure to configure a computer running Microsoft Windows 7. 1. In the Start menu search box, type: ncpa.cpl When the Network Connections List appears, right-click the Local Area Connection icon and click Properties. -
Page 15: Configuring Microsoft® Windows Vista
ENH700EXT, and the default gateway which is the ENH700EXT’s IP address, 192.168.1.1. Note: the subnet mask must match that of the ENH700EXT and the IP address must be on that subnet. Click the OK button to save your changes and close the dialog box. - Page 16 Static TCP/IP. Enter an IP address (i.e. 192.168.1.10), the subnet mask of the ENH700EXT, and the default gateway which is the ENH700EXT’s IP address, 192.168.1.1. Note: the subnet mask must match that of the ENH700EXT and the IP address must be on that subnet.
- Page 17 Click the OK button to save your changes and close the dialog box. Click the OK button again to save your changes.
-
Page 18: Configuring A Tcp/Ip Connection On Windows® Xp
ENH700EXT, and the default gateway which is the ENH700EXT’s IP address, 192.168.1.1. Note: the subnet mask must match that of the ENH700EXT and the IP address must be on that subnet. Click the OK button to save your changes and close the dialog box. -
Page 19: Configuring Apple® Mac Os X
4. Click Apply Now to apply your settings and close the TCP/IP dialog box. 5. Enter an IP address (i.e. 192.168.1.10), the subnet mask of the ENH700EXT, and the Router which is the ENH700EXT’s IP address, 192.168.1.1. Note: the subnet mask must match that of the ENH700EXT and the IP address must be on that subnet. -
Page 20: Logging Onto The Enh700Ext
This chapter will explain the different operation modes that the ENH700EXT has to offer. This will help in determining how you would like to set up the ENH700EXT for the proper mode for your specific networking needs in the later chapters of the User Manual. -
Page 21: Client Bridge Mode
3.2 Client Bridge Mode In the Client Bridge mode, the ENH700EXT functions like a wireless network adaptor. This allows the ENH700EXT to share the acquired wireless network access (via another device in Access Point mode) with wired devices connected via Ethernet to it (typically via a networked... -
Page 22: Wds Mode
3.3 WDS Mode In WDS (Wireless Distribution System) mode, the ENH700EXT connects multiple networks wirelessly without being just an Access Point. It maximizes range of service but at a loss of throughput speeds. 1) WDS with Access Point – Expands the WDS through the use of Access Points. Clients can connect to the device as a normal Access Point. - Page 23 ENH700EXT with WDSAP and WDS Bridge mode as backhaul example WDS Bridge Mode In the WDS Bridge mode, the ENH700EXT can wirelessly connect different LANs (Local Area Networks) by applying a device’s MAC address to its associated security settings as prescribed by the network administrator.
-
Page 24: User Interface
5GHz operation mode. 2. The main menu of the ENH700EXT will contain all the configuration options and settings. 3. The current configuration menu will be displayed in this section of the user interface. -
Page 25: Status
5 Status 5.1 Save/Reload When making any changes to ENH700EXT, it will be placed in the Save / Reload option of the Status section. No changes made in the proceeding chapters of this manual will take effect until Save & Apply is selected. Selecting Revert will erase any changes made. -
Page 26: Ghz Wireless Client List
2.4GHz operation of the ENH700EXT. 5.5 System Log The System Log option of the Status section displays all actions and events taking place in the ENH700EXT. Older entries are deleted for newer entries. This option is used to help users debug the ENH700EXT. -
Page 27: System
2.4GHz and 5GHz radios as well as set up the Spanning Tree settings between multiple ENH700EXT units. No changes made in the System section of the ENH700EXT will be in effect until Save & Apply is selected in the Save/Reload option of the Status section. -
Page 28: Ip Settings
The IP Settings option of the System section allows the user to configure the IP settings. 1) IP Network Settings – The user can select whether the ENH700EXT will obtain the IP Settings automatically from the network or if the information will be inputted manually. -
Page 29: 2.4Ghz Wireless And 5Ghz Wireless
Page 13) option in the System section of the user interface menu. For more information about the modes of operation, refer to Chapter 3 (Page 10). ENH700EXT can only operate a Client Bridge (WDS or not) or WDS Station on a single band. It cannot operate bridges or stations concurrently on both 2.4GHz or 5GHz. -
Page 30: Access Point Mode
Step 6 Verify VLAN identifier in order to separate services among clients Step 7 Setup the authentication settings. Step 8 Select Apply to process all of the configurations. ENH700EXT Access Point to Client Bridge mode setting diagram... -
Page 31: Wireless Network
Auto is not selected. AP Detection To help select a specific channel / frequency to use, the ENH700EXT can scan all the wireless access points in the area to help select the optimal settings. Current Profiles The ENH700EXT can operate up to total 16 SSIDs... -
Page 32: Ssid Profile
The SSID is the identifier (name) of the Access Point. Suppressed SSID By checking the Suppressed SSID so clients scan for access point will not see the SSID of ENH700EXT Station Separation When enabled, clients will not be able to communicate with other devices connected via Access Point within the ENH700EXT. - Page 33 MAC Address The MAC Address of the client.
-
Page 34: Wireless Advanced Settings
7.1.4 Wireless Advanced Settings Data Rate The Data Rate of the ENH700EXT affects the throughput of data transfer. A higher data rate selected will have a faster throughput. Lower will increase the distance in which the signal will reach. Transmit Power The transmit power will allow the ENH700EXT to extend the area of coverage. -
Page 35: Client Bridge
7.2 Client Bridge When Client Bridge is the selected mode of operation for either the 2.4GHz or 5GHz bands, two options will be available to configure. The two options that can be configured are Wireless Network and Wireless Advanced Settings. 7.2.1 Wireless Network Wireless Mode Select the wireless mode that the current band of operation... -
Page 36: Wireless Advanced Settings
Aggregation allows packets to be sent together to lower the amount of transmissions. No changes made in the System section of the ENH700EXT will be in effect until Save & Apply is selected in the Save/Reload option of the Status section. - Page 37 Setup the authentication settings that match to the Access Point’s settings. Step 7 Select Apply to process all of the configurations. The Client-Bridge’s IP settings must match the Access Point’s settings to be on the same subnet. ENH700EXT Access point to Client Bridge mode setting diagram...
-
Page 38: Wds Mode
LANs to communicate with each other. 7.3.1 WDS Station Another mode of operation of the ENH700EXT is WDS Station. In WDS Station, the ENH700EXT will be used as the central location of the WDS. To setup the Wireless Network and Wireless Advanced Settings for the WDS, refer to Chapter 7.2 (Page 19). - Page 39 Verify the device’s settings by browsing to Status -> Main. View the WDS link status. * Each WDS bridge device must use the same Subnet, Wireless Mode, Wireless Channel, and Security Setting. * With the MAC secured based WDS bridge network, only WEP encryption is available ENH700EXT multiple buildings bridged network (WDS)
-
Page 40: Wireless Security Settings
The recommended security setting for wireless LANs is WPA2-PSK, however, the ENH700EXT allows the usage of WEP, WPA-PSK, WPA-PSK Mixed, WPA, WPA2, and WPA Mixed. No changes made in the System section of the ENH700EXT be in effect until Save &... -
Page 41: Wpa, Wpa2, Or Wpa Mixed
When using TKIP, 802.11g will be selected by default. 8.2 WPA, WPA2, or WPA Mixed When selecting one of the various modes of WPA encryption without a Pre-Shared Key, authentication can be determined through RADIUS (Remote Authentication Dial in User Service). -
Page 42: Example Diagram Of Enh700Ext Supports 802.1X With Radius Server (Sample Encryption: Wpa2 Aes)
Enter the password in which the RADIUS Accounting will use. Interim Accounting Interval The interval in which the accounting will change. Example diagram of ENH700EXT supports 802.1x with RADIUS server (sample encryption: WPA2 AES) 8.3 WEP When using WEP encryption, the security protocol used on the wireless network uses the same... - Page 43 Security Mode Select WEP. Auth Type Select the type of authentication to be used in the WEP mode of encryption. Input Type Select the character type to be used in the WEP key. Key Length Select the length of the WEP key based on bit length. Default Key Select which of the 4 keys to use as the WEP key.
-
Page 44: Management
9.1 Administration In the Administration option of the Management section of the user interface, users change the username and password of the ENH700EXT. The default username is admin and the default password is admin. New Name Enter the username used to login to the ENH700EXT. -
Page 45: Management Vlan
9.2 Management VLAN In the Management VLAN option in the Management section allows users to assign a VLAN tag to packets being transmitted in the ENH700EXT. Clients on a VLAN normally act if they were on a separate LAN. 2.4GHz Current Profiles The user can change the VID of the 2.4GHz Access Points that... -
Page 46: Wireless Traffic Shaping
9.3 Wireless Traffic Shaping Enable Traffic Shaping The user can select whether or traffic shaping is enabled or not. Incoming Traffic Limit Specify the maximum rate of incoming traffic speed. Outgoing Traffic Limit Specify the maximum rate of outgoing traffic speed. 9.4 SNMP Settings The SNMP Settings controls the how data is sent to the SNMP-compatible clients. -
Page 47: Backup / Restore Settings
9.5 Backup / Restore Settings In the Backup / Restore Settings option of the Management section allows the users to save the configurations of the ENH700EXT into a file as backup to later restore. Save a Copy of Current The user can save the configuration settings of the Settings ENH700EXT into a file. -
Page 48: Firmware Upgrade
9.7 Firmware Upgrade In the Firmware Upgrade option of the Management section, users can view the current firmware version of the ENH700EXT. Also, if there is a new firmware upgrade, the user may download it from www.EnGeniusTech.com and upload it to the ENH700EXT. -
Page 49: Time Settings
ENH700EXT. Date Format: <Year>/<Month>/<Day> Time Format: <Hour> : <Minute> Automatically Get Date and Allow the ENH700EXT to obtain the time automatically from Time either online or a NTP server specified by the user. Selecting the Time Zone will increase accuracy. -
Page 50: Log
9.10 Diagnostics The Diagnostics option in the Management section of the user interface allows users to test connection quality between the ENH700EXT and the specified client. Target IP Specify the IP address of the client system that will be tested. -
Page 51: Engenius Technologies Inc.: Ez Controller
10 EnGenius Technologies Inc.: EZ Controller The EnGenius Technologies Inc.’s EZ Controller Access Point Management software provides a robust suite of tools for IT managers, installers and network administrators who deploy, manage and maintain wireless networks. With EZ Controller, EnGenius Wireless Indoor and Outdoor Access Points and Client Bridges can be configured, controlled, and monitored from one central location. -
Page 52: Benefits
• Helps to optimize network performance • Helps to minimize AP/Bridge downtime • Monitors and controls each EnGenius AP/Bridge asset • Monitors traffic load by AP, MAC, or IP Address • Sequential Firmware Upgrades to deployed Access Points and Bridges •... -
Page 53: Compatible Devices
• ENH500 [v. 1.1.0] • ENH210 [v. 1.1.0] • ENH700EXT [v. 1.1.0] Note: As EnGenius continues to improve the products. New firmware versions and new models will continue to be released. The above list is subject to change. 10.5 System Requirements Currently, the system requirements of the EZ Controller require a Personal Computer running Windows XP, Windows Vista, or Windows 7. -
Page 54: Appendix A - Troubleshooting
802.3af/at-compliant PoE switches. of PoE should I use? What if my signal isn’t strong? Ensure that the ENH700EXT is positioned in such a way that will maximize signal radius. Refer to Chapter 2.1 (Page 8) for installation considerations. -
Page 55: Appendix B - Specification
Appendix B – Specification Hardware Specification Standard IEEE 802.11 a/b/g/n Atheros AR7161 2 x AR9220 Memory 64MB Flash Physical Interface 1 x RJ-45 for 10/100/1000 Gigabit Ethernet Reset Button in PoE Injector Power Requirements - Active Ethernet (Power over Ethernet) - Proprietary PoE design - Power Adapter 48V / 0.8A RF Specification... - Page 56 -70dBm @ MCS15 -76dBm @ MCS15 802.11a 802.11g 802.11b -90dBm @ 6Mbps -96dBm @ 6Mbps -99dBm @ 1Mbps -72dBm @ 54Mbps -82dBm @ 54Mbps -93dBm @ 11Mbps Available transmit power 802.11n (5GHz) 802.11n (2.4GHz) 26dBm @ MCS0~2/MCS8~10 26dBm @ MCS0~2/MCS8~10 25dBm @ MCS3/MCS11 26dBm @ MCS3/MCS11 24dBm @ MCS4/MCS12...
- Page 57 WDS AP / WDS Bridge BSSID Security - WEP Encryption-64/128/152 bit - WPA/WPA2 Personal (WPA-PSK using TKIP or AES) - WPA/WPA2 Enterprise (WPA-EAP using TKIP) - 802.1x Authenticator - Hide SSID in beacons - MAC address filtering, up to 50 field - Wireless STA (Client) connected list Management Configuration...
- Page 58 Dimensions 245mm (L) x 200mm (W) x 75mm (H) Weight 1450g Note: As we continue to improve our products, the specification is subject to change without notice...
-
Page 59: Appendix C - Contacting Technical Support
Appendix C – Contacting Technical Support If the problem could not be resolved using the ENH700EXT product manual, please contact the vendor who provided the ENH700EXT. If you cannot contact your vendor, or they were unable to resolve the issue, contact the EnGenius Customer Service department. -
Page 60: Appendix D - Glossary
Appendix D – Glossary Here is a selection of terms and definitions that may help reader to be more familiar with WLAN technologies and understand the user manual better. Ad Hoc Network A short-term WLAN framework created between two or more WLAN adapters, without going through an Access Point. - Page 61 Challenge Handshake Authentication Protocol. An alternative protocol that uses a challenge/response technique instead of sending passwords over the wire. Collision Interference resulting from two network devices sending data at the same time. The network detects the collision of the two transmitted packets and discards both of them. Coverage The region within which a paging receiver can reliably receive the transmission of paging signals.
- Page 62 ESS ID The unique identifier for an ESS. All Access Points and their associated wireless stations in the same group must have the same ESSID. Footprint Geographical areas where an entity is licensed to broadcast its signal. Gateway A computer system or other device that acts as a translator between two systems that use different communication protocols, data formatting structures, languages, and/or architecture.
- Page 63 Preamble Synchronizes transmissions in a WLAN. The preamble type defines the length of the Cyclic Redundancy Check block for communication between a device and roaming wireless stations. Protected Extensible Authentication Protocol (PEAP) Authentication protocol of IEEE 802.1x used to send authentication data and passwords over 802.11 WLANs.
- Page 64 WLANs use RF technology to send and receive data wirelessly in a certain area. This lets users in a small zone send data and share resources such as printers without using cables to physically connect each computer. Wi-Fi Protected Access (WPA ) A subset of the IEEE 802.11i standard.
-
Page 65: Appendix E - Statements Of Conformity
Appendix E – Statements of Conformity D.1 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 66: Europe Declaration Of Conformity
device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. - Page 67 Electromagnetic compatibility and Radio Spectrum Matters (ERM); Electromagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements. EN 301 489-17 V2.1.1 2009-05 Electromagnetic compatibility and Radio spectrum Matters (ERM); Electromagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2.4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies.
