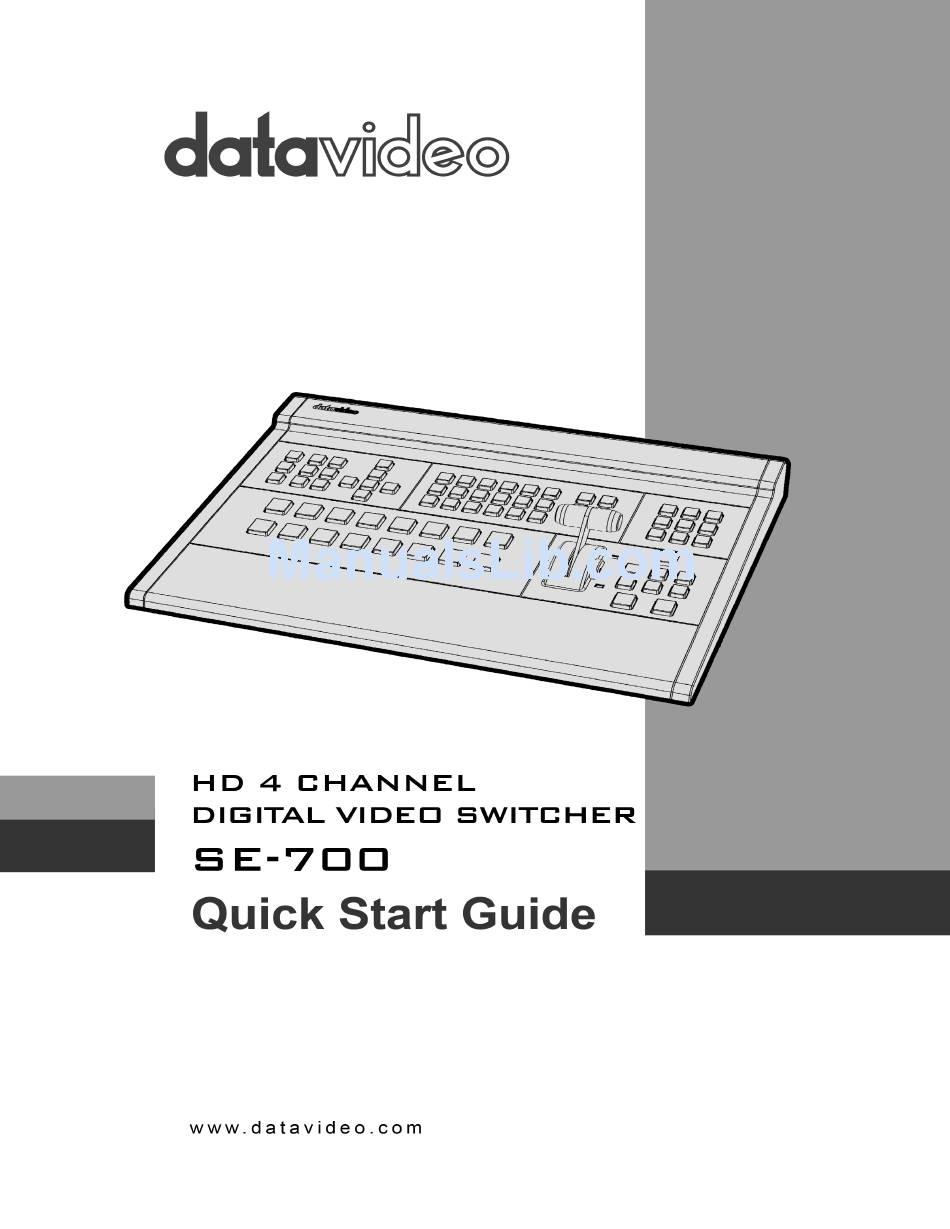

Datavideo SE-700 Quick Start Manual

Hd 4 channel digital video switcher
Hide thumbs Also See for SE-700:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Quick Start Manual
1

Advertisement

Table of Contents
loading

Related Manuals for Datavideo SE-700

Summary of Contents for Datavideo SE-700

  • Page 2: Table Of Contents

    Table of Contents Warnings and Precautions ..........................4 Warranty ............................... 4 Standard Warranty ........................... 4 Two Year Warranty ........................... 5 Disposal ..............................5 Packing List ..............................5 Introduction ..............................6 Features ..............................6 System Diagram ............................7 Rear Panel ..............................8 Control Panel...............................
  • Page 3 Keyer Control ............................21 Key Source ............................21 Fill Source ............................21 Still................................22 Load Still .............................. 22 Save Still .............................. 22 Freeze ..............................22 User ................................. 23 Load Memory ............................23 Save Memory ............................23 Inputs ..............................24 Input 1-4 .............................. 24 Crosspoint ............................

  • Page 4: Warnings And Precautions

    7. This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company.

  • Page 5: Two Year Warranty

    Datavideo office or authorized Distributors Any second year warranty claims must be made to your local Datavideo office or one of its authorized Distributors before the extended warranty expires. Disposal For EU Customers only - WEEE Marking This symbol on the product indicates that it will not be treated as household waste.

  • Page 6: Introduction

    Datavideo’s ITC-100 talkback system. When you consider the SE-700 is also capable of HD Chroma Key, Luma Key, Down Stream Key, Picture In Picture, up to 32 Wipe transitions and three user defined Still frame stores it really is a small powerful HD video switcher! Features •...

  • Page 7: System Diagram

    System Diagram...

  • Page 8: Rear Panel

    Two channels of XLR Balanced Audio Input. GPI output connection for basic control of other externally- connected devices Ethernet Port This port allows connection of the SE-700 to a PC for Firmware Update & Control TALLY Output Sends Red, and Green tally signals to each channel.
  • Page 9 Grounding Terminal When connecting this unit to any other component, make sure that it is properly grounded by connecting this terminal to an appropriate point. When connecting, use the socket and be sure to use wire with a cross-sectional area of at least 1.0 mm USB Port Firmware upgrade...

  • Page 10: Control Panel

    Control Panel Function Keys F1 – F3 DSK Selection / PGM & PVW Settings User Memory FTB – Fade to Black Menu Control Speed Selection Wipe Transition Selection WIPE Transition Effect Wipe-IN Image Border Setting Take - Cut & Auto Live Video Screen Capture MIX Transition Effect Still Frame Store...
  • Page 11 WIPE-IN image. There are a total of 32 WIPE presets offered Wipe Transition on the SE-700; 12 WIPE preset buttons allow the user to make Selection selection directly on the control panel and the rest of the 20 WIPE effects are selectable on the menu.
  • Page 12 TRANS BG Enables Program / Preset Background Transition PIP SETUP: Press PIP SETUP button to open PIP configuration menu PIP Selection / PGM PIP PVW: Enables the PIP on PVW / press and hold to select P & PVW Settings source PIP PGM: Enables the PIP on PGM Keyer SETUP: Press Keyer SETUP button to open Keyer...
  • Page 13 WIPE Function Selection of the WIPE transition effect Cut: Manual transition TAKE - Cut & Auto Auto: Auto transition according to the speed selected MIX Function Mix transition effect PVW TRANS Transition on PVW only Black Background STILL Select STILL picture (FS1, 2, 3 select the Still Image) FREEZE Select FREEZE picture Background Button (Matte &...

  • Page 14: Menu Options

    Menu Options This section covers the Menu options in the order that they appear on the screen. These settings are explained in detail in the sub-sections. Options may vary depending on the firmware version in use. Main Menu will appear on the screen after the MENU button is pressed. Use UP/DOWN/LEFT/RIGHT arrows to browse through the Menu and make your selection by pressing the ENTER button.
  • Page 15 Freeze Matte Bars Parameter for color of the Chroma key Chroma K Lift Parameter for the Chroma key in dark or black areas K Gain Parameter for the Chroma key in light or white areas Black Input1 Input2 Input3 P-In-P Src Input4 P-In-P Source Selections Still...
  • Page 16 Matte Bars Memory 0-500 Location Load Pressing this button loads the selected still picture source Still FS1 Still FS2 Load Still Still FS3 Input1 Destination Input2 Input3 Input4 Freeze Still FS1 Still FS2 Still Still FS3 Input1 Source Input2 Input3 Save Still Input4 Freeze...
  • Page 17 Input 3 Input 4 Still Freeze Input 1 Input 2 Input 3 Input 4 Still Freeze Input 1 Input 2 Input 3 Input 4 Still Freeze Input 1 Input 2 Input 3 Input 4 Still Freeze Input 1 Input 2 Input 3 Input 4 Still...

  • Page 18: Start

    Start Start option is primarily for the user to configure transition effects, such as mix effect, fade-to-black, and wipe. The sub-options are: • Transition • Wipe • Border • Position Matte • Start Transition 30 DSK 30 FTB Keyer P-In-P Wipe Wipe 1 Soft...

  • Page 19: Keyer

    Keyer Keyer of the SE-700 provides the user with the capability of image keying. Start Keyer Linear Self Keyer Keyer Ctrl Lift 0 Gain 1.0 Opac P-In-P Key Source Input 4 Fill Source Black Still User Chroma 357.6 K Lift...

  • Page 20: P-In-P

    P-In-P Picture-In-Picture (P-In-P) places an image on the PGM or PVW screens. Start P-in-P Src Black Keyer Position 20% Y 10% Size P-In-P Border Luma 0 Sat 0 Hue Border Width Still Crop Left 0 Right 0 Size User Crop 0 Bot Inputs Setup...

  • Page 21: Downstream Key

    Downstream Key This feature places downstream key on the PGM or PVW screens. Start Linear Self Keyer Keyer Ctrl Lift 0 Gain 0.0 Opac P-In-P Key Source Black Fill Source Black Still User Inputs Setup The DSK keyer options are Linear and Luma. After the DSK keyer option is chosen, select Self if only one source is enabled for DSK keyer, which is Key source and select Split if two sources are enabled for DSK keyer, which are Fill and Key sources.

  • Page 22: Still

    Still Still allows the user to load images from the memory, save images to the memory, and save the images captured. Start Load Still Still Load Freeze Keyer P-In-P Save Still Freeze Save Still Still Freeze Live 2 Live 3 Live User Live...

  • Page 23: User

    User In this option, the user is allowed to load previously saved settings and save the currently configured settings. Start Load Mem Memory Load Keyer P-In-P Save Mem Memory Save Still User Inputs Setup Load Memory Use the up/down arrow to scroll to the desired memory location and load the saved setting by selecting “Load” Save Memory Use the up/down arrow to scroll to the desired memory location and save the current setting by selecting “Save.”...

  • Page 24: Inputs

    Inputs This feature allows the user to configure the color of the Inputs 1-4. In addition, the user is also allowed to shuffle the contents between Inputs 1-4, Still and Freeze. Start Input 1 Black 0 White 100 Chrom Keyer Input 2 Black 0 White...

  • Page 25: Setup

    Setup Setup allows the user to perform basic output configuration such as Outputs, Audio, GPI Out and Resolution. Start Outputs PGM Out PGM Out MultiView Keyer P-In-P Audio SDI 1 On SDI 2 On HDMI Still GPI Out Off Mode Pulse Width User Input 1 Delay...

  • Page 26: Frequently-Asked Questions

    Frequently-Asked Questions This section describes problems that you may encounter while using the SE-700. If you have questions, please refer to related sections and follow all the suggested solutions. If problem still exists, please contact your distributor or the service center.

  • Page 27: Specifications

    Specifications Connections Total Video Inputs 2 HDMI( ver1.3a) + 2 SDI Total Outputs 1 HDMI (Ver 1.3a ) + 2 SDI SDI Video Input 2 ( 1080i / 720p ) 2 x HDMI(RGB/YUV) HDMI Video Input 1080i / 1080p / 720p SDI Audio Output (PGM Output) Analog Audio Input 2CH XLR...
  • Page 28 HDMI Input Resolutions for 1280 x 720 59.94Hz 50Hz (720P) and Computers 1920 x 1080 59.94Hz 50Hz (1080p & 1080i) Processing Colorspace Conversion Hardware based real time Processing Delay < 1 frame Selectable audio follow video Audio Mixer master gain control Extras Downstream Keyers Linear/Luma Keyers...

  • Page 29: Dimensions & Weight

    Dimensions & Weight *Weight is approximately 4 KG...
  • Page 30 Notes...
  • Page 31 Notes...

  • Page 32: Service And Support

    Service and Support...
