Summary of Contents for Chauvet SM250

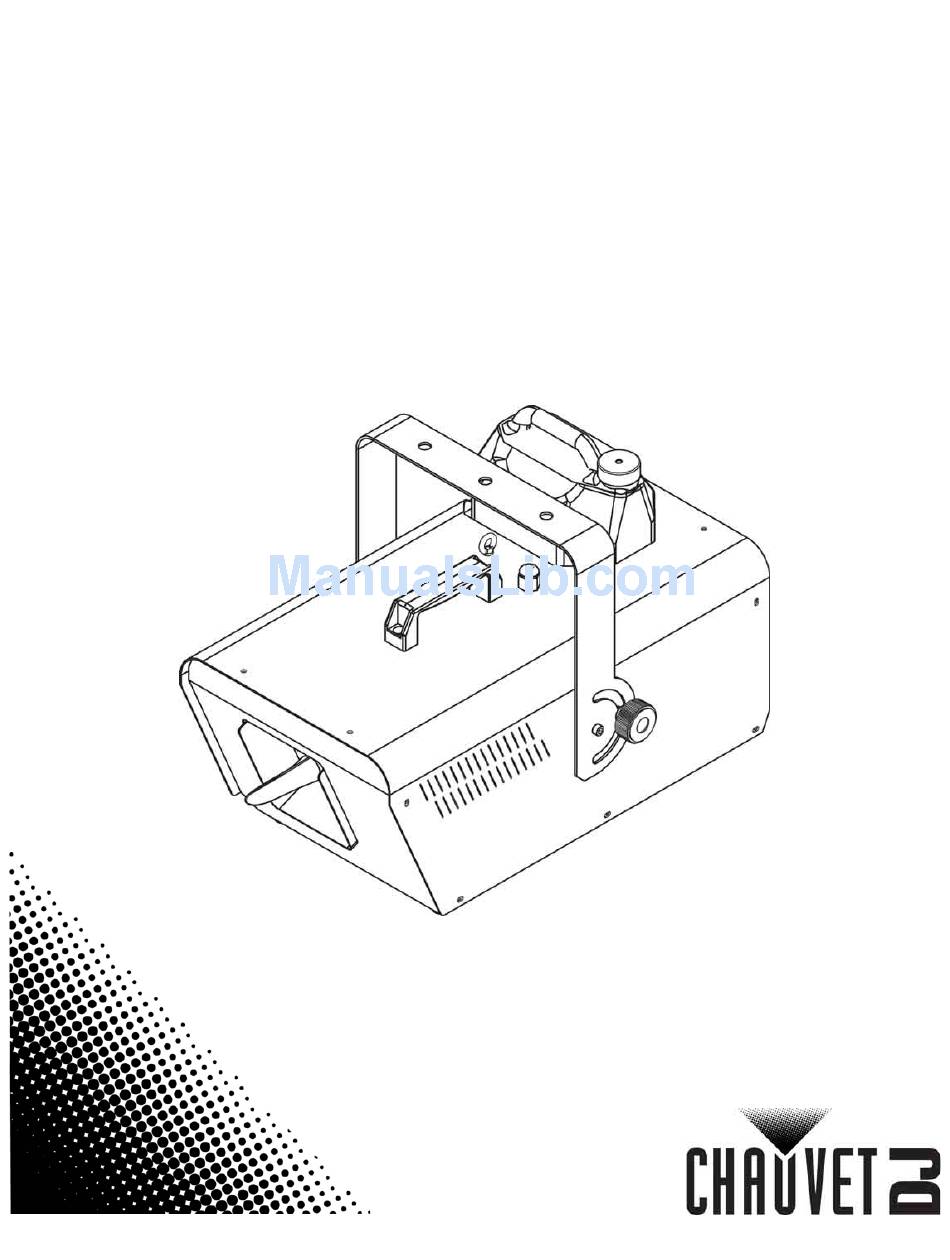

- Page 1 SM250 User Manual...
-
Page 2: Table Of Contents
5. Mainte nanc e and S to rag e ............Snow Machine Maintenance ................. Storage......................6. Te c hnic al S pe c ific atio ns ............Re turns .................... Co ntac t Us ..................SM250 User Manual Rev. 1... -
Page 3: Before You Begin
Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest version from www.chauvetdj.com. -
Page 4: Product At A Glance
• In certain environments, snow fluid-based machines may leave a slippery residue on floors and surfaces. • Use only CHAUVET® DJ water-based snow fluid. • Drain the tank before transporting the product. • Always make sure that the voltage of the outlet to which you are connecting the product is within the range stated in the decal or rear panel of the product. -
Page 5: Introduction
Wired Controller In DMX In/Out Wireless Receiver In Power In Blower Speed Switch Power Switch Fuse Holder Product Dimensions 13.5 in 344 mm 13.9 in 355 mm 17.6 in 449 mm SM250 User Manual Rev. 1 Page 3 of 12... -
Page 6: Setup
ETUP AC Power The SM250 has a fixed voltage power supply and it can work with an input voltage of 120 VAC, 60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 7: Mounting
Bracket Adjustment Knob Sock While operating the SM250, make sure there is adequate snow fluid in the machine to prevent pump damage. When the snow fluid level becomes low, simply add more snow fluid to continue using the SM250. SM250 User Manual Rev. 1... -
Page 8: Operation
DMX starting address SnoU S 0–3 Standalone snow output Configuration (DMX) The SM250 works with a DMX controller. Information about DMX is in the CHAUVET DMX Primer, which is available from the Chauvet website http://www.chauvetlighting.com/downloads/ DMX_Primer_rev05_WO.pdf. Starting Address When selecting a starting DMX address, always consider the number of DMX channels the selected DMX mode uses. -
Page 9: Remote Operation
PERATION Remote Operation The SM250 can be operated with the included wired timer controller (FC-T).Additionally, the product can be operated with the FC-W wireless remote, available separately. Wired Timer Remote Setup The Wired Timer Remote allows you to automatically trigger snow output by setting output, interval time, and duration time. -
Page 10: Optional Wireless Remote (Fc-W)
PERATION Optional Wireless Remote (FC-W) The optional FC-W wireless remote allows the user to trigger the SM250 to produce snow from up to 100 ft away. Plug in the snow machine to power. Plug the FC-W wireless remote receiver into the Wireless Receiver socket on the back of the SM250. -
Page 11: Maintenance And Storage
Cleaning the system prior to storage will help prevent any particles from condensing inside the pump while not in use. Test-run your SM250 on a monthly basis to achieve the best performance. SM250 User Manual Rev. 1... -
Page 12: Technical Specifications
1.3 gal (5 l) 580 ml/min Thermal AXIMUM XTERNAL EMPERATURE OOLING YSTEM 104 °F (40 °C) Convection I/O C ONNECTOR HANNEL ANGE 3-pin XLR Ordering UPC N RODUCT UMBER SM250 (120 V) 09071210 781462215583 Page 10 of 12 SM250 User Manual Rev. 1... -
Page 13: Returns
Send the merchandise prepaid, in its original box, and with its original packing and accessories. Chauvet will not issue call tags. Clearly label the package with the RMA number. Chauvet will refuse any product returned without an RMA number. Write the RMA number on a properly affixed label. DO NOT write the RMA number directly on the box. -
Page 14: Contact Us
Outside the U.S., United Kingdom, Ireland, Mexico or Benelux, contact the dealer of record. Follow the instructions to request support or to return a product. Visit our website for contact details. Page 12 of 12 SM250 User Manual Rev. 1...
