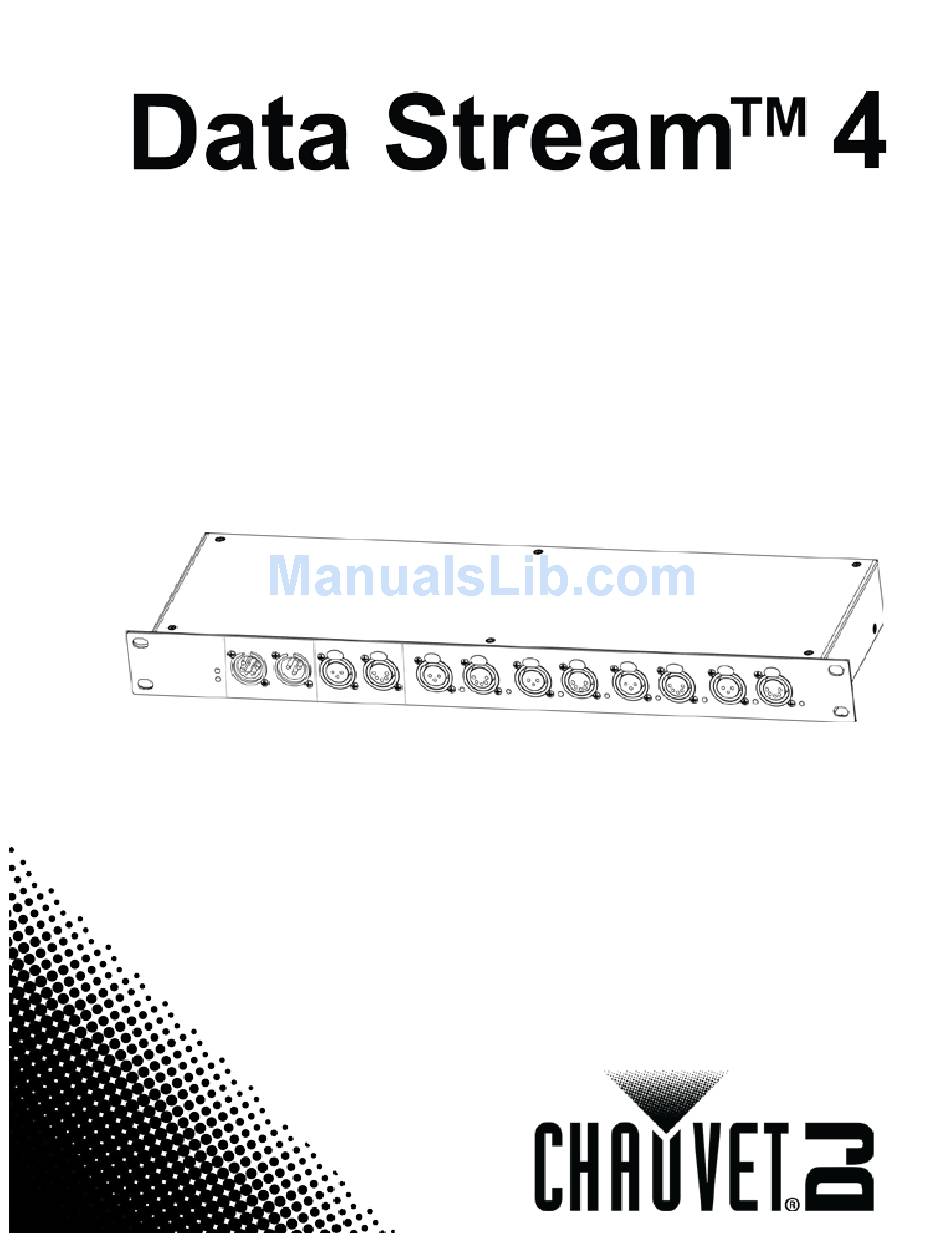

Chauvet Data Stream 4 User Manual
Hide thumbs
Also See for Data Stream 4:
- User manual (11 pages) ,
- Quick reference manual (33 pages) ,
- User manual (9 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
Quick Reference Manual
Advertisement
Table of Contents
Related Manuals for Chauvet Data Stream 4
Summary of Contents for Chauvet Data Stream 4
- Page 1 User Manual...
-
Page 2: Table Of Contents
ABLE OF ONTENTS 1. Before you Begin ........................ 3 What Is Included ............................ 3 Unpacking Instructions .......................... 3 Claims ................................3 Text Conventions ........................... 3 Symbols ..............................3 Disclaimer .............................. 3 Product at a Glance ..........................4 Safety Notes ............................4 2. -
Page 3: Before You Begin
Chauvet assumes no responsibility or liability for any errors or omissions that may appear in this manual. Chauvet reserves the right to update the existing document or to create a new document to correct any errors or omissions. -
Page 4: Product At A Glance
Use on Dimmer Auto Programs Product at a Outdoor Use Power Cord Glance Sound-Activated Replaceable Fuse User-Serviceable Master/Slave Duty Cycle Safety Notes Please read the following Safety Notes carefully before working with this product. They include important safety information about its installation, usage, and maintenance. ·... -
Page 5: Introduction
2. I NTRODUCTION Product Overview DMX Link DMX In Out/Throughput Ears for 3 & 5 Pin DMX Signal Rackmount Indicator LED In Use LED ON Indicators Indicator Front View DMX Outputs Power In Fuse Holder M8 Threaded Insert Back View Product Dimensions 5.3 in 134 mm... -
Page 6: Setup
3. S ETUP AC Power This product has an auto-ranging power supply and it can work with an input voltage of 100 to 240 VAC, 50/60 Hz. To determine the power requirements for this product (power outlet and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 7: Mounting
Mounting Before mounting this product, read and follow the Safety Notes. Orientation The DataStream™ 4 may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging Before deciding on a location for this product, always make sure that it will be easy to access the unit for maintenance and programming purposes. -
Page 8: Operation
4. O PERATION Operating This is a DMX splitter, and it is designed to distribute / boost the incoming DMX signal into 4 separate outputs. Each of the 4 outputs is electronically isolated from the others Instructions (with the exception of the “thru” or “link” output) and each output has 3- and 5-pin XLR sockets to choose from. -
Page 9: Appendix
Check Input Source No Signal Output, Signal Indicator is Flashing Contact Chauvet Technical Support If you still have a problem after trying the above solutions, please contact Chauvet Technical Support from the Contact Us page. DataStream™ 4 User Manual Rev. 2... -
Page 10: Technical Information
6. T ECHNICAL NFORMATION Technical Specifications Length Width Height Weight Dimensions and Weight 19 in (483 mm) 5.3 in (134 mm) 1.6 in (46 mm) 5.8 lb (2.6 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Rackmount Size Power Supply Type Range Voltage Selection... -
Page 11: Returns
Contact Us). · If you live in any other country, DO NOT contact Chauvet. Instead, contact your distributor of record. Refer to our Web site for contact details of distributors outside the US, United Kingdom, or Ireland. If you live outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact your distributor of record and follow their instructions on how to return Chauvet products to them. -
