Macrom M1A.4150 Owner's Manual

Macrom amplifier owner's manual
Hide thumbs Also See for M1A.4150:

Advertisement

Quick Links

Download this manual

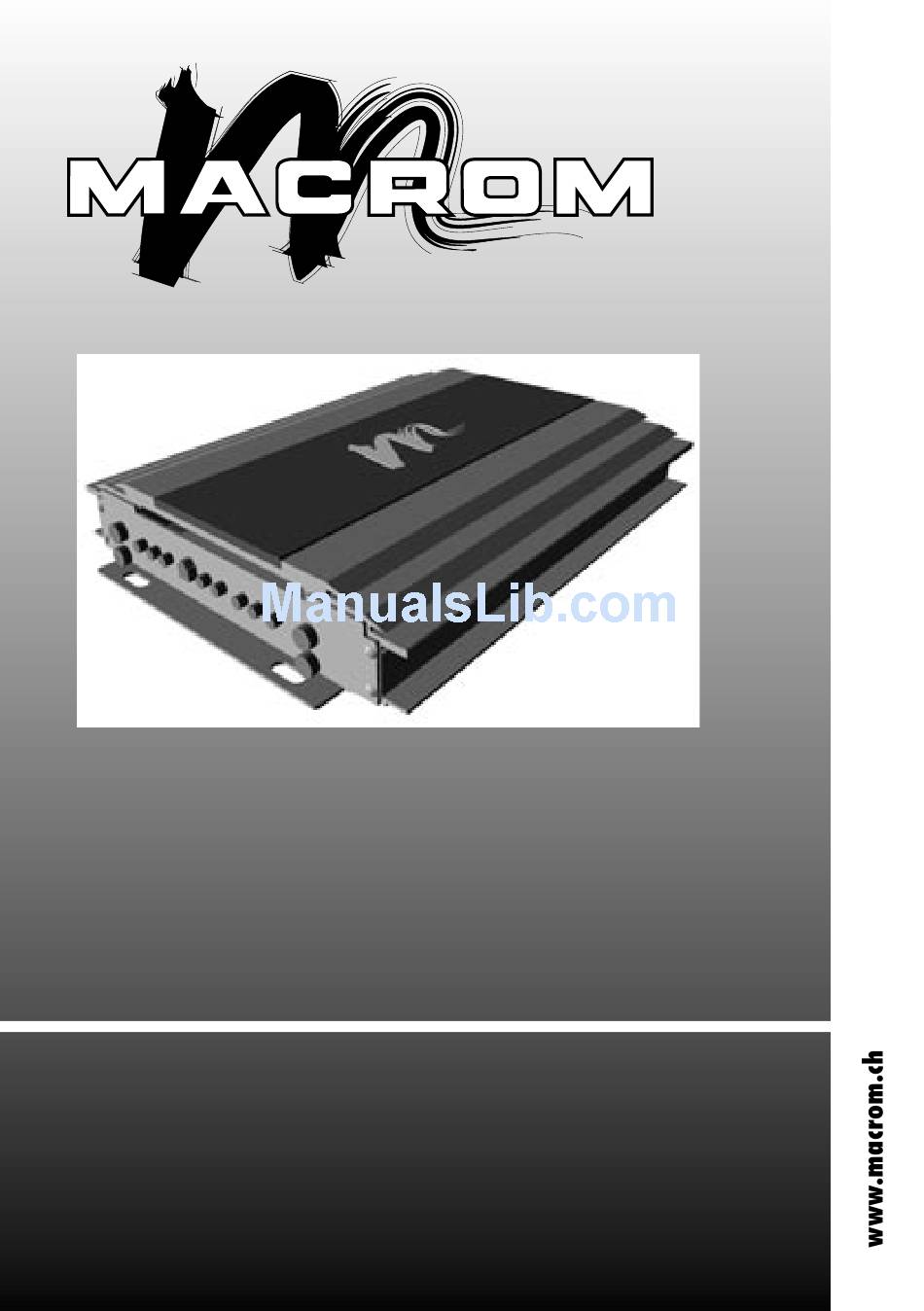

M1A.4150
Owner's Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the M1A.4150 and is the answer not in the manual?

Questions and answers

Nainel
April 2, 2025

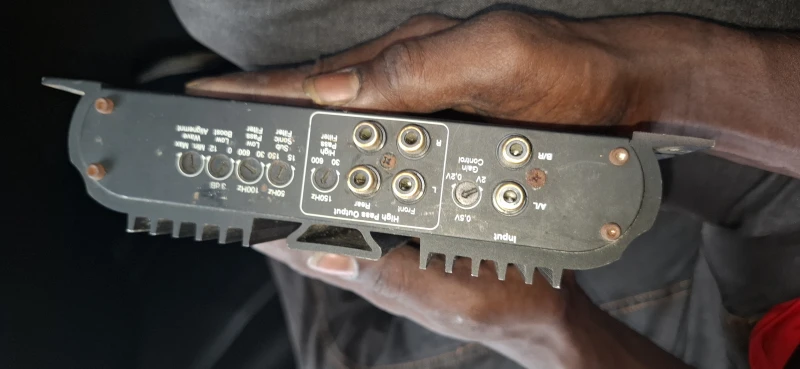

Please send me wiring diagram for macrom 41.06 mono power amplifier

User image 67ed0d8ee17d2
0
1 comments:
Mr. Anderson
April 2, 2025

The Macrom M1A.4150 is a four-channel power amplifier, not a mono amplifier. The wiring instructions are as follows:

1. Power Connections:
- +12V (Positive Power): Connect directly to the car battery using an appropriately sized cable. Install a fuse within 30 cm of the battery.
- GND (Ground): Connect to the car chassis as close as possible to the amplifier using the same gauge cable as the power wire.
- Remote Terminal: Connect to the remote output of the car radio to switch the amplifier on/off.

2. Speaker Terminals:
- CH1: +CH1 (Mono), –CH1
- CH2: +CH2, –CH2 (Mono)
- CH3: +CH3 (Mono), –CH3
- CH4: +CH4, –CH4 (Mono)

3. Input Connections:
- Low-Level Inputs for CH1/CH2 and CH3/CH4: Connect RCA cables from the head unit’s preamp outputs.

4. Controls and Settings:
- Gain controls for CH1/CH2 and CH3/CH4.
- High-pass and low-pass filter switches and frequency adjustments.
- Input mode selector (2/4 channel).
- Output mode selector (ST/Dual Mono).
- EBC (External Bass Control) connection and switch.

There is no specific graphical wiring diagram provided in the context.

This answer is automatically generated

0
Nainel
April 2, 2025

Please send wiring diagram

User image 67ed0d3060007
0

Related Manuals for Macrom M1A.4150

Summary of Contents for Macrom M1A.4150

  • Page 1 M1A.4150 Owner’s Manual...

  • Page 2: Front / Rear View

    Front/Rear view Low Level Input (CH1/CH2) Low Level Input (CH3/CH4) Gain Control (CH1/CH2) High pass switch (CH1/CH2) High pass cutting adjustment Input Mode selector Output Mode selector EBC (External Remote control) EBC ON/OFF switch High pass cutting adjustement for Line Out High pass switch (Line Out) Led indicator...
  • Page 3 Low Level Input (Eng) Adjust the gain control, according to the Audio level output. (FR) Ajustez la commande de gain, selon le rendement de niveau audio. (IT) Regolare il controllo di guadagno, in funzione del segnale Audio in uscita. (D) Justieren Sie die Gewinnsteuerung, entsprechend dem waagerecht ausgerichteten Audioausgang.
  • Page 4 Input setting CH3/CH4 Low Level Input (Eng) Adjust the gain control, according to the Audio level output. (FR) Ajustez la commande de gain, selon le rendement de niveau audio. (IT) Regolare il controllo di guadagno, in funzione del segnale Audio in uscita. (D) Justieren Sie die Gewinnsteuerung, entsprechend dem waagerecht ausgerichteten Audioausgang.
  • Page 5 (Eng) Select “FLAT” for a compleate frequency range. (FR) Choisissez “FLAT” pour une gamme de fréquence de compleate. (IT) Selezionare “FLAT” per una completa risposta in frequenza. (D) Wählen Sie “FLAT” für einen compleate Frequenzbereich vor. (SP) Seleccione “FLAT” para una gama de frecuencia del compleate. (Eng) Select “HIGH”...
  • Page 6 Crossover setting CH3/CH4 (Eng) Select “FLAT” for a compleate frequency range. (FR) Choisissez “FLAT” pour une gamme de fréquence de compleate. (IT) Selezionare “FLAT” per una completa risposta in frequenza. (D) Wählen Sie “FLAT” für einen compleate Frequenzbereich vor. (SP) Seleccione “FLAT” para una gama de frecuencia del compleate. (Eng) Select “LOW”...
  • Page 7 (Eng) Loudspeakers confi guration in function of the Inputs and Set up. (FR) Confi guration de haut-parleurs en fonction des entrées et de l’installation. (IT) Confi gurazione altoparlanti in funzione degli ingressi e Set up. (D) Lautsprecherkonfi guration in Abhängigkeit von den Eingängen und aufgestellt. (SP) Confi...
  • Page 8 CH1/CH2 Speakers connection � � ��� � � ��� (Eng) Minimal acceptable Impedance 2 ohm. To adhere itself to the illustrations for the connections. (FR) Impédance acceptable minimale 2 ohms. Pour s’adhérer aux illustrations pour les raccordements. (IT) Minima Impedenza accettabile 2 ohm. Attenersi alle illustrazioni per i collegamenti (D) Minimaler annehmbarer Widerstand 2 Ohm.
  • Page 9 � � ��� � � ��� (Eng) Minimal acceptable Impedance 2 ohm. To adhere itself to the illustrations for the connections. (FR) Impédance acceptable minimale 2 ohms. Pour s’adhérer aux illustrations pour les raccordements. (IT) Minima Impedenza accettabile 2 ohm. Attenersi alle illustrazioni per i collegamenti (D) Minimaler annehmbarer Widerstand 2 Ohm.

  • Page 10: Power Connection

    Power connection � ������� � ������ � ��� CAR CHASSIS CAR CHASSIS (Eng) Connect the Positive (+12V) directly to the Battery of the car. To make sure itself to insert a fuse of adequate amperage in order protect the system. Connect the Ground in to the car chassis, close as possible to the amplifi...

  • Page 11: Technical Data

    • Four channel power amplifi er • 150 watts into 2 ohms load • 75 watts into 4 ohms load • High effi ciency TO3PL transistor on amplifi er stage • Variable 18/12dB/oct Low-High-Band pass x-over on rear section • Variable 12dB/oct High pass x-over on front section •...
