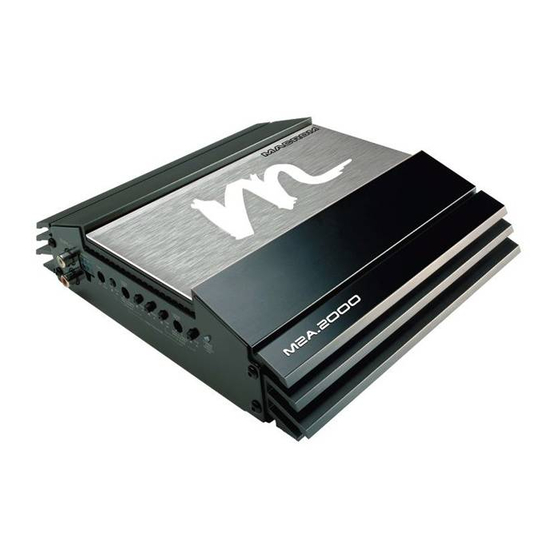

Macrom M2A.2000 Owner's Manual

Macrom power amplifier owner's manual.


M2A.2000
Owner's Manual
Next page ->

Summary of Contents

  • Page 1

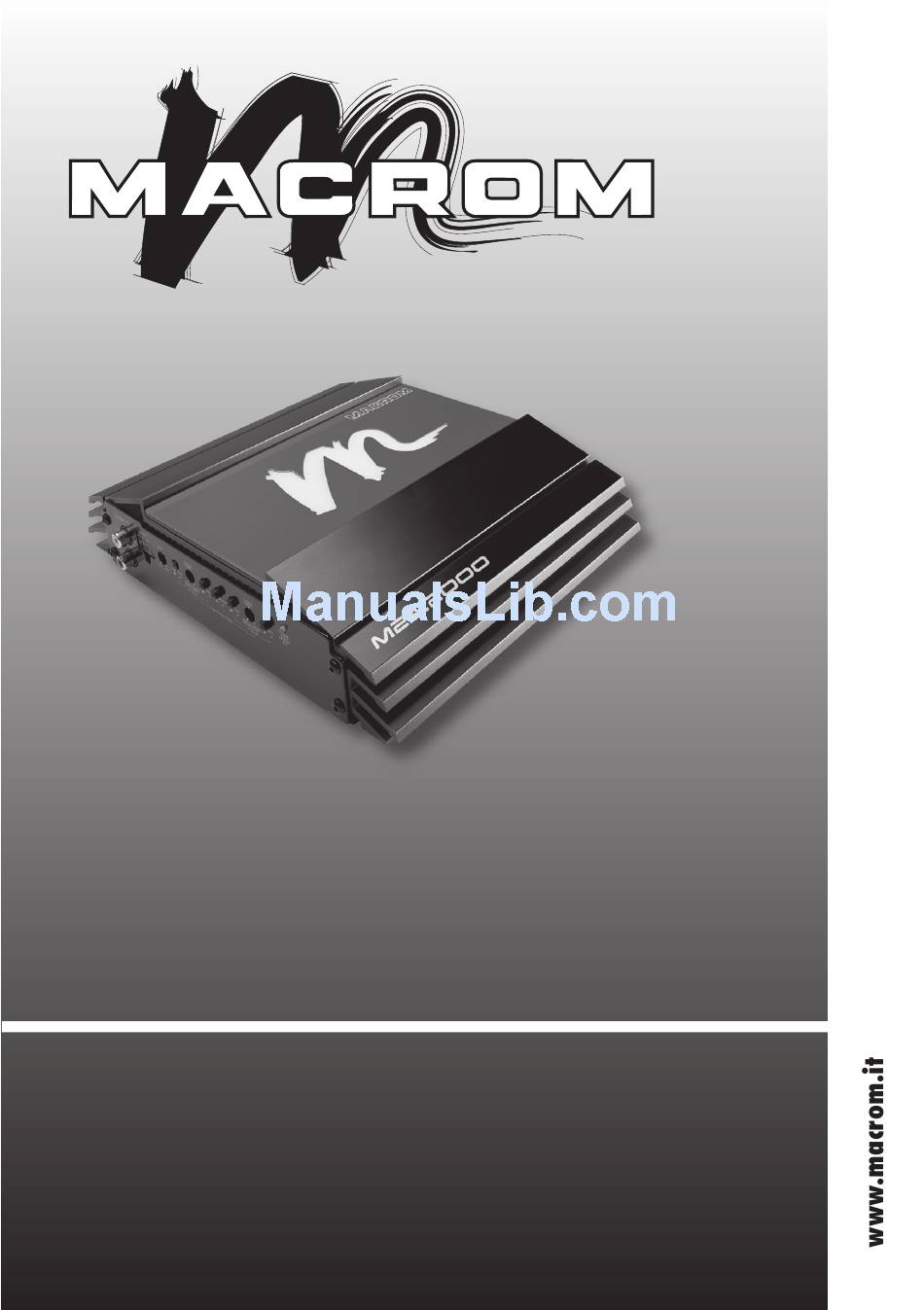

    M2A.2000 Owner’s Manual...

  • Page 2

    Front/Rear view Low Level Input High Level Input Gain Controll High pass switch High pass cutting adjustment Multiplayer x1/x10 switch Steroe Mono input selector Low pass switch Low pass cutting adjustment Multiplayer x1/x10 switch Led indicator Fuse 12V (DC) power terminal Remote terminal GND terminal + Left channel terminal (+ MONO)

  • Page 3

    • Two channel power amplifier • 90 x2 watts into 2 ohms load • 60 x2 watts into 4 ohms load • TO3P transistor on amplifier stage • Variable Low-High-Band pass x-over at 18/12dB/oct • Multiplier x1/x10 Frequency cutting • Adjustable x-over from 30Hz to 600Hz (x1), 300Hz to 6000Hz (x10) •...

  • Page 4: Table Of Contents

    Crossover setting (Eng) Select “FLAT” for a compleate frequency range. (FR) Choisir la position “Flat” pour déconnecter le filtre actif . (IT) Selezionare “FLAT” per una completa risposta in frequenza. (D) Wählen Sie “FLAT” für eine Übertr. des ges. Frequenzbereichs. (SP) Seleccione “FLAT”...

  • Page 5

    � � ���� � � ����� (Eng) Minimal acceptable Impedance 2 ohm. To adhere itself to the illustrations for the connections. (FR) Impédance minimale 2 ohm en stéréo, 4 ohm ponté. Suivre les illustrations pour les branchements. (IT) Minima Impedenza accettabile 2 ohm. Attenersi alle illustrazioni per i collegamenti (D) Minimale Anschlußimpedanz 2 Ohm.

  • Page 6

    Power connection ���� �� �������� ������ CAR CHASSIS CAR CHASSIS (Eng) Connect the Positive (+12V) directly to the Battery of the car. To make sure itself to insert a fuse of adequate amperage in order protect the system. Connect the Ground in to the car chassis, close as possible to the amplifier. (FR) Relier la borne +Battery de l’amplificateur directement à...

  • Page 7

    Low Level Input (Eng) Low level OR High level - (FR) Avec des RCA ou avec des câbles haut-parleur - (D) Niedriges Niveau ODER hohes Niveau - (SP) Nivel bajo O alto nivel (Eng) Connect the Loudspeakers output coming from the car radio, in to the High level input of the amplifier.
