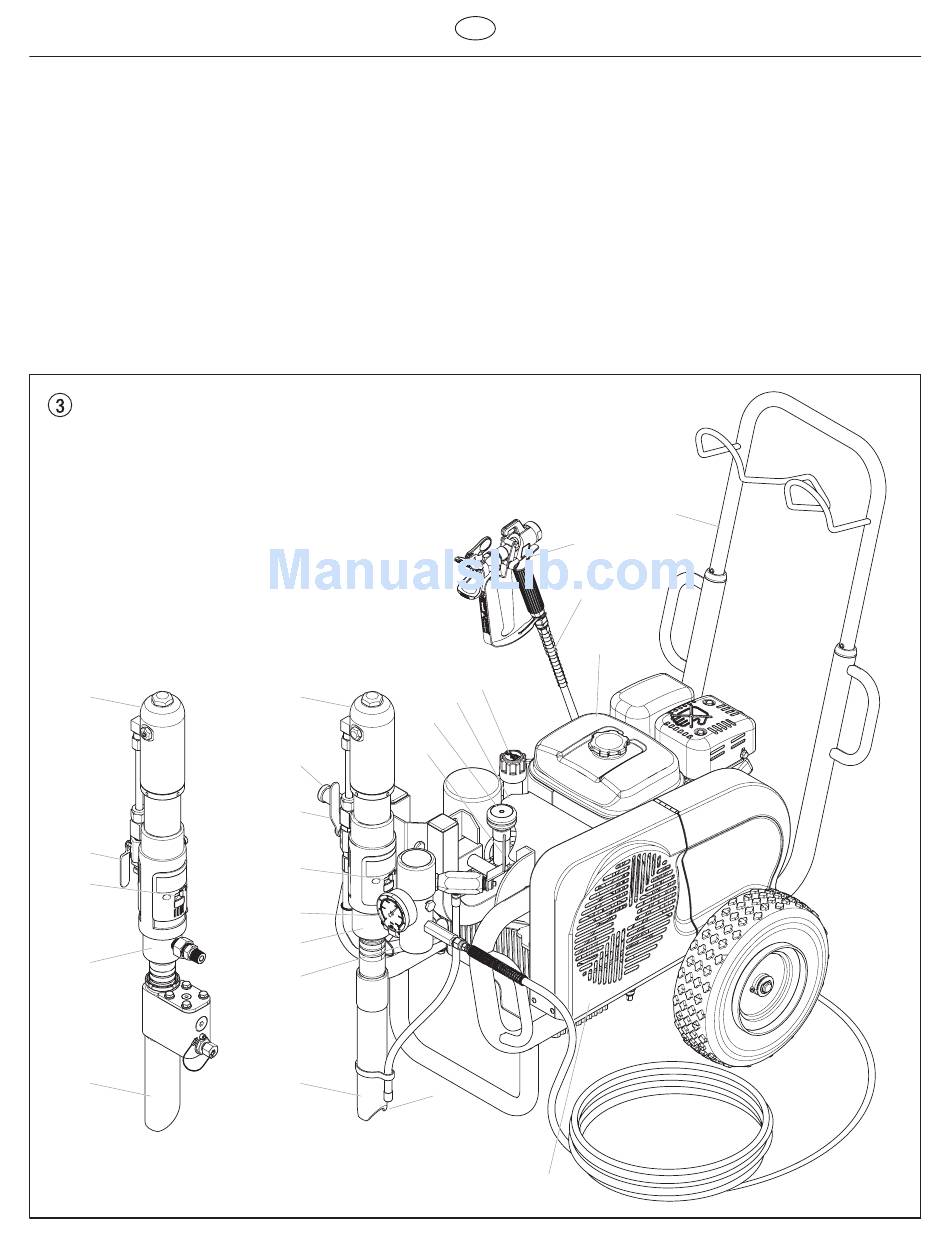

Illustration legend for gasoline HC units

1 Spray gun
2 High-pressure hose
3 Gasoline engine
4 Extractable handle
5 V-belt under the belt cover
6 Return hose
7 Suction tube
8 High-pressure filter
9 Material feed pump — HC 950, HC 970
10 Material feed pump — HC 950-SSP, HC 970-SSP
11 Pressure gauge
3.4

Illustration of gasoline HC units

15
13
12
10
7
17
15
18
16
14
13
12
11
9
8
7
6
GB
12 Oil cup for separating oil (separating oil prevents increased
wear and tear of the packings)
13 Ball valve: horizontal position – hydraulic motor switched off
vertical position – hydraulic motor switched on
14 Handle for swiveling the material feed pump
15 Hydraulic motor
16 Relief valve handle: Turn left for circulation k
17 Hydraulic oil pump
18 Pressure control knob
19 Oil measuring stick
1
2
3
19
5
30
Turn right for spray p
