Wells G136 Owner's Manual

Built-in electric griddles
Hide thumbs Also See for G136:
Table of Contents

Advertisement

Quick Links

See also: Operating Manual
Model G136
Model JG246UL
IMPORTANT: DO NOT DISCARD THIS MANUAL
This manual is considered to be part of the appliance and is to be given to the OWNER or
MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of
this appliance. Additional manuals are available from your WELLS DEALER.
THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR
INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any
questions concerning installation, operation or maintenance of this equipment.
2M-303340
p/n
Rev. D
WELLS MANUFACTURING
10 Sunnen Dr., St. Louis, MO 63143
telephone: 314-678-6314
fax: 314-781-2714
www.wellsbloomfield.com
OWNERS MANUAL
BUILT-IN
ELECTRIC
GRIDDLES
MODELS
G136, G196,
G236, G246,
G606,
JG246UL
Includes
INSTALLATION
USE & CARE

PARTS LISTS

WIRING DIAGRAMS

11
M101
0510
111

Advertisement

Table of Contents
loading

Related Manuals for Wells G136

Summary of Contents for Wells G136

  • Page 1: Parts Lists

    Additional manuals are available from your WELLS DEALER. THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any questions concerning installation, operation or maintenance of this equipment.
  • Page 2 Seller’s obligation under this warranty is limited to the repair for a period of one year from the date of original installation of defects without charge by a Wells Manufacturing factory or 18 months from the date of shipment from our factory, authorized service agency or one of its sub-service agencies.

  • Page 3: Table Of Contents

    PARTS & SERVICE CUSTOMER SERVICE DATA INTRODUCTION Thank You for purchasing this Wells Manufacturing appliance. Proper installation, professional operation and consistent maintenance of this appliance will ensure that it gives you the very best performance and a long, economical service life.

  • Page 4: Features & Operating Controls

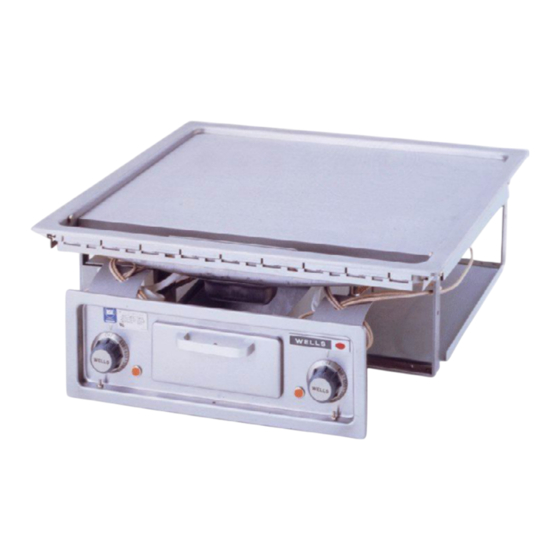

    KNOB Fig. 1 Countertop Griddle Features & Operating Controls G136 Shown - G196, G236, G246 and G606 are Similar Power is applied to the heating elements according to the control knob position and the actual temperature sensed at the thermobulb.
