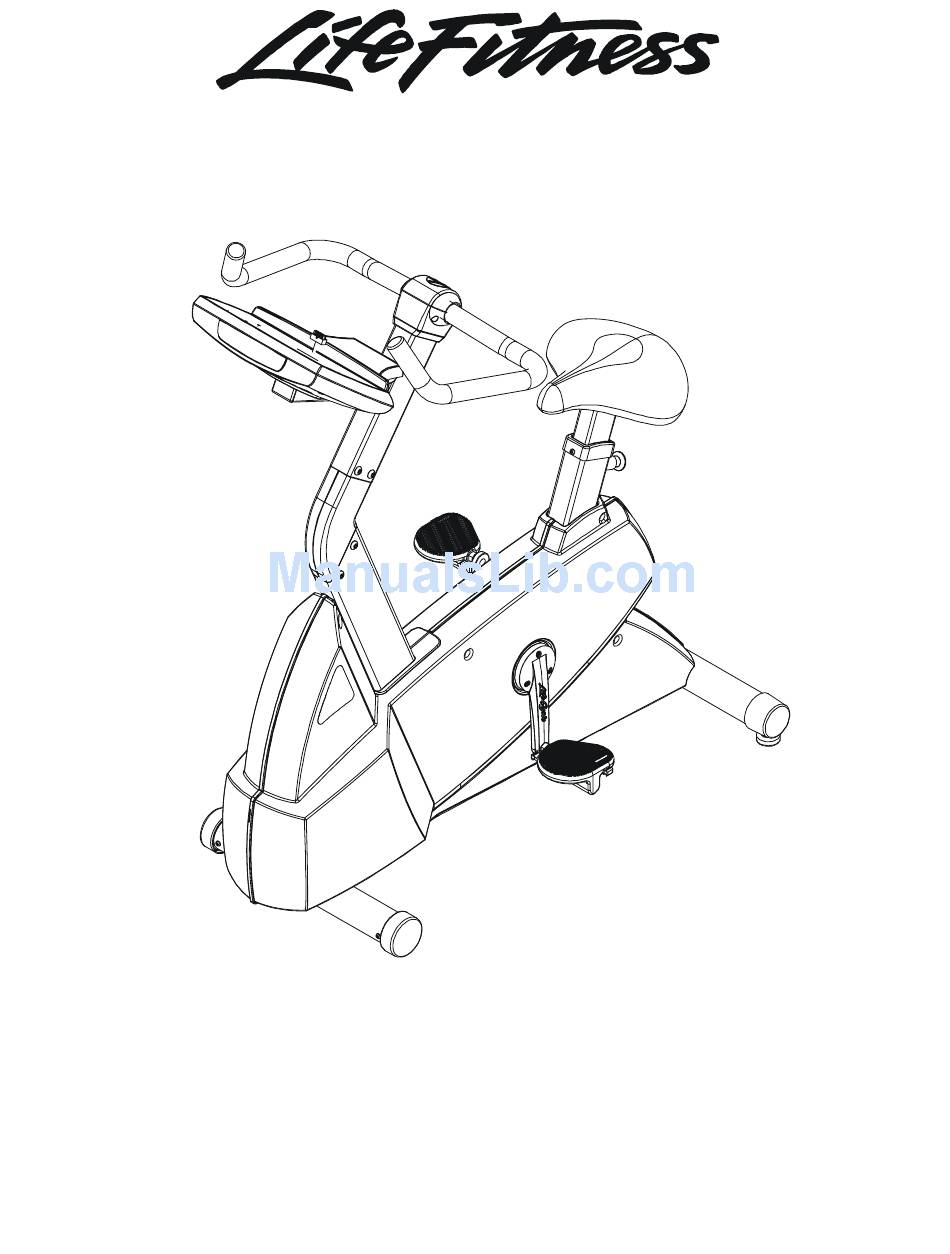

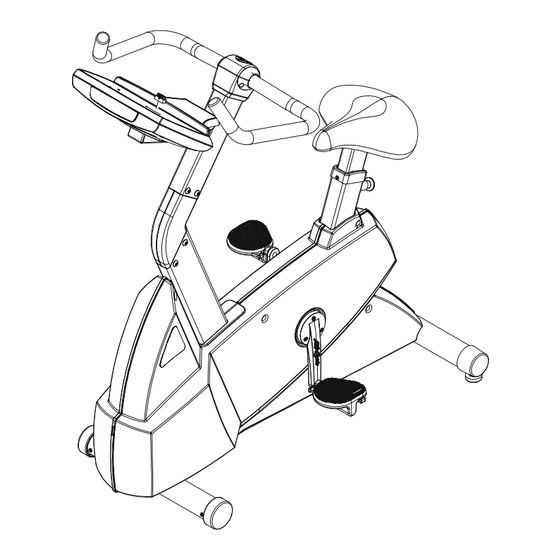

- Page 1 ARCTIC SILVER 95CW Upright Bike Customer Support Services PARTS MANUAL rev 01 May 2008...
- Page 2 ARCTIC SILVER 95CW REFERENCES OPERATION MANUAL HARDWARE BAG NETWORK C-SAFE KIT POWER OPTION KIT – 120V POWER OPTION KIT – 220/50 UK POWER OPTION KIT – 240V+ AUS POWER OPTION KIT – 220/50 TOUCH UP PAINT: SPRAY CAN .5 OZ BOTTLE W/APPLICATOR .33 OZ PEN COAX CABLE ER READY BRACKET ASSEMBLY...
-
Page 3: Table Of Contents
ARCTIC SILVER 95CW 95CW-0XXX-02 CONTENTS S/N CCR100000 and UP Page CONSOLE AND RELATED COMPONENTS...4 CONSOLE MOUNTING SCREWS AND POLAR COVERS..………………………………..5 ALTERNATOR W/PULLEY ...6 CRANKSHAFT AND BEARING ASSEMBLY...7 INTERMEDIATE SHAFT AND BEARING ASSEMBLY...8 SEAT LATCH ASSEMBLY ...9 SEAT POST ASSEMBLY ...10 SEAT POST SHROUDS………………………………………………………………………….11 IDLER BRACKET ASSEMBLY...12 CONSOLE SUPPORT ASSEMBLY...13... -
Page 4: Console And Related Components
ARCTIC SILVER 95CW Console and Related Components Overlay Bezel Cable Lower display PCB B084-92222-B0000 Phillips Pan Screws(13) 0017-00101-1650 Console Assembly AK63-00160-0001 Eng Met AK63-00160-0003 Ger Met AK63-00160-0004 Spn Met AK63-00160-0006 Jap Met AK63-00160-0007 Frn Met AK63-00160-0008 Itl Met AK63-00160-0009 Dut Met AK63-00160-0010 Por Met S/N CCR100000 and UP Console Board - Upper... -
Page 5: Console Mounting Screws And Polar Covers
ARCTIC SILVER 95CW Console Mtg. Screws & Polar Covers Console Mounting Screws(4) 0017-00101-1744 Accessory Tray 0K63-01030-0001 Accessory Tray Screws(4) 0017-00101-1744 Bolts 0017-00101-1755 95CW-0XXX-02 S/N CCR100000 and UP Upper Cover 0K63-01145-0001 Lower Cover 0K63-01146-0001 Cover Screws(4) 0017-00101-1744 Polar Receiver AK40-00045-0001 Leveler AK61-00035-0000... -
Page 6: Alternator W/Pulley
ARCTIC SILVER 95CW Alternator w/Pulley-AK63-00093-0000 Alternator Pulley 0K61-02500-0001 Locking Nut 0017-00103-0117 S/N CCR100000 and UP Alternator 0017-00009-0841 Bolt 0017-00101-0956 Washer 0017-00104-0044 95CW-0XXX-02 Brushes 0017-00009-0895... -
Page 7: Crankshaft And Bearing Assembly
ARCTIC SILVER 95CW Crankshaft and Bearing Assembly Crank Arm Hub 0K63-01095-0001 *Needle Bearing(2) 0K63-01344-0000 *Small Snap Ring(2) 0017-00100-0241 Pulley/Hub Assembly AK63-00051-0000 Pulley 0K63-01018-0000 Flywheel Screws(3) 0017-00101-1715 Washers(3) 0017-00104-0458 *Crank Shaft & Bearing Kit GK63-00002-0077 *Crank Shaft 0K63-01012-0001 *Small Thrust Washer(2) 0K63-01129-0000 *Large Thrust Washer(2) 0K63-01129-0001... -
Page 8: Intermediate Shaft And Bearing Assembly
ARCTIC SILVER 95CW Intermediate Shaft & Bearing Assembly Clutch Assembly AK63-00026-0000 (not included in kit) Delrin Washers (2) 0017-00104-0455 Retaining Ring 0017-00100-0242 Intermediate Shaft and Bearing Assembly Kit GK63-00002-0007 95CW-0XXX-02 S/N CCR100000 and UP Magnet 118E-00001-0124 (not included in kit) Intermediate Spacer (not Bearings (2, not... -
Page 9: Seat Latch Assembly
ARCTIC SILVER 95CW Seat Latch Assembly - AK63-00043-0001 Latch Bracket 0K63-01064-0000 E-Ring 0017-00100-0050 Link Shaft Assy. AK63-00113-0001 Latch Spring 0K63-01117-0000 NYLINER 0017-00042-1129 Set Screws (2) 0017-00101-0333 NYLINER 0017-00042-1129 95CW-0XXX-02 S/N CCR100000 and UP Latch Rack 0K63-01061-0000... -
Page 10: Seat Post Assembly
ARCTIC SILVER 95CW Seat Post Assembly – AK63-00232-0002 Screw 0017-00101-1750 Seat Adjustment Rack 0K63-01049-0001 Seat Post Decal 0K63-01310-0000 Pan Screws(3) Polylastomer Bumper 0017-00101-1614 0017-00042-1131 95CW-0XXX-02 S/N CCR100000 and UP Deluxe Seat Assy. AK63-00229-0003 Lock Washer(4) 0017-00104-0064 Hex Bolt(4) 0017-00101-1121 Extrusion Guide Cap 0K63-01044-0000 Seat Post Assembly... -
Page 11: Seat Post Shrouds
ARCTIC SILVER 95CW Seat Post Shrouds Left Seat Post Shroud 0K63-01092-0010 Screw 0017-00101-1741 95CW-0XXX-02 S/N CCR100000 and UP Right Seat Post Shroud 0K63-01092-0009... -
Page 12: Idler Bracket Assembly
ARCTIC SILVER 95CW Idler Bracket Assembly - AK63-00021-0000 Lock Nut 0017-00103-0218 95CW-0XXX-02 S/N CCR100000 and UP Idler Bracket 0K63-01050-0000 Idler w/Bearing AK63-00008-0000... -
Page 13: Console Support Assembly
ARCTIC SILVER 95CW Console Support Assembly End Cap 0K63-01320-0000 Support Screws(4) 0017-00101-1755 Pan Screws(4) 0017-00101-1753 Handlebar Cover-RT 0k63-01192-0003 I-Beam Joint 0K63-01178-0002 Handlebar Cover-LT 0k63-01192-0004 S/N CCR100000 and UP Cable Assy: Jack/Hr AK36-00021-0003 Console Support Weldment Assy AK63-00089-0002 Console Cable AK63-00037-0002 95CW-0XXX-02 Polar Bracket 0K63-01113-0000... -
Page 14: Left Side Shroud And Crankarm
ARCTIC SILVER 95CW Left Side Shroud and Crankarm Shroud Screws(3) 0017-00101-1741 Shroud Plug 0K63-01084-0001 Decal 0K63-01312-0000 95CW-0XXX-02 S/N CCR100000 and UP Left Side Shroud AK63-00176-0002 Crank Arm Screws(3) 0017-00101-1855 Crank Arm, LT 0K39-01042-0008 Left Pedal AK63-00124-0004 Left Pedal Strap 0K63-01238-0004... -
Page 15: Right Side Shroud And Crankarm
ARCTIC SILVER 95CW Right Side Shroud and Crankarm Right Pedal AK63-00124-0003 Right Pedal Strap 0K63-01238-0003 Crank Arm Screws(3) 0017-00101-1855 Crank Arm, RT 0K39-01042-0007 S/N CCR100000 and UP Right Side Shroud Decal AK63-00176-0001 0K63-01312-0000 Right Side Shroud Screws(8) 0017-00101-1741 95CW-0XXX-02... -
Page 16: Pcb Mounting Bracket Assembly
ARCTIC SILVER 95CW PCB Mounting Bracket Assembly Assembly Number – AK63-00049-0000 Plastic Grommet(4) 0017-00042-0821 PCB Circuit Board B084-92218-D000 Pan Screws(4) 0017-00101-0823 95CW-0XXX-02 S/N CCR100000 and UP Battery Screws(2) 0017-00101-0975 Battery - 6V 0017-00003-0685 Positive Terminal Battery Mounting Bracket 0K63-01211-0000... -
Page 17: Front Wheels
ARCTIC SILVER 95CW Front Wheels – AK63-00017-0001 Wheel Screw 0017-00101-1747 Wheel Insert 0K63-01039-0000 Wheel/Bearing Assembly AK63-00016-0001 S/N CCR100000 and UP Pan Screw(2) 0017-00101-1747 Flat Washer 0K63-01041-0000 95CW-0XXX-02... -
Page 18: Resistor Assembly
ARCTIC SILVER 95CW Resistor Assembly- AK63-00047-0001 Resistor .5 OHM 240 Watt 100E-00002-0092 Retainer 0K63-01215-0000 Resistor Bracket(2) 0K63-01165-0000 S/N CCR100000 and UP Nut(3) 0017-00103-0081 Pan Screw (2) 0017-00101-1282 Power Control Cable Assembly AK63-00029-0001 95CW-0XXX-02 Resistor Mounting Rod 0K63-01166-0000... -
Page 19: Handlebar Assembly
ARCTIC SILVER 95CW Handlebar Assembly - AK63-00091-0001 Molder Grip Handlebar AK63-00156-0001 Handlebar End Cap(2) 0K63-01114-0001 95CW-0XXX-02 S/N CCR100000 and UP Electrode Molded Insert(4) AK63-00014-0003 Electrode Cable Assembly AK63-00028-0001 Insulated Plug(4) 0K63-01167-0001 Phillips Screw(4) 0017-00101-1752... -
Page 20: Belts
ARCTIC SILVER 95CW Belts Alternator Belt 0K63-01065-0000 95CW-0XXX-02 S/N CCR100000 and UP Intermediate Belt 0K63-01066-0001... -
Page 21: Arctic Silver 95Cw 95Cw-0Xxx
ARCTIC SILVER 95CW 95CW-0XXX-02 Cables S/N CCR100000 and UP...
