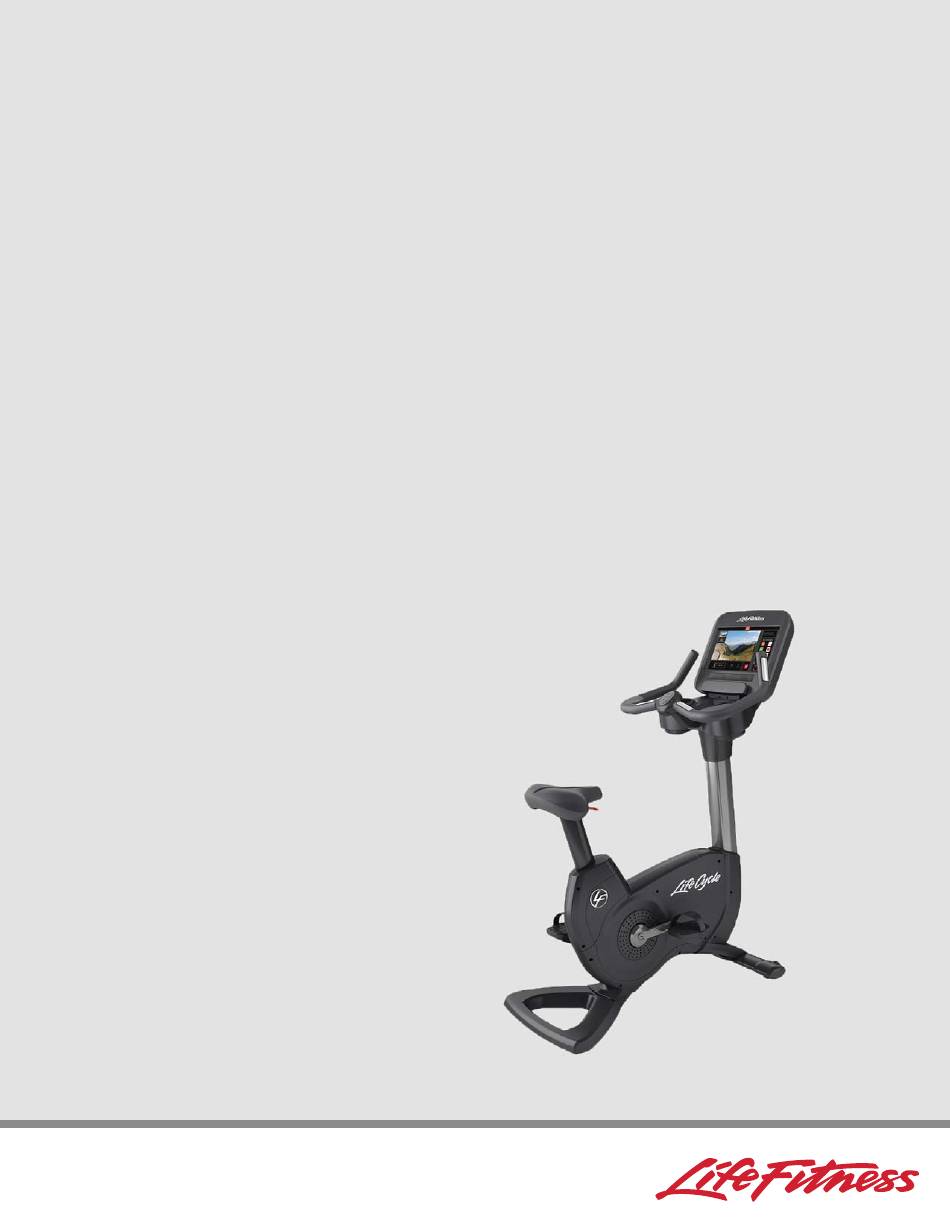

- Page 1 ELEVATION™ SERIES 95C, 97C UPRIGHT & PLATINUM CLUB SERIES UPRIGHT DISCOVER SE3, DISCOVER SI, & EXPLORE LIFECYCLE® EXERCISE BIKES ASSEMBLY INSTRUCTIONS M051-00K92-0055 REV E...
- Page 3 Operating Hours: 9.00h-17.00h (JAPAN) Service Email: kundenberatung@lifefi tness.com Hong Kong customersupport@lifefi tness.com Operating Hours: 08:30-16.30.h (MEZ) Sales/Marketing Email: Life Fitness Asia Pacifi c LTD commercialsales@lifefi tness.com Spain 32/F, Global Trade Square Operating Hours: 7:00am-6:00pm (CST) Life Fitness IBERIA 21 Wong Chuk Hang Road ______________________________________ C/Frederic Mompou 5,1º1ª...
- Page 4 AVERTISSEMENT: Des problèmes de santé peuvent être causés par une utilisation incorrecte ou exces- sive de l’équipement. LIFE FITNESS recommande FORTEMENT de consulter un médecin pour subir un examen médical complet avant de commencer tout programme d’exercice, et tout particulièrement si l’utilisateur a des antécédents familiaux d’hypertension ou de troubles cardiaques, s’il a plus de 45 ans,...
-
Page 5: Table Of Contents
Table of Contents 1. Getting Started ................4 1.1 Important Safety Instructions . -
Page 6: Getting Started
WARNING: Allow a distance of 16 in. (41 cm) between the widest part of the bike and other objects on either side. Provide at least 3 ft. (0.9 m) between the front or rear of the LIFE FITNESS bike to any other objects. - Page 7 If warnings are missing or damaged, please contact LIFE FITNESS immediately for replacement warning labels. Warning labels are shipped with every product and should be installed before product is used. LIFE FITNESS is not responsible for missing or damaged warning labels.
- Page 8 Ne pas se tenir debout ou s’asseoir sur les protections en plastique. • Ne jamais faire fonctionner un produit LIFE FITNESS dont la fi che ou le cordon d’alimentation est endommagé, ni aucun appareil qui serait tombé ou aurait été endommagé ou même partiellement plongé dans l’eau. Ap- peler le service clientèle de LIFE FITNESS.
- Page 9 Lisez tous les avertissements sur chaque produit avant de démarrer un exercice. • Si les avertissements sont absents ou endommagés, veuillez contacter immédiatement LIFE FITNESS afi n de les faire remplacer. Les étiquettes d’avertissement sont livrées avec chaque produit et doivent être installées avant leur utilisation.
-
Page 10: Set-Up
The Explore consoles are powered by a rechargeable 6-volt battery. Check the battery by pressing the knob. The console should beep and light up. The Explore Console will display the Life Fitness logo. If a prompt doesn’t appear, mount the Upright Lifecycle Exercise Bike and begin pedaling. The console should light up and programming a work- out should be possible. - Page 11 (for up to 2 minutes). Note: If any of the consoles do not light up, contact Life Fitness Customer Service (refer to page one of this manual). Use only the power supply provided by Life Fitness in order to insure against unsafe operation.
- Page 12 How to Adjust the Seat A properly adjusted seat is extremely important in any bike-oriented exercise activity and the Lifecycle Exercise Bike is not exception. If the seat is too close, excessive strain will be placed on the knees and quadriceps muscles; if the seat is too far, the resulting reaching action will irritate the feet, ankles, hips and knees.
-
Page 13: Service And Technical Data
Service and Technical Data 2.1 Preventive Maintenance Tips The Lifecycle Exercise Bike is backed by the engineering excellence of LIFE FITNESS and is one of the most rugged and trouble-free pieces of exercise equipment on the market today. Note: The safety of the equipment can be maintained only if the equipment is examined regularly for damage or wear. -
Page 14: Preventive Maintenance Schedule
2.2 Preventive Maintenance Schedule Item Weekly Monthly Annually Console Overlays Clean Inspect Bottle Holders / Accessory Trays Clean Inspect Console Mounting Bolts Inspect Hardware Inspect Frames Clean Inspect Plastic Covers Clean Inspect Inspect Lifepulse Sensors Clean / Inspect Pedals Clean Inspect Leg Levelers Inspect / Adjust... -
Page 15: Troubleshooting The Lifecycle
Belt transmitter not properly set up. console. After the heart rate is displayed on the console the range is extended to 3 feet. Contact LIFE FITNESS Customer Support Chest strap battery is depleted. Services for instructions on how to have the chest strap replaced. -
Page 16: Troubleshooting The Lifepulse System Sensors
2.5 Recycling the Battery - Explore Consoles Only When this Life Fitness product is about to be discarded at the end of its useful life, the rechargeable battery must fi rst be re-moved and recycled. If an optional external power supply is present, it must be disconnected before the battery is removed. -
Page 17: Assembly
Assembly Component List Part Description Monocolumn Assembly M10 X 20MM Socket Flat Head Screw Left Front Shroud M4.2 X 19MM Phillips Screw Right Front Shroud Display Console Rear Cover M5 X 14MM Phillips Screw Cup Accessory Power Brick *Discover SE3 & SI, (Explore Optional) Power Brick Clip *Discover SE3 &... - Page 18 Hardware M10 X 20 Socket Flat Head Screw (2) M4.2 X 19MM Phillips Screw (4) M5 X 14MM Phillips Screw (8) Tools Required • Magnetic #2 Phillips Screwdriver • 5MM Hex Key Allen Head Wrench • 13MM Socket and Ratchet •...
- Page 20 1.18 ft. lbs. (1.6 Nm)
- Page 21 Discover SI Discover SE3 Discover SE3 Explore IPTV...
- Page 22 1.18 ft. lbs. (1.6 Nm)
- Page 23 Discover SE3 & SI (Explore Optional)
- Page 24 MAKE SURE ALL HARDWARE IS TIGHT! ASSUREZ-VOUS QUE TOUTE LA VISSERIE EST BIEN SERRÉE ! CONTROLEER OF ALLE BEVESTIGINGEN GOED VAST ZITTEN! ASSICURARSI CHE TUTTA LA BULLONERIA SIA BE N STRETTA ASEGÚRESE DE QUE TODAS LAS PIEZAS ESTÉN BIEN APRETADAS. ASSEGURE-SE DE QUE TODAS AS PEÇAS ESTÃO APERTADAS! すべての金具がしっかり固定されているこ...
-
Page 25: Specifications
Specifications Life Fitness Upright Lifecycle Exercise Bike Specifications Designed use: Elevation Series 95C/97C: Heavy/Commercial Platinum Club Series: Home Maximum user weight: 400 pounds / 181 kilograms Power requirements: See Electrical Power Requirements in Section 1.2 Pedal size: 6.56 inches x 5.5 inches / 166.6 millimeters x 140.9 millimeters...
