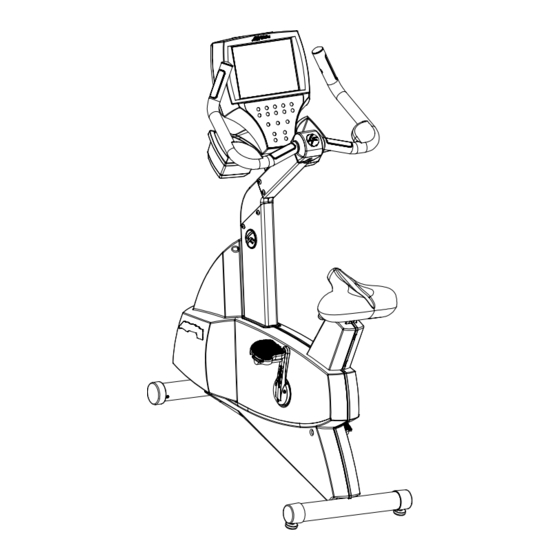

- Page 1 UPRIGHT BIKE 95CE Customer Support Services PARTS MANUAL rev 18 Aug 2008...
- Page 2 Life Cycle 95CE REFERENCES OPERATOR MANUAL SERVICE MANUAL POWER-SUPPLY: 12V; 4.5A Without Line cord LINE-CORD: DOM. 10A 125V LINE-CORD: CON 10A 250V LINE-CORD: 10A; U.K LINE-CORD: AUSTRALIA HARDWARE Kit M051-00K63-A088 M051-00K63-B012 118E-00001-0161 0017-00003-0704 0017-00003-0691 0017-00003-0889 0017-00003-0918 GK63-00002-0056 95CE-0_ _ _-01 S/N LCE100000...
-
Page 3: Table Of Contents
Life Cycle 95CE 95CE-0_ _ _-01 CONTENTS S/N LCE100000 Page CONSOLE ASSEMBLY ...4 CONSOLE SCREWS AND ACCESSORY TRAY ...5 ALTERNATOR AND PULLEY ...6 CRANK SHAFT AND BEARINGS ...7 INTERMEDIATE SHAFT AND BEARINGS ...8 SEAT LATCH ASSEMBLY ...9 SEAT POST ASSEMBLY ...10 SEAT POST SHROUDS ...11 IDLER BRACKET ASSEMBLY...12 CONSOLE SUPPORT ASSEMBLY...13... -
Page 4: Console Assembly
Life Cycle 95CE Console Assembly Part Number GK63-00002-0063 GK63-00002-0064 GK63-00002-0065 GK63-00002-0066 GK63-00002-0067 GK63-00002-0068 GK63-00002-0069 GK63-00002-0070 GK63-00002-0071 GK63-00002-0072 GK63-00002-0073 GK63-00002-0074 Part Number AK63-00247-0001 AK63-00247-0003 AK63-00247-0004 AK63-00247-0006 AK63-00247-0007 AK63-00247-0008 AK63-00247-0009 AK63-00247-0010 CONSOLE ASSEMBLY Description KIT: SERVICE CONSOLE W/FM NTSC ENG KIT: SERVICE CONSOLE W/FM NTSC SPN KIT: SERVICE CONSOLE W/FM NTSC JAP KIT: SERVICE CONSOLE W/FM NTSC FRN KIT: SERVICE CONSOLE W/FM NTSC POR... -
Page 5: Console Screws And Accessory Tray
Life Cycle 95CE Console Screws and Accessory Tray Console Mounting Screws(4) 0017-00101-1744 Accessory Tray 0K63-01030-0001 Accessory Tray Screws(4) 0017-00101-1744 Bolts 0017-00101-1755 95CE-0_ _ _-01 Upper Cover 0K63-01145-0001 Lower Cover 0K63-01146-0001 Cover Screws(4) 0017-00101-1744... - Page 6 Life Cycle 95CE Console Assembly HEADPHONE-JACK ASSY AK32-00035-0000 TOUCHSCREENS; LCD 0K32-01001-0013 Interface Boards A084-92247-A007 NTSC A084-92247-A008 PAL Single Board Computer A084-92251-A001 Screws(7) 0017-00101-1242 Screw 0017-00101-1811 POLAR PCB W/HEADER AK39-00064-0000 Inverter Board GK32-00002-0004 Screws(2) 0017-00101-1813 Screws(8) 0017-00101-1810 Console Back Cover 0K32-01003-0000 95CE-0_ _ _-01 S/N LCE100000 TAPE: ADHESIVE...
-
Page 7: Alternator And Pulley
Life Cycle 95CE Alternator and Pulley Alternator Pulley 0K61-02500-0001 Locking Nut 0017-00103-0117 Alternator 0017-00009-0841 Bolt 0017-00101-0956 Washer 0017-00104-0044 95CE-0_ _ _-01 S/N LCE100000... -
Page 8: Crank Shaft And Bearings
Life Cycle 95CE Crank Shaft and Bearings Crank Arm Hub Pulley Assembly 0K63-01095-0001 AK63-00051-0000 Pulley 0K63-01018-0000 *Needle Bearing (2) Washers (3) 0017-00104-0458 Flywheel Screws (3) 0017-00101-1715 *Crankshaft 0K63-01012-0001 *Small Thrust Washer (2) 0K63-01129-0000 0K63-01344-0000 *Small Snap Ring (2) 0017-00100-0241 Crank Arm Hub (2) 0K63-01095-0001 95CE-0_ _ _-01 S/N LCE100000... -
Page 9: Intermediate Shaft And Bearings
Life Cycle 95CE Intermediate Shaft and Bearing Assembly Clutch Assembly AK63-00026-0000 (not included in kit) Delrin Washers (2) 0017-00104-0455 Retaining Ring 0017-00100-0242 Intermediate Shaft and Bearing Assembly Kit GK63-00002-0007 95CE-0_ _ _-01 Magnet 118E-00001-0124 (not included in kit) Intermediate Spacer (not Bearings (2, not available available... -
Page 10: Seat Latch Assembly
Life Cycle 95CE Seat Latch Assy - AK63-00043-0001 Latch Bracket 0K63-01064-0000 E-Ring 0017-00100-0050 Link Shaft AK63-00113-0001 Latch Spring 0K63-01117-000 NYLINER 0017-00042-1129 Set Screws (2) 0017-00101-0333 NYLINER 0017-00042-1129 95CE-0_ _ _-01 S/N LCE100000 Latch Rack 0K63-01061-0000... -
Page 11: Seat Post Assembly
Life Cycle 95CE Seat Post Assy – AK63-00232-0002 Screw 0017-00101-1750 Seat Adjustment Rack 0K63-01049-0001 Seat Post Decal 0K63-01310-0000 Pan Screws(3) 0017-00101-1614 95CE-0_ _ _-01 S/N LCE100000 Seat-Deluxe AK63-00229-0003 Lock Washer(4) 0017-00104-0064 Hex Bolt(4) 0017-00101-1121 Extrusion Guide Cap 0K63-01044-0000 Seat Post Assembly AK63-00099-0001 Spring Support Bracket 0K63-01210-0000... -
Page 12: Seat Post Shrouds
Life Cycle 95CE Seat Post Shrouds Left Seat Post Shroud 0K63-01092-0010 Screw 0017-00101-1741 Right Seat Post Shroud 0K63-01092-0009 95CE-0_ _ _-01 S/N LCE100000... -
Page 13: Idler Bracket Assembly
Life Cycle 95CE Idler Bracket – AK63-00021-0000 Lock Nut 0017-00103-0218 95CE-0_ _ _-01 Idler Bracket 0K63-01050-0000 Idler Bearing AK63-00008-0000 S/N LCE100000... -
Page 14: Console Support Assembly
Life Cycle 95CE Console Support AK63-00193-0000 Console Support Weldment Assy AK63-00155-0000 Support Screws(4) 0017-00101-1755 Handlebar Cover, RT 0K63-01192-0003 I-Beam Joint 0K63-01178-0002 95CE-0_ _ _-01 S/N LCE100000 See block diagram For Cable Part Numbers Handlebar Cover, LT 0K63-01192-0004 End Cap 0K63-01325-0000... -
Page 15: Left Side Shroud & Crankarm
Life Cycle 95CE Left Side Shroud and Crankarm Decal 0K63-01318-0000 Shroud Plug 0K63-01084-0001 Shroud Screws(3) 0017-00101-1741 Washer(2) 0017-00104-0262 95CE-0_ _ _-01 S/N LCE100000 Left Side Shroud AK63-00179-0002 Crank Arm Screws(3) 0017-00101-1702 Crank Arm, LT 0K39-01042-0006 Left Pedal AK63-00263-0004 Left Strap 0K63-01238-0004... -
Page 16: Right Side Shroud & Crankarm
Life Cycle 95CE Right Side Shroud and Crankarm Right Pedal AK63-00263-0003 Right Strap 0K63-01238-0003 Crank Arm Screws(3) 0017-00101-1702 Crank Arm, RT 0K39-01042-0005 Right Side Shroud AK63-00179-0001 Right Side Shroud Screws(8) 0017-00101-1741 95CE-0_ _ _-01 S/N LCE100000 Decal 0K63-01318-0000... -
Page 17: Pcb Mounting Bracket
Life Cycle 95CE PCB Mounting Bracket BRKT: PCB-MTG 0K63-01211-0001 GROMMET: PLASTI 0017-00042-0821 PCB-ASSY: POWER-SUPPLY; LCD B084-92280-A000 Screw 0017-00101-0823 95CE-0_ _ _-01 S/N LCE100000... -
Page 18: Front Wheel Assembly
Life Cycle 95CE Front Wheel Assy – AK63-00017-0001 Wheel Insert 0K63-01039-0000 Wheel/Bearing Assembly AK63-00016-0001 Pan Screw(2) 0017-00101-1747 Flat Washer 0K63-01041-0000 95CE-0_ _ _-01 S/N LCE100000... -
Page 19: Resistor Assembly
Life Cycle 95CE Resistor Assy – AK63-00047-0001 Resistor .5 OHM 240 Watt 100E-00002-0084 Retainer 0K63-01215-0000 Nut(3) 0017-00103-0081 Resistor Bracket(2) 0K63-01165-0000 Nut(3) 0017-00103-0081 TORX Screw(20) 0017-00101-1057 Power Control Cable Assembly 95CE-0_ _ _-01 S/N LCE100000 Resistor Mounting Rod 0K63-01166-0000... -
Page 20: Handlebar Assembly
Life Cycle 95CE Handlebar Assy – AK63-00091-0001 Molder Grip Handlebar AK63-00156-0001 Handlebar End Cap(2) 0K63-01114-0001 95CE-0_ _ _-01 Electrode Molded Insert(4) AK63-00014-0003 Electrode Cable Assembly Phillips Screw(4) 0017-00101-1752 S/N LCE100000 Insulated Plug(4) 0K63-01167-0001... -
Page 21: Belts
Life Cycle 95CE Belts Alternator Belt 0K63-01065-0000 Intermediate Belt 0K63-01066-0001 95CE-0_ _ _-01 S/N LCE100000... -
Page 22: Cables
Life Cycle 95CE Cables Coax Cable DC Power Cable AK32-00020-0000 AK32-00075-0002 Reed switch and Cable AK32-00027-0000 HR Cable AK63-00028-0001 Inverter Cable Flat Flex Cable 118E-00001-0178 AK32-00032-0000 Console Power Cable AK32-00006-0004 Console Cable AK32-00026-0004 Polar Cable AK32-00017-0000 POLAR receiver HR Extensions Cable AK39-00064-0000 AK32-00022-0000 95CE-0_ _ _-01...
