Grandstream Networks, Inc.
GXV3501/GXV3504 User Manual

Advertisement

Table of Contents
loading

Related Manuals for Grandstream Networks GXV3501

Summary of Contents for Grandstream Networks GXV3501

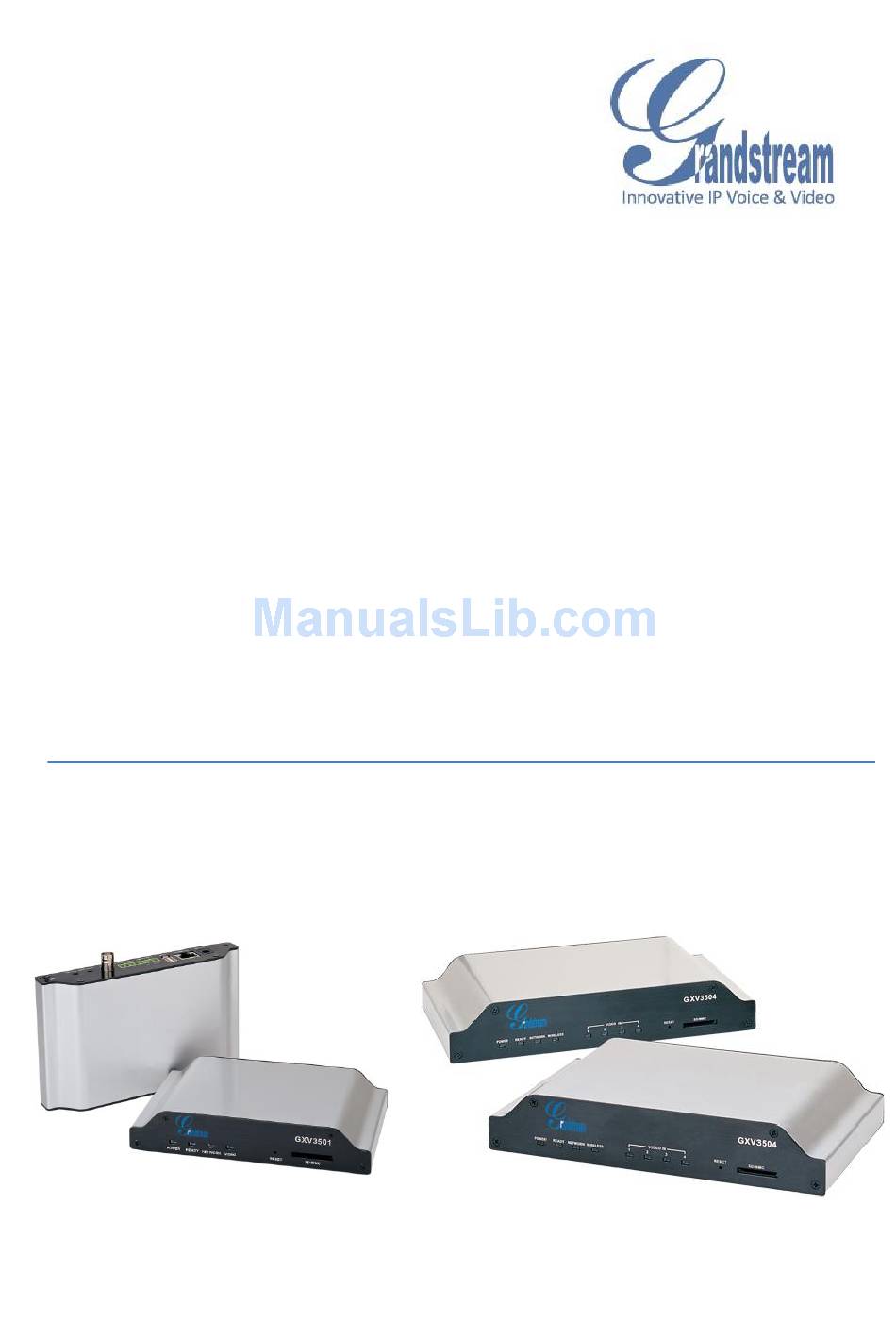

  • Page 1 Grandstream Networks, Inc. GXV3501/GXV3504 User Manual...

  • Page 2: Safety Instructions

    GXV3501/GXV3504 Digital Video Server Safety Instructions These instructions are intended to assist users with the operation of the GXV3501/GXV3504 and also to instruct on how to avoid dangerous situations or damage to the device. Warnings: Serious injury or death may be caused if any of the warnings below are neglected.

  • Page 3: Table Of Contents

    Installation Guide ............................11 Minimum Recommended System Requirement ................... 11 Connect your GXV3501/GXV3504...................... 11 Configuring the GXV3501/GXV3504 via Web Browser ................13 Access GXV3501/GXV3504 Web Configuration Menu ..............13 GXV3501 Home Web Page ........................13 GXV3504 Home Web Page ........................15 GXV3501/GXV3504 Status .........................

  • Page 4: Welcome

    The intuitive web interface lets users easily access, manage, view and record live video streams from the device. The GXV3501/3504 is a robust surveillance solution for small to medium sized offices and enterprise environments. Firmware 1.0.2.3 Page 4 of 34 Grandstream Networks, Inc.

  • Page 5: Package Contents

    GXV3501/GXV3504 Digital Video Server Package Contents Items in the GXV3501 package:  GXV3501 – 1-channel digital video server  12V DC power Adapter  8-pin terminal block connector – 8-pin connector block for connecting external devices, such as infrared detector, and smoke detector, to Alarm IN, Alarm OUT and RS485 pins.
  • Page 6 GXV3501/GXV3504 Digital Video Server Firmware 1.0.2.3 Page 6 of 34 Grandstream Networks, Inc. 11/2009...

  • Page 7: Product Overview

    GXV3501/GXV3504 Digital Video Server Product Overview GXV3501Front Panel 1 POWER – The indicator will keep green if the power is on. 2 READY – The indicator will light up green if the device is ready. 3 NETWORK – The indicator will...

  • Page 8: Gxv3501 Sample Connection Diagram

    GXV3501/GXV3504 Digital Video Server GXV3501 Sample Connection Diagram GXV3504 Front Panel 1 POWER – The indicator will stay green if power is on. 2 REDAY – The indicator will light green if the device is ready. 3 NETWORK – The indicator will flash green if there is data.

  • Page 9: Gxv3504 Back Panel

    GXV3501/GXV3504 Digital Video Server GXV3504 Back Panel 1 DC 12V – 12V DC power port; UL Certified. 2 NETWORK – 10/100 Switch LAN Ethernet port. 3 USB – USB port for USB flash / hard drives. 4 ALARM IN – 4 Alarm Input ports for alarm equipment, ie.

  • Page 10: Gxv3501/Gxv3504 Key Features

    GXV3501/GXV3504 Digital Video Server GXV3501/GXV3504 Key Features The table below lists the key features the GXV3501/GXV3504 Supports. Feature GXV3501 GXV3504 Channels Video Compression H.264 BP @Level 3.0, JPEG, Motion JPEG Max Video Resolution Full D1: 720 x 576(PAL) 720 x 480 (NTSC)

  • Page 11: Installation Guide

    Using the Power adapter as power supply  Connect the video output of an analog camera to the VIN port on the GXV3501/3504 using a BNC (75Ω) cable. If the analog camera has audio output, connect the audio output to the AIN port on the GXV3504 (GXV3501 does not support audio input).
  • Page 12 GXV3501/GXV3504 Digital Video Server straight-through cable. A cross over cable should be used if you are going to connect the device directly to a PC. Firmware 1.0.2.3 Page 12 of 34 Grandstream Networks, Inc. 11/2009...

  • Page 13: Configuring The Gxv3501/Gxv3504 Via Web Browser

    Embedded HTML pages allow you to configure your IP camera through Microsoft Internet Explorer. Access GXV3501/GXV3504 Web Configuration Menu  Connect your PC to the same network as the GXV3501/GXV3504.  Configure the IP address of your PC to: 192.168.1.XXX (1<XXX<255) and configure the subnet mask to 255.255.255.0.
  • Page 14 GXV3501/GXV3504 Digital Video Server Items on GXV3501 Home Page Control Console PTZ Console controller. PTZ device needs to be connected. Motion Detection If the motion detection alarm is triggered, the indicator of the corresponding channel will flash red. Click on the indicator to turn off the alarm.

  • Page 15: Gxv3504 Home Web Page

    GXV3501/GXV3504 Digital Video Server Playback Replays the saved video. Config Configures the Save Location for captured images and recorded videos. GXV3504 Home Web Page Items on GXV3504 Home Page Alarm Event If an alarm event is activated, the indicator of the corresponding...

  • Page 16: Gxv3501/Gxv3504 Status

    MAC Address – The device ID, in HEXADECIMAL format. LAN IP Address – This field shows the LAN IP address of the GXV3501/GXV3504. LAN Subnet Mask – This field shows the LAN subnet mask of the GXV3501/GXV3504. LAN Default Gateway – This field shows the LAN default gateway of the GXV3501/GXV3504.

  • Page 17: Gxv3501/Gxv3504 Video & Audio

    GXV3501/GXV3504 Digital Video Server GXV3501/GXV3504 Video & Audio Page Video Settings Preferred Video Codec – The GXV3501/GXV3504 supports the H.264 video codec. Resolution – The higher the resolution is, the better the video quality is, and higher bandwidth is required.

  • Page 18: Gxv3501/Gxv3504 Networking

    GXV3501/GXV3504 supports IP version 4. The IP address can set automatically via DHCP, or a static IP address can be set manually. To make GXV3501/GXV3504 work properly, the user needs to set the DNS configuration properly. For security purposes, the user can also assign GXV3501/GXV3504 another HTTP Port other than 80.

  • Page 19: Gxv3501/Gxv3504 Ddns

    GXV3501/GXV3504 SIP Page The GXV3501/GXV3504 has the ability to receive phone calls and make phone calls when an alarm event is triggered through motion detection or alarm input. Register the GXV3501/GXV3504 to a SIP server to enable the product to make and receive phone calls.
  • Page 20 Click Save to save all the changes. You need to restart the device to apply all changes. Configure Phone List Page To make sure the GXV3501/GXV3504 can make phone calls to the number you preferred when alarm is triggered. You need to add number to the phone list.

  • Page 21: Gxv3501/Gxv3504 Date & Time

    GXV3501/GXV3504 Digital Video Server 1. From the GXV3501/GXV3504 home page, click Basic Settings > SIP. 2. Go to Phone List Tab. 3. Enter the Phone number and name, click Add a Number to save all the changes. 4. Numbers added to the system will be listed in this page.

  • Page 22: Gxv3501/Gxv3504 Maintenance

    Upgrades are supported via TFTP, HTTP and HTTPS. 3. Log in to the Maintenance page of the GXV3501/GXV3504. Select the server type from the dropdown list under the “Upgrade Via” field. Enter your server‟s root directory in the “Firmware Server Path” field.

  • Page 23: Gxv3501/Gxv3504 Change Password

    If you login anonymously, you will not be able to changes any settings. Camera Name Settings This field lets you configure the name of the GXV3501/GXV3504, which helps GSurf and GS_NVR to indentify the device when using GS_Search to search all the Grandstream network cameras or digit video cameras in the same subnet.

  • Page 24: Gxv3501/Gxv3504 Ftp

    SMTP settings are ready to go. GXV3501/GXV3504 FTP Page The FTP server is used to store video files if you configure the GXV3501/GXV3504 to record video and upload it to the FTP server when an alarm event or motion detection is triggered.

  • Page 25: Gxv3501/Gxv3504 Alarm Event

    2. Click Advanced Settings > PTZ; in PTZ page, configure the PTZ Protocol and Baudrate according to your connected PTZ device. 3. Click Save and reboot the device to apply all changes. 4. Use those PTZ buttons on the homepage to tilt, pan the GXV3501/GXV3504 and also adjust the speed. NOTE: Press and hold the corresponding control button to adjust the pan, tilt, zoom and speed.
  • Page 26 GXV3501/GXV3504 Digital Video Server as alarm siren or alert light to this port. Under normal circumstances, the circuit is open. When there is an alarm event, the GXV3501/GXV3504 will close the circuit to trigger the alarm. Connect Alarm Input Equipment to the GXV3501/GXV3504 Here are two sample connection diagrams.
  • Page 27 To delete a schedule, check the schedule you would like to remove and click Delete. Set up Alarm Actions An alarm action is what the GXV3501/GXV3504 is going to do when an alarm is triggered during the defined time period – the time schedule. The GXV3501/GXV3504 allows multiple alarm actions.

  • Page 28: Gxv3501/Gxv3504 Motion Detection

    GXV3501/GXV3504 Digital Video Server GXV3501/GXV3504 Motion Detection The GXV3501/GXV3504 supports Motion Detection. To utilize this feature, please follow the below steps: 1. Setup the motion detection monitored area. 2. Configure the motion detection time schedule. 3. Configure alarm action properly.

  • Page 29: Gxv3501/Gxv3504 System Log

    Debug, Info, Warning or Error. GXV3501/GXV3504 Live Storage This page displays detailed information of the live storage devices connected to the GXV3501/GXV3504 such as video and image files. You can view, download or delete the Firmware 1.0.2.3 Page 29 of 34...
  • Page 30 GXV3501/GXV3504 Digital Video Server stored files. Connected Storage – This section displays the type, capacity, used space, free space and usage percentage of the connected USB drive or SD card. File List – This section displays the name, source storage and size of the image or video files on the connected storage devices.

  • Page 31: Faq

    2. Why can I not view the live video stream in Microsoft Internet Explorer? Please check whether the IE add-on is installed correctly. Once you log into the GXV3501/ 3504 / 3601‟s web interface Internet Explorer will indicate that “This website wants to install to following add-on: „GSViewer. cab‟ from Grandstream Networks, Inc.”.
  • Page 32 7. How do you watch secondary video stream? Login to the home page of the GXV3501/ 3504/ 3601 web GUI, click Play to watch the video stream. To watch a secondary video stream, right click on the video, and select Secondary Stream on the pop-up menu.
  • Page 33 GXV3501 /3504. 18. Port forwarding Two ports must be forwarded on your router to watch video from a GXV3501 /3504 /3601 that is located on a private network from a PC in a public network. The web port (HTTP) and the RTSP port.
  • Page 34 GXV3501/GXV3504 Digital Video Server SiS 650/651/740/661 FX/741/760 Series Works normally Intel(R) 82945R Express Chipset Family Works normally VIA/S3G UniChrome Pro IGP Works normally NIVDIA Geforce 7300GS Works normally SiS 661FX Works normally SiS Mirage Graphics Works normally SiS 661 Series...

This manual is also suitable for:

Gxv3504
