Summary of Contents for Grandstream Networks GXV3501

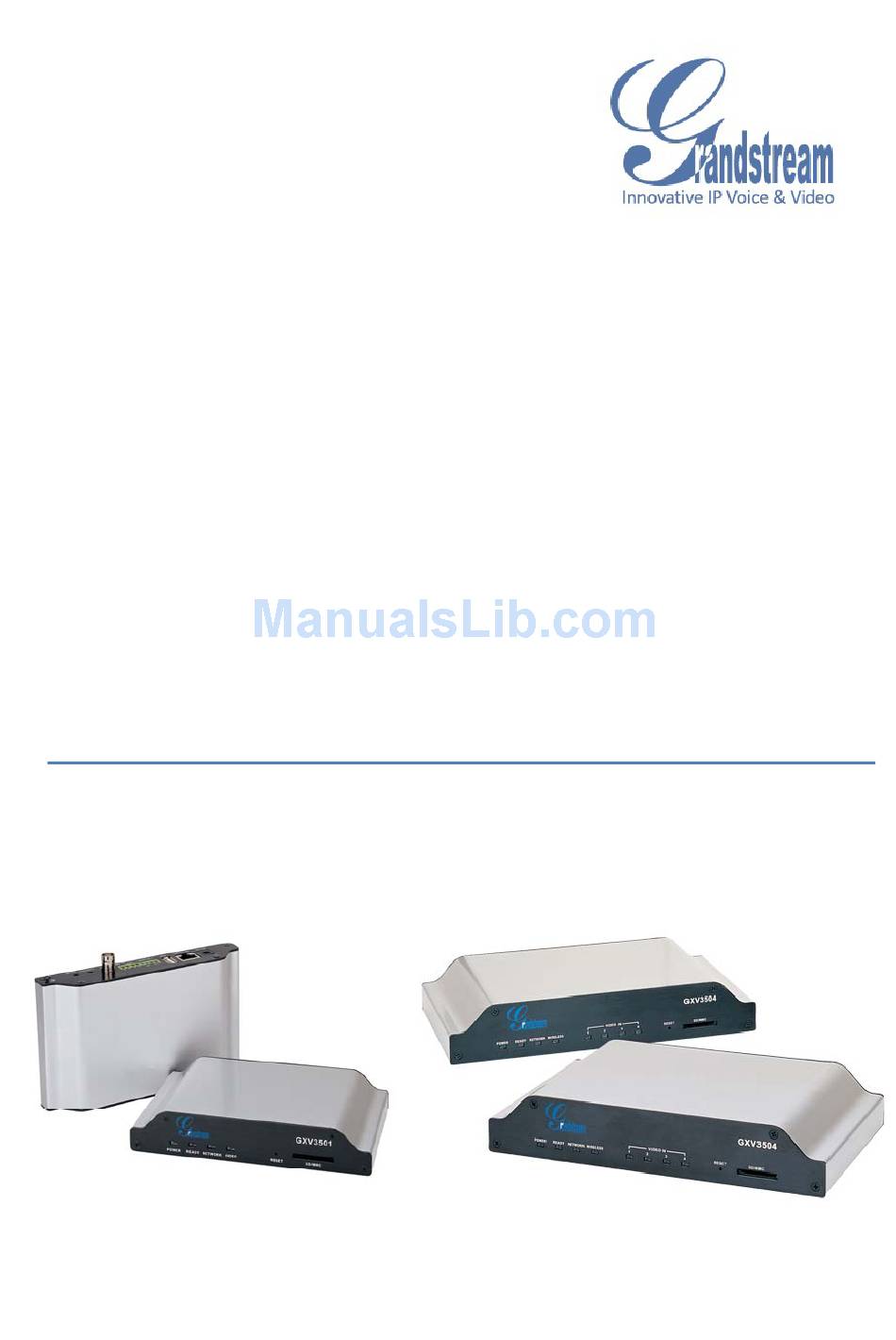

  • Page 1 Grandstream Networks, Inc. GXV3501/GXV3504 User Manual...
  • Page 2: Safety Instructions

    GXV3501/GXV3504 Digital Video Server Safety Instructions These instructions are intended to assist users with the operation of the GXV3501/GXV3504 and also to instruct on how to avoid dangerous situations or damage to the device. Warnings: Serious injury or death may be caused if any of the warnings below are neglected.
  • Page 3: Table Of Contents

    GXV3501/GXV3504 Key Features Installation 10 Minimum Recommended Requirement Connect your GXV3501/GXV3504 10 Configuration GXV3501/GXV3504 via web Browser Access GXV3501/GXV3504 Web Configuration Menu 11 GXV3501 Home Web Page 11 GXV3504 Home Web Page 12 GXV3501/GXV3504 Status 13 GXV3501/GXV3504 Video & Audio 14...
  • Page 4: Welcome

    The intuitive web interface lets users easily access, manage, view and record live video streams from the device. The GXV3501/3504 is a robust surveillance solution for small to medium sized offices and enterprise environments.
  • Page 5: Package Contents

    GXV3501/GXV3504 Digital Video Server Package Contents Items in the GXV3501 package: • GXV3501 – 1-channel digital video server • 12V DC power Adapter • 8-pin terminal block connector – 8-pin connector block for connecting external devices, such as infrared detector, and smoke detector, to Alarm IN, Alarm OUT and RS485 pins.
  • Page 6: Product Overview

    GXV3501/GXV3504 Digital Video Server Product Overview GXV3501Front Panel 1 POWER – The indicator will keep green the power is on. 2 READY – The indicator will light up green if the device is ready. 3 NETWORK – The indicator will...
  • Page 7: Gxv3501 Sample Connection Diagram

    GXV3501/GXV3504 Digital Video Server GXV3501 Sample Connection Diagram GXV3504 Front Panel 1 POWER – The indicator will stay green if power is on. 2 REDAY – The indicator will light green if the device is ready. 3 NETWORK – The indicator will flash green if there is data.
  • Page 8: Gxv3504 Sample Connection Diagram

    GXV3501/GXV3504 Digital Video Server GXV3504 Back Panel 1 DC 12V – 12V DC power port; UL Certified. 2 NETWORK – 10/100 Switch LAN Ethernet port. 3 USB – USB port for USB flash / hard drives. 4 ALARM IN – 4 Alarm Input ports for alarm equipment, ie.
  • Page 9: Gxv3501/Gxv3504 Key Features

    GXV3501/GXV3504 Digital Video Server GXV3501/GXV3504 Key Features The table below lists the key features the GXV3501/GXV3504 Supports. Feature GXV3501 GXV3504 Channels Video Compression H.264 BP @Level 3.0, JPEG, Motion JPEG Max Video Resolution Full D1: 720 x 576(PAL) 720 x 480 (NTSC)
  • Page 10: Installation

    Using the Power adapter as power supply • Connect the video output of an analog camera to the VIN port on the GXV3501/3504 using a BNC (75Ω) cable. If the analog camera has audio output, connect the audio output to the AIN port on the GXV3504 (GXV3501 does not support audio input).
  • Page 11: Configuration Gxv3501/Gxv3504 Via Web Browser

    The default user name and password are both set to admin. • IE will indicate that “This website wants to install the following add-on: ‘GSViewerX.cab’ from ‘Grandstream Networks Inc’.” Install this add-on by following the instructions in IE. • You will see the home page.
  • Page 12: Gxv3504 Home Web

    GXV3501/GXV3504 Digital Video Server Items on GXV3501 Home Page Control Console PTZ Console controller. PTZ device need to be connected. Motion Detection If the motion detection alarm is triggered, the indicator of the corresponding channel will flash red. Click on the indicator to turn off the alarm.
  • Page 13: Gxv3501/Gxv3504 Status

    GXV3501/GXV3504 Digital Video Server Items on GXV3504 Home Page Alarm Event If an alarm event is activated, the indicator of the corresponding channel will flash red. Click on the indicator to turn off the alarm Motion If the motion detection alarm is activated, the indicator of the...
  • Page 14: Gxv3501/Gxv3504 Video & Audio

    GXV3501/GXV3504 Digital Video Server LAN IP Address – This field shows the LAN IP address of the GXV3501/GXV3504. LAN Subnet Mask – This field shows the LAN subnet mask of the GXV3501/GXV3504. LAN Default Gateway – This field shows the LAN default gateway of the GXV3501/GXV3504.
  • Page 15: Gxv3501/Gxv3504 Networking

    GXV3501/GXV3504 supports IP version 4. The IP address can set automatically via DHCP, or a static IP address can be set manually. To make GXV3501/GXV3504 work properly, the user needs to set the DNS configuration properly. For security purpose, the user can also assign GXV3501/GXV3504 another HTTP Port other than 80.
  • Page 16: Gxv3501/Gxv3504 Ddns

    Statically Configured as – configures all of the following fields: IP address, Subnet Mask, Default Gateway IP address, DNS Server 1 (primary), DNS Server 2 (secondary). These fields are set to zero by default. Static IP addresses are recommended for the GXV3501/GXV3504 DNS Configuration...
  • Page 17: Gxv3501/Gxv3504 Sip

    GXV3501/GXV3504 Digital Video Server GXV3501/GXV3504 SIP Page The GXV3501/GXV3504 has the ability to receive phone calls and make phone calls when an alarm event is triggered through motion detection or alarm input. Register the GXV3501/GXV3504 to a SIP server to enable the product to make and receive phone calls. To make phone calls out, the user need to configure the Phone List properly.
  • Page 18 Click Save to save all the changes. You need to restart the device to apply all changes. Configure Phone List Page To make sure the GXV3501/GXV3504 can make phone calls to the number you preferred when alarm is triggered. You need to add number to the phone list.
  • Page 19: Gxv3501/Gxv3504 Date & Time

    GXV3501/GXV3504 Digital Video Server GXV3501/GXV3504 Date & Time Page This page allows you to configure the system time on GXV3501/GXV3504. Current System Time - displays the current date and time (24h clock). Set the Device Time Update via NTP Server - the camera...
  • Page 20: Gxv3501/Gxv3504 Administrator

    If you login anonymously, you will not be able to changes any settings. Camera Name Settings This field lets you configure the name of the GXV3501/GXV3504, which helps GSurf and GS_NVR to indentify the device when using GS_Search to search all the Grandstream network cameras or digit video cameras in the same subnet.
  • Page 21: Gxv3501/Gxv3504 Smtp

    SMTP settings are ready to go. GXV3501/GXV3504 FTP Page The FTP server is used to store video files if you configure the GXV3501/GXV3504 to record video and upload it to the FTP server when an alarm event or motion detection is triggered.
  • Page 22: Gxv3501/Gxv3504 Ptz

    2. Click Advanced Settings > PTZ; in PTZ page, configure the PTZ Protocol and Baudrate according to your connected PTZ device. 3. Click Save and reboot the device to apply all changes. 4. Use those PTZ buttons on the homepage to tilt, pan the GXV3501/GXV3504 and also adjust the speed. NOTE: Press and hold the corresponding control button to adjust the pan, tilt, zoom and speed.
  • Page 23: Gxv3501/Gxv3504 Alarm Event

    1. Connect alarm input equipment to the GXV3501/GXV3504. 2. Set up the alarm event time schedule. 3. Configure the alarm actions which you would like the GXV3501/GXV3504 to take when alarm is triggered. How Alarm Input and Alarm Output Work Alarm-in is the alarm input port;...
  • Page 24 To delete a schedule, check the schedule you would like to remove and click Delete. Set up Alarm Actions An alarm action is what the GXV3501/GXV3504 is going to do when an alarm is triggered during the defined time period – the time schedule. The GXV3501/GXV3504 allows multiple alarm actions.
  • Page 25: Gxv3501/Gxv3504 Motion Detection

    GXV3501/GXV3504 Digital Video Server GXV3501/GXV3504 will capture the image and store it to connected live storage device when an alarm is triggered. How to connect an Alarm Output Equipment to GXV3501/GXV3504 Here is a sample connection diagram. Connect the alarm output equipment to the GXV3501/GXV3504 by following the diagram below.
  • Page 26: Gxv3501/Gxv3504 System Log

    GXV3501/GXV3504 Digital Video Server To Edit a Monitored Area 1. In the Select a Region dropdown list, select the region ID. 2. Click Edit. 3. Click on the video, drag and draw you preferred area. 4. Set the Sensitivity. Click the...
  • Page 27: Gxv3501/Gxv3504 Live Storage

    This page displays detailed information of the live storage devices connected to the GXV3501/GXV3504 such as video and image files. You can view, download or delete the stored files. Connected Storage – This section displays the type, capacity, used space, free space and usage percentage of the connected USB drive or SD card.
  • Page 28: Faq

    2. Why can I not view the live video stream in Microsoft Internet Explorer? Please check whether the IE add-on is installed correctly. Once you log into the GXV3501/ 3504 / 3601’s web interface Internet Explorer will indicate that “This website wants to install to following add-on: ‘GSViewer. cab’ from Grandstream Networks, Inc.”.
  • Page 29 Please double check whether the device has an audio input connected. The GXV3504 has 4 audio input ports and one MIC IN port. The GXV3501 has a MIC IN port for an audio input. The GXV3501/GXV3504 has a built-in microphone and one MIC IN port for audio inputs.
  • Page 30 4. If there are many files (ie. 1800 or more image batch files) on the SD/USB drive, it can take up to 5 minutes to read them. Please do not refresh the web interface at this time as the GXV3501 /3504 /3601 will restart reading the SD/USB drive.
  • Page 31 GXV3501/GXV3504 Digital Video Server SiS 661FX Works normally SiS Mirage Graphics Works normally SiS 661 Series Works normally Intel(R) G33/G31 Express Works normally SiS Mirage3 Graphics Works normally SiS 661FX/GX Mirage Graphics Works normally S3 Graphics ProSavageDDR(Microsoft Corporation) Works normally XGI Velari Z7/Z9/Z9S V1.08.12...
