Grandstream Networks GXW410x Setup Manual

Grandstream Networks GXW410x Setup Manual

Elastix server
Hide thumbs Also See for GXW410x:

Advertisement

Quick Links

Download this manual See also: User Manual
Grandstream GXW410x
and Elastix Server
Setup Guide
http://www.elastix.org

Advertisement

loading

Related Manuals for Grandstream Networks GXW410x

Summary of Contents for Grandstream Networks GXW410x

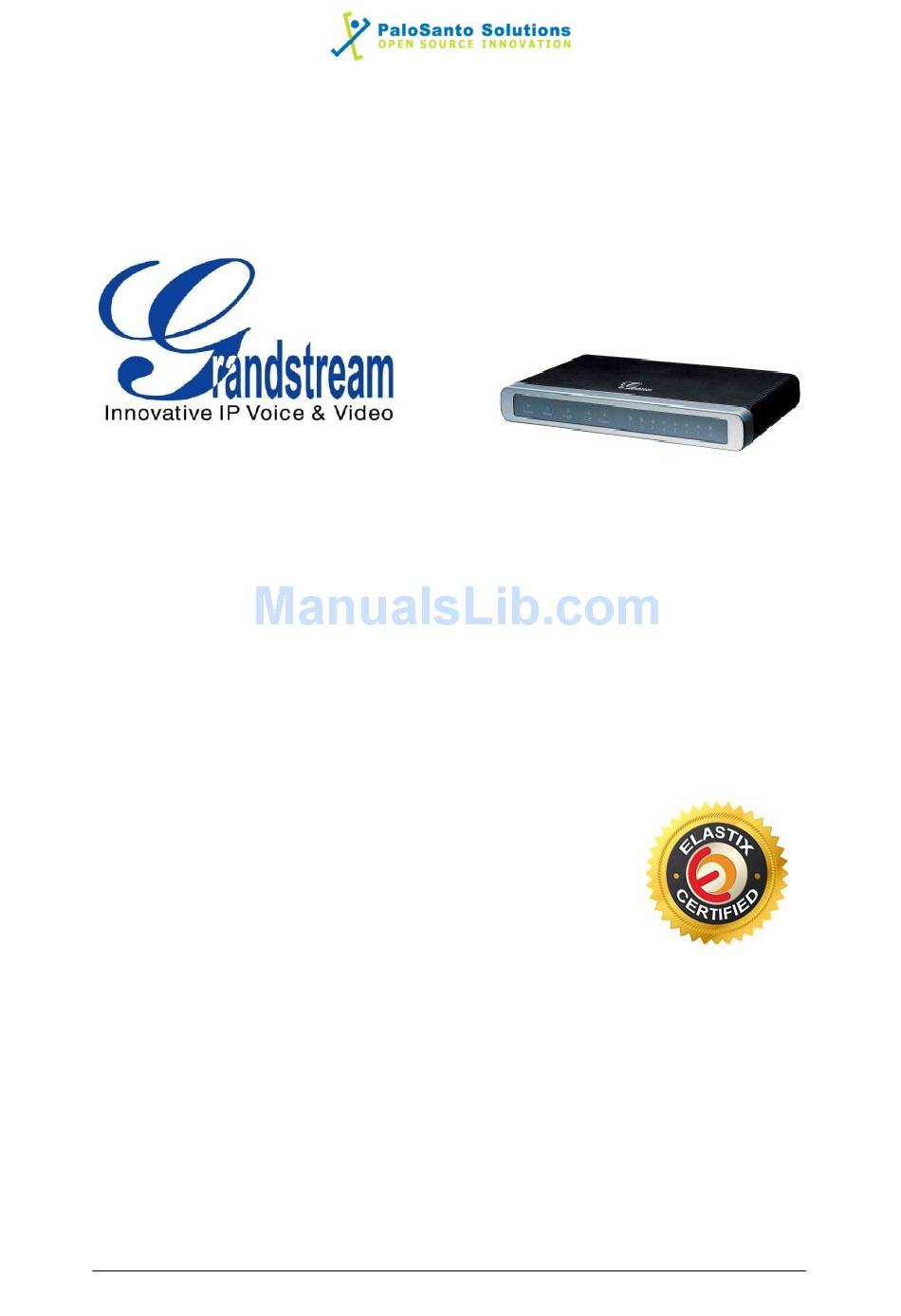

  • Page 1 Grandstream GXW410x and Elastix Server Setup Guide http://www.elastix.org...

  • Page 2: Setup Diagram

    1. Setup Diagram Grandstream GXW4104/8 and Elastix Server Setup Guide Figure 1-1 is a setup diagram for a single gateway Grandstream GXW410x configuration. The gateway is setup as a SIP telephony device. 2. Host PC Environment Figure 2-1. Setup Diagram Table 2-1.

  • Page 3: Setup Procedure

    4. Setup Procedure Grandstream GXW4104/8 and Elastix Server Setup Guide To set up the Elastix Server for the Grandstream GXW410x 1. Go to the web address of the Elastix Server Login page. The web address is determined by the customer, for this guide we have used the IP address 192.168.1.66 2.
  • Page 4 PaloSanto Solutions Grandstream GXW4104/8 and Elastix Server Setup Guide 5. Click on the Submit button to add an extension so we can test the gateway using it when we finish the entire configuration, see Figure 4-3. This will take you to the Add SIP Extension page.
  • Page 5 PaloSanto Solutions Grandstream GXW4104/8 and Elastix Server Setup Guide Figure 4-5. Apply Configuration 8. Configure an IP Phone with the same settings to register it with Elastix Server. 9. Now we will configure an Outbound Route for outgoing calls depending on a prefix. For this we have to configure a SIP Trunk first.
  • Page 6 PaloSanto Solutions Grandstream GXW4104/8 and Elastix Server Setup Guide 10.Click on the ‘Submit’ button at the end of the page and the SIP Trunk will be created. 11.Now, go to “PBX => PBX Configuration => Outbound Routes” to configure the outbound route using this trunk.
  • Page 7 999999, the IVR will be played to the caller giving him choices to interact with our Elastix Server. 16.To configure the GXW410x you will need to enter the information from the sip trunk created on the Elastix Server into the gateway.
  • Page 8 DHCP Web Access Password admin 17.Log in to the Grandstream GXW410x WebUI by pointing your browser to the IP address of the gateway. 18.When prompted, enter the Web Access Password to access to the WebUI (Figure 4-10). Figure 4-10. Grandstream WebUI 19.Use the information from the Add SIP Extension page (Figure 4-4) to enter the...
  • Page 9 PaloSanto Solutions Grandstream GXW4104/8 and Elastix Server Setup Guide Figure 4-11. Channels 20.Once you have entered the required information, click on ‘Update’ button located at the end of the page. Now go “Profile 1” to edit some parameters (Figure 4-12). ...
  • Page 10 PaloSanto Solutions Grandstream GXW4104/8 and Elastix Server Setup Guide  Number of Rings Before Pickup: ch1-4:4;  Caller ID Scheme: ch1-4:1; (Choose the option that better fits to your PSTN line)  Caller ID Transport Type: ch1-4:4; Figure 4-13. FXO Lines 23.Click on the “Update”...
  • Page 11 To test the inbound calls, from the PSTN call to your public number which should be connected to a registered port in GXW410x gateway, and after some rings you should be able to reach the IVR configured in Elastix.
  • Page 12 PaloSanto Solutions Grandstream GXW4104/8 and Elastix Server Setup Guide IN CASE THE CALLER ID OF INCOMING CALLS IS NOT RECEIVED CORRECTLY 1. Log in to the console in Elastix Server. You can access remotely or directly from the server. 2. Go to /etc/asterisk/extensions_additional.conf and search the context of the inbound route configured in Elastix.
  • Page 13 PaloSanto Solutions Grandstream GXW4104/8 and Elastix Server Setup Guide Figure 4-17...
