Note:
Make sure the print media is below
the max fill line. Overloading may
cause jams.
6
Slide the width guides until they lightly rest
against the edge of the media.
7
Set the Paper Size and Paper Type for the
multipurpose feeder (MP Feeder Size and MP
Feeder Type) to the correct value for the print
media you loaded.

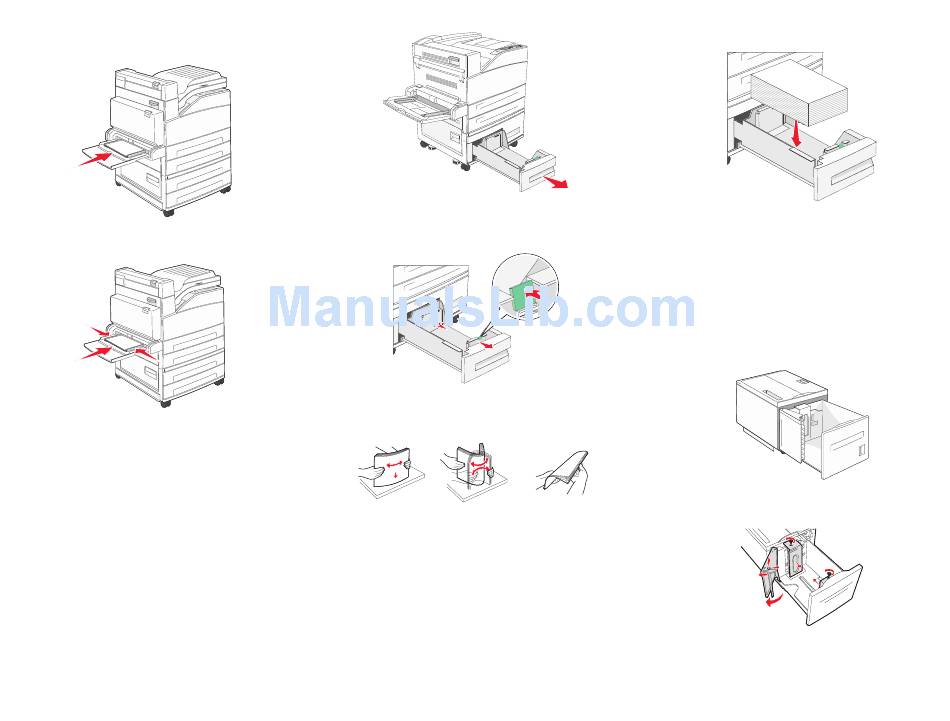

Loading the 2000-sheet dual input
trays
The 2000-sheet dual input drawer includes two trays:
an 850-sheet tray and an 1150-sheet tray. Although
the trays are different in appearance, they both load
the same way.
1
Pull out the tray.
2
Squeeze the front guide tab, and slide the guide
to the correct position for the size media you are
loading.
3
Flex the sheets back and forth to loosen them,
then fan them. Do not fold or crease the print
media. Straighten the edges on a level surface.
4
Load print media in the tray with the print side
up.
Note:
Make sure the print media is below
the max fill line on the rear guide.
Overloading may cause jams.
5
Insert the tray into the MFP.
Loading the 2000-sheet high
capacity feeder
1
Pull out the tray.
2
If loading print media with a different width or
length, adjust the width and length guides.
