Installation
•
Install the built-in hob in well ventilated area and keep away from any combustible or
inflammable object i.e. paper, oil, etc.
•
If the built-in hob is to be installed near any combustible surrounding i.e. wooden walls,
wooden shelves, etc, there should be a distance of more than 15 cm (6 in) away from the
surrounding combustible. If the surrounding materials are fireproof, the clearance is not
required.
•
Place the built-in hob on a stable and level surface.
•
This built-in hob is to be used for cooking purposes only. Do not use it to dry towel,
clothes or any other materials over it.
•
Make sure that the following parts are fitted properly before use.
1. Pan Support

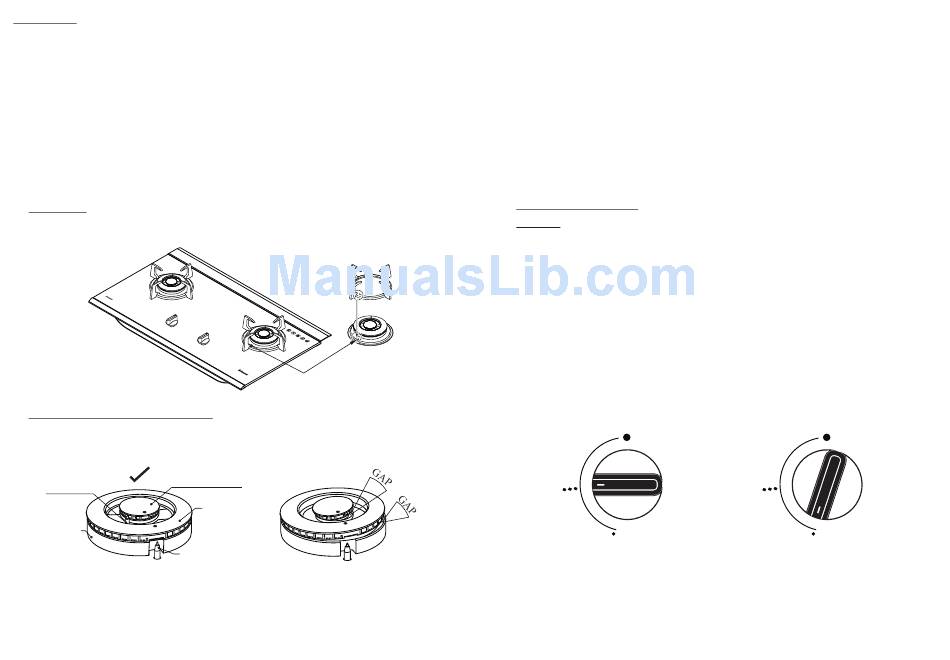

Fit pan support to top plate / tempered glass. (Fig. 3)
Fig. 3
2. Burner Head and Simmer Burner Head
Fit burner head into simmer burner head onto the burner body correctly, without any
gap. (Fig. 4)
Simmer Burner Head
Safety Sensor
H Burner Body
Spark Electrode
Fig. 4
X
H Burner Head
- 3 -
3. Installation of Gas Hose
•
A specific rubber hose for
built-in hob
•
The rubber hose must not be bent during installation and must be of an appropriate length
(less than 2 m).
•
During installation, make sure that the rubber hose does not come into contact with the
body of the built-in hob pass through the bottom part of the built-in hob to prevent
melting of the hose.
•
Place the securing ring over the rubber hose and connect the rubber hose to the coupler
below the rear side of the built-in hob till the marked red line. Then secure the rubber
hose in position with the securing ring (For LP Gas).
Operating Instruction
Ignition
1. Depress the control knob to about 2 mm, then turn to the left (counter clock-wise) to the
"ON" position.
2. When the control knob is being turned for ignition, sparks are generated to ignite the
burning device, accompanied by clicking sound.
3. In the event of the burner flames being accidentally extinguished, turn off the burner
control and do not attempt to re-ignite the burner for at least 1 min. If the burner has not lit
up after 15 seconds, stop operating the built-in hob and open the compartment door
and/or wait for at least 1 minute before attempting to ignite the burner again.
4. The flame can be controlled between "MAX" and "MIN" position, please adjust the
flame slowly.
5. Do not clean the top of the sensor with a hard brush, as it may damage the sensor.
Fig. 5
MAX
must be used.
MIN
- 4 -
