Page 1: Technical Data

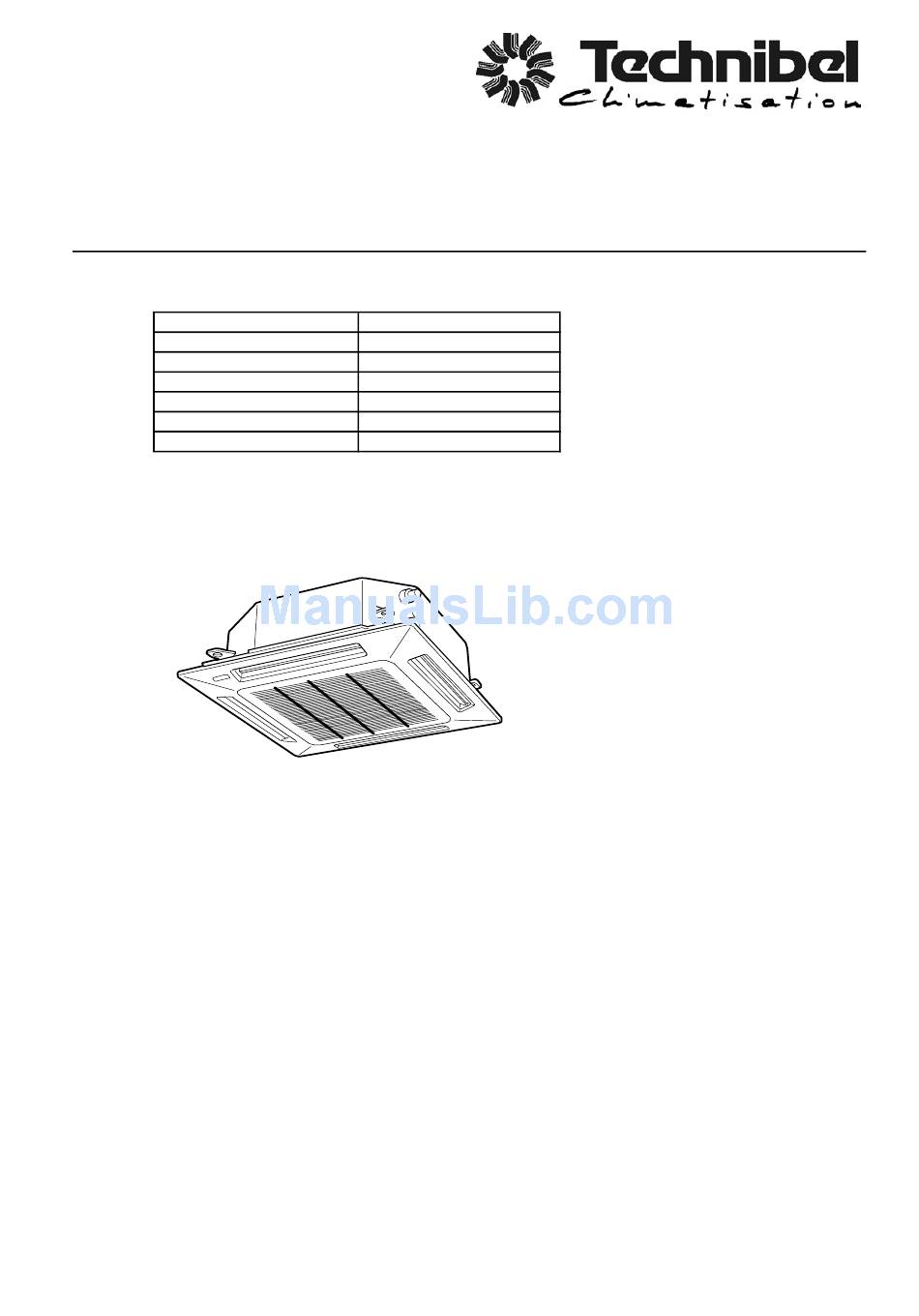

TECHNICAL DATA & SERVICE MANUAL SPLIT SYSTEM AIR CONDITIONER Model No. Product Code No. CAFP125R5I 38.7130.060 CAFP165R5I 38.7130.061 CAFP185R5I 38.7130.062 0.8180.447.1 09/2006... - Page 2 IMPORTANT! • Ground the unit following local electrical codes. Please read before installation • The Yellow/Green wire cannot be used for any connection different from the ground connection. • Connect all wiring tightly. Loose wiring may cause overheating This air conditioning system meets strict safety and operating at connection points and a possible fire hazard.
-
Page 3: Table Of Contents
Table of Contents Page 1. SPECIFICATIONS 1-1 Unit specifications 1-2 Major Component specifications 1-3 Other Component specifications 2. DIMENSIONAL DATA 3. ELECTRICAL DATA 3-1 Electric Wiring Diagram 3-2 Control PCB switches and functions 4. PROCESS AND FUNCTIONS 4-1 Control function 5. -
Page 4: Specifications
1. SPECIFICATIONS 1-1 Unit Specifications CAFP125R5I 220 - 240V ~ 50Hz Power source 230V Voltage rating Cooling Heating Performance See catalogue with the requested matching Capacity 700/600/500 Air circulation (High/Med./Low) m³/h Features Microprocessor/ I.C. thermostat Controls/Temperature controls K70D036Z / K70D042Z... - Page 5 CAFP165/185R5I 220 - 240V ~ 50Hz Power source 230V Voltage rating Cooling Heating Performance Capacity See catalogue with the requested matching Air circulation (High/Med./Low) m³/h 750/630/530 Features Controls/Temperature controls Microprocessor/ I.C. thermostat Remote Controller (Option) wired K70D036Z / K70D042Z wireless K70D038Z / K70D040Z 3 and Auto Fan speed...
-
Page 6: Major Component Specifications
1-2 Major Component Specifications CAFP125R5I Controller PCB CR-CRP50A-B Part No. Microprocessor Controls Fan & Fan Motor Centrifugal fan Type 1…. Ø 280 L 166 Q'ty ……. Dia. and lenght K35407-MO1972 …1 Fan motor model…Q'ty 4… 880/740/660/290 No. Of poles…rpm (230 V, High/Med/Low/LowLow) - Page 7 CAFP165/185R5I Controller PCB CR-CRP50A-B Part No. Microprocessor Controls Fan & Fan Motor Centrifugal fan Type 1…. Ø 280 L 166 Q'ty ……. Dia. and lenght K35407-MO1972 …1 Fan motor model…Q'ty 4… 880/740/660/290 No. Of poles…rpm (230 V, High/Med/Low/LowLow) 0,27 Running Amps Power input Ω...
-
Page 8: Other Component Specifications
1-3 Other Component Specifications ATR-IIJ225A Trasformer VAC 230V, 50Hz Rating Primary AC 20V - 0.2A Secondary 1 Secondary 2 AC 14V - 0.3A Secondary 3 AC 10,2V - 1.4A 136°C Thermal cut-off temp. Thermistor ( Coil sensor E1, E2) PBC-41E-S26 0 °C 15,0 ±... -
Page 9: Dimensional Data
2. DIMENSIONAL DATA... -
Page 10: Electrical Data
3. ELECTRICAL DATA 3-1 Electric Wiring Diagram 7P terminal board 1(L) 2(N) power inter-unit remote supply control controller wiring... -
Page 11: Control Pcb Switches And Functions
3-2 Control PCB switches and functions CR-TRP50A-B OC (CN040) EMG (CN044) VARISTOR (VA041) DISP (CN072) EXCT (CN073) FILTER (JP001) (CN070) CHK (CN071) FAN DRIVE (CN032) (CN020) T10 (CN061) POWER LED (D002) EEPROM (IC010) T10: 6 plug (yellow): used for remote control. (Refer to the remote control section) (CN061) 1- start/stop input 2- COM... -
Page 12: Process And Functions
4. PROCESS AND FUNCTIONS 4-1 control functions... -
Page 15: Replacing Pcb
5. REPLACING PCB 5-1 Replacing PCB About EEPROM (Erasable Programmable Read-Only Memory) EEPROM is a component in which the various information necessary for functionning can be electronically written or erased. This component holds informations that is essential for the running of the unit, and must be handled with care. D002 led lamp (red) -
Page 16: How To Replace Pcb
5-2 How to replace PCB... -
Page 17: How To Replace Eeprom With Eeprom Included In Pcb Service Pack
5-3 How to replace EEPROM with EEPROM included in PCB service pack... -
Page 19: Table Of Setting
5-4 Table of settings... -
Page 20: Service Procedure
6. SERVICE PROCEDURE 6-1 Meaning of alarm message... -
Page 21: Led Indicator Messages On Outdoor Control Pcb
6-2 Led indicator messages on outdoor control PCB... -
Page 22: Symptoms And Parts To Inspect
6-3 Symtoms and parts to inspect... -
Page 23: Details Of Alarm Messages
6-4 Details of alarm messages resistance... -
Page 27: Outdoor Unit Maintenance Remote Control
7. OUTDOOR UNIT MAINTENANCE REMOTE CONTROL... - Page 35 R.D. 28 Reyrieux BP 131 - 01601 Trévoux CEDEX France Tél. 04.74.00.92.92 - Fax 04.74.00.42.00 R.C.S. Bourg-en-Bresse B 759 200 728...
