OPERATING INSTRUCTIONS • ISTRUZIONI D'USO
NOTICE D'UTILISATION • BEDIENUNGSANLEITUNG
INSTRUCCIONES DE USO
CA8FIA0R5I--
CA9FIB0R5I--
CA10FICR5I--
CA14FIDR5I--

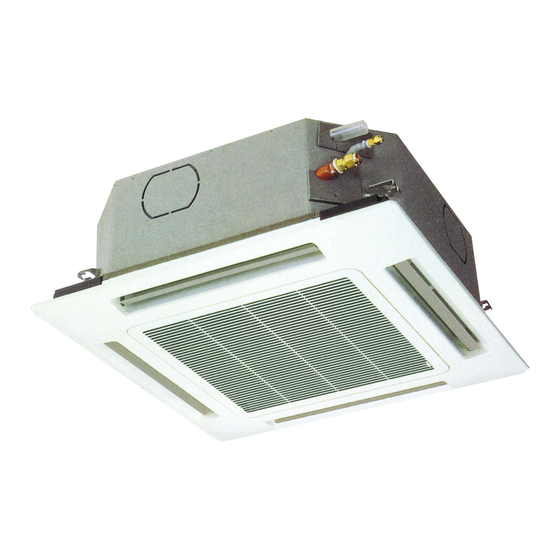

Split air conditioner system • Condizionatore d'aria split system
Climatiseurs split • Split-klimagerät
Acondicionador de aire de consola partida sistema split
37.4254.070.00
04/2015
EG
I
F
D
E
Advertisement
Table of Contents
Related Manuals for Technibel CA8FIA0R5I Series
Summary of Contents for Technibel CA8FIA0R5I Series
- Page 1 OPERATING INSTRUCTIONS • ISTRUZIONI D’USO NOTICE D’UTILISATION • BEDIENUNGSANLEITUNG INSTRUCCIONES DE USO CA8FIA0R5I-- CA9FIB0R5I-- CA10FICR5I-- CA14FIDR5I-- Split air conditioner system • Condizionatore d’aria split system Climatiseurs split • Split-klimagerät Acondicionador de aire de consola partida sistema split 37.4254.070.00 04/2015...
-
Page 2: Table Of Contents
CONTENTS NAME OF PARTS AND OPERATION SELECTOR SWITCH INSTALLATION LOCATION ELECTRICAL REQUIREMENTS SAFETY INSTRUCTIONS USING THE REMOTE CONTROL UNIT REMOTE CONTROL UNIT HOW TO SET THE PRESENT TIME COOLING HEATING AUTOMATIC OPERATION DEHUMIDIFYING (DRY) FAN ONLY ADJUSTING THE FAN SPEED NIGHT MODE/ENERGY SAVING HIGH POWER MODE SETTING THE TIMER... -
Page 3: Name Of Parts And Operation Selector Switch
NAME OF PARTS AND OPERATION SELECTOR SWITCH OPER TIMER STBY MODELS CA8 - CA9 MODELS CA10 - CA14 OFF LAMPS FUNTION 1. Remote control unit. 2. Remote control sensor: Detects the room temperature It is possible to set the air conditioner in order to let the around the remote control unit, the air conditioner is OPERATION, TIMER and STANDBY lamps always OFF, controlled accordingly. -
Page 4: Installation Location
INSTALLATION LOCATION USING THE REMOTE CONTROL UNIT HOW TO INSTALL BATTERIES We recommend this air conditioner to be installed Remove trhe lid in the rear part of the remote control unit properly by qualified installation technicians in and check the settings of the four microswitches as accordance with the installation instructions provided with the unit. -
Page 5: Remote Control Unit
REMOTE CONTROL UNIT DISPLAY I FEEL mode is active Information is displayed when the remote controller is switched on. (remote controller If switched off, only the operating mode, the room temperature and sensor active) the clock are shown Functions menu Room Operation mode Displayed when... -
Page 6: How To Set The Present Time
HOW TO SET THE PRESENT TIME DEFROSTING OF OUTDOOR UNIT HEAT EXCHANGER 1. Press the button ST three times. When the outdoor temperature is low , frost or ice may The time indication alone flashes. appear on the heat exchanger coil, reducing the heating 2. -
Page 7: Dehumidifying (Dry)
AUTOMATIC OPERATION MULTISPLIT FAN ONLY CONFIGURATION When the air conditioning system configuration is multisplit If you want to make air circulate without any temperature and there is more than one indoor unit connected, the automatic mode operates as follows: control, press button until only the fan symbol - the first unit that switches on the system also decides the... -
Page 8: Setting The Timer
SETTING THE TIMER SETTING THE 1 HOUR TIMER This function causes the unit to operate for one hour at the A) HOW TO SET THE ON TIME set conditions, regardless of whether the unit is on or of f. 1. Press the ST button once. The ON and time indications flash. -
Page 9: Adjusting The Air Flow Direction
The flap automatically closes when the unit ADJUSTING THE AIR FLOW DIRECTION NOTES is off. If automatical oscillation is selected, when the unit starts in heating operation, the fan You can adjust the air flow direction using the 4 flaps of stops and the flap is in fixed position until the grille frame. -
Page 10: Care And Cleaning
CARE AND CLEANING AIR FILTER The air filter should be cleaned at least once every six months or more frequently; it depends on the real operation conditions. WARNING Maintenance operations must be carried out by specially HOW TO REMOVE THE FILTER trained personnel. -
Page 11: Tips For Energy Saving
ADDITIONAL MAINTENANCE TIPS FOR ENERGY SAVING The inspection or replacement of internal components involve the removal of the condensate drain pan. DO NOT: Block the air intake and outlet of the unit. If they are obstructed, the unit will not work well, and may be damaged. -
Page 15: Explanation And Use Of The Remote Control Unit's Microswitches
EXPLANATION AND USE OF THE REMOTE CONTROL UNIT’S MICROSWITCHES Switch 1 and 2: These switches are used to match the remote control with the specific internal units. Switch 3 and 4: these switches have been provided for future use; they have no function today. - Page 16 Z.I. Route départementale 28 01600 Reyrieux France Tél. 33 4 74 00 92 92 - Fax 33 4 74 00 42 00 Technibel is a trademark of NIBE ENERGY SYSTEM FRANCE...
