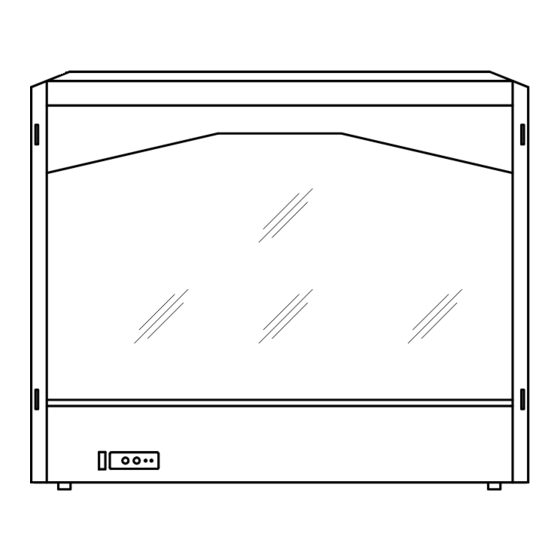

Travis Industries 564 Installation And Owner's Manual

Electric fireplace/insert
Hide thumbs Also See for 564:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual , Installation Manual

564 ELECTRIC FIREPLACE/INSERT
INSTALLATION AND OWNER'S MANUAL
98501028
Read these instructions completely before beginning installation. Failure to follow them could
cause a heater
malfunction and result in serious injury and/or property damage.
WARNING: All electric heaters have hot or sparking parts inside. Do not use it in areas where
gasoline, paint or flammable liquids are stored.
WARNING: This fireplace is tested and listed for use only with the optional accessories listed in
these instructions. Use of optional accessories not specifically tested for this heater could void
the heater warranty
and/or result in a safety hazard.
1
(C) Travis Industries
100-01382

Advertisement

Table of Contents
loading

Related Manuals for Travis Industries 564

Summary of Contents for Travis Industries 564

  • Page 1   564 ELECTRIC FIREPLACE/INSERT INSTALLATION AND OWNER’S MANUAL 98501028 Read these instructions completely before beginning installation. Failure to follow them could cause a heater malfunction and result in serious injury and/or property damage. WARNING: All electric heaters have hot or sparking parts inside. Do not use it in areas where gasoline, paint or flammable liquids are stored.

  • Page 2: Safety Information

    10. To prevent a possible fire, do not block air intakes in any manner. 11. A heater has hot or sparking parts inside. Do not use it in areas where gasoline, paint or flammable liquids are used or stored. (C) Travis Industries 100-01382...

  • Page 3: Listing Approvals

    United States. All components are UL or CSA safety certified. Voltage: 120 AC, Watts: 1500 Amps: Note: This heater must be electrically wired and grounded in accordance with local codes or, in the absence of local codes, with National Electric Code. (C) Travis Industries 100-01382...
  • Page 4 Dimensions 32 1/4" [818mm] 10" [253mm] 30 1/4" [768.8mm] (C) Travis Industries 100-01382...

  • Page 5: Locating The Fireplace Insert

    Proposition 65 Warning: Fuels used in gas, woodburning or oil fired appliances, and the products of combustion of such fuels, contain chemicals known to the State of California to cause cancer, birth defects and other reproductive harm. California Health & Safety Code Sec. 25249.6 (C) Travis Industries 100-01382...
  • Page 6 7/8” wide by 26-3/4” tall). This ensures the face properly conceals the opening at the same time allowing the fireplace to insert into the cavity. When installing the fireplace, take care when routing the power cord. You may wish to allow for additional space behind the framing for power cord access. (C) Travis Industries 100-01382...

  • Page 7: Clearances When Built-In

    Arrange the cord away from traffic areas where it could be tripped over. Select a suitable location that is not susceptible to moisture and is away from drapes, furniture and high traffic areas. Note: Follow all national and local electrical codes. (C) Travis Industries 100-01382...

  • Page 8: Installation Overview - Masonry Fireplaces

    Do not place it above the fireplace Use the optional surround panels (sku insert. 96100298) to cover the fireplace opening. The panels are 44-1/4" (1124mm) wide and 34-3/8" (874mm) tall. Leveling Bolts (C) Travis Industries 100-01382...

  • Page 9: Installation Overview - Zero-Clearance (Metal) Fireplaces

    If the firebox steps down greater than A Code-Conforming (jacketed, grounded) 1", place shims (plywood, tile, etc.) receptacle may be placed within the fireplace. Do under the leveling bolts to provide not place it above the fireplace insert. adequate leveling. (C) Travis Industries 100-01382...
  • Page 10 (or carefully remove the tabs) to remove the log set. This is done by removing the two screws holding the panel in place. Installing the Glowing Embers Pour the glowing embers onto the tray as shown below. Feel free to use the combination of glowing embers you find most appealing. (C) Travis Industries 100-01382...
  • Page 11 FACE BRACKET INSTALLATION This fireplace includes brackets to attach the 564 faces listed below to the front of the fireplace. Two sets of brackets are included to accommodate the different faces. See the list of faces below to identifiy the correct brackets. Use the nuts included with the face kits to attach the brackets.

  • Page 12: Remote Control Operation

    – MAKE SURE IT IS TURNED ON. HEAT FLAME HEATER POWER 1. For the remote to function make sure the heater is plugged in and main power switch is turned on. (C) Travis Industries 100-01382...
  • Page 13 To decrease the brightness / flame Intensit y , , press and release the – button . Each time you press this button the brightness will decrease by small amount, unitl the minimum brightness is reached. You can mix the ember and the flame to create a realistic flame effect. (C) Travis Industries 100-01382...
  • Page 14 If the flame does not activate after the POWER ON/OFF button is pressed, press the DISPLAY ON/OFF button to activate the flame. If the flame does not appear, press the POWER ON/OFF button again. WARNING: Before undertaking maintenance unplug the fireplace insert. (C) Travis Industries 100-01382...

  • Page 15: Direct Operation

    77° F (25° C) the heater will turn off. 3) “Flame control button” Press "Flame" button to adjust the flame intensity and ember bed brightness. Press the "FLAME" control button to cycle through LO, MED, HI and OFF. (C) Travis Industries 100-01382...

  • Page 16: Cleaning And Maintenance

    3. In the event of glass breakage, vacuum all remaining glass pieces with a shop vac. DO NOT VACUUM WHILE THE PIECES ARE HOT. Replace glass only with replacement parts made specifically for this heater. Never substitute material. (C) Travis Industries 100-01382...

  • Page 17: Replacement Parts

    LED STRIP FOR FLAME QTY: 2 250-02874 LED STRIP FOR LOG 250-02876 LED STRIP FOR EMBER QTY: 2 250-02877 LED STRIP FOR EMBER 250-02878 REMOTE 250-02897 FLAME MOTOR 250-02880 SWITCH 250-02882 40 INS LOG 250-03335 BUTTON - HEAT/FLAME (C) Travis Industries 100-01382...

  • Page 18: Troubleshooting

    Circuit breaker has been tripped and turn the unit on. If plug can not be reached, turn off the circuit breaker that supplies electricity to the unit .Wait five minutes then flip circuit breaker back on. (C) Travis Industries 100-01382...

  • Page 19: Year Limited Warranty

    9. TRAVIS INDUSTRIES, INC. is free of liability for any damages caused by the appliance, as well as inconvenience expenses and materials. Incidental or consequential damages are not covered by this warranty. In some states, the exclusion of incidental or consequential damage may not apply.
