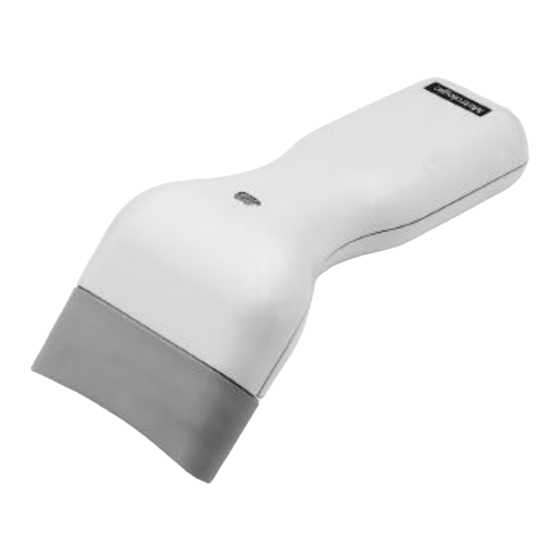

Metrologic MS6200 Pulsar Series Installation And User Manual

Single-line hand-held laser scanner
Hide thumbs Also See for MS6200 Pulsar Series:

Advertisement

METROLOGIC INSTRUMENTS, INC.
MS6200 Pulsar™ Series
Single-Line Hand-Held Laser Scanner
Installation and User's Guide

Advertisement

Table of Contents
loading

Summary of Contents for Metrologic MS6200 Pulsar Series

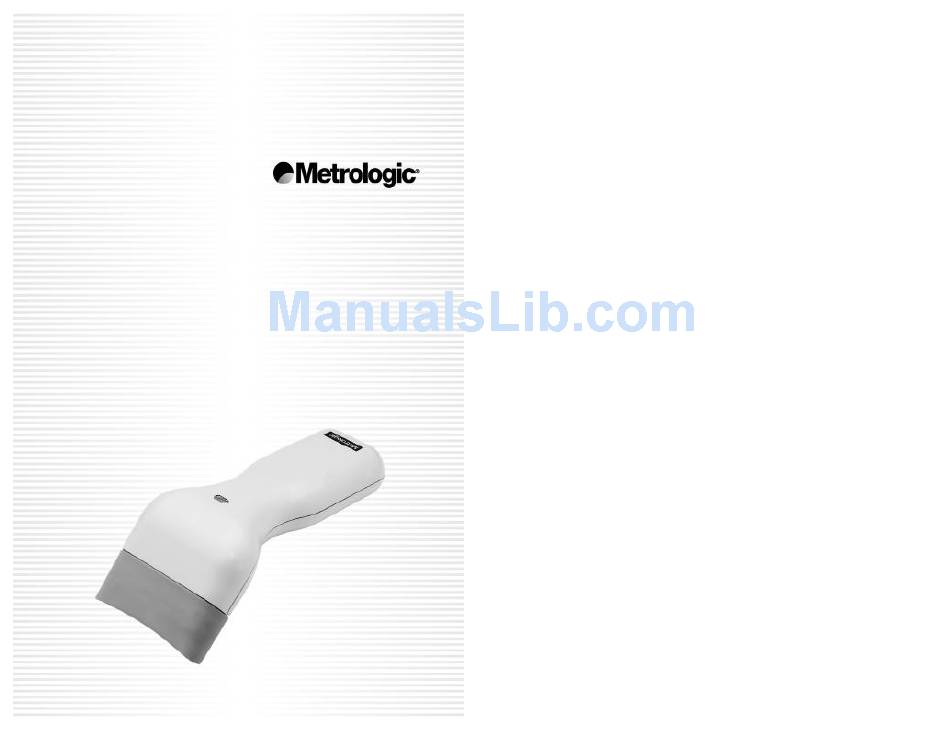

  • Page 1 METROLOGIC INSTRUMENTS, INC. MS6200 Pulsar™ Series Single-Line Hand-Held Laser Scanner Installation and User’s Guide...
  • Page 3 Copyright © 2000 by Metrologic Instruments, Inc. All rights reserved. No part of this work may be reproduced, transmitted, or stored in any form or by any means without prior written consent, except by reviewer, who may quote brief passages in a review, or provided for in the Copyright Act of 1976.
  • Page 4: Table Of Contents

    ABLE OF ONTENTS Introduction...................... 1 Accessories and Supplies................. 2 Quick Start....................... 3 Standard Scanner Installation ................4 Keyboard Wedge Installation ................5 Keyboard Wedge Installation ................6 Disconnecting the PowerLink Cable from the Scanner........7 Scanner Parts ....................8 Audible Indicators..................... 9 Visual Indicators.....................
  • Page 5: Introduction

    NTRODUCTION The MS6220 Pulsar™ is an entry-level hand held contact laser bar code scanner that combines the high-speed and accuracy of a laser scanner with the working range and price of a typical CCD. Pulsar has a controlled 7.6 cm (3”) depth of field on 100% UPC bar codes, which makes it perfect for large retail applications where UPC/EAN bar codes are frequently scanned at less demanding, low-volume check-out areas or satellite cash registers.
  • Page 6: Accessories And Supplies

    • ® MetroSelect Single Line Configuration Guide [ 00-02544 ] MLPN Other items may be ordered for the specific protocol being used. To order additional items, contact the dealer, distributor or call Metrologic’s Customer Service Department at 1-800-ID-METRO or 1-800-436-3876.
  • Page 7: Quick Start

    UICK TART Connect the 10-pin RJ45 male connector into the jack on the Pulsar™ MS6220. You will hear a ‘click’ when the connection is made. Connect the L-shaped plug of the power supply into the power jack on the PowerLink cable. Connect the power supply into an AC outlet.
  • Page 8: Standard Scanner Installation

    TANDARD CANNER NSTALLATION Turn off the host system. Connect the 10-pin RJ45 male connector of the PowerLink cable into the jack on the MS6220. Note: If the MS6220 is receiving power from the host system, skip to step #5. (See caution statement below*) Connect the L-shaped plug of the power supply into the power jack on the PowerLink cable.
  • Page 9: Keyboard Wedge Installation

    The PowerLink “Y” cable is terminated with a 5-pin DIN female connector on one end, and a 6-pin mini DIN male on the other. Metrologic will supply an adapter cable with a 5-pin DIN male connector on one end and a 6-pin mini DIN female connector on the other.
  • Page 10: Keyboard Wedge Installation

    EYBOARD EDGE NSTALLATION CONTINUED Manufacturer’s Recommendation If the keyboard port of the host system cannot supply enough current, the use of an external power supply with the MS6220 Keyboard Wedge will be necessary. Powering the MS6220 directly from the computer keyboard connector could interfere with the operation of the scanner or the computer.
  • Page 11: Disconnecting The Powerlink Cable From The Scanner

    ISCONNECTING THE OWER ABLE FROM THE CANNER Before removing the cable from the scanner, Metrologic recommends that the power on the host system is off and the power supply has been disconnected from the PowerLink cable. • Ž & •...
  • Page 12: Scanner Parts

    CANNER ARTS Green & Red LEDs The MS6220 laser pulses on and off during normal operation. When the laser is on, the green LED will be on. When the laser is off, the green LED will be off. On a successful read of a bar code, the red LED will flash and the scanner will beep once.
  • Page 13: Audible Indicators

    UDIBLE NDICATORS When the MS6220 scanner is operational, it provides audible feedback. These sounds indicate the status of the scanner. Eight settings are available for the tone of the beep (normal, 6 alternate tones and no tone). To change the tone, refer to the Configuration Guide.
  • Page 14: Visual Indicators

    ISUAL NDICATORS There is a red LED and a green LED on the MS6220. When the scanner is on, the activity of the LEDs indicates the status of the current scan and the scanner. Green and Red LEDs are off The LEDs will not be illuminated if the scanner is not receiving power from the host or transformer.
  • Page 15: Failure Modes

    ODES One Razzberry Tone on Power-up This indicates the scanner has experienced a laser or flipper subsystem failure. Return the unit for repair to a Metrologic Authorized Service Center. Continuous Razzberry Tone with all LEDs off If, upon power up, the scanner emits a continuous razzberry tone, then the scanner has an experienced an electronic failure.
  • Page 16: Scan Area

    Minimum Bar Code Element Width mils 10.4...
  • Page 17: Labels

    ABELS Each scanner has two labels on the underside of the unit. The first label has the model number, date of manufacture, and caution information. The second label shows the serial number and the laser information. The following are examples of these labels: AINTENANCE Smudges and dirt on the window of a bar code scanner can interfere with proper...
  • Page 18: Troubleshooting Guide

    ROUBLESHOOTING UIDE The following guide is for reference purposes only. Contact a Metrologic representative at 1-800-ID-METRO or 1-800-436-3876 to preserve the limited warranty terms on page 28. YMPTOMS OSSIBLE AUSE OLUTION Check transformer, outlet and power strip. No LEDs, beep...
  • Page 19 ROUBLESHOOTING UIDE CONTINUED YMPTOMS OSSIBLE AUSE OLUTION UPC/EAN, Code 39, Interleaved 2 of 5, Code 93, The unit powers Scanning a particular Code 128 and Codabar are up, but does not symbology that is not enabled by default. Verify that scan enabled the type of bar code being...
  • Page 20 ROUBLESHOOTING UIDE CONTINUED YMPTOMS OSSIBLE AUSE OLUTION Scanner beeps at some bar Check if it is a check codes and NOT The bar code may have digit/character/or border for others of the been printed incorrectly problem. same bar code symbology Scanner beeps at some bar The scanner is not...
  • Page 21 ROUBLESHOOTING UIDE CONTINUED YMPTOMS OSSIBLE AUSE OLUTION The unit is not Increase interscan code delay transmitting each setting. Adjust whether the F0 character Configuration is not break is transmitted. It may be (Keyboard correct necessary to try this in both Wedge) settings.
  • Page 22: Rs-232 Demonstration Program

    RS-232 D EMONSTRATION ROGRAM If an RS-232 scanner is not communicating with your IBM compatible PC, key in the following BASIC program to test that the communication port and scanner are working. This program is for demonstration purposes only. It is only intended to prove that cabling is correct, the communication port is working, and the scanner is working.
  • Page 23: Specifications

    Single scan line Minimum Bar Width 0.102 mm (4.0 mil) Autodiscriminates all standard bar codes; for others Decode Capability call Metrologic RS232, Keyboard Wedge, Light Pen Emulation, IBM System Interfaces 468X/469X, OCIA, Stand Alone Keyboard Print Contrast 35% minimum reflectance difference...
  • Page 24 PPENDIX CONTINUED LECTRICAL Input Voltage 5 VDC ± 0.25 V Power - Operating 800 mW Current - Operating 160 mA peak @ 5 VDC DC Transformers Class 2; 5.2 V @ 650 mA Laser Class Pending Pending NVIRONMENTAL Operating 0°C to 40°C (32°F to 104°F) Temperature Storage Temperature -40°C to 60°C (-40°F to 140°F)
  • Page 25: Default Settings

    PPENDIX Default Settings Many functions of the scanner can be “programmed” – that is, enabled or disabled. The scanner is shipped from the factory programmed to a set of default conditions. The default parameter of the scanner has an asterisk (*) in the charts on the following pages. If an asterisk is not in the default column then the default setting is OFF or DISABLED.
  • Page 26 PPENDIX CONTINUED Light Parameter Default OCIA RS-232 46XX ü ü ü ü ü ITF Symbol Lengths Variable ü ü ü ü ü Minimum Symbol Length ü ü ü ü ü Symbol Length Lock None ü Bars High as Code 39 ü...
  • Page 27 PPENDIX CONTINUED Light Parameter Default OCIA RS-232 46XX ü ü ü ü ü Expand UPC-E ü ü ü ü ü Convert UPC-A to EAN-13 ü ü ü ü ü Transmit lead zero on UPC-E Transmit UPC-A number ü ü ü ü...
  • Page 28 PPENDIX CONTINUED Light Parameter Default OCIA RS-232 46XX ü ü ETX suffix ü “DE” Disable Command ü “FL” Laser Commands ü DTR Handshaking support ü RTS/CTS Handshaking ü Character RTS/CTS ü Message RTS/CTS ü XON/XOFF Handshaking ü ACK/NAK ü ü As Code ü...
  • Page 29: Scanner Pinout Connections

    PPENDIX Scanner Pinout Connections The MS6220 scanner interfaces terminate MS6220-41 RS-232/LTPN to a 10-pin modular jack. The serial # label indicates the interface enabled when the Function scanner is shipped from the factory. Ground RS-232 Transmit Output RS-232 Receive Input RTS Output CTS Input DTR Input/LTPN Source...
  • Page 30: Cable Connector Configurations

    PPENDIX CONTINUED MS6220-47 Keyboard Wedge Function Ground RS-232 Transmit Output RS-232 Receive Input PC Data PC Clock KB Clock PC +5V KB Data +5VDC Shield Ground Cable Connector Configurations “Standard” PowerLink cable (MLPN 53000 or 54000) 9-pin D-type female connector to the PC Function Shield Ground RS-232 Transmit Output...
  • Page 31 Keyboard Wedge PowerLink Cable 5-Pin DIN, Female 6-Pin DIN, Male Metrologic will supply an adapter cable with a 5-pin DIN male connector on one end and a 6-pin mini DIN female connector on the other. Adapter Cable 5-Pin Din, Male...
  • Page 32: Warranty And Disclaimer

    In the event that it is determined the equipment failure is covered under this warranty, Metrologic shall, at its sole option, repair the Product or replace the Product with a functionally equivalent unit and return such repaired or replaced Product without charge for service or return freight, whether distributor, dealer/reseller, or retail consumer, or refund an amount equal to the original purchase price.
  • Page 33: Notices

    PPENDIX Notices Caution Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous laser light. Under no circumstances should the customer attempt to service the laser scanner. Never attempt to look at the laser beam, even if the scanner appears to be nonfunctional.
  • Page 34: Patent Information

    PPENDIX Patent Information “This METROLOGIC product may be covered by one or more of the following U.S. Patents: U.S. Patent No.; 4,958,894; 5,081,342; 5,260,553; 5,340,971; 5.424,525; 5,484,992; 5,525,789; 5,528,024; 5,616,908; 5,627,359; 5,557,093; 5,661,292; 5,777,315; 5,789,730; 5,789,731; 5,811,780; 5,828,048; 5,925,870; 6,029,894;...
  • Page 35: Index

    NDEX AC input/outlet ....2, 3, 4, 6 Failure indicator(s) ....9, 11, 14 Accessories .........2 Failure modes ......11 Approvals ......13, 20 Assignments pin......2, 4, 6, 7, 26 Green LED ....3, 4, 8, 10, 19 Audible ......9, 11, 19 Autodiscriminates.......
  • Page 36 NDEX Specifications ......19 Parts........2, 8 Power supply ....3, 4, 6, 7, 26 Programming modes ..3, 17, 18 Tones ........9, 19 Transformers ......20 Troubleshooting ..14, 15, 16, 17 Quick start ........3 Ventilation........20 Razzberry tone....9, 10, 11, 22 Visual ........
