Summary of Contents for Metrologic MK5145-31A38

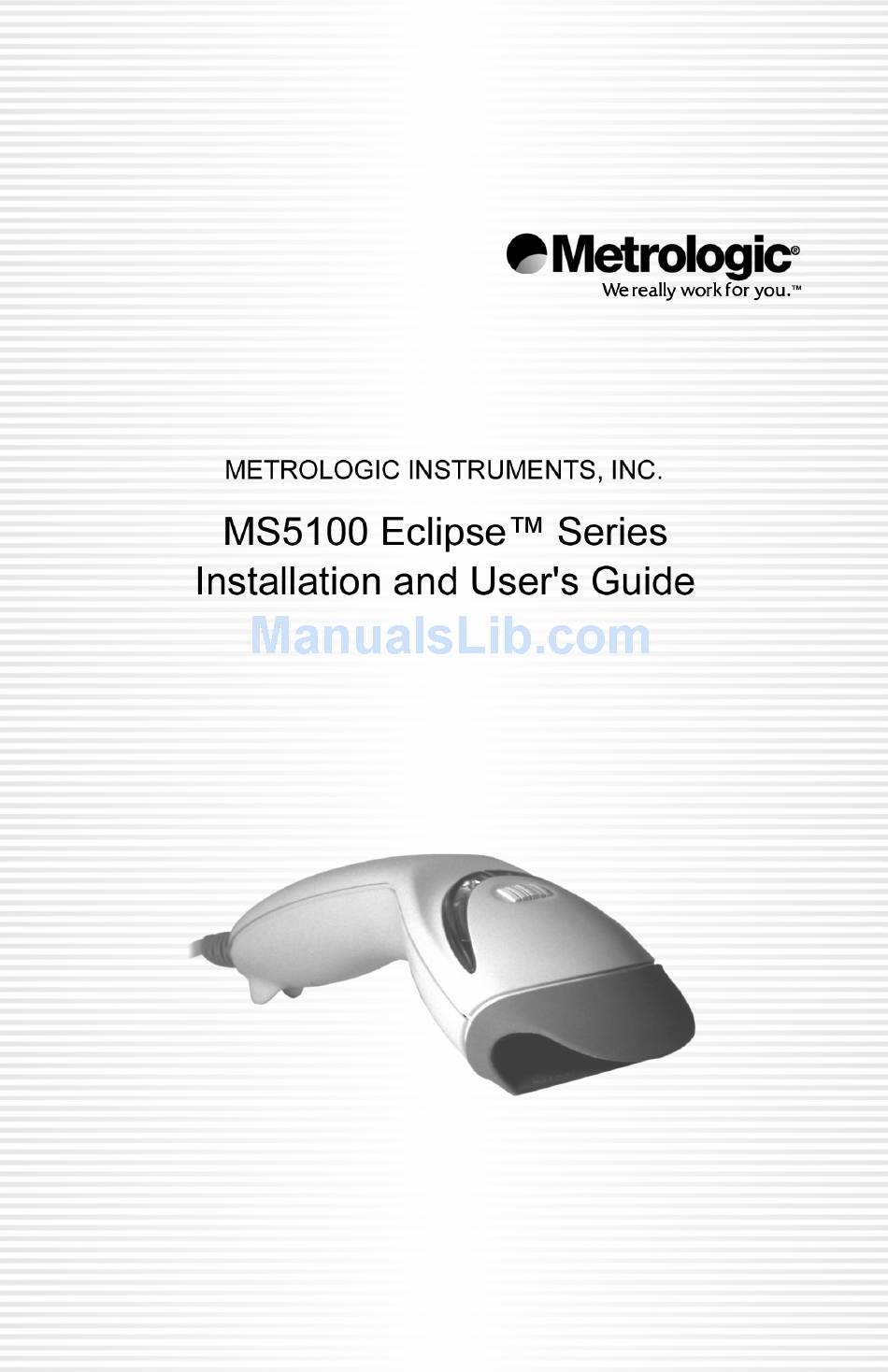

  • Page 2 Copyright © 2007 by Metrologic Instruments, Inc. All rights reserved. No part of this work may be reproduced, transmitted, or stored in any form or by any means without prior written consent, except by reviewer, who may quote brief passages in a review, or provided for in the Copyright Act of 1976.
  • Page 3: Table Of Contents

    Caution and Serial Number Labels..............5 Cable Removal....................6 Cable Connection Warning................6 Installation RS232, Light Pen or Laser Emulation .............. 7 IBM 46xx or OCIA .................... 8 Keyboard Wedge....................9 Stand-Alone Keyboard ................... 10 Low Speed USB (-38)..................11 Full Speed (-40)....................
  • Page 4 ABLE OF ONTENTS Scanner and Cable Terminations Scanner Pinout Connections ................33 Cable Connector Configurations ..............35 Regulatory Compliance Safety ......................37 EMC ....................... 38 Limited Warranty ....................40 Patents ....................... 41 Index ........................42...
  • Page 5: Introduction

    With Metrologic’s state-of-the-art scanning technology embedded inside, the MS5145 Eclipse has a longer working range and a wider scan field than a typical CCD. The width of the scan line grows as the scanner moves further away from bar codes.
  • Page 6: Scanner And Accessories

    90VAC to 255VAC, Australia 46-00529 90VAC to 255VAC, China 46-00530 90VAC to 255VAC, India Other items may be ordered for the specific protocol being used. To order additional items, contact the dealer, distributor or call Metrologic’s Customer Service Department at 1-800-ID-METRO or 1-800-436-3876.
  • Page 7 MVC converter cable series and the host connections available. 46-46633 Countertop Stand Other items may be ordered for the specific protocol being used. To order additional items, contact the dealer, distributor or call Metrologic’s Customer Service Department at 1-800-ID-METRO or 1-800-436-3876.
  • Page 8: Scanner Components

    10-Pin RJ45, Female Socket (see page 33) Figure 1. Scanner Components Maintenance Smudges and dirt can interfere with the proper scanning of a bar code. The output window should be routinely cleaned with glass cleaner sprayed onto a lint free, non-abrasive cleaning cloth.
  • Page 9: Caution And Serial Number Labels

    Figure 2. Label Location on the Bottom of the Scanner with Example Caution To maintain compliance with applicable standards, all circuits connected to the scanner must meet the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC 60950-1. To maintain compliance with standard CSA C22.2 No. 60950-1/UL 60950-1 and norm EN/IEC 60950-1, the power source should meet applicable performance requirements for a limited power source.
  • Page 10: Cable Removal

    NTRODUCTION Cable Removal Disconnect the power supply from the PowerLink cable and turn off power to the host system before removing the cable from the scanner. Locate the small ‘pin-hole’ beneath the Eclipse logo on the front side of the scanner near the end of the handle.
  • Page 11: Installation

    Emulation Connections Turn on the host system. Plugging the scanner into the serial port of the PC does not guarantee that scanned information will appear at the PC. A software driver and correct configuration settings are also required for proper communications to occur.
  • Page 12: Ibm 46Xx Or Ocia

    MVC cable into the 10-pin socket on the MS5145. For IBM: connect the other end of the MVC cable to Port 9 of the host device. For OCIA: Connect the other end of the MVC cable to the appropriate communication port on the host device.
  • Page 13: Keyboard Wedge

    Not all computers supply the same current through the keyboard port, explaining why a scanner may work on one computer and not another. Contact a Metrologic Customer Service Representative if you require an external power supply.
  • Page 14: Stand-Alone Keyboard

    Not all computers supply the same current through the keyboard port, explaining why a scanner may work on one computer and not another. Contact a Metrologic Customer Service Representative if you require an external power supply.
  • Page 15: Low Speed Usb (-38)

    Mode, please refer to the USB section of the MetroSelect Single-Line Configuration Guide (00-02544X). Plugging the scanner into a port on the host system does not guarantee that scanned information will be communicated properly to the host system. All Eclipse’s are shipped already configured with a set of factory defaults.
  • Page 16: Scanner Operation

    • CodeGate activates when removed from the stand • Bar code data is transmitted when the button is pressed Manual Activation Mode*, Out-of-Stand • Button activates laser • Bar code data is scanned and transmitted while button is held down...
  • Page 17: Indicators

    MetroSelect Configuration Guide. One Beep – On Power Up The green LED will turn on, then the red LED will flash and the scanner will beep once. The red LED will remain on for the duration of the beep. The scanner is now ready to scan.
  • Page 18: Visual

    When the scanner successfully reads a bar code, the red LED will flash and the scanner will beep. If the red LED does not flash and the scanner does not beep, then the bar code has not been successfully read.
  • Page 19: Failure

    Return the unit for repair to a Metrologic Authorized Service Center. Continuous Razzberry Tone with no LEDs If, upon power up, the scanner emits a continuous razzberry tone, then the scanner has an experienced an electronic failure. Return the unit for repair to a Metrologic Authorized Service Center.
  • Page 20: Depth Of Field

    CANNER PERATION Depth of Field vs. Minimum Bar Code Element Width Minimum Bar Code Element Width mils 10.4 Figure 14. Depth of Field vs. Minimum Bar Code Element Width...
  • Page 21: Configuration Modes

    Serial Configuration This mode of configuration is ideal for OEM applications. This mode gives the end-user the ability to send a series of commands using the serial port of the host system. The commands are equivalent to the numerical values of the bar codes located in the MetroSelect Single-Line Configuration Guide 00-02544).
  • Page 22 The scanner will beep three times! The commands sent to the scanner do not include the small superscripted ‘3’ that you see in front of each bar code string in the MetroSelect manual. THE ‘3’ SHOULD NOT BE SENT. IT IS A CODE TYPE DESIGNATION...
  • Page 23 First, if an invalid command is sent from the host, the scanner responds with a [nak] and the end-user must start over from the beginning. Second, if a command is sent to change the Baud Rate, the new baud rate does not take effect until after the end-user exits configuration mode.
  • Page 24: Troubleshooting Guide

    ROUBLESHOOTING UIDE The following guide is for reference purposes only. Contact a Metrologic representative at 1-800-ID-Metro or 1-800-436-3876 to preserve the limited warranty terms. Symptoms Possible Causes Solution All Interfaces Check the transformer, the outlet No power is being and power strip. Make sure the supplied to the unit.
  • Page 25 The scanner defaults to a minimum length. minimum of 3 character bar code. The unit scans a The unit is configured If the unit is setup to support bar code, but to support some form ACK/NAK, RTS/CTS, XON/XOFF locks up after the...
  • Page 26 Adjust whether the F0 transmitting configuration is not break is transmitted. each character correct. It may be necessary to try this in twice. both settings. Enable the Caps Lock detect Alpha The computer is in feature of the scanner to detect characters show Caps Lock mode.
  • Page 27: Rs232 Demonstration Program

    This program is for demonstration purposes only. It is only intended to prove that cabling is correct, the COM port is working, and the scanner is working. If the bar code data displays on the screen while using this program, it only demonstrates that the hardware interface and scanner are working.
  • Page 28: Design Specifications

    Light Source: Laser Power: Less than 1.0 mW average Depth of Scan Field: 0 mm – 140 mm (0" – 5.5") 0.33 mm (13 mil) Bar Code Scan Speed: 72 ± 2 scan lines per second Scan Pattern: Single scan line Minimum Bar Width: 0.089 mm (3.5 mil)
  • Page 29 675 mW Current: Operating 125 mA average @ 5VDC DC Transformers: Class II; 5.2VDC @ 1A For regulatory compliance information, see pages 37 – 39. NVIRONMENTAL Operating 0°C to 40°C (32°F to 104°F) Temperature: Storage -40°C to 60°C (-40°F to 140°F)
  • Page 30: Applications And Protocols

    • French Japanese United Kingdom ** Indicates a default setting (see pages 27 - 29 for additional information). Refer to the MetroSelect Single-Line Configuration Guide ( 00-02544) or MLPN MetroSet2’s help files for information on how to change the default settings.
  • Page 31: Default Settings

    All default parameters of the scanner have an asterisk ( * ) marked in the default column. If an asterisk is not in the default column then the default setting is off or disabled. Every interface does not support every parameter. A check mark ( ) will appear in the interface column if the interface supports the parameter listed.
  • Page 32 OCIA RS232 46xx Emulation ITF Symbol Lengths Variable Minimum Symbol Length Symbol Length Lock None Bars High as Code 39 Spaces High as Code 39 Bars High as Scanned Spaces High as Scanned DTS/SIEMENS DTS/NIXDORF NCR F NCR S Poll Light Pen Source...
  • Page 33 Convert UPC-A to EAN-13 Transmit Lead Zero On UPC-E Transmit UPC-A Number System Transmit UPC-A Manufacturer ID# Transmit UPC – A Item ID# Transmit Codabar Start/Stop Characters CLSI Editing (Enable) Transmit Mod 43 Check digit on Code 39 Transit Mod 10/ITF...
  • Page 34 DTR Handshaking support RTS/CTS Handshaking Character Message RTS/CTS XON/XOFF Handshaking ACK/NAK Two Digit Supplements code code 39 Five Digit Supplements code code 39 Bookland code code 39 977 (2 digit) Supplemental Requirement Supplements are not Required Two Digit Redundancy Five digit Redundancy...
  • Page 35 Code Types Editing Inter Scan-Code Delay Configurable µsec (100 µsec steps) Function/Control Key Support Minimum Element Width Configurable in 5.6 µsec 1 msec Steps † These options are mutually exclusive. One can not be used in conjunction with the other.
  • Page 36: Upgrading The Flash Rom Firmware

    The configuration guides the user with its simplistic one click approach. The user must first select the file; once selected and verified the file is ready to be used in the upgrade. Press the button to upgrade the scanner, the unit will go into a “flash mode”...
  • Page 37: Scanner And Cable Terminations

    CANNER AND ABLE ERMINATIONS Scanner Pinout Connections The MS5145 scanner interfaces terminate to a 10-pin modular jack. The serial # label indicates the interface enabled when the scanner is shipped from the factory. Figure 15. MS5145-41 RS232C and Light Pen Emulation...
  • Page 38 Flip Sense/Start of Scan Output Proximity Detect/ Trigger Emulation Output Scan/Laser Enable Input Reserved Data Out +5VDC Shield Ground MS5145 Full Speed (-40) and MS5145-9 OCIA Low Speed (-38) USB Function Function Ground Ground RS232 Transmit Output RS232 Receive Input...
  • Page 39: Cable Connector Configurations

    55-55000 Function Shield Ground RS232 Transmit Output RS232 Receive Input DTR Input/Light Pen Source Power/Signal Ground Light Pen Data (DSR Out for -14 interfaces) 9-Pin D-Type Connector CTS Input RTS Output +5VDC Stand Alone Keyboard PowerLink Cable, 55-55020A-3 Function PC Data...
  • Page 40 PC Clock No Connect Metrologic will supply an adapter cable with a 5-pin DIN male connector on one end and a 6-pin mini DIN female connector on the other. According to the termination required, connect the appropriate end of the adapter cable to the PowerLink cable, leaving the necessary termination exposed for connecting to the keyboard and the keyboard port on the PC.
  • Page 41: Regulatory Compliance Safety

    Never attempt to look at the laser beam, even if the scanner appears to be nonfunctional. Never open the scanner in an attempt to look into the device. Doing so could result in hazardous laser light exposure. The use of optical instruments with the laser equipment will increase eye hazard.
  • Page 42: Emc

    Folgendes trifft zu, wenn das Scannerkabel länger als 3 Meter ist: This equipment has been tested and found to comply with limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 43: Class B Devices

    If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •...
  • Page 44: Limited Warranty

    U.S. Federal, state and local laws, regulations and ordinances pertaining to their production and labeling. This warranty is limited to repair, replacement of product or refund of product price at the sole discretion of Metrologic. Faulty equipment must be returned to one of the following Metrologic repair facilities: Blackwood, New Jersey, USA;...
  • Page 45: Patents

    ATENTS This METROLOGIC product may be covered by, but is not limited to, one or more of the following U.S. Patents: U.S. Patent No.; 5,216,232; 5,260,553; 5,340,971; 5,424,525; 5,484,992; 5,525,789; 5,528,024; 5,616,908; 5,627,359; 5,661,292; 5,777,315; 5,789,730; 5,789,731; 5,811,780; 5,828,048; 5,925,870; 6,029,894; 6,209,789; 6,227,450; 6,283,375; 6,347,743;...
  • Page 46: Index

    Keyboard Wedge..1, 3, 9, 26, 27–31, 32, 33, 36 Laser Emulation ..7, 27–31, 34 cable....20–21, 36, 33–36 Light Pen . 1, 7, 26, 27–31, 32, 33 communication.. 2, 3, 6, 7–11, 22, OCIA ..1, 8, 26, 27–31, 32, 34 27, 32 RS232 ....
  • Page 47 NDEX parameter ......27–31 terminations ......33–36 power......2, 3, 7, 24, 32 tone........1, 13, 32 PowerLink......see cable transformer......see power troubleshooting ..... 20–21 razzberry tone ......28 red .......see indicator USB ......see interface RMA ..........40 RS232 ......see interface VLD..........24 safety........37, 39...
  • Page 52 December 2008, Version 02 Printed in China 7 0 - 7 9 0 1 6 C...
