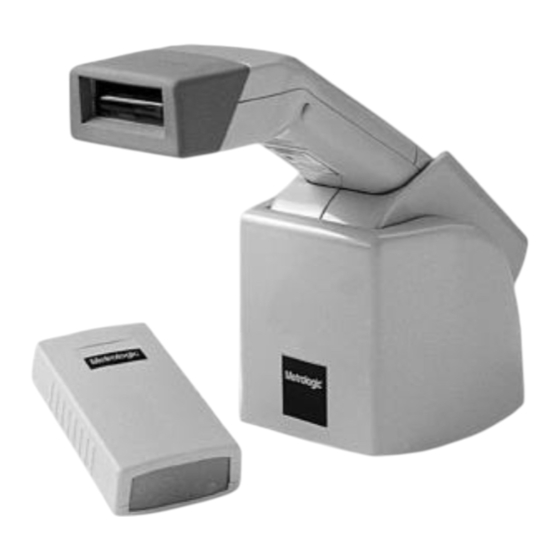

Metrologic MS6130 Installation And User Manual
Hand held laser scanner and scanner interface
Hide thumbs
Also See for MS6130:
- Installation and user manual (48 pages) ,
- Installation and user manual (44 pages)
Related Manuals for Metrologic MS6130
Summary of Contents for Metrologic MS6130
- Page 1 METROLOGIC INSTRUMENTS, INC. MS6130 Hand Held Laser Scanner and MX003 Scanner Interfaces Installation and User’s Guide...
- Page 2 Singapore 417818 Copyright © 2000 by Metrologic Instruments, Inc. All rights reserved. No part of this work may be reproduced, transmitted, or stored in any form or by any means without prior written consent, except by reviewer, who may quote brief passages in a review, or provided for in the Copyright Act of 1976.
-
Page 3: Table Of Contents
Enabling the MS700i/MS720i Scanner’s RF Low Speed Option ... 16 Changing the ID ... 17 Matching Procedure ... 18 Parts of the MS6130 Hand-Held Bar Code Scanner ... 19 Components of the MS6130 Series Stand... 20 Installation of the MS6130 Series Stand... 21 Installation of the 6000 Series Universal Charging Stand... - Page 4 Maintenance ... 27 Troubleshooting ... 28 Appendix A Specifications ... 29 Appendix B Default Settings of the MS6130 and “MX” Interface ... 32 Appendix C MX003 Series Scanner Interface Pin Assignments... 36 Appendix D Warranty and Disclaimer ... 37 Appendix E Notices ...
-
Page 5: Ms6130 Hand Held Bar Code Scanner
30 feet from the receiver. When not in use, the scanner rests in a universal-charging stand. The scanner will be fully charged in 2 hours when not scanning in the stand. A fully charged MS6130 can provide up to 8 hours of wireless, hand-held scanning. After dormant periods, the scanner is programmed to enter a timeout mode that will extend the battery life. -
Page 6: Mx003 Series Scanner Interfaces
Metrologic’s MX003 Series Scanner Interfaces provide a short range, one- way wireless data communication link between a remote portable scanner and an RS-232 or light pen host device. Specifically, Metrologic’s MS6130 Hand-Held Laser Scanners include a Liberty Metrologic’s MS700i/MS720i series scanners, TECH series scanners may be connected to a MX Series scanner interface. -
Page 7: Unpacking List
NPACKING Your shipment will contain a set of items from the two groups listed below: Transmitter Group: MS6130 Hand-Held Scanner Stand #45880 (optional) Stand #45558, 45559 and 45560 (optional) MS4120 Programming Guide Receiver Group: “MX” Scanner Interface MCA951 adapter or adapter cable (if required) -
Page 8: Connections Of The "Mx" Interface To The Host Device
Plug the transformer into the side of the MCA and the AC outlet. Power up the host system. ® MS6130 with Liberty Scanner Interface (Transmitter) “MX” Scanner Interface Figure 2: Connecting the “MX” (through the MCA) to a host device... -
Page 9: Connections Of The Keyboard Wedge "Mx" Interface To The Pc
“MX” I NTERFACE TO THE Version 17 only MX003 Scanner Interfaces with a suffix of “17" are Keyboard Wedge versions used to interface with a PC and keyboard. Turn off the PC. Plug the “MX” receiver adapter cable to the PC keyboard port. -
Page 10: Connections Of The Ms700I/Ms720I With "Mx" To The Host Device
ONNECTIONS OF THE “MX” WITH TO THE To avoid potential problems, do not power up the scanner until the communication cable is secured to the host. Turn off the host system. Connect the 25-pin D-type connector on the MS700i/MS720i scanner’s head cable to the communication cable. -
Page 11: Configuration Of The Ms700I/Ms720I With "Mx
Once the transmitter is assigned an ID number, configure the S700i/MS720i to accept RF communication. Although the changes made in this section effect the receiver, the MS6130 performs all scanning. Scan the following bar code to enter the receiver’s program mode. -
Page 12: Configuration Of The Ms700I/Ms720I With "Mx" To The Host System
Note: When the Load Defaults bar code in the ScanSelect Scanner Programming Guide is chosen, it will automatically disable the RF low speed option. For the MS6130 to communicate to the MS700i/MS720i scanner, re-enable the RF Low Speed Option (refer to the procedure above). -
Page 13: Configuration Of The "Mx" To The Scanpal Data Collector
The RS-232 parameters marked with an asterisk ( * ) in the charts are the default settings of the “MX”. The charts are in the Default Settings of the MS6130 and “MX” Receiver section of this guide. To communicate with each other properly, the “MX” and ScanPal must have matching RS-232 parameters. -
Page 14: Host System
Mode bar code in the MS4120 Programming Guide will not cause your “MX” to enter or exit program mode. Scan the Enter/Exit Program Mode for the Receiver bar code in the following procedure. Once the MS6130 is assigned an ID number, configure the “MX” to the correct communication protocol. -
Page 15: Keyboard Wedge (Kb) Interface
EYBOARD EDGE Scan the ENABLE KB WEDGE INTERFACE bar code if your communication requirement is keyboard emulation. The scanner will provide keyboard emulation by converting the scanned bar code data to the PC keyboard scan code equivalent. Enable Keyboard Wedge Interface KB Parameter - Keyboard Type The following bar codes are used to define the type of keyboard in use. - Page 16 (KB) I EYBOARD EDGE KB Parameter – Keyboard Type The following bar codes are used to define the keyboard country type. If necessary, scan the appropriate bar code. IBM KB4700 Financial Keyboard NTERFACE ONTINUED ** USA Keyboard UK Keyboard France Keyboard Germany Keyboard Italy Keyboard Spain Keyboard...
- Page 17 EDGE KB Parameter - Caps Lock Mode When Caps Lock is used on the keyboard, choose ENABLE CAPS LOCK. Once enabled, the scanner will simulate Caps Lock keyboard input. This mode will not work with all keyboard types. To detect automatically if Caps Lock is used, enable AUTO-DETECTION CAPS LOCK MODE.
- Page 18 (KB) I EYBOARD EDGE KB Parameter - Alt Mode When this option is enabled, the scanner will duplicate this keyboard sequence: Hold down the Alt key; type the decimal number that corresponds to the appropriate keyboard character. Caution should be observed when...
-
Page 19: Configuration Of The Ms6130 Hand-Held
MS4120 Programming Guide, the Disable ITF bar code, then the Enter/Exit Program Mode bar code again. Note: When the MS6130 is in program mode, never scan any of the RS-232 or light pen options marked with an “R”. The list of options is in the Default Settings of the Transmitter and “MX”... -
Page 20: Enabling The Ms700I/Ms720I Scanner's Rf Low Speed Option
Before beginning this procedure, perform all steps in the sections, Matching the Transmitter to the Receiver and Configuration of the MS700i/MS720i with “MX”. Use the MS700i/MS720i scanner to scan the following bar codes. Temporarily cover the bar code below Step 3. Scan the following bar code to enter program mode. -
Page 21: Changing The Id
HANGING THE In order for the MS6130 to send data to the correct receiver, they must have a matching ID number. The ID number is the serial number of the receiver. When the matching procedure is completed, the receiver will accept data only from a MS6130 that has the matching ID number. -
Page 22: Matching Procedure
ATCHING ROCEDURE With the MS6130, scan the following bar codes starting from the top down: Transmitter Enter/Exit Program Mode Enable RF Communications Transmitter Enter/Exit Program Mode Locate the model label on the case of the receiver. Scan the serial number bar code. -
Page 23: Parts Of The Ms6130 Hand-Held Bar Code Scanner
MS6130 H ARTS OF THE Becoming familiar with the features of the MS6130 hand-held scanner will help when operating one of these scanners. The illustration and list explain the pertinent parts. Output Window Infra-red (IR) Sensor Battery Charge Contacts Reactivation Switch... -
Page 24: Components Of The Ms6130 Series Stand
MS6130 S OMPONENTS OF THE The following are the components used to build the MS6130 series stand (MLPN: 45880). Cradle Stand Charger Pack Pole Cover Flex pole Stand Base Cover Stand Base Charger Transformer Charger Pack Screws Mounting Screws 10. Lock Washer... -
Page 25: Installation Of The Ms6130 Series Stand
Stand LED Indicators (with the scanner in the stand) No LED indicates trickle charge and the green LED indicates fast charge. To change from trickle charge to fast charge, simply lift the scanner from the stand and replace. Note: When both scanner LEDs blink, it is an indication of a low battery. -
Page 26: Installation Of The 6000 Series Universal Charging Stand
6000 S NSTALLATION OF THE MLPN: 45558 - 115V, 45559 - 230V and 45560 - 240V (UK) Transformer Red LED (Power) Figure 6: Universal Charging Stand ERMANENT OUNTER Separate weighted base from rotating base by removing the (4) four screws. Use the rotating base as a drill template. -
Page 27: Nicd Battery Charger With Reconditioning Feature
Low battery indicators: Both LED’s on the scanner blink The scanner quietly beeps twice while scanning Recondition once a week if: The batteries do not get discharged for more than 20% (approximately ½ hour) of their capacity before recharging. -
Page 28: Visual Indicators
If the unit has been dormant for longer than 10 minutes, reactivating the unit by pressing the button on the side of the MS6130 will be necessary. When the scanner first receives power, the steady red LED will flash, followed by the green LED. -
Page 29: Audible Indicators
If the scanner successfully reads a bar code, the green light will flash. If the “MX” receiver successfully receives the data from the MS6130, the “MX” will beep once. Razzberry Tone If, upon power up, the scanner emits a razzberry tone, then the scanner has failed diagnostics. - Page 30 UDIBLE NDICATORS The “MX” receiver can be programmed to emit three beeps when the timeout occurs during communication between the host and receiver. Refer to the MS4120 Programming Guide section, Audible Indicators for Communication Timeouts to program this feature. There are four settings available for the tone of the beep for the receiver. Refer to the MS4120 Programming Guide section, Beeper Tones to program the feature to change the tone or turn the beeper off.
-
Page 31: Labels
ABELS The MS6130 scanner is either a CDRH Class II laser system or an IEC Class 1 Laser System. Your unit will have a CDRH Class II caution label or LASERKLASSE 1 label affixed below the model number label. The model number/avoid exposure label is located on the bottom of the scanner’s head. -
Page 32: Troubleshooting
ROUBLESHOOTING The receiver can receive data from a MS6130 with its own ID or 10 zeroes. It’s own ID can be received all the time. When using 10 zeroes, the first scan the receiver gets must have 10 zeroes as its ID and from that point on the receiver will accept both ID’s. -
Page 33: Specifications
PPENDIX Specifications RF Link Characteristics Frequencies: Bandwidth: Modulation: Certification: RF Protocol: Operating Range: Specifications subject to change without notice MS6130 Bar Code Scanner Specifications UL Listed: FCC ID: RF Output Power: Current: Antenna: Dimensions: Weight: Maximum Radiant Power: VLD Wavelength:... - Page 34 A (C PPENDIX ONTINUED MX003 Series Scanner Interface Specifications FCC ID: Operating Voltage: Antenna: Dimensions: Weight: UL Listed: Operating Model Number Frequency MX003 912 MHZ MX003-17 912 MHZ MX0033 418 MHZ MX0033-17 418 MHZ MX0034 434 MHZ MX0034-17 434 MHZ Model designation may include the suffix “J”...
- Page 35 Storage (Long): -30 to +35 UK Compliance To charge the batteries in the MS6130 - 418MHz, remove the ESD cover from the bottom of the unit. Refer to the battery charge rate for additional information. After a full charge, replace the cover over the battery contacts.
-
Page 36: Default Settings Of The Ms6130 And "Mx" Interface
If an asterisk is not in the default column then the default setting is Off or Disabled. The MS6130 and “MX” receiver do not support every parameter. For those parameters that are a transmitter function, a letter “T” will appear in the second column of the charts, for the “MX”, the... - Page 37 B (C PPENDIX ONTINUED Parameter Long Range Activation in the Stand Normal Scan Pulsing Scan Custom Scan Green LED Rescan Indicator Short Same Symbol Rescan Long Same Symbol Rescan Alternate Beeper Tone 1 Alternate Beeper Tone 2 Alternate Beeper Tone 3 No Beeper Tone Two Second Time-out No Two Second Timeout...
- Page 38 B (C PPENDIX ONTINUED Parameter DTR Input Carriage Return Line Feed ETX Suffix Tab Prefix Tab Suffix Prefix ID for UPC/EAN Suffix ID for UPC/EAN Bars High Spaces High Transmit as Scanned Transmit as Code 39 Poll Light Pen 5 Volts No Poll Light Pen Code 39 Codabar...
- Page 39 Transmit Cleanup Bit Transmit Alt Mode Transmit 0F0H Break Character Inter Scan Code Delay 800 msec 7.5 msec 15 msec Intercharacter Delay 1 msec 10 msec 100 msec Stand Alone Scanner Mode T - TRANSMITTER DEFAULT R - RECEIVER KEYBOARD WEDGE...
-
Page 40: Mx003 Series Scanner Interface Pin Assignments
PPENDIX MX003 Series Scanner Interface Pin Assignments The interfaces are equipped with a shielded, 10-pin modular jack manufactured by Steward Stamping. The mating connector is a Steward Stamping shielded plug #937-SP-361010. Caution should be used when working with cables for this port because there is typically power present for scanner interface operation. -
Page 41: Warranty And Disclaimer
Limited Warranty The MS6130 scanners are manufactured by Metrologic at its Blackwood, New Jersey, U.S.A. facility. The MS6130 scanners have a two (2) year limited warranty from the date of manufacture. Metrologic warrants and represents that all MS6130 scanners are free of all defects in material, workmanship and design, and have been produced and labeled in compliance with all applicable U.S. -
Page 42: Notices
Under no circumstances should the customer attempt to service the laser scanner. Never attempt to look at the laser beam, even if the scanner appears to be nonfunctional. Never open the scanner in an attempt to look into the device. -
Page 43: Patents
PPENDIX Patents “Patent Information This METROLOGIC product may be covered by one or more of the following U.S. Patents: U.S. Patent No. 4,930,848; 4,958,984; 5,081,342; 5,260,553; 5,340,971; 5,340,973; 5,424,525; 5,468,951; 5,484,992; 5,525,789; 5,528,024; 5,591,953; 5,616,908; 5,627,359; 5,661,292; 5,777,315; 5,789,730; 5,789,731; 5,808,285; 5,811,786; 5,825,012; 5,886,337; 5,925,870; 5,925,871;... -
Page 44: Index
List Locations 4, 6 Low speed options Maintenance Matching procedure MCA95 Model number 32-35 MS6130 MS700i/MS720i “MX” 2-10, 15, 16, 25, 26, 28, 32 NiCd battery charger Notices Output window Parts Patents Programming guide 7, 9, 10, 17, 18, 28... - Page 45 NDEX ONTINUED Receiver board Red LED 1, 19, 24, 25 Rights property RS-232 9, 10, 28 ® ScanPal ScanSelect Shipping carton South America Specifications Stand Temperature Tones Transformer 4, 6, 20, 21 Transmitter 1-3, 7, 10, 15, 16, 18, 29, 32-35 Troubleshooting Unpacking list USA corporate headquarters...
