ONTENTS Introduction...1 Scanner and Accessories...2 Installation RS232, Light Pen (IS6520-41/MS6520-41) ...3 Keyboard Wedge (IS6520-47/MS6520-47)...4 Stand Alone Keyboard (IS6520-47/MS6520-47)...5 Disconnecting the PowerLink Cable from the Scanner...6 Scanner Parts...7 Mounting Holes ...7 Stands ...8 Audible Indicators ...9 Failure Modes...10 Visual Indicators ...11 Programming Modes ...12...
Page 5
ABLE OF ONTENTS Appendix C Scanner Pinout Connections ...29 Cable Connector Configurations...29 Appendix D Warranty and Disclaimer ...31 Appendix E Notices ...32 Appendix F Patents ...34 Index...35...
A fixed vertical stand is also available for additional purchase. Please contact a customer service representation at 1-800-ID-METRO for information. SCANNER IS6520-41 MS6520-41 IS6520-47...
CANNER AND CCESSORIES Part No. IS6520/MS6520 Cubit 00-02421 Installation and User’s Guide* 00-02407 MetroSelect *Available for download on Metrologic’s website, www.metrologic.com. Part No. AC to DC Power Transformer – Regulated 5.2VDC @ 650 mA output. 45-45593 120V United States 45-45591 220V-240V Continental European 45-45992 220V-240V United Kingdom...
Connect AC power to the transformer. Turn on the host device. Plugging the scanner into a port on the host system does not guarantee that scanned information will be communicated properly to the host system. The scanner is shipped from the factory configured to a set of default parameters.
Caution: To maintain compliance with applicable standards, all circuits connected to the scanner must meet the requirements for SELV (Safety Extra Low Voltage) according to EN 60950. To maintain compliance with standard CSA C22.2 No. 950/UL 1950 and norm EN 60950, the power source should meet applicable performance requirements for a limited power source.
Caution: To maintain compliance with applicable standards, all circuits connected to the scanner must meet the requirements for SELV (Safety Extra Low Voltage) according to EN 60950. To maintain compliance with standard CSA C22.2 No. 950/UL 1950 and norm EN 60950, the power source should meet applicable performance requirements for a limited power source.
ISCONNECTING THE Before removing the cable from the scanner, Metrologic recommends that the power on the host system is off and the power supply has been disconnected from the PowerLink cable. Locate the small ‘pin-hole’ on the back of the scanner.

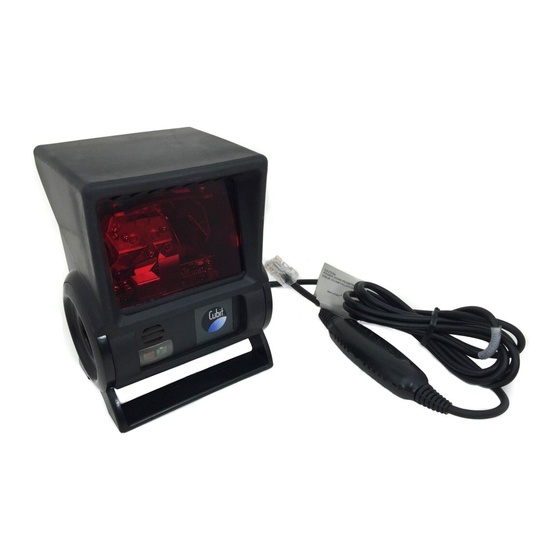

The LEDs are also used as diagnostic indicators and mode indicators. Output Window Laser light emits form this aperture. PowerLink Cable The IS6520/MS6520 scanner has a 10-pin modular jack. The 10-pin modular plug on the PowerLink cable connects into the IS6520/MS6520. Each IS6520/MS6520 Cubit...
46-46145) MLPN Step 1: Drill three #43 pilot holes in the Step 2: Attach the stand to the countertop Step 3: Attach the scanner to the stand 46-46486) MLPN Step 1: Drill three #39 pilot holes in the Step 2: Insert the scanner into the rubber...
NDICATORS When the IS6520/MS6520 scanner is in operation, it provides audible feedback. These sounds indicate the status of the scanner. Eight settings are available for the tone of the beep (normal, 6 alternate tones and no tone). To change the...
Three Beeps - On Power Up If the scanner beeps 3 times on power up then, the non- volatile memory that holds the scanner configuration has failed. Return the unit for repair at an authorized service...
ISUAL NDICATORS There is a red LED and a green LED on IS6520/MS6520. When the scanner is on, the flashing or stationary, activity of the LEDs indicates the status of the current scan and the scanner. No Red or Green LED The LEDs will not be illuminated if the scanner is not receiving power from the host or transformer.
String Sent to Scanner = 02h 31h 30h 30h 31h 30h 34h 03h (All values are hexadecimal). If the command sent to the scanner is valid, the scanner will respond with an [ack]. If the command sent to the scanner in invalid, the scanner will respond with a [nak].
Page 19
This mode uses the current Baud Rate, Parity, Stop Bits and Data Bits settings that are configured in the scanner. The default settings of the scanner are 9600, Space, 2, 7 respectively. If a command is sent to the scanner to change any of these settings, the change will NOT take effect until after serial program mode is exited.
Page 20
The scanner will emit a long beep! This example illustrates 2 important points. First, if an invalid command is sent from the host, the scanner responds with a [nak] and the end-user must start over from the beginning. Second, if a command is sent to change the Baud Rate, the new baud rate does not take effect until after the end-user exits program mode.
ABELS Each scanner has a label on the back of the unit that lists the model number, date of manufacture, serial number, CE and caution information. The following is an example of the label: AINTENANCE Smudges and dirt can interfere with the proper scanning of a bar code.
Minimum Bar Code Element Width mils Note: The same depth of field is achieved when programming Cubit either Optimal Low Depth of Field or Close Depth of Field. LOSE EPTH OF IELD DISTANCE: SCANNER FACE TO BAR CODE (mm) ®...
Note: The same depth of field is achieved when programming Cubit either Optimal High Depth of Field or Normal Depth of Field. ORMAL EPTH OF WIDTH OF SCAN FIELD (mm) IELD DISTANCE: SCANNER FACE TO BAR CODE (mm) ®...
UIDE Check transformer, outlet and power strip. Make sure the cable is plugged in to the scanner Some host system’s cannot supply enough current to power Omni-Quest. Use the power supply included with the scanner. Contact a Metrologic...
Page 26
(Typical of Non- UPC/EAN codes.) (The scanner defaults to a minimum of 4 character bar code) If the scanner is setup to support ACK/NAK, RTS/CTS, XON/XOFF or D/E, verify that the host cable and host are supporting the handshaking...
Page 27
NOT for others of the same bar code symbology Scanner beeps The scanner is not at some bar configured correctly for codes and NOT this type of bar code for others of the same bar code...
Page 28
UIDE CONTINUED Check to make sure that the baud rate, data bits, stops bits and parity of the scanner and the communication port match and the program is looking for "RS232" data Check to make sure that the...
PPENDIX Default Settings Many functions of the scanner can be "programmed" - that is, enabled or disabled. The scanner is shipped from the factory programmed to a set of default conditions. The default parameter of the scanner has an asterisk (*) in the charts on the following pages.
Page 32
PPENDIX CONTINUED Parameter DTS/NIXDORF NCR F NCR S Poll Light Pen Source Beeper Tone Beep/Transmit Sequence Communication Timeout Razzberry Tone on Timeout Three Beeps on Timeout No Beeps on Timeout Enter Power Save Mode Same Symbol Rescan Timeout: 200 msecs Same Symbol Rescan Timeout: 500 msecs Programmable in 50 msec steps...
Page 33
PPENDIX CONTINUED Parameter Transmit UPC-A Manufacturer ID# Transmit UPC-A Item ID# Transmit Codabar Start/Stop Characters CLSI Editing (Enable) Transmit Mod 43 Check Digit on Code 39 Transmit Code 39 Stop/Start Characters Transmit Mod 10/ITF Transmit MSI-Plessey Check Characters Parity Baud Rate 8 Data Bits 7 Data Bits Transmit Sanyo ID Characters...
Page 34
PPENDIX CONTINUED Parameter Message RTS/CTS XON/XOFF Handshaking ACK/NA K Two Digit Supplements Five Digit Supplements Bookland 977 (2 digit) Supplemental Requirement Supplements are not Required Two Digit Redundancy Five Digit Redundancy 100 msec to Find Supplement Programmable in 100 msec steps (MAX 800 msec) Coupon Code 128 Programmable Code Lengths...
PPENDIX Scanner Pinout Connections The IS6520/MS6520 scanner interfaces terminate to a 10-pin modular jack. The serial # label indicates the interface enabled when the scanner is shipped from the factory. IS6520-47 / MS6520-47 Keyboard Wedge Function Ground RS-232 Transmit Output...
Page 36
PPENDIX CONTINUED Keyboard Wedge Powerlink and Adapter Cable (MLPN 54-54008) The Keyboard Wedge PowerLink cable is terminated with a 5-pin DIN female connector on one end, and a 6-pin mini DIN male on the other. Keyboard Wedge PowerLink Cable Metrologic will supply an adapter cable with a 5-pin DIN male connector on one end and a 6-pin mini DIN female connector on the other.
THIS WARRANTY. IN NO EVENT SHALL ANY LIABILITY OF METROLOGIC EXCEED THE ACTUAL AMOUNT PAID TO METROLOGIC FOR THE PRODUCT. METROLOGIC RESERVES THE RIGHT TO MAKE ANY CHANGES TO THE PRODUCT DESCRIBED HEREIN. Metrologic Instruments, Inc. 90 Coles Road Blackwood, NJ 08012-4683...
Never attempt to look at the laser beam, even if the scanner appears to be nonfunctional. Never open the scanner in an attempt to look into the device. Doing so could result in hazardous laser light exposure. The use of optical instruments with the laser equipment will increase eye hazard.
Page 39
PPENDIX CONTINUED European Standard Warning This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. Funkstöreigenschaften nach EN 55022:1998 Warnung! Dies ist eine Einrichtung der Klasse A. Diese Einrichtung kann im Wohnbereich Funkstörungen verursachen;...
PPENDIX Patents “Patent Information This METROLOGIC product may be covered by one or more of the following U.S. Patents: U.S. Patent No.; 4,960,985; 5,081,342; 5,216,232; 5,260,553; 5,340,971; 5,525,789; 5,557,093; 5,627,359; 5,637,852; 5,777,315; 5,789,731; 6,029,894; 6,098,885; 6,209,789; 4,360,798; 4,369,361; 4,387,297; 4,460,120; 4,496,831; 4,593,186; 4,607,156;...
