Ice Bin and Icemaker

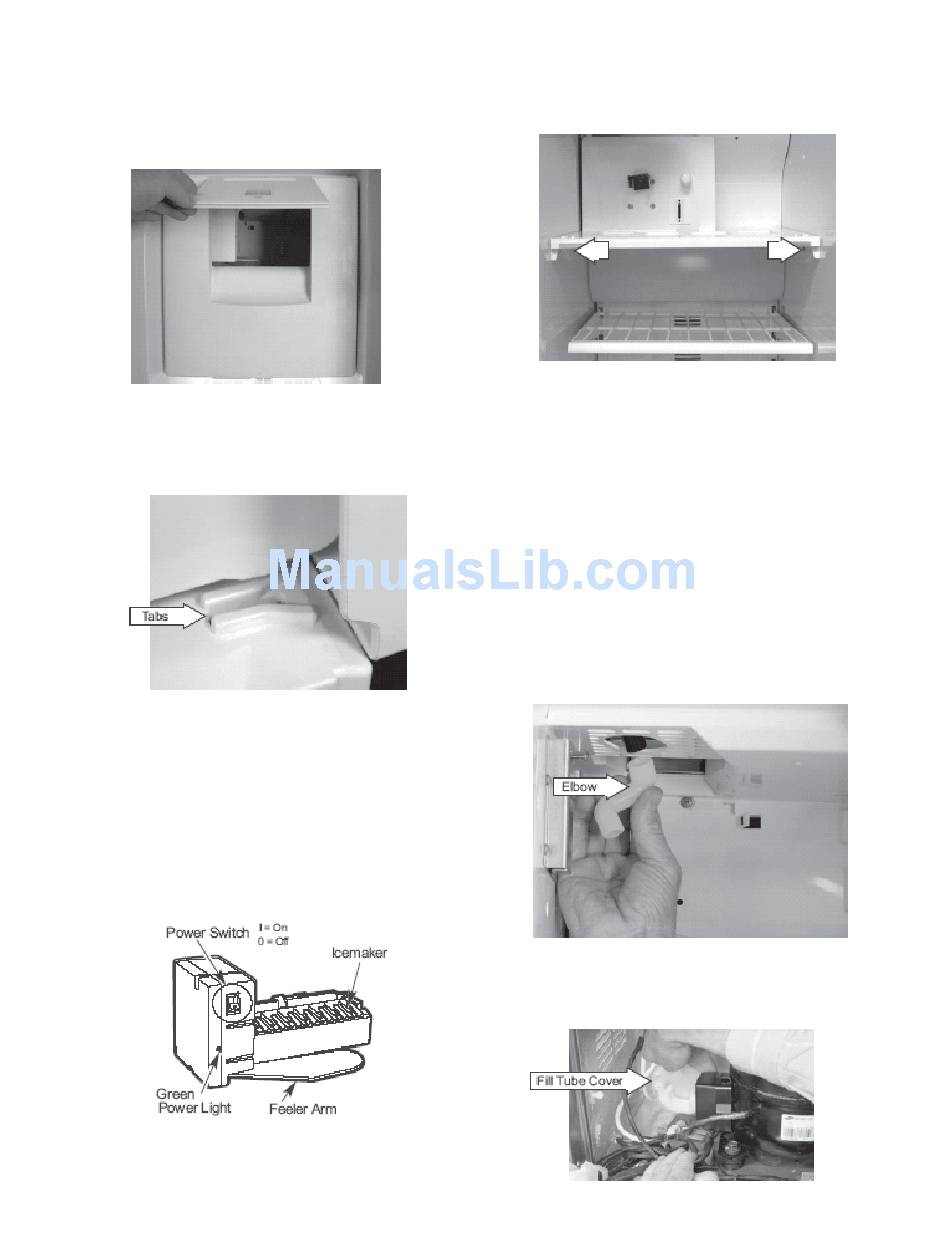

Ice Bin
The ice bin holds approximately 7 pounds of ice,
equivalent to about 230 cubes.
The ice bin can be removed by lifting it upward,
to clear the tabs holding the bin in place, then
pulling forward.
Iemaker
The icemaker is mounted to the upper left wall
of the freezer cabinet. Under normal operating
conditions, the icemaker is capable of producing
approximately 4.3 pounds of ice in a 24-hour
period. During QUICK ICE, the icemaker is capable
of producing 5.5 pounds of ice in a 24-hour
period.
To remove the icemaker:
1. Remove the ice bin. Remove 2 front screws that hold
the ice bin shelf in place.
2. Pull the shelf forward to access the icemaker plug, then
unplug the icemaker.
3. Remove the 2 screws that hold the icemaker in place.
Remove the icemaker.
Check for 120 VAC to the icemaker at CN07 on the
terminal block between pin #3 (power) and pin # 5
(neutral).

Icemaker Fill Tube and Heater

To remove the icemaker fi ll tube and heater:
1. Remove the ice bin and icemaker (see Ice Bin and
Icemaker).
2. Remove the elbow from the end of the fi ll
tube.
3. In the machine compartment, remove the 2 screws from
the fi ll tube cover (located beneath the water valve to
the left of compressor).
