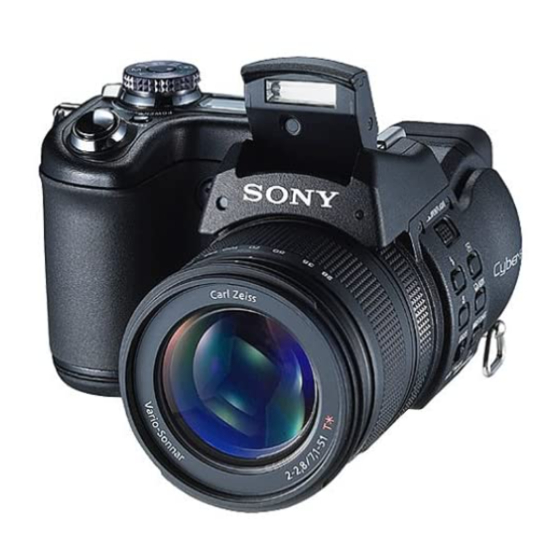

DSC-F828
Auto-ADJ
SERVICE MANUAL
Ver 1.2 2004.06
SUPPLEMENT-1
File this supplement with the service manual
(PV03-022)
• Addition of Automatic Adjustment Program
• Use this Service Manual together with the Automatic Adjustment Program (DSC-F828 Auto-Adj Ver1.
[]
r
[][]
.exe) and the DSC-F828 C1
MATRIX ADJ (F828C1MATRIX.exe).
Note:
[]
(numeric value) of the file name varies depending on the version of Automatic Adjustment Program.
2004F0500-1
DSC-F828
©2004.6
Sony EMCS Co.
9-876-279-82
Published by DI Technical Support Section

Advertisement

Table of Contents
loading

Summary of Contents for Sony DSC-F828

  • Page 1 Ver 1.2 2004.06 SUPPLEMENT-1 File this supplement with the service manual (PV03-022) • Addition of Automatic Adjustment Program • Use this Service Manual together with the Automatic Adjustment Program (DSC-F828 Auto-Adj Ver1. [][] .exe) and the DSC-F828 C1 MATRIX ADJ (F828C1MATRIX.exe). Note: (numeric value) of the file name varies depending on the version of Automatic Adjustment Program.
  • Page 2: Table Of Contents

    Installation Method ·························································· 6-9 * Color reproduction frame is shown on page 6-35. Notes When Using the DSC-F828 C1 Matrix Adj ·········· 6-9 * AF laser axis frame is shown on page 6-35. Starting Method of DSC-F828 C1 Matrix Adj ················ 6-9 Screen and Function of Each Button of DSC-F828 C1 Matrix Adj ·······································································...
  • Page 3: Adjustments

    Download the data. Save the data. (The same model of the same destination) After the EVR data is saved and downloaded, check the respective items of the EVR data. (Refer to page 6-3 for the items to be checked.) DSC-F828...
  • Page 4: Adjusting Items When Replacing Main Parts And Boards

    Note 1: The automatic Adjustment Program does not support the “Initialization of data”. Perform it manually. Note 2: Use the DSC-F828 C1 MATRIX ADJ (F828C1MATRIX.exe) when performing “Color Shade Check”, “Linear Matrix Adj.” and “AWB 3200K/5800K Standard Data Input” of Camera System Adjustment.
  • Page 5: Camera Section Adjustments

    Siemens star chart Back ground paper For PTB-1450: J-6080-875-A J-2501-130-A J-6082-562-A J-10 Camera table J-6082-384-A Note: Personal computer Windows98/98SE/Me/2000/XP Home/XP Pro RAM: 256MB or more recommended USB: 2.0 recommended (also compatible with 1.1) Two connectors are required. Fig. 6-1-1 DSC-F828...
  • Page 6: Preparations

    2) Start up the application for adjustment (SEUS). About 6cm (PTB-1450) About 20cm (PTB-450) Front of the lens Fig. 6-1-2 [CONNECTION OF EQUIPMENT] Personal computer (with two USB ports) USB2 HASP key USB1 DC IN AC power AC IN adaptor Memory stick Fig. 6-1-3 DSC-F828...
  • Page 7: Precaution

    1450) from the pattern box and insert a clear chart in its place. 2) 9 colors chart (Standard picture frame) (PTB-1450) (Do not perform zoom operations during this time.) When performing adjustments using the 9 colors chart, adjust the picture frame as shown in Fig. 6-1-4. (Standard picture frame) DSC-F828...
  • Page 8: Preparing The Flash Adjustment Box

    4) Assemble so that the black sides and the background paper side of woody board A, B and C are internal. (Fig 6-1-6) woody board A woody board B woody board A woody board B woody board C Fig. 6-1-6 DSC-F828...
  • Page 9: Using Method Of Seus

    SEUS PAGE EDIT screen. Fig. 6-1-7 [Close] 5) Click to close the SEUS PAGE EDIT screen. [Save] 6) Click on the SEUS screen. 7) Wait for more than 3 sec. 8) Select page: 00, address: 01 and set data: 00. DSC-F828...
  • Page 10: Adjustment Programs

    ADJUSTMENT PROGRAMS When the Automatic Adjustment Program started, the Main Menu screen in Fig. 6-1-8 will appear. On this screen, select each adjust- The DSC-F828 is adjusted with the Automatic Adjustment Pro- ment section. gram and the DSC-F828 C1 MATRIX ADJ.
  • Page 11: Dsc-F828 C1 Matrix Adj

    1-2-2. DSC-F828 C1 MATRIX ADJ 5. Screen and Function of Each Button of DSC-F828 1. Application Environment C1 MATRIX ADJ Windows 98/98SE/Me/2000/XP RAM: 256MB or more recommended USB: 2.0 recommended (also compatible with 1.1) Two connectors are required. 2. Installation Method Extract the file compressed in the ZIP format (828matrix.zip).
  • Page 12: Video System Adjustments

    “red”. When the data setting is cancelled, the button color returns to “white”. (Use this button when an error occurred in the video adjust- ment. If the adjustment completed successfully, the data set- ting is automatically cancelled and the button color returns to “white”.) DSC-F828 6-10...
  • Page 13: Adjusting Method

    “3. Release of Data Set- ting during Video Adj.” will be executed. 5) Upon successful completion of all items of the VIDEO adjust- [OK] ment, the following message is displayed. Click the but- ton. Fig. 6-1-12 DSC-F828 6-11...
  • Page 14: Camera System Adjustments

    “red”. When the data setting is cancelled, the button color returns to “white”. (Use this button when an error occurred in the camera adjust- ment 1-6. If the adjustment completed successfully, the data setting is automatically cancelled and the button color returns to “white”.) DSC-F828 6-12...
  • Page 15 10 to 16 CAMERA Adjustment 6 AF Laser Axis Check Flash adjustment box (1 m) Note: Use the DSC-F828 C1 MATRIX ADJ (F828C1MATRIX.exe) when performing “Color Shade Check”, “Linear Matrix Adj.” and “AWB 3200K/5800K Standard Data Input” of Camera System Adjustment.
  • Page 16: Adjusting Method

    7) Upon completion of “4. Flange Back Adj.”, “5. Release of Data Setting during Camera Adj.” is executed. 8) Upon successful completion of all items of the CAMERA Ad- [OK] justment 1, the following message is displayed. Click the button. Fig. 6-1-18 DSC-F828 6-14...
  • Page 17 The following messages are displayed, and then oper- ate the camera to make a check in accordance with the mes- sages. Fig. 6-1-20 5) Upon completion of “2. Flange Back Check”, “3. Release of Data Setting during Camera Adj.” is executed. DSC-F828 6-15...
  • Page 18: Picture Frame Setting (Ptb-450)

    Check on the monitor TV C14: Filter for AWB 5800K adjustment A = C = Green Yellow Cyan White E = F Blue Magenta Effective picture frame Color bar chart picture frame Effective picture frame Transparent window Fig. 6-1-27 Fig. 6-1-24 DSC-F828 6-16...
  • Page 19: Color Shade Check

    ZOOM ....WIDE end (Turn the zoom ring to “28”) MACRO ................ON FOCUS ..............MANUAL Adjusting method: 1) Start the DSC-F828 C1 MATRIX ADJ on the PC. [Connect] 2) Click on the DSC-F828 C1 MATRIX Adjustment screen. If the connection is normal, the DSC-F828 C1 MA- TRIX Adjustment screen will be as shown in bellow, indicat- ing the “connected”...
  • Page 20: Camera Adjustment 3

    Set the subject in accordance with the message. Fig. 6-1-33 [OK] 6) Click the button, and the items from “3. F No. Compen- sation” to “6. Release of Data Setting during Camera Adj.” will be executed. DSC-F828 6-18...
  • Page 21 8). In this work, acquire a reference data for the liner matrix adjust- ment using a DSC-F828 camera that operates normally. And saves the data in the inside of the PC. Therefore, if the same pattern box and the same 9 colors chart are used, it is not necessary to perform “Get Reference Data”...
  • Page 22: Linear Matrix And Awb Adjustment

    ZOOM ....WIDE end (Turn the zoom ring to “28”) MACRO ................ON FOCUS ..............MANUAL Adjusting method: 1) Install the camera for adjustment. 2) Start the DSC-F828 C1 MATRIX ADJ on the PC. [Connect] 3) Click on the DSC-F828 C1 MATRIX Adjustment screen.
  • Page 23 6) Upon successful completion of “3. Color Reproduction Check”, the following message is displayed. Change the chart in ac- cordance with the message. Fig. 6-1-46 [OK] 7) Click the button, and the “4. CCD Linearity Check”, “5. CCD White Defect Compensation Check” will be executed. DSC-F828 6-21...
  • Page 24 “6. CCD Black Defect Com- pensation Check”, “7. Release of Data Setting during Camera Adj.” will be executed. 10) Upon successful completion of all items of the CAMERA Ad- [OK] justment 4, the following message is displayed. Click the button. Fig. 6-1-48 DSC-F828 6-22...
  • Page 25: Camera Adjustment 4

    “2. Strobe Adj.” will be ex- ecuted. 5) During execution of “2. Strobe Adj.”, the following message is displayed. After checking the flashing of strobe light, click [OK] button. (This message is displayed 2 times during execution of adjustment.) Fig. 6-1-50 DSC-F828 6-23...
  • Page 26: Camera Adjustment 5

    9) Upon completion of “2. AF Laser Axis Check”, “3. Release of Fig. 6-1-54 Data Setting during Camera Adj.” is executed. 10) Upon successful completion of all items of the CAMERA Adjustment 6, the following message is displayed. Click the [OK] button. Fig. 6-1-59 DSC-F828 6-24...
  • Page 27: Evf System Adjustments

    EVF Adjustment Start button is clicked. Fig. 6-1-62 Button Adjustment Signal Page Address Name 70, 71, EVF Initial Data 73 to 78, Input 7A, 7C VCO adj. Arbitrary 8F Adjustment Bright adj. Contrast adj. V-COM adj. White Balance adj. 78, 7A Table 6-1-4 DSC-F828 6-25...
  • Page 28: Lcd System Adjustments

    “red”. When the data setting is cancelled, the button color returns to “white”. (Use this button when an error occurred in the LCD adjust- ment. If the adjustment completed successfully, the data set- ting is automatically cancelled and the button color returns to “white”.) DSC-F828 6-26...
  • Page 29 5) If the button is clicked, “7. Release of Data Setting dur- ing LCD Adj.” will be executed. 6) Upon successful completion of all items the LCD adjustment, [OK] the following message is displayed. Click the button. Fig. 6-1-66 DSC-F828 6-27...
  • Page 30: Error

    • Check that the conditions such as a subject Remedy are correct. • Reset the camera. Fig. 6-1-70 Symptom The camera is not ready for adjustment. • Data error exists in the camera. Cause • Reset the camera. Remedy DSC-F828 6-28...
  • Page 31: Data Save Error

    “white”. To cancel the data setting, perform it on the SEUS Op- eration screen. How to cancel the data setting is displayed in the error message. Fig. 6-1-76 LCD System Adjustment screen Fig. 6-1-77 DSC-F828 6-29...
  • Page 32: Initialization Of Data

    SEUS goes in “disconnect” state, but this is not a [Connect] trouble. Click on the SEUS screen to restore the “connected” state. (In case that the power does not turn on again, press the power button.) Fig. 6-1-78 DSC-F828 6-30...
  • Page 33: Service Mode

    5) Select page: 00, address: 01, and set data: 00. Examples: If the hexadecimal data is “8E”, the bit values for bit7 to bit4 are shown in the A column, and the bit values for bit3 to bit0 are shown in the B column. DSC-F828 6-31...
  • Page 34: Switch Check (1)

    When data = 11 When data = 01 FLASH OPEN DETECT switch (LS-067 board S001) Close Open Using method: 1) Select page: 60, address: B9. 2) Read the data. By discriminating the data, the state of the switch can be discriminated. DSC-F828 6-32...
  • Page 35: Switch Check (4)

    8) Check that all segment of the segment LCD are lit. 9) Select page: 20, address: 04, set data: 00. 10) Select page: 80, address: 12, set data: 00. 11) Select page: 8E, address: FE, set data: 00. 12) Select page: 00, address: 01, set data: 00. DSC-F828 6-33...
  • Page 36: Record Of Use Check

    “Detailed” code (Occurred 3rd time) *1: “C” t “01”, “E” t “03” Using method: 1) The self diagnostics log is displayed at page: 20, addresses: B0 to B5. Note: These data will be erased when the lithium battery (LR-018 board) is removed. DSC-F828 6-34...
  • Page 37 FOR CAMERA COLOR REPRODUCTION CHECK Take a copy of CAMERA COLOR REPRODUCTION FRAME with a clear sheet for use. 〈 〉 AF LASER AXIS FRAME Take a copy of AF LASER AXIS FRAME with a clear sheet for use. DSC-F828 6-35E 6-35...
