Throttle

Checking the Throttle
With the engine off, check that the throttle
rotates smoothly from fully closed to fully
open in all steering positions and throttle
freeplay is correct. If the throttle does not
move smoothly, close automatically, or if the
cable is damaged, have the motorcycle
inspected by your dealer.

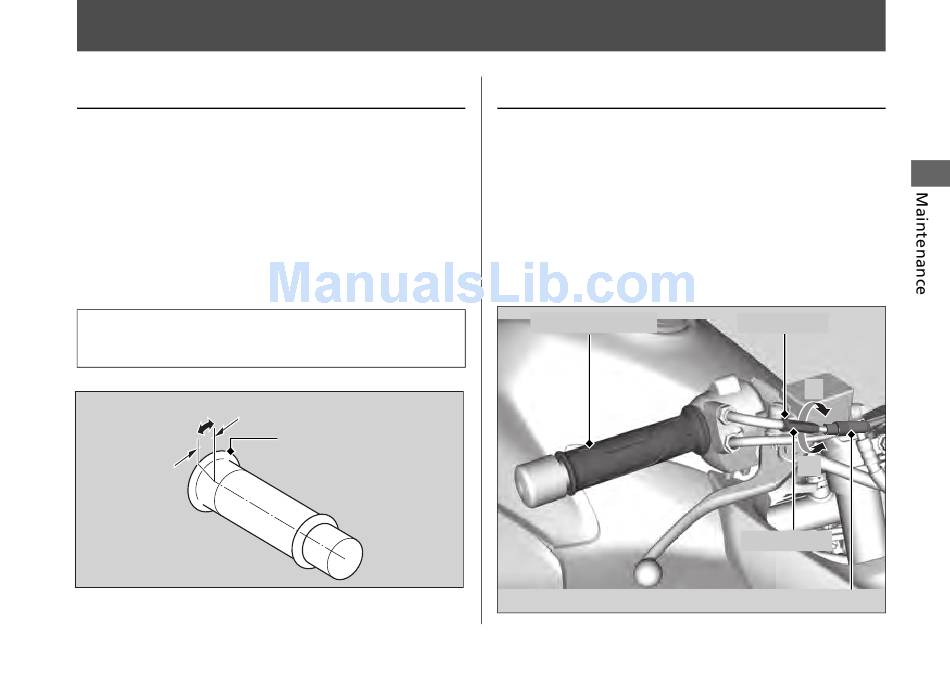

Freeplay at the throttle grip flange:
2 to 6 mm (0.1 to 0.2 in).
Freeplay
Flange
http://mototh.com
Adjusting the Throttle Freeplay
1. Slide the cable boot.
2. Loosen the lock nut.
3. Turn the adjuster until the freeplay is 2 to
6 mm (0.1 to 0.2 in).
4. Tighten the lock nut and return the cable
boot, then inspect the throttle action
again.
Throttle grip Lock nut
–
+
Adjuster
Cable boot
77
