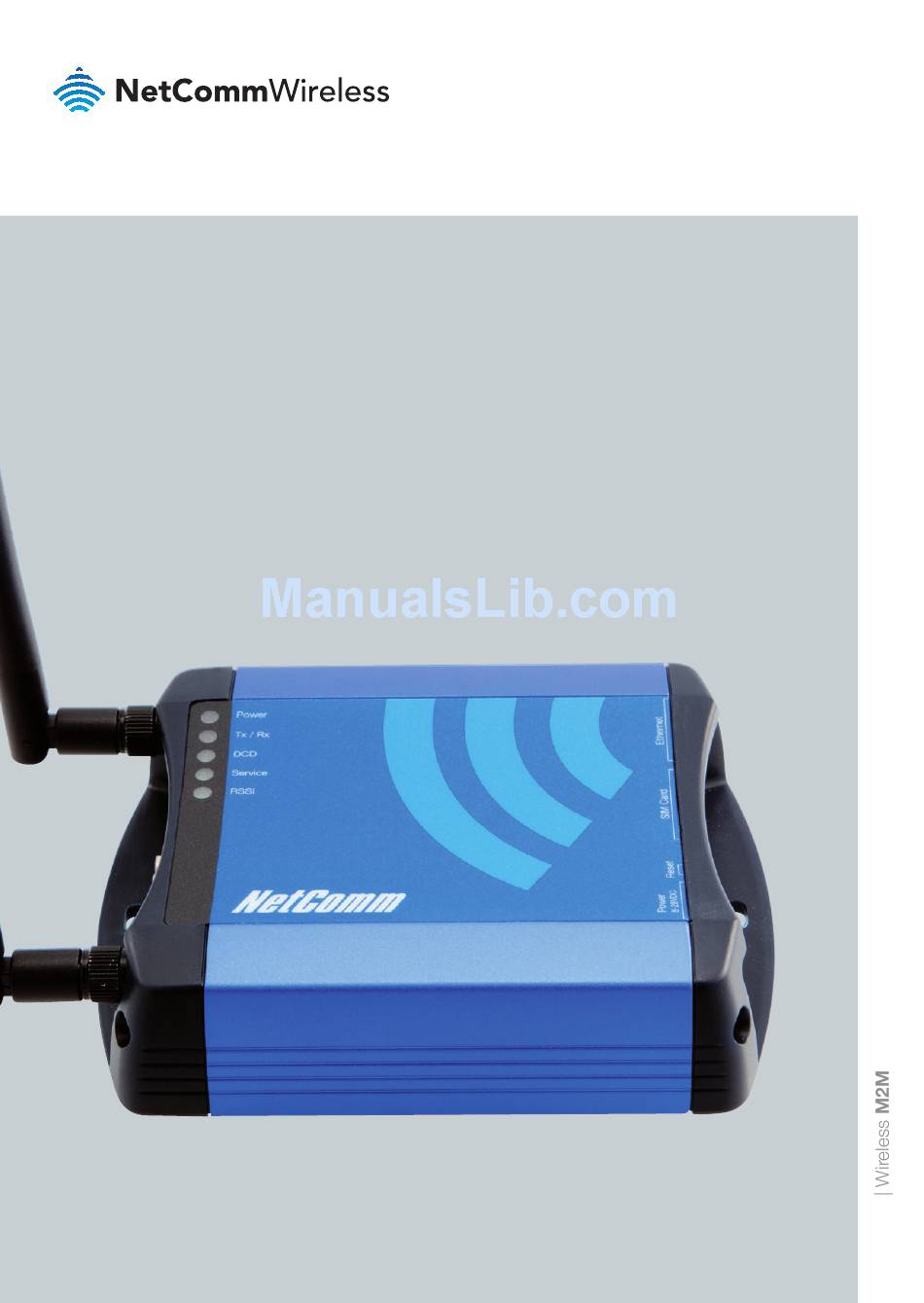

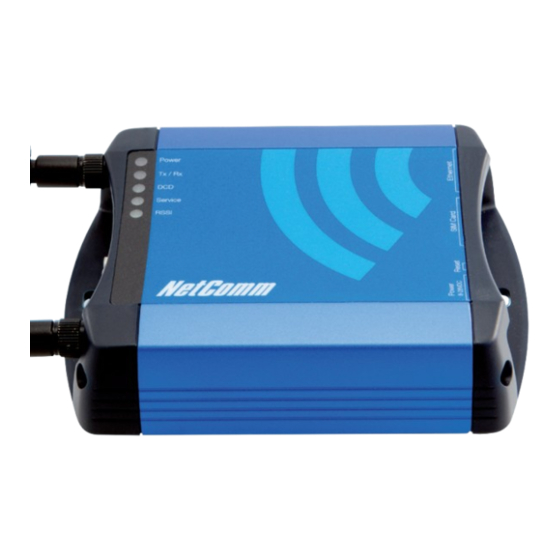

- Page 1 Quick Start Guide NTC-6000 Series - M2M WiFi Router...
-
Page 2: Quick Start Guide
NetComm’s NTC-6000 CallDirect Series. This guide covers the models NTC-6908, NTC-6909 and NTC-6900 (collectively referred to in this document as the NTC-6000 series). This guide will provide a series of step by step instructions to ensure the configuration of your Cellular Router goes as smoothly as possible. -
Page 3: Overview Of Leds
NTC-6000 Series - M2M WiFi Router Overview of LEDs Display Description Power (red) Solid ON The red Power LED indicates correct power is applied to the DC power input jack. Tx/Rx Solid ON The amber LED will light upon data being sent to or (amber) received from the cellular network. - Page 4 Overview of the Cellular Router Interfaces Receive Diversity Antenna Socket SMA Female Main Antenna Socket 5 Indicator LEDs SMA Female Indicate visually the activities and connection state for power, service type , data traffic, data carrier Serial RS-232 Port Connecting to a terminal using a DE-9 cable...
-
Page 5: Ethernet Port
NTC-6000 Series - M2M WiFi Router Ethernet Port Reset Connect to a terminal using RJ45 cable or a number of terminals Resetting the router to through a hub or network router factory default values 2Way Captive Power SIM Card Reader... -
Page 6: Configuring Your Router
Overview of Cellular Router Interfaces Field Description Main Antenna Socket SMA Female Receive Diversity SMA Female Antenna Socket Serial RS-232 Port For connecting to a terminal using a DE-9 cable. 5 Indicator LEDs Indicate visually the activities and connection state for power, service type, data traffic, data carrier connection and network signal strength. - Page 7 NTC-6000 Series - M2M WiFi Router Step One: Inserting the SIM Card Press the SIM Eject button to eject the SIM card tray. Place the SIM card in the tray with the gold side facing up. Insert both into the bay with the gold side facing down and in the direction as shown below.
- Page 8 Step Two: Setting up the Cellular Router Install the supplied antennas to the Cellular Router by screwing them onto the antenna connectors. Connect the power adapter to the mains and plug the output into the power jack of the router. The red Power LED on the panel should illuminate.
- Page 9 NTC-6000 Series - M2M WiFi Router Step Three: Preparing your Computer Connect one end of the supplied Ethernet cable to the Ethernet port of your router and connect the other end to the Ethernet port of your PC. The router is configured using a web browser. In order for your PC to connect to the router, configure your PC to obtain an IP address automatically from the router using DHCP.
- Page 10 Find and click Internet Protocol (TCP/IP) from the protocol list box and then click the Properties button The TCP/IP. Configuration window will pop up as illustrated below. Under General tab, select radio button Obtain an IP address automatically and Obtain DNS server address automatically. Then click OK button to close TCP/IP configuration window.
- Page 11 NTC-6000 Series - M2M WiFi Router Step Four: Accessing your Router’s Configuration Pages Below illustrates the steps required to access the configuration pages: Open your web browser (e.g.Internet Explorer/Firefox/Safari) and navigate to http://192.168.20.1/ Click Login and enter the username and password, then click on Submit.
- Page 12 the router.
- Page 13 NTC-6000 Series - M2M WiFi Router To login to the Cellular Router in root manager mode, please use the following login details: http://192.168.20.1 Username: root Password: admin To login to the Cellular Router in admin manager mode, please use the following login details: http://192.168.20.1...
- Page 14 Step Five: Unlocking the SIM If the SIM card is locked you will need to unlock it with a PIN provided with your SIM card. You can find out if the SIM is locked by viewing the SIM Status on the Home page. If the SIM Status is ENTER PIN or SIM LOCKED as above then do the following: Click on the Security link.
- Page 15 NTC-6000 Series - M2M WiFi Router When you click on the Security link you should see the following message. Click OK. Next, enter the PIN code and confirm the PIN code. Then click Save. Now Click on the link and the Home Status page should look...
- Page 17 NTC-6000 Series - M2M WiFi Router Step Six: Connect to the Cellular Network This section describes how to set up the Cellular Router to initiate a wireless WAN connection via PPP. There are 2 different ways: Initiating the PPP Connection directly from the Cellular Router acting as the PPP Client (most common).
- Page 18 To Connect Using a Connection Profile The WWAN (3G) profiles allow you to configure the settings that the router will use to connect to the cellular network. Check the list of pre-configured profile names and select the profile with the APN name that you wish to connect to. Click Auto Connect Enable.
- Page 19 PPP field, the PPP status should be up and the current IP address that the network has allocated should appear. Congratulations - your new NetComm NTC-6000 Series Router is now ready to use! For more detailed information on the configuration and activation of other features, please visit our website www.netcommwireless.com and...
- Page 20 Product Warranty NetComm Wireless products have a standard 12 months warranty from date of purchase. Technical Support For firmware updates or if you have any technical difficulties with your product, please refer to the support section of our website. support.netcommwireless.com...
