Page 1: Quick Start Guide

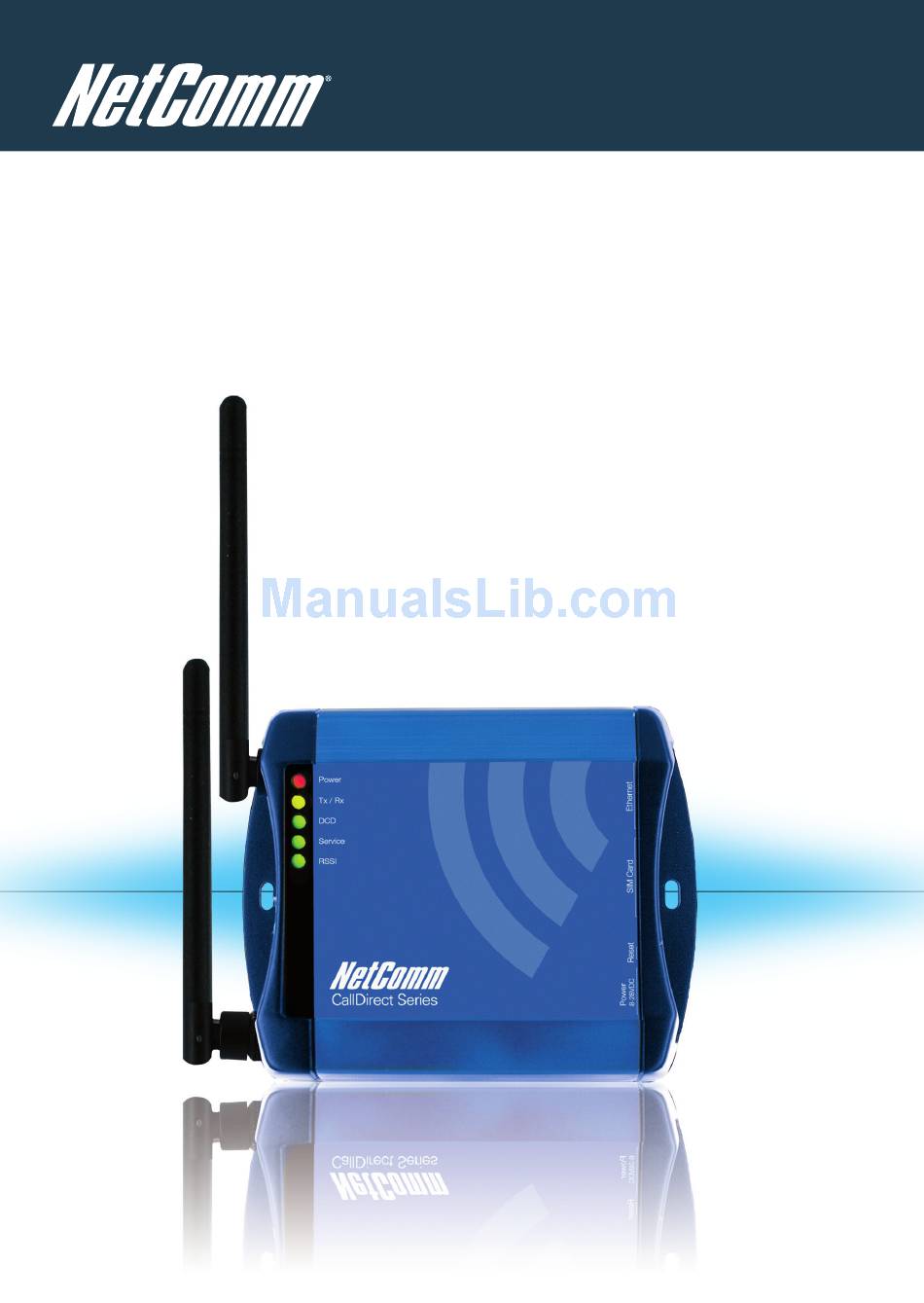

NetComm Commercial NetComm NTC-6000 CallDirect Series HSPA Cellular Routers Quick Start Guide... - Page 2 NTC-6000 CallDirect Series. This guide covers the models NTC-6908, NTC-6909 and NTC-6900 (collectively referred to in this document as the NTC-6000 series). This guide will provide a series of step by step instructions to ensure the configuration of your Cellular Router goes as smoothly as possible.
- Page 3 NetComm CallDirect Series - NTC-6000 Series Overview of Indicator Lights Display Description POWER (red) Solid ON The red Power LED indicates correct power is applied to the DC power input jack. Solid ON The amber LED will light upon data being sent to or Tx Rx (amber) received from the cellular network.
- Page 4 Connecting to a terminal using a DE-9 cable Reset Button Resetting the router to Ethernet Port factory default values Connect to a terminal using RJ45 cable or a number of terminals NTC-6000 Series Quick Start Guide through a hub or network router...
- Page 5 Serial RS-232 Port Connecting to a terminal using a NetComm CallDirect Series - NTC-6000 Series DE-9 cable Reset Button Resetting the router to Ethernet Port factory default values Connect to a terminal using RJ45 cable or a number of terminals...
-
Page 6: Configuring Your Router
The router is primarily managed via web interface. It may also be configured via the units serial (V.24) port using “AT” (V.250) commands, this method of operation is further detailed in the user guide. Before you power up the Cellular Router, please insert an active SIM card. NTC-6000 Series Quick Start Guide... - Page 7 NetComm CallDirect Series - NTC-6000 Series Step One: Inserting the SIM card Press the SIM Eject button to eject SIM card bay. Make sure the SIM card is inserted correctly by inserting the SIM the gold side facing down on the SIM...
- Page 8 Configuring your Network Adapter in Windows Follow the path Start -> Control Panel -> Network Connections. Right click Local Area Connection and select Properties to open the configuration dialogue box of Local Area Connection as below: NTC-6000 Series Quick Start Guide...
- Page 9 NetComm CallDirect Series - NTC-6000 Series Find and click Internet Protocol (TCP/IP) from the protocol list box and then click the Properties button The TCP/IP. Configuration window will pop up as illustrated below. Under General tab, select radio button Obtain an IP address automatically and Obtain DNS server address automatically.
- Page 10 Firmware Upgrade, Device Configuration Backup and Restore and Reset Cellular Router to factory default. To login to the Cellular Router in root manager mode, please use the following login details: http://192.168.20.1 Username: root Password: admin NTC-6000 Series Quick Start Guide...
- Page 11 NetComm CallDirect Series - NTC-6000 Series Enter the address below in your web browser and connect. The username and password are defined below. Whenever you make changes please refresh your web pages to prevent errors due to caching of web pages.
- Page 12 You can find out if the SIM is locked by viewing the SIM Status on the Home page: If the SIM Status is ENTER PIN as above then do the following: Click on the “Security” Link on the left NTC-6000 Series Quick Start Guide...
- Page 13 NetComm CallDirect Series - NTC-6000 Series When you click on the ‘Security’ link you should see the following message:- Click OK Next, enter the PIN code and confirm the PIN code. Then click Save. Step Six: Connect to the Cellular Network This section describes how to set up the Cellular Router to initiate a wireless WAN connection.
- Page 14 NetComm Commercial Now Click on the link and the Home Status page should look as below with SIM Status OK: NTC-6000 Series Quick Start Guide...
- Page 15 NetComm CallDirect Series - NTC-6000 Series Initiating a PPP Connection from the Cellular Router The status page of Cellular Router Setup will now be displayed as below. The PPP status on the page should be DISABLED network (as indicated by the large arrow) as your new device is not yet configured to connect to the cellular network.
- Page 16 This is very important. Click Auto Connect Enable Click Save From now on, Auto Connect will keep remain enabled and the router will automatically connect unless you come back to this page and disable it. NTC-6000 Series Quick Start Guide...
- Page 17 Congratulations - your new NetComm NTC-6000 CallDirect Series Router is now ready to use! For more detailed information on the configuration and activation of other features, please visit our website www.netcomm.com.au and download the user guide. NTC-6000 Series Quick Start Guide...
-
Page 18: Product Warranty
Note: NetComm Technical Support for this product only covers the basic installation and features outlined in the Quick Start Guide. For further information regarding the advanced features of this product, please refer to the configuring sections in the User Guide or contact a Network Specialist.
