9.7

Anti-tippers

9.7.1

Installing anti-tippers

Requirements:
· 6 mm Allen wrench
· 13 mm open-ended wrench
·

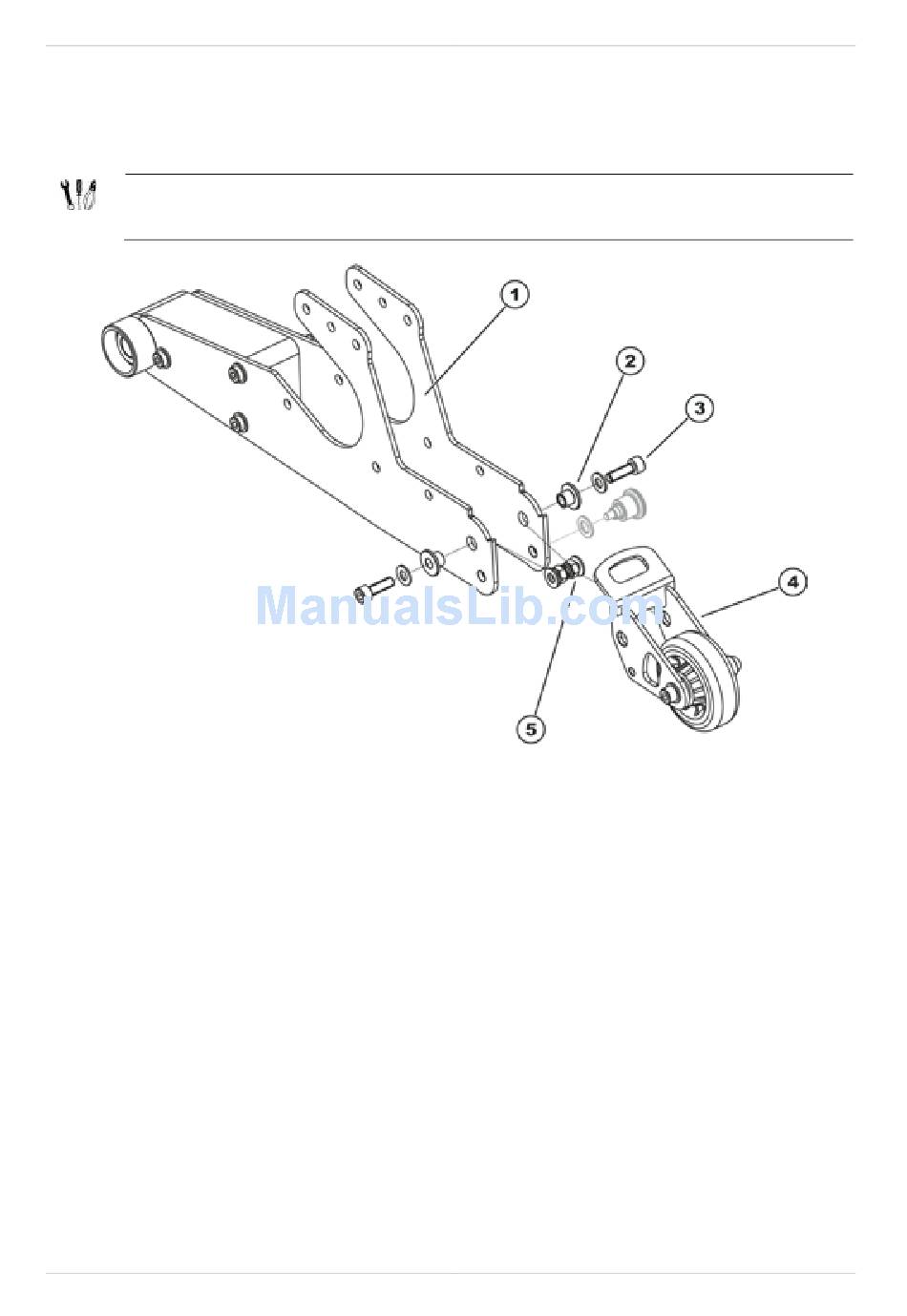

Insert the slide bushing (2) into the motor rocker (1).
·
Insert the anti-tipper (4) into the motor rocker from behind.
·
Install the hexagon socket head screws (3) together with the washers.
·
Secure the hexagon socket head screws with the self-locking nuts (5) including the washers
from the inside.
·
Install the locking pin, as described in chapter 9.7.2.
