  6. User instruction manual

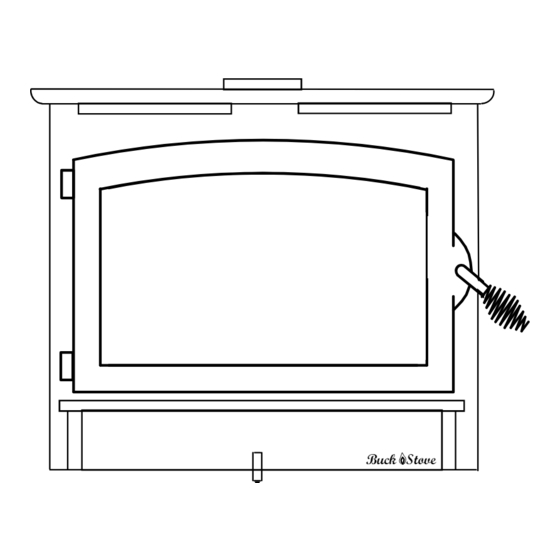

New Buck Corporation 21 User Instruction Manual

Non-catalytic unit fireplace insert & freestanding
Hide thumbs Also See for 21:
Table of Contents

Advertisement

Quick Links

See also: Manual
NON-CATALYTIC UNIT
FIREPLACE INSERT & FREESTANDING
PREPARATIONS
OPERATION
IF THIS HEATER IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY RESULT.
FOR YOUR SAFETY, FOLLOW THE
CONTACT THE AUTHORITY HAVING JURISDICTION (SUCH AS MUNICIPAL
BUILDING DEPARTMENT, FIRE DEPARTMENT, FIRE PREVENTION BUREAU,
etc.)
CONSULT BEFORE INSTALLATION TO DETERMINE THE NEED TO
OBTAIN A PERMIT. KEEP THESE INSTRUCTIONS FOR FUTURE USE.
TESTED AND LISTED BY:
MANUFACTURED BY NEW BUCK CORPORATION
200 ETHAN ALLEN DRIVE
P.O. BOX 69
SPRUCE PINE, N.C. 28777
www.buckstove.com
MODEL 21
MODEL 21
NON-CAT
Buck
Stove
FEATURES
MAINTENANCE

SAFETY NOTICE

ITS/WARNOCK HERSEY, MIDDLETON, WI
Buck Stove
INSTALLATION
INSTALLATION INSTRUCTIONS.
SAFETY
Revised January 2013

Advertisement

Table of Contents
loading

Related Manuals for New Buck Corporation 21

Summary of Contents for New Buck Corporation 21

  • Page 1: Safety Notice

    CONSULT BEFORE INSTALLATION TO DETERMINE THE NEED TO OBTAIN A PERMIT. KEEP THESE INSTRUCTIONS FOR FUTURE USE. TESTED AND LISTED BY: ITS/WARNOCK HERSEY, MIDDLETON, WI MANUFACTURED BY NEW BUCK CORPORATION 200 ETHAN ALLEN DRIVE P.O. BOX 69 SPRUCE PINE, N.C. 28777 Revised January 2013 www.buckstove.com...

  • Page 3: Table Of Contents

    Close Clearance/Pipe Shields ......................19 D. Vertical Wall Exit Using DVL Close Clearance Pipe ,and Elbow /Listed 2100° UL 103 HT Chimney and T-BOX assembly w/out Close Clearance/Pipe Shields...........21 E. Vertical Exit Using DVL Close Clearance Pipe /Listed 2100° UL 103 HT chimney with Close Clearance/Pipe Shields ......................23...

  • Page 4: Important Instructions

    (L.P.) liquid petroleum gas. We highly recommend the use of smoke and carbon monoxide detectors in your home.  The Model 21 is approved for use in specified Pre-Fabricated fireplaces (ZCF’s). Use the list on Page 11 or contact your dealer for additional units. ...

  • Page 5: Section I: Introduction

    SECTION I INTRODUCTION Your new MODEL 21 is a non-catalytic unit designed to meet the most stringent emissions standards without the use of a catalytic combustor. This effect is achieved through the use of secondary air which is mixed with primary air in the unit’s firebox.

  • Page 6: Section Ii: Masonry Insert Installation

    SECTION II MASONRY INSERT INSTALLATION The Model 21 may be installed using an all masonry fireplace built in accordance with the Uniform Building Code and National Fire Protection Association (NFPA). The first step in this type of installation is to determine the acceptability of fireplace and chimney for use with a woodstove.

  • Page 7: Floor Protection

    Floor Protection: When installing freestanding heater, a floor protector must be use. Floor protection must be 3/8” minimum thickness non-combustible material or equivalent. How to use alternate materials and how to calculate equivalent thickness An easy means of determining if a proposed alternate floor protector meets requirements listed in the appliance manual is to follow this procedure: 1.

  • Page 8: Masonry Insert Installation Options

    POSSIBLE TOOLS NEEDED FOR INSTALLATION If you decide to install your own stove, there are several hand tools you may need to do the job. If you do not already have them, they are readily available at most hardware stores. Caulking gun Large adjustable wrench (may not be needed) Drop cloths or newspapers...
  • Page 9 INSULATION OR HIGH TEMPERATURE CAULK REMOVE DAMPER OR WIRE IT OPEN NOTE: New Buck Corporation grants no warranty, implied or stated, for the installation or maintenance of your appliance, and assumes no responsibility of any consequential damage OPTION (B) OPTION (C)

  • Page 10: Mounting Trim Panels

    INSTALLATION PROCEDURE (Use a Listed Direct or Positive Connect)(See Page 6). POSITIONING THE HEATER NOTE: If the three suggested installations have been chosen, certain steps must be followed when installing heater into a masonry fireplace. When positioning heater, the following conditions MUST be met! (See Figure 2).
  • Page 11 10. If direct connect or positive connect kit is not used, follow instructions in (mounting trim panels, steps 1-4c) on (Page 8). 11. Mount top trim panel by drilling mounting holes in center of trim panel mounting brackets, with top end side of top panel overlapping side panel.
  • Page 12 CAUTION THE UNIT IS PAINTED WITH A SPECIALLY FORMULATED HIGH TEMPERATURE PAINT THAT CURES DURING THE FIRST TWO OR THREE FIRINGS. YOU MAY NOTICE A SLIGHT SMOKING EFFECT AND AN ODOR OF BURNING PAINT WHEN YOU BUILD THE FIRST FIRES. THIS IS NORMAL AND IS NOT A CAUSE FOR ALARM.

  • Page 13: Section Iii: Pre-Fab Insert Installation

    Marco Woodside Majestic NOTE: The Model 21 may be installed in any of the pre-fabricated fireplaces listed above if they are big enough to accept heater. NOTE: A FULL CHIMNEY LINER IS REQUIRED IN A ZERO CLEARANCE OR PRE -FABRICATED FIREPLACE.

  • Page 14: Section Iv: Residential Freestanding Installation

    SECTION IV RESIDENTIAL FREESTANDING INSTALLATION TOOLS FOR INSTALLATION Drop cloth, 3/32" Metal drill bit, 5/16" magnetic socket chuck adapter, 5/16" wrench (box or socket) or adjustable wrench, Jigsaw with masonry, metal and wood blades WARNING: DO NOT INSTALL IN A SLEEPING ROOM PREPARING THE STOVE FOR INSTALLATION 1.
  • Page 15 3. Place unit on pad making sure minimumum clearance specifications are met. 4. Lightly mark with a pencil the location of pedestal on protective pad. 5. Next, remove the four (4) screws holding heater to stand. Position heater out of the way of installation area.

  • Page 16: Floor Protection

    Floor Protection: Floor protection must be 3/8” minimum thickness non-combustible material or equivalent. How to use alternate materials and how to calculate equivalent thickness An easy means of determining if a proposed alternate floor protector meets requirements listed in the appliance manual is to follow this procedure: 1.

  • Page 17: Vertical Exit Using Single Wall Pipe /Listed 2100° Ul 103 Ht Chimney W/Out Close Clearance/Pipe Shield

    PREPARING THE ROOM HEATER LOCATION 1. Select an installation location that will give the best airflow from the front of the heater to the remainder of the home. 2. Place the protective floor pad in position. 3. Place unit on pad making sure minimum clearance specifications are met. 4.
  • Page 18 A. Vertical exit using (6" Single Wall minimum 24 ga. blued or black pipe and any listed 2100° UL 103 HT. TYPE Chimney) Without optional close clearance shield and pipe shield Model 21 minimum clearance to combustibles Figure 7 Figure 8...

  • Page 19: Vertical Wall Exit Using Single Wall Pipe And Elbow /Listed 2100° Ul 103 Ht Chimney

    HOW TO LOCATE CHIMNEY EXIT AND INSTALL Residential Installation B. Vertical Wall Exit using (6" Single Wall minimum 24 ga. blued or black pipe with elbow and any Listed 2100° UL HT chimney and Listed 2100° UL HT. T-Box assembly). Without optional close clearance shields and pipe shield.
  • Page 20 BACK WALL BACK WALL Figure 9 MODEL 21 25” 13" 13" 15.5" 8" 6” 16" NOTE: All clearances are to combustibles without close clearance shields and pipe shield, 6" Single Wall minimum 24 ga. blued or black pipe with elbow and minimum floor protector.

  • Page 21: Vertical Exit Using Dvl Close Clearance Pipe /Listed 2100° Ul 103 Ht Chimney W/Out Close Clearance/Pipe Shields

    HOW TO LOCATE CHIMNEY EXIT AND INSTALL Residential and Mobile Home Installation C. Vertical Exit using (6" DVL Close Clearance pipe and any Listed 2100° UL 103 HT chimney). Without close clearance shield and pipe shield. NOTE: For minimum clearances (See Page 20, Figure 11). 1.
  • Page 22 C. Vertical exit using (6" DVL Close Clearance pipe and any listed 2100° UL 103 HT. TYPE Chimney). Without optional close clearance shield and pipe shield. Model 21 minimum clearance to combustibles. Figure 11 Figure 12 BACK WALL BACK WALL CONTEMPORARY CAP LISTED 2100°...

  • Page 23: Vertical Wall Exit Using Dvl Close Clearance Pipe ,And Elbow /Listed 2100° Ul 103 Ht Chimney And T-Box Assembly W/Out Close Clearance/Pipe Shields

    3. Measure up so there will be at least 1/4" rise per foot of horizontal connector pipe, maintaining clearances to ceiling as noted in (Page 21,Figure 14). This will give you center of hole for chimney penetration.
  • Page 24 D. Vertical wall exit using (6" DVL Close Clearance pipe with elbow) and any listed 2100° UL 103 HT. TYPE Chimney and Listed 2100° UL HT T-Box assembly). Without optional close clearance shield and pipe shield. Model 21 minimum clearance to combustibles. BACK WALL BACK WALL Figure 13 MODEL 21 23”...

  • Page 25: Vertical Exit Using Dvl Close Clearance Pipe /Listed 2100° Ul 103 Ht Chimney With Close Clearance/Pipe Shields

    HOW TO LOCATE CHIMNEY EXIT AND INSTALL Residential and Mobile Home Installation E. Vertical Exit using (6" DVL Close Clearance pipe and any Listed 2100° UL 103 HT chimney). With optional close clearance shield and pipe shield. NOTE: For installation of optional close clearance shields and pipe shield (See Page 33).
  • Page 26 E. Vertical exit using (6" DVL Close Clearance pipe and any listed 2100° UL 103 HT. TYPE Chimney). With optional close clearance shield and pipe shield. Model 21 minimum clearance to combustibles. Figure 15 Figure 16 BACK WALL BACK WALL CONTEMPORARY CAP LISTED 2100°...

  • Page 27: Vertical Wall Exit Using Dvl Close Clearance Pipe ,And Elbow /Listed 2100° Ul 103 Ht Chimney And T-Box Assembly With Close Clearance/Pipe Shields

    HOW TO LOCATE CHIMNEY EXIT AND INSTALL Residential and Mobile Home Installation F. Vertical Wall Exit using (6" DVL Close Clearance Pipe and Elbow and any Listed 2100° UL HT chimney and Listed 2100° UL HT T-Box assembly). With optional close clearance shield and pipe shield NOTE: For installation of optional close clearance shields and pipe shield (See Page 33).
  • Page 28 F. Vertical wall exit using (6" DVL Close Clearance pipe with elbow and any listed 2100° UL 103 HT. TYPE Chimney and Listed 2100° UL HT T-Box assembly). With optional close clearance shield and pipe shield. Model 21 minimum clearance to combustibles. BACK WALL BACK WALL Figure 17 MODEL 21 19”...
  • Page 29 Ceiling Exit (Using Close Clearance listed chimney) 1. Suspend a plumb bob from ceiling above unit so that weight is hanging in center of flue exit. (A small weight on a string will serve as a plumb bob). Mark ceiling where string is suspended to locate center of chimney hole.

  • Page 30: Final Check

    FINAL CHECK 1. Recheck specified clearances. 2. Remove all foreign material from firebox area. 3. Open primary air draft. 4. Plug power cord into a 115V AC outlet when using with optional motor. “Do not run cord under unit or in high traffic areas”. 5.

  • Page 31: Section V: Alcove Installation

    Set stand aside and drill four 7/32" holes in heater bottom.Then mount stand to bottom of heater with screws provided. (See Figure 21). 8. Obtain four (4) 3/16" self-tapping screws and secure the stand to the heater.

  • Page 32: Floor Protection

    Floor Protection: Floor protection must be 3/8” minimum thickness non-combustible material or equivalent. How to use alternate materials and how to calculate equivalent thickness An easy means of determining if a proposed alternate floor protector meets requirements listed in the appliance manual is to follow this procedure: 1.

  • Page 33: Alcove Installation Clearances

    HOW TO LOCATE CHIMNEY EXIT, AND INSTALL Alcove Installation Vertical Exit using (6" DVL Close Clearance pipe and any Listed 2100° UL 103 HT chimney). With optional close clearance shield and pipe shield. NOTE: For installation of optional close clearance shields and pipe shield (See Page 33). NOTE: For minimum clearances (See Page 32, Figure 22).
  • Page 34 NEW BUCK MODEL 21 19” 7" 84" 8.5" 8" 6" 16" 48" BUCK STOVE NOTE: All clearances are to combustibles with optional close clearance shields and pipe shield, using DVL Close Clearance pipe and minimum floor protector.

  • Page 35: Installation Of Close Clearance Shields

    Installation of (Optional) Close Clearance Shields and Pipe Shield 1. Taking close clearance side shields, hold up to side of stove leaving 1/4" gap between shield and top of stove. 2. Make reference mark in center of pre-punched hole in top & bottom of shield. Drill two (2) 3/32"...
  • Page 36 FINAL CHECK 1. Recheck specified clearances. 2. Remove all foreign material from firebox area. 3. Open primary air draft. 4. Plug power cord into a 115V AC outlet when using with optional motor. “Do not run cord under unit or in high traffic areas”. 5.

  • Page 37: Section Vi: Wood Heater Safety

    SECTION VI WOOD HEATER SAFETY Certain safety hazards are inherent in any wood heater installation. You should be aware of these so that a safe and proper installation can be made. 1. FAULTY CHIMNEY: An older masonry chimney should be thoroughly checked to be sure there are no holes or weak spots which could allow sparks or hot gases to escape.

  • Page 38: Section Vii: Operation

    NOTE: THE FUELING DOOR MUST REMAIN CLOSED DURING OPERATION. NOTE: If optional blower is being used on the Model 21. Your stove is equipped with a automatic thermostat. When the stove gets hot enough, the thermostat will activate the room air blower.

  • Page 39: Section Viii: Troubleshooting

    SECTION VIII TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Sluggish Heater Obstruction in chimney Check for and remove obstruction Improperly sealed trim kit or (a) Check trim kit gasketing direct connect kit seal to fireplace and gasket as necessary to seal unit. Gasket under front bottom of stove if needed.
  • Page 40 PROBLEM POSSIBLE CAUSE SOLUTION High fuel consumption Improper regulation of draft (a) Close inlet air control as or inlet air much as possible to maintain desired heat output (b) Check gaskets, reinstall fiberglass gasketing round doors and glass as necessary Improper door fitting Check door gasket, check adjustment of door latch...

  • Page 41: Limited Warranty

    NEW BUCK CORPORATION (NBC) "LIMITED WARRANTY" FOR THE BUCK STOVE PLEASE READ THIS WARRANTY CAREFULLY PRODUCTS COVERED This warranty covers the new Buck Stove heating unit, so long as it is owned by the original purchaser, including optional and standard accessories purchased at the same time, subject to terms, limitations and conditions herein set out.
  • Page 43 (B) There is no other express warranty. All implied warranties of merchantability and fitness for use are limited to the duration of the Express Warranty. (C) New Buck Corporation is not liable for indirect, incidental or consequential damages in connection with use of product including any cost or expense of providing substitute...
