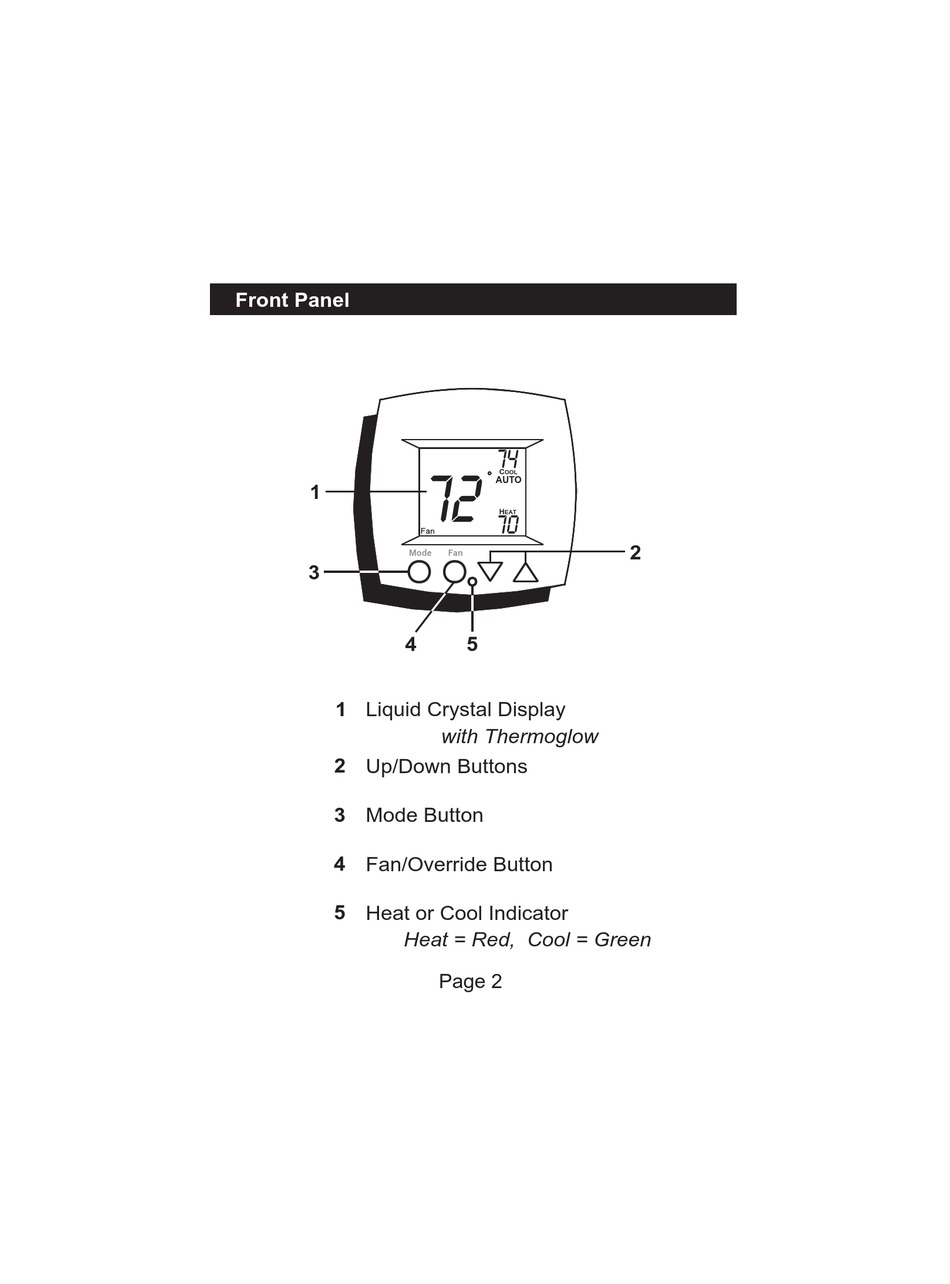

Front Panel
1
Mode
3
4
1
Liquid Crystal Display
2
Up/Down Buttons
3
Mode Button
4
Fan/Override Button
5
Heat or Cool Indicator
Heat = Red, Cool = Green
74
72
C
OOL
AUTO
70
H
EAT
Fan
5
with Thermoglow
Page 2
