Datalogic Magellan 2200VS Installation Instructions

Eas kit

Hide thumbs Also See for Magellan 2200VS:

Download this manual See also: Reference Manual, Quick Reference Manual

This kit is available only to qualified modular level service providers. Reference the service

manual for your product to find requirements for ElectroStatic Discharge (ESD) protection and

full details regarding the removal and replacement of parts and assemblies.

These instructions explain how to install the EAS wire in either of two scanner models.

Instructions specific to Magellan 2200VS scanners are shown below on the left side of the page

and Magellan 2300HS scanner instructions are shown on the right.

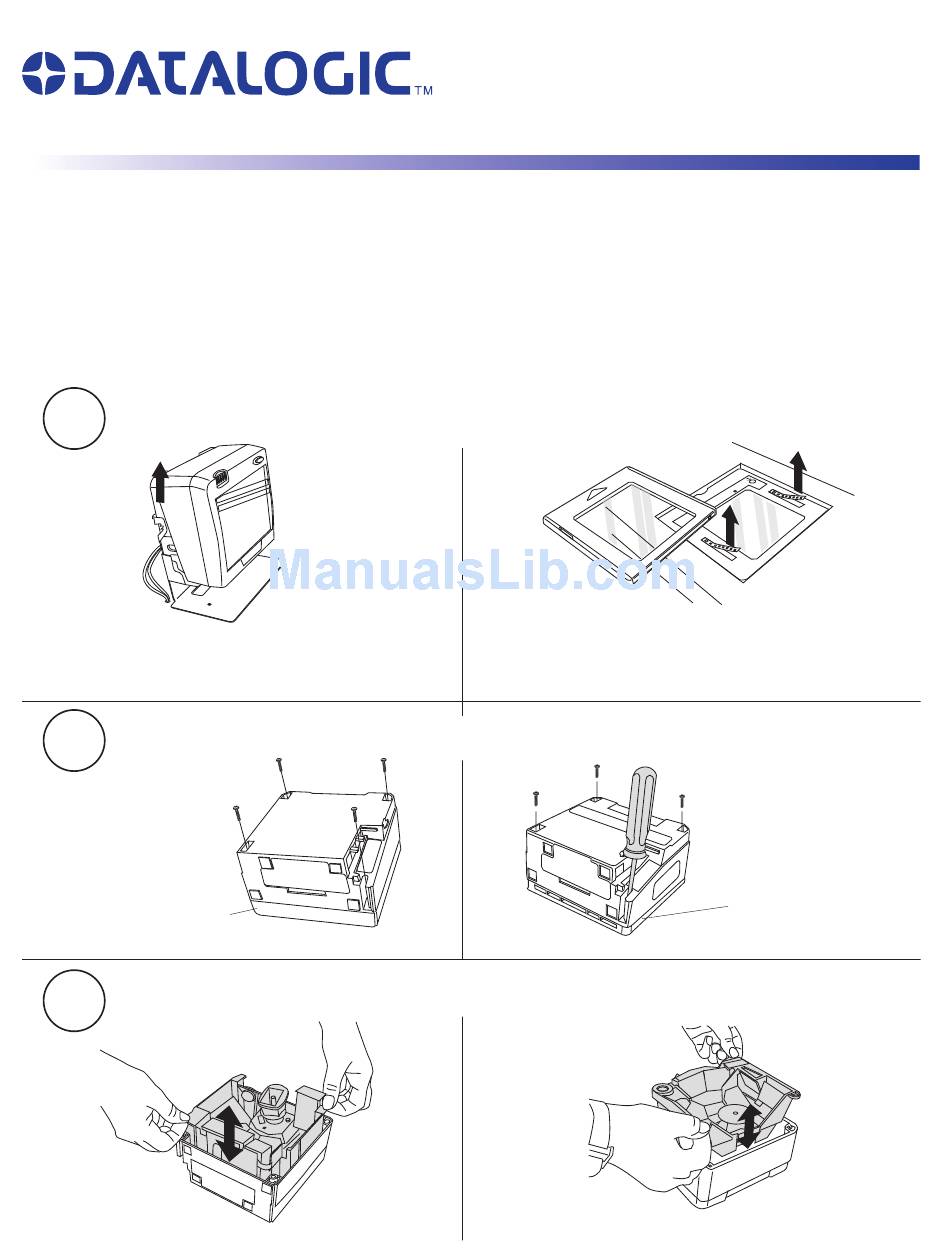

Remove the scanner from its mounted position and disconnect all cables.

Lift the scanner straight up and

out of its mount.

Place the scanner face down on an ESD protected surface and detach the...

...Front Enclosure

Turn the scanner face up, lift off the Front/Top Enclosure, then remove the Chassis.

Installation Instructions

Magellan

2200VS/2300HS EAS Kit

Lift off the Top Cover, then

use the Lift Handles to remove

the scanner from the counter.

...Top Enclosure

Page 1: Installation Instructions
These instructions explain how to install the EAS wire in either of two scanner models. Instructions specific to Magellan 2200VS scanners are shown below on the left side of the page and Magellan 2300HS scanner instructions are shown on the right.
Page 2 Peel off the EAS portion of the Feed the loop end of the EAS Wire connector label from the Lower/Back through the EAS opening, then seat Enclosure to expose the opening for the rubber grommet in the hole. the wire. (Both models) (Both models) Seat the EAS Wire inside the enclosure in the guides as shown.

Magellan 2300hs
