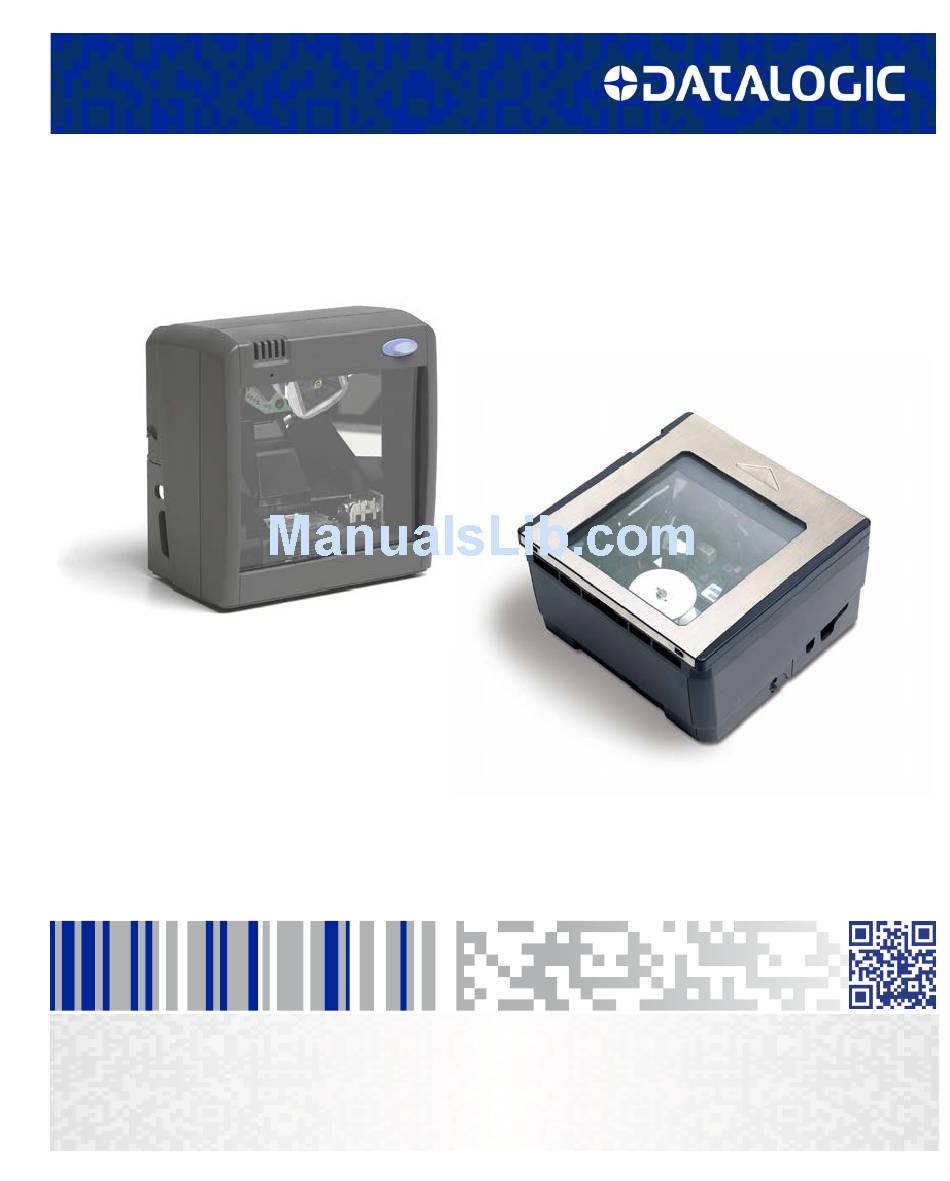

Page 1 Magellan 2200VS and 2300HS Product Reference Guide...
Page 2 An Unpublished Work - All rights reserved. No part of the contents of this documentation or the procedures described therein may be reproduced or transmitted in any form or by any means without prior written permission of Datalogic ADC, Inc. or its subsidiaries or affiliates ("Datalogic" or "Datalogic ADC"). Owners of Datalogic products are hereby granted a non-exclusive, revocable license to reproduce and transmit this documentation for the purchaser' s own internal busi- ness purposes.
Page 3: Table Of Contents
Table of Contents Chapter 1. Introduction ..................1-1 Manual Overview ................... 1-1 How to Use This Manual ................1-2 Scanner Nomenclature ................... 1-3 Connectors ....................1-4 Physical Parameters ..................1-5 Scanning ....................1-5 AC Adapter ..................... 1-5 Electrical Specifications .................. 1-6 Laser and Product Safety ................
Page 4 Introduction to Label Programming ..............5-1 Understanding the Basics ................5-1 Integrating the Scanner With Your Host System ..........5-1 Customizing Your Scanner’s Operation ............5-2 Programming Overview .................. 5-3 Programming via Handheld Device ............. 5-4 What Is Programming Mode? ..............5-4 Entering and Exiting Programming Mode.
Page 5 RS-232 Host Echo Quiet Interval .............. 5-72 RS-232 Ignore Host Commands ............... 5-73 RS-232 TTL ................... 5-74 RS-232 TTL Invert ................. 5-75 RS-232 Beep on ASCII BEL ..............5-76 RS-232 Beep on Not on File ..............5-77 RS-232 ACK NAK Enable ................. 5-78 RS-232 ACK Character ................
Page 6 UPC-E 128 Supplemental Label ID ............5-140 EAN-13 Enable ..................5-141 EAN-13 First Character Transmission ............5-142 EAN-13 Check Character Transmission ............ 5-143 EAN-13 ISBN Conversion Enable ............. 5-144 EAN 13 Label ID ................... 5-145 EAN-13 2-Digit Supplemental Label ID ............ 5-146 EAN-13 5-Digit Supplemental Label ID ............
Page 7 Code 39 Start Stop Character Transmission ..........5-194 Code 39 Check Character Calculation ............5-195 Code 39 Check Character Transmission ........... 5-196 Code 39 Full ASCII ................5-197 Code 39 AIM ID ................... 5-198 Code 39 Label ID ................. 5-199 Code 39 Length Control ................
Page 8 Codabar AIM ID ................... 5-242 Codabar Label ID .................. 5-243 Codabar Length Control ................. 5-244 Codabar Maximum Label Length ............. 5-245 Codabar Minimum Label Length .............. 5-246 Codabar Fixed Length 1 ................. 5-247 Codabar Fixed Length 2 ................. 5-248 Codabar Stitching ................. 5-249 Code 93 Enable ..................
Page 9 Appendix C. Keypad................C-1 Appendix D. Host Commands............... D-1 Appendix E. Factory Defaults............... E-1 Appendix F. Handheld Data Format Requirements....... F-1 Handheld Data Format Requirements General ..........F-1 Datalogic Handheld Data Format Requirements ..........F-2 AIM Formats ..................F-10 Product Reference Guide...
Page 10 NOTES viii Magellan 2200VS and 2300HS...
Page 11: Chapter 1. Introduction
Chapter 1 Introduction This Product Reference Guide contains comprehensive instructions on how to install the scanner, how to program it using special programming feature bar code labels, and advanced user information as described in the following overview. Manual Overview , presents the manual’s contents, describes features Chapter 1, Introduction and specifications, provides regulatory and safety information, and lists the bar code symbologies the scanner will read.
Page 12: How To Use This Manual
Introduction , outlines wire requirements, connector Appendix B, Cable Information specifications and pinout details for associated product cabling. , furnishes bar codes representing the digits and char- Appendix C, Keypad acters required to enter extended programming data needed during certain programming sessions.
Page 13: Scanner Nomenclature
Scanner Nomenclature Manual Conventions ‘NOTE’ blocks contain information that is helpful and rec- ommended. They provide information that is critical to operations and/or procedures described in this manual. ‘CAUTION’ blocks inform you that proper handling (adherence to the procedures described) is required to avoid damage to equipment and/or property.
Page 14: Connectors
Introduction Connectors The appearance of the connector panel will vary depending upon the fac- tory options purchased with your model. Reference Figure 1-2 Figure 1-2. Connector Panel EAS Opening Scanner Host Aux. Port Power EAS Connection POS TERMINAL AUXILIARY PORT POWER ·...
Page 15: Physical Parameters
Physical Parameters Physical Parameters This section provides specifications for performance, environmental and electrical parameters. Reference the second section of this manual, Site , for physical measurements of all models and Preparation and Installation some accessories. Scanning The scanner has a scan zone immediately in front of (or above) the scan window where the scanner projects laser light in order to scan items.
Page 16: Electrical Specifications
Introduction Figure 1-4. Environmental Specifications Operation +40 C +104 F 10 C 50 F Temperature 10 to +40 C 50 to +104 F Dust Resistant Optics Cavity, IP5X Illumination Artificial Light: Sunlight: 450 Foot-candles 0-8,000 Foot-candles Humidity 5 - 95% NC Storage +70 C +158 F...
Page 17 Electrical Specifications Safe operation of your scanner or scanner requires properly grounded elec- trical outlets. Be sure to have a qualified electrician certify the earth-ground connection on circuits which will be used to power the unit. CAUTION The scanner is powered on/off by connecting/disconnecting its AC power supply.
Page 18: Laser And Product Safety
Introduction Laser and Product Safety Laser safety requirements are based on IEC Standard Publication 60825-1 (2007) and CDRH 21CFR, Chapter 1, Subchapter J and (CDRH) Laser Product Performance Standard, User information [1040.10(h)1]: • User Maintenance. No user maintenance of the system other than cleaning of the scan window(s) is required.
Page 19 Laser and Product Safety Safety precautions to be taken: No adjustments or alteration of the scanner housing are to be attempted by the user. The failure of the facet wheel motor while the unit is continuing to emit a laser beam causes the emission levels to exceed those for inherently safe operation.
Page 20: Labeling
Introduction Labeling Regulatory, reference and safety labeling for both models is shown in Figure 1-5 Figure 1-6 Figure 1-5. Labeling: Model 2200VS PSC Inc. 959 Terry Street Eugene, OR 97402 USA XXXXXXXXXXXX This illustration shows general label Product of USA This device complies with Part 15 of the FCC Rules.
Page 21 Labeling Figure 1-6. Labeling: Model 2300HS IEC CLASS 1 LASER PRODUCT Class IIa Laser Product. Avoid long term viewing of direct laser light. Appareil á laser de classe IIa. Eviter toute exposition prolongée de la vue à lumière laser directe. 6-1018 Host EAS Opening...
Page 22: Agency Compliances
CDRH, 21CFR Part 1040 CDRH Class IIa laser device Canada same as CDRH SGM-1 specification Australia AS 2211 Class 1 Europe IEC 60825-1 Class 1 Contact Datalogic for a complete listing of approvals for other coun- tries. 1-12 Magellan 2200VS and 2300HS...
Page 23: Bar Codes Supported
Bar Codes Supported Bar Codes Supported The scanner can read/decode the following bar code types (symbologies): • UPC Versions A & E • UPC Supplementals and Add-ons (2 & 5 digit supplementals and Code 128) • Reduced Space Symbology (RSS) RSS-14 and RSS expanded; both support stacked component.
Page 24 Introduction NOTES 1-14 Magellan 2200VS and 2300HS...
Page 25: Chapter 2. Site Preparation And Installation
Chapter 2 Site Preparation and Installation This chapter outlines the procedures for unpacking the scanner, verifying function, preparing the countertop or wall, routing cables, and installing the scanner. Unpacking To unpack the unit: • Inspect the package for signs of damage that may have occurred dur- ing shipping.
Page 26: Operational Verification
Site Preparation and Installation Operational Verification Follow these steps to ensure that your unit has arrived undamaged and is fully functional before installing it in the counter and connecting it to your POS system: 1. [2200VS scanners ONLY] Remove the mounting bracket. 2.
Page 27: Installation: Model 2200Vs
Installation: Model 2200VS 4. The scanner should beep to indicate it has passed the power-up Selftest routine, and the green LED (lamp) will light continuously, indicating the scanner is ready to scan. Reference Chapter 4, Problem Isolation if the scanner does not perform as expected.
Page 28 Site Preparation and Installation 2. Determine if a cable-routing hole is necessary. If so, hold the scan- ner or mounting bracket in the desired, installed position to deter- mine the center of the hole. Mark the center and drill a 1-1/4” (3.2cm) hole.
Page 29 Installation: Model 2200VS ® Figure 2-2. Magellan 2200VS Installation Route cables for countertop mount Connector Cover Route cables for wall mount Product Reference Guide...
Page 30: Installation: Model 2300Hs
Site Preparation and Installation Installation: Model 2300HS ® The Magellan 2300HS scanner is mounted flush with the countertop to promote comfortable and ergonomic slide-through scanning. Installation as described below. 1. Determine the best location for scanner. Some considerations are: • Proximity to the user. Verify that checkstand features allow the unit to be within easy reach of the user, without interfering with cash drawers or other equipment.
Page 31 Installation: Model 2300HS Figure 2-3. Countertop Modification Options a. Shelf installation b. Adapter w/flange above counter 6.07" (154.2mm) 6.26" (159mm) Rim of adapter 6.07" (154.2mm) Cut hole 6.26" Cut hole (159mm) Rim rests on top of counter 3.42" (86.9mm) 3.47" (88.1mm) Shelf Depth c.
Page 32 Site Preparation and Installation ® Figure 2-4. Magellan 2300HS Cable Routing Options Connector Cover 9. Verify operation by scanning a few known-good bar code labels. The scanner should now be communicating the bar code data to the POS terminal. Reference Chapter 4, Problem Isolation if the scanner does not perform as expected.
Page 33: Chapter 3. Operation And Maintenance
Chapter 3 Operation and Maintenance The information contained in this section describes how to operate and maintain the scanner. Topics include scanning tips, and scan window cleaning and replacement. Product Reference Guide...
Page 34: Scanning Items: Model 2200Vs
Operation and Maintenance Scanning Items: Model 2200VS Item bar codes are scanned by either... • sliding or pushing items through the scan volume in a right-to-left or left-to-right motion (see a). This is known as “Sweep” Figure 3-1 scanning, and is the best choice for high throughput super- and hypermarket installations where it is necessary to minimize the need to grip or lift items.
Page 35: Scanning Items: Model 2300Hs
Scanning Items: Model 2300HS Scanning Items: Model 2300HS The scanner is mounted so its scan window is flush with the countertop. This allows for maximum working space, and also permits the user to slide items over its surface without having to grasp or pick them up. Bar codes are effortlessly scanned when swept through the zone projected from the substantial scan window as shown in Figure 3-1...
Page 36: Operational Controls
Operation and Maintenance Operational Controls The function of scanner controls and indicators is listed in Appendix A, . Turn to that appendix for full LED/Beeper Indications & Controls details. Operational Modes The scanner features a number of modes that are important to both the user and the system support personnel.
Page 37: Operating Mode
Operational Modes Error Reporting If a fatal error is detected during Selftest or operation, the scanner will not advance to Normal Operation Mode. Selftest diagnostics will cause the scanner to sound a long, low tone. When this occurs, error codes may be accessed by momentarily pressing the Volume/Tone Push Button.
Page 38: Sleep Mode
Operation and Maintenance Once the scanner enters Normal Operation, it begins a countdown sequence. If there is no activity during a preset period of time (also called time-out ), the unit will shut off the laser and/or motor in order to pro- long the life of the electrical and mechanical components.
Page 39: Additional Functions
Additional Functions Additional Functions Additional scanner functions include programming, running scanner diagnostics, or initiating a reset. Programming Scanners are typically programmed at the factory to settings specified by the customer. Generally, POS system interface and bar code symbologies are pre-configured to operate in the target environment. con- Chapter 5 tains the necessary instructions, bar codes, and descriptions to program/...
Page 40: Scanner Reset
Operation and Maintenance Scanner Reset As with any electronic equipment, it is sometimes necessary to reset the electronics. The reset procedure allows you to initiate a reset command to the scanner. This may be necessary if the POS terminal has been switched off or the store system has been reset while the unit is on.
Page 41: Chapter 4. Problem Isolation
Chapter 4 Problem Isolation In the event of a suspected functional problem, use the troubleshooting references provided in this section. This useful information will help you identify and resolve the cause of the problem. The scanner incorporates features that indicate when a problem occurs. The scanner may: •...
Page 42: Diagnostic Procedures
Problem Isolation Diagnostic Tests for details about running diag- Chapter 3, Scanner Diagnostic Mode nostic tests for the scanner. If a problem is discovered during diagnostics, the scanner will provide feedback about the source of the problem. The remainder of this section describes these failure indications and includes troubleshooting flowcharts to help isolate the problem.
Page 43: Error Codes
Error Codes Error Codes If an error is detected, the scanner will sound a long low tone (for three seconds) and flash its LED, indicating a failure. When this occurs, press the Volume/Tone Push button to hear the error code. If it is configured to do so, the scanner will sound a series of beeps corresponding to the error code and/or flash its LED simultaneous to the beeps.
Page 44: Flowcharts
Problem Isolation Flowcharts The problem isolation flowcharts on the following pages allow you to identify and troubleshoot problems with your system. Figure 4-1. Problem Isolation: Start For units using an AC/DC adapter, verify that... 1. AC Adapter is connected to a functional AC outlet. 2.
Page 45 Flowcharts Figure 4-2. Problem Isolation: Selftest SELFTEST START Scan the Factory Is the Is the Is the Defaults bar code in error code error code Section 6 to enable the blinking in default configuration error file. Restart the unit. No interface selected (Null Interface).
Page 46: Problem Isolation
Problem Isolation Have you verified that the scan window(s) is/are clean and scratch-free? POOR/NO READING Before proceeding, verify that START bar code samples presented to scanner are of good quality and a symbology the scanner Enter Scanner Diagnostic Mode by can read.
Page 47 Flowcharts Figure 4-4. Problem Isolation: No Transmit to POS NO TRANSMIT TO POS START Check the interface (I/F) Verify programmable cable connections. If parameters using the possible, retest the information and programming Does the system using a known- bar codes provided in Section scanner read DONE good I/F cable.
Page 48 Problem Isolation NOTES Magellan 2200VS and 2300HS...
Page 49: Chapter 5. Programming
Chapter 5 Programming Introduction to Label Programming The programming bar code labels contained in this manual will allow you to customize and configure features and settings for your scanner. To ensure full compatibility and proper function, use only the programming bar codes in this manual and other product-specific publications to pro- gram scanner features.
Page 50: Customizing Your Scanner's Operation
Programming You may also want to contact the dealer or your system administrator if you have no record of how your scanner was pre-programmed at the fac- tory. Scanners are typically programmed with the default settings for spe- cific interface types (see for more Appendix E Factory Defaults...
Page 51: Programming Overview
Programming Overview • Symbology Programming - gives the scanner the capability to auto- discriminate as few as one, and as many as all available symbologies. For optimal scanner performance enable only those symbologies required. Additionally the scanner may be programmed with the standard options available for the various symbologies, such as check digit, minimum label length, fixed and variable length bar codes, etc.
Page 52: Programming Via Handheld Device
The scanner can also accept programming via its auxiliary port using a handheld scanning device. Eligible handheld devices must have the ability to transmit Code 128 function codes such as the programming bar codes presented in this manual. Datalogic models QuickScan ® 1000 and Quick- ®...
Page 53: Programming Session
Programming Overview Programming Session A typical programming session is conducted as follows: 1. Scan the SWITCH bar code to place the scanner in Programming Mode. Depending upon its current programming, the scanner may emit a beep or beeps, indicating it has read the bar code and the green LED will flash on and off slowly while the scanner remains in Programming Mode.
Page 54 Programming It is recommended that programming sessions be limited to one feature at a time. Should you make a mistake in the pro- gramming sequence, it can be difficult to discover where an error has been made if several features are programmed at once.
Page 55: Programming Sequence
Programming Overview Programming Sequence To modify a scanner feature (item), the programming bar codes contained in this manual must be scanned in a given sequence depending upon the feature being programmed (as shown in ). There are three possi- Table 5-1 ble programming sequences: If the scanner’s interface type must be changed, always be sure that interface configuration is the FIRST item scanned during a...
Page 56 Programming Table 5-1. Programming Sequence ITEM TAG ITEM VALUE END/RESET ENABLE NEW FEATURE SWITCH SWITCH 3 4 5 ENABLE NEW FEATURE USING THE FOLLOWING SETTINGS... SWITCH SWITCH ONE BAR CODE CONTAINS SWITCH + ITEM TAG + ITEM VALUE + SWITCH Magellan 2200VS and 2300HS...
Page 57: Led And Beeper Indicators
LED and Beeper Indicators LED and Beeper Indicators The scanner provides a set of indicators that verify/announce the various scanner functions. If You Make a Mistake... If, during a programming session, you find that you are unsure of the scanner’s settings or wish to reset the scanner’s configuration, use the Return to Factory Settings label below to return the scanner’s configura- tion to the factory settings.
Page 58: Test Mode
Programming RETURN TO FACTORY SETTINGS Test Mode Use this feature to place the scanner into a testing, or “demo” mode. This special mode disables the scanner interface, meaning that bar code data is not sent out to the host via the scanner interface. This allows the bar code to be scanned continuously without requiring a response from the POS terminal.
Page 59: General Scanner Features
General Scanner Features General Scanner Features Double Read Timeout The Double Read Timeout feature sets a time limit that determines how much time must pass before reading the same label again (e.g. two identi- cal items in succession). To set the Double Read Timeout: 1.
Page 60 Programming Double Read Timeout — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. DOUBLE READ TIMEOUT = 800ms DOUBLE READ TIMEOUT = 1 SECOND 5-12 Magellan 2200VS and 2300HS...
Page 61: Laser Timeout
General Scanner Features Laser Timeout The laser timeout feature sets the time for switching the visible laser diodes (VLDs) off if the scanner is idle. Using this feature can prolong the life of the VLDs. To set the Laser Timeout: 1.
Page 62 Programming Laser Timeout — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. LASER TIMEOUT = 10 MINUTES LASER TIMEOUT = 15 MINUTES 5-14 Magellan 2200VS and 2300HS...
Page 63: Motor Timeout
General Scanner Features Motor Timeout The Motor Timeout feature sets the time for automatically switching the motor off when the scanner is not in use. Laser safety requires that the laser switch off before the motor. If you set the motor timeout shorter than the laser timeout, the motor and the laser will both shut off when the motor timeout expires.
Page 64 Programming Motor Timeout — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. MOTOR TIMEOUT = 10 MINUTES MOTOR TIMEOUT = 15 MINUTES 5-16 Magellan 2200VS and 2300HS...
Page 65 General Scanner Features Motor Timeout — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. MOTOR TIMEOUT = 30 MINUTES MOTOR TIMEOUT = 60 MINUTES 5-17 Product Reference Guide...
Page 66: Green Led Idle State
Programming Green LED Idle State This feature specifies the state of the green scanner LED when the scanner is idle and ready to read a label. Options are: • • On dim To set the LED Idle State: 1. Scan the SWITCH bar code. 2.
Page 67: Scanner Button Options
General Scanner Features Scanner Button Options Configure the scanner volume button to one of the following modes of operation: • Enable all functions: Volume, tone, diagnostics and reset. • Enable only volume, tone and reset. • Enable reset only. • Disable all button functions To set the desired Scanner Button Option: 1.
Page 68 Programming Scanner Button Options — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. SCANNER BUTTON OPTION = ENABLE RESET ONLY SCANNER BUTTON OPTION = DISABLE ALL BUTTON FUNCTIONS 5-20 Magellan...
Page 69: Power-Up Beep Control
General Scanner Features Power-up Beep Control Specifies the type of audible indication that is made when entering scan- ner-active mode on power-up. Choices are: • No beep • One beep • Three beeps To set the Power-up Beep: 1. Scan the SWITCH bar code. 2.
Page 70 Programming Power-up Beep Control — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. POWER-UP BEEP = ONE BEEP POWER-UP BEEP = THREE BEEPS 5-22 Magellan 2200VS and 2300HS...
Page 71: Good Read Beep Control
General Scanner Features Good Read Beep Control This feature enables/disables scanner beep upon successfully decoding of a label. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the two bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 72: Good Read Beep Frequency
Programming Good Read Beep Frequency Adjusts the scanner’s good read beep to sound at low, medium, or high fre- quency (controls the beeper’s pitch/tone). • Low = 660 Hz • Medium = 866 Hz • High = 1600 Hz To set the Good Read Beep Frequency: 1.
Page 73 General Scanner Features Good Read Beep Frequency — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. GOOD READ BEEP FREQUENCY = MEDIUM GOOD READ BEEP FREQUENCY = HIGH 5-25 Product Reference Guide...
Page 74: Good Read Beep Length
Programming Good Read Beep Length Specifies the duration of a good read beep. To set the good read beep length: 1. Scan the SWITCH bar code. 2. Scan the bar code, . You’ll need SET GOOD READ BEEP LENGTH to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 75: Good Read Beep Volume
General Scanner Features Good Read Beep Volume Selects the beeper volume upon a good read beep. There are four select- able volumes, with each volume incrementing upward from the previous decibel level: • 0 = Lowest Volume • 1 = Medium-Low Volume •...
Page 76 Programming Good Read Beep Volume — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. GOOD READ BEEP VOLUME = MEDIUM LOW GOOD READ BEEP VOLUME = MEDIUM 5-28 Magellan...
Page 77 General Scanner Features Good Read Beep Volume — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. GOOD READ BEEP VOLUME = HIGH 5-29 Product Reference Guide...
Page 78: Good Read When To Indicate
Programming Good Read When to Indicate This feature specifies when the scanner will provide indication (beep and/ or flash its green LED) upon successfully reading a bar code. • Good Read = Indicate after decode • Good Read = Indicate after transmit •...
Page 79 General Scanner Features Good Read When to Indicate — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. GOOD READ = INDICATE AFTER TRANSMIT GOOD READ = INDICATE AFTER CTS GOES INACTIVE, THEN ACTIVE (RS-232 ONLY) 5-31...
Page 80: Eas Active State
Programming EAS Active State Specifies the active state polarity of EAS (Electronic Article Surveillance); the inactive state is its opposite polarity. EAS output goes active during the good read of a bar code, allowing the EAS device to deactivate a tag on the product.
Page 81: Eas Timeout
General Scanner Features EAS Timeout Specifies the amount of time that an EAS (Electronic Article Surveillance) signal is held in its active state for a good read. To set the EAS Timeout: 1. Scan the SWITCH bar code. 2. Scan the bar code, SET EAS TIMEOUT below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 82: Aux Port Mode
(only one option can be active at a time). • Disabled — Port is inactive ® • External Handheld Input — Supports Datalogic handheld scanners (QuickScan 1000, QuickScan 6000, PowerScan) as well as other ® models such as the Symbol HotShot. Call your dealer for more information about supported devices.
Page 83 General Scanner Features Aux Port Mode — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. AUX PORT MODE = EXTERNAL HANDHELD INPUT AUX PORT MODE = PIR 5-35 Product Reference Guide...
Page 84: Productivity Index Reporting (Pir)
Programming Productivity Index Reporting (PIR) When PIR is enabled, label quality data is appended to decoded data before being presented to the POS. The PIR feature allows the scanner to provide information to an external computer indicating how easy the label was to read.
Page 85: Interface Related Features
Interface Related Features Interface Related Features Interface Type Specifies the current scanner interface. Selections are: INTERFACE TYPE PAGE NUMBER RS-232 Standard 5-39 RS-232 Wincor-Nixdorf 5-40 RS-232 Single Cable 5-41 OEM USB 5-43 Port 17 5-42 USB Keyboard 5-44 PC Keyboard Wedge 5-45 NOT USER-SELECTABLE Common factory configuration for...
Page 86 Programming Interface Type — continued To select the desired interface: Great care should be taken to select the correct interface type, since you can cause damage to the scanner and/or POS terminal by attempting to change to an incompatible interface. ALWAYS make interface selections with the host cable DISCONNECTED.
Page 87 Interface Related Features RS-232 Interface Selection Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. Great care should be taken to select the correct interface type, since you can cause damage to the scanner and/or POS terminal by attempting to change to an incompatible interface.
Page 88 Programming RS-232 Wincor-Nixdorf Interface Selection Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. Great care should be taken to select the correct interface type, since you can cause damage to the scanner and/or POS terminal by attempting to change to an incompatible interface.
Page 89 Interface Related Features RS-232 Single Cable Interface Selection Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. Great care should be taken to select the correct interface type, since you can cause damage to the scanner and/or POS termi- nal by attempting to change to an incompatible interface.
Page 90: Ibm Port 17 Interface Selection
Programming IBM Port 17 Interface Selection Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. Great care should be taken to select the correct interface type, since you can cause damage to the scanner and/or POS terminal by attempting to change to an incompatible interface.
Page 91 Interface Related Features OEM USB Interface Selection Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. Great care should be taken to select the correct interface type, since you can cause damage to the scanner and/or POS terminal by attempting to change to an incompatible interface.
Page 92 Programming USB Keyboard Interface Selection Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. Great care should be taken to select the correct interface type, since you can cause damage to the scanner and/or POS terminal by attempting to change to an incompatible interface.
Page 93: Pc Keyboard Wedge Interface Selection
Interface Related Features PC Keyboard Wedge Interface Selection This scanner supports a variety of PC Keyboard interfaces. The table below defines the different interface selections. Scan the corresponding bar code starting on page 5-46 to select the desired keyboard interface. I/F Type PCs Supported Page...
Page 94 Programming PC Keyboard Wedge Interface Types Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. Great care should be taken to select the correct interface type, since you can cause damage to the scanner and/or POS terminal by attempting to change to an incompatible interface.
Page 95 Interface Related Features PC Keyboard Wedge Interface Types — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. Great care should be taken to select the correct interface type, since you can cause damage to the scanner and/or POS terminal by attempting to change to an incompatible interface.
Page 96 Programming PC Keyboard Wedge Interface Types — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. Great care should be taken to select the correct interface type, since you can cause damage to the scanner and/or POS terminal by attempting to change to an incompatible interface.
Page 97 Interface Related Features PC Keyboard Wedge Interface Types — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. Great care should be taken to select the correct interface type, since you can cause damage to the scanner and/or POS terminal by attempting to change to an incompatible interface.
Page 98 Programming PC Keyboard Wedge Interface Types — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. Great care should be taken to select the correct interface type, since you can cause damage to the scanner and/or POS terminal by attempting to change to an incompatible interface.
Page 99: Maximum Host-Transmitted Message Length
Interface Related Features Maximum Host-Transmitted Message Length Specifies the maximum number of data characters allowed in messages transmitted to the host. To set the Maximum Host-Transmitted Message Length: 1. Scan the SWITCH bar code. 2. Scan the bar code, SET MAXIMUM HOST-TRANSMITTED MES- below.
Page 100: Number Of Host Transmission Buffers
Programming Number of Host Transmission Buffers Specifies the number of host transmission(s) that may be buffered. By buffering data from a bar code, the scanner can continue to read a new bar code while the old one is being transmitted to the host. Selecting BUF- FERS = 1 means that the first bar code must be transmitted before a new one can be read.
Page 101: Global Prefix
Interface Related Features Global Prefix This feature applies to RS-232 interfaces (Standard, Wincor-Nixdorf, and Single Cable). It specifies the prefix that is added to beginning of label transmission. To specify the Global Prefix Character(s): 1. Scan the SWITCH bar code. 2.
Page 102 Programming Global Prefix — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. SET GLOBAL PREFIX TERMINATE SEQUENCE 5-54 Magellan 2200VS and 2300HS...
Page 103: Global Suffix
Interface Related Features Global Suffix This feature applies to RS-232 interfaces (Standard, Wincor-Nixdorf, and Single Cable). It specifies the suffix that is added to end of a label trans- mission. Three standard options are available below. Contact your dealer for other alternate settings for this feature. •...
Page 104 Programming Global Suffix — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. GLOBAL SUFFIX = CR GLOBAL SUFFIX = CR LF 5-56 Magellan 2200VS and 2300HS...
Page 105: Ibm Features
IBM Features IBM Features IBM Transmit Labels in Code 39 Format This feature enables/disables scanner's ability to set a symbology identifier for a specified label to Code 39 before transmitting that label data to an IBM host. This applies to: Code 128, Code 93 and Codabar for IBM Port 5B;...
Page 106: Oem Usb Scanner Device Type
Programming OEM USB Scanner Device Type The OEM USB protocol allows for the scanner to be identified as one of two different types of barcode scanners. Depending on what other scan- ners you may already have connected to a USB POS, you may need to change this setting to enable all scanners to communicate.
Page 107: Features
RS-232 Features RS-232 Features RS-232 Baud Rate This feature selects the baud rate required for sending and receiving data. Single cable interfaces are limited to Baud Rate selections up to 19200. They cannot communicate at Baud Rates of 38400 and up. NOTE To specify the RS-232 Baud Rate: 1.
Page 108 Programming RS-232 Baud Rate — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. RS-232 BAUD RATE = 4800 RS-232 BAUD RATE = 9600 5-60 Magellan 2200VS and 2300HS...
Page 109 RS-232 Features RS-232 Baud Rate — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. RS-232 BAUD RATE = 19200 RS-232 BAUD RATE = 38400 5-61 Product Reference Guide...
Page 110 Programming RS-232 Baud Rate — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. RS-232 BAUD RATE = 57600 RS-232 BAUD RATE = 115200 5-62 Magellan 2200VS and 2300HS...
Page 111: Number Of Data Bits
RS-232 Features RS-232 Number of Data Bits Specifies number of data bits required for sending and receiving data. To set this feature: 1. Scan the SWITCH bar code. 2. Scan the bar code below representing the desired Data Bit setting. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 112: Number Of Stop Bits
Programming RS-232 Number of Stop Bits Specifies number of stop bits required for sending and receiving data. To set this feature: 1. Scan the SWITCH bar code. 2. Scan the bar code below representing the desired Stop Bit setting. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 113: Parity
RS-232 Features RS-232 Parity Specifies parity required for sending and receiving data. Options for this setting are: • RS-232 PARITY = NONE • RS-232 PARITY = EVEN • RS-232 PARITY = ODD To set this feature: 1. Scan the SWITCH bar code. 2.
Page 114 Programming RS-232 Parity — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. RS-232 PARITY = EVEN RS-232 PARITY = ODD 5-66 Magellan 2200VS and 2300HS...
Page 115: Hardware Control
RS-232 Features RS-232 Hardware Control Enables/disables use of the RS-232 CTS signal for flow control and/or scan control. Options are: • Disable — The scanner transmits to the host regardless of any activ- ity on the CTS line. • Enable CTS Flow Control — The CTS signal controls transmission of data to the host.
Page 116 Programming RS-232 Hardware Control — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. RS-232 HARDWARE CONTROL = ENABLE CTS FLOW CONTROL RS-232 HARDWARE CONTROL = ENABLE CTS SCAN CONTROL 5-68 Magellan...
Page 117: Intercharacter Delay
RS-232 Features RS-232 Intercharacter Delay Specifies delay between the end of one character and the beginning of the next in 10-millisecond increments. To set the RS-232 Intercharacter Delay: 1. Scan the SWITCH bar code. 2. Scan the bar code below, SET RS-232 INTERCHARACTER DELAY You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend...
Page 118: Software Flow Control
Programming RS-232 Software Flow Control Enables/disables RS-232 Flow Control using XON/ XOFF characters. This item will be ignored when the feature, RS-232 NAK Char- acter, is enabled NOTE To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 119: Host Echo
RS-232 Features RS-232 Host Echo When enabled, this feature passes all data through the scanner to the host as it comes in. This feature is used for applications where “daisy chaining” of RS-232 devices onto the same cable is necessary. If, for example, one of the devices in the chain is a terminal where someone is entering data while another person is simultaneously scanning a bar code requiring transmis- sion to the host, the scanner will wait for the RS-232 channel to be quiet...
Page 120: Host Echo Quiet Interval
Programming RS-232 Host Echo Quiet Interval This setting specifies the time interval of RS-232 channel inactivity which must transpire before the scanner will break the host echo loop to transmit the bar code data that has just been scanned to the host. •...
Page 121: Ignore Host Commands
RS-232 Features RS-232 Ignore Host Commands When set to ignore host commands, the scanner will ignore all host com- mands except for the minimum set necessary to keep the interface active and transmit labels. For normal operation of the interface, disable this fea- ture.
Page 122: Ttl
Programming RS-232 TTL Specifies whether RS-232 interface provides TTL levels on the output pins TxD and RTS. Choices are: • Normal RS-232 levels • TTL levels To set this feature: 1. Scan the SWITCH bar code. 2. Scan the bar code below which represents the desired setting for this feature.
Page 123: Ttl Invert
RS-232 Features RS-232 TTL Invert Enables/disables inversion of TTL. To set this feature: 1. Scan the SWITCH bar code. 2. Scan the bar code below which represents the desired setting for this feature. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 124: Beep On Ascii Bel
Programming RS-232 Beep on ASCII BEL Enables/disables ability of scanner to beep (sound a good read tone) on receiving an ASCII BEL (07 hex). • Disable • Enable To enable/disable this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 125: Beep On Not On File
RS-232 Features RS-232 Beep on Not on File Select for the host to beep (or not) when a not-on-file condition is detected by the host. This feature is also applicable to single cable RS-232. RS-232 BEEP ON NOT ON FILE = DISABLE ENABLE 5-77 Product Reference Guide...
Page 126: Ack Nak Enable
Programming RS-232 ACK NAK Enable This enables/disables the ability of the scanner to support the RS-232 ACK/NAK protocol. When configured, the scanner and/or host sends an “ACK” when it receives data properly, and sends “NAK” when the data is in error. Selections for this option are: •...
Page 127 RS-232 Features RS-232 ACK NAK Enable — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. RS-232 ACK/NAK = HOST ACKNOWLEDGEMENT RS-232 ACK/NAK = LABEL &...
Page 128: Ack Character
Programming RS-232 ACK Character This feature specifies which ASCII character will be used as an ACK char- acter. DO NOT set this feature to use previously defined characters such as XON, XOFF or host commands as this will conflict with normal operation of these characters.
Page 129: Nak Character
RS-232 Features RS-232 NAK Character This feature specifies which ASCII character will be used as a NAK char- acter. DO NOT set this feature to use previously defined characters such as XON, XOFF or host commands as this will conflict with normal operation of these characters.
Page 130: Retry On Ack Nak Timeout
Programming RS-232 Retry on ACK NAK Timeout This option specifies the action scanner performs on expiration of the 232 ACK NAK Timeout Value To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 131: Ack Nak Timeout Value
RS-232 Features RS-232 ACK NAK Timeout Value This item specifies the time the scanner will wait for an ACK character from the host following a label transmission. • 0 = Infinite timeout • 1 - 75 = Timeout in 200-millisecond increments To set the ACK NAK Timeout Value: 1.
Page 132: Ack Nak Retry Count
Programming RS-232 ACK NAK Retry Count This feature sets the number of times for the scanner to retry a label trans- mission under a retry condition. To set the RS-232 ACK NAK Retry Count: 1. Scan the SWITCH bar code. 2.
Page 133: Ack Nak Error Handling
RS-232 Features RS-232 ACK NAK Error Handling This item specifies the method the scanner will use to handle errors detected while waiting to receive the ACK character from the host. Errors include unrecognized host commands and communication errors such as parity or framing errors.
Page 134 Programming RS-232 ACK NAK Error Handling — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. RS-232 ACK NAK ERROR HANDLING = ASSUME ACK RS-232 ACK NAK ERROR HANDLING = ASSUME NAK 5-86 Magellan...
Page 135: Label Id Control
RS-232 Features RS-232 Label ID Control This feature specifies whether or not Label IDs are transmitted to the host and if so, whether to attach them as a prefix or suffix. RS-232 LABEL ID CONTROL = DISABLE RS-232 LABEL ID CONTROL = ENABLE AS PREFIX 5-87 Product Reference Guide...
Page 136 Programming RS-232 Label ID Control — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. RS-232 LABEL ID CONTROL = ENABLE AS SUFFIX 5-88 Magellan 2200VS and 2300HS...
Page 137: Single Cable Rs-232 Options
Single Cable RS-232 Options Single Cable RS-232 Options The RS-232 Single Cable interface shares some configuration options with other RS-232 interfaces. Rather than repeat them in this section as Single Cable options, please find them referenced as follows: • RS-232 Baud Rate on page 5-59 •...
Page 138: Single Cable Rs-232 Rts Cts Selection
Programming Single Cable RS-232 RTS CTS Selection Specifies how RTS and CTS are used to control the data flow. RTS is con- trolled by the Scanner and can be continuously held high/low, or can be asserted during label transmission. The scanner looks at CTS, as the con- figuration values state, to determine when to send label data.
Page 139 Single Cable RS-232 Options Single Cable RS-232 RTS CTS Selection — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. RTS CTS SELECTION = OPTION 2 RTS CTS SELECTION = OPTION 3 5-91 Product Reference Guide...
Page 140 Programming Single Cable RS-232 RTS CTS Selection — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. RTS CTS SELECTION = OPTION 4 RTS CTS SELECTION = OPTION 5 5-92 Magellan...
Page 141: Single Cable Rs-232 Use Bcc
Single Cable RS-232 Options Single Cable RS-232 Use BCC Enables/disables the ability of the scanner to use BCC. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 142: Single Cable Rs-232 Use Ack/Nak
Programming Single Cable RS-232 Use ACK/NAK Enables/disables the ability of the scanner to use ACK/NAK. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 143: Single Cable Rs-232 Use Stx
Single Cable RS-232 Options Single Cable RS-232 Use STX Enables/disables the ability of the scanner to use STX. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 144: Set Single Cable Rs-232 Stx Character
Programming Set Single Cable RS-232 STX Character This feature selects the STX character. To specify the STX Character: 1. Scan the SWITCH bar code. 2. Scan the bar code, SET SINGLE CABLE RS-232 STX CHARACTER below. You’ll need to cover any unused bar codes on this and the fac- ing page to ensure the scanner reads only the bar code you intend to scan.
Page 145: Single Cable Rs-232 Use Etx
Single Cable RS-232 Options Single Cable RS-232 Use ETX Enables/disables the ability of the scanner to use ETX. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 146: Set Single Cable Rs-232 Etx Character
Programming Set Single Cable RS-232 ETX Character Allows selection of the ETX character. To specify the ETX Character: 1. Scan the SWITCH bar code. 2. Scan the bar code, SET SINGLE CABLE RS-232 ETX CHARACTER below. You’ll need to cover any unused bar codes on this and the fac- ing page to ensure the scanner reads only the bar code you intend to scan.
Page 147: Pc Keyboard Wedge And Usb Keyboard Interfaces
PC Keyboard Wedge and USB Keyboard Interfaces PC Keyboard Wedge and USB Keyboard Interfaces This section contains the following PC Keyboard Wedge and USB Key- board Interface parameters in the order listed: • Connect to a Laptop/No Keyboard Attached (PC Keyboard Wedge ONLY) •...
Page 148: Connect To A Laptop/No Keyboard Attached
Programming Connect to a Laptop/No Keyboard Attached This feature applies to PC Keyboard Wedge ONLY. NOTE If no keyboard is attached, the scanner must provide the acknowledge sig- nal to the PC. In this case, enable the "Laptop/No External Keyboard" mode.
Page 149 PC Keyboard Wedge and USB Keyboard Interfaces Send Control/Function Characters Options for this feature are: Send Control Characters: transmits all ASCII characters except NUL (00h) . Disable Control Characters: disabling this feature limits transmission of ASCII characters to the following: •...
Page 150: Send Control/Function Characters - Continued
Programming Send Control/Function Characters — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. DISABLE CONTROL CHARACTERS SEND FUNCTION CHARACTER 5-102 Magellan 2200VS and 2300HS...
Page 151 PC Keyboard Wedge and USB Keyboard Interfaces Caps Lock Three caps lock settings are available. These are: Caps Lock Off: •sends character data to the host in normal format. Caps Lock On: •sends character data to the host in reverse case (a.z) = (A.Z)...
Page 152: Caps Lock - Continued
Programming Caps Lock — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. CAPS LOCK: CAPS LOCK = SHIFT LOCK 5-104 Magellan 2200VS and 2300HS...
Page 153: Country Mode
PC Keyboard Wedge and USB Keyboard Interfaces Country Mode The following country/languages can be selected when configured for wedge I/F Type E or USB Keyboard: • USA • Germany • Sweden • Slovakia • Belgium • Italy • Switzerland • Romania •...
Page 154 Programming Country Mode — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. COUNTRY MODE: BRITAIN COUNTRY MODE: DENMARK 5-106 Magellan 2200VS and 2300HS...
Page 155 PC Keyboard Wedge and USB Keyboard Interfaces Country Mode — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. COUNTRY MODE: FRANCE COUNTRY MODE: GERMANY 5-107 Product Reference Guide...
Page 156 Programming Country Mode — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. COUNTRY MODE: ITALY COUNTRY MODE: NORWAY 5-108 Magellan 2200VS and 2300HS...
Page 157 PC Keyboard Wedge and USB Keyboard Interfaces Country Mode — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. COUNTRY MODE: PORTUGAL COUNTRY MODE: SPAIN 5-109 Product Reference Guide...
Page 158 Programming Country Mode — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. COUNTRY MODE: SWEDEN COUNTRY MODE: SWITZERLAND 5-110 Magellan 2200VS and 2300HS...
Page 159 PC Keyboard Wedge and USB Keyboard Interfaces Country Mode — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. COUNTRY MODE: JAPANESE 106-KEY COUNTRY MODE: HUNGARY 5-111 Product Reference Guide...
Page 160 Programming Country Mode — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. COUNTRY MODE: CZECH REPUBLIC COUNTRY MODE: SLOVAKIA 5-112 Magellan 2200VS and 2300HS...
Page 161 PC Keyboard Wedge and USB Keyboard Interfaces Country Mode — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. COUNTRY MODE: ROMANIA COUNTRY MODE: CROATIA 5-113 Product Reference Guide...
Page 162 Programming Country Mode — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. COUNTRY MODE: POLAND 5-114 Magellan 2200VS and 2300HS...
Page 163: Keyboard Wedge Intercharacter Delay
PC Keyboard Wedge and USB Keyboard Interfaces Keyboard Wedge Intercharacter Delay This feature applies to PC Keyboard Wedge ONLY. NOTE Intercharacter Delay refers to the pause, if any, between each character before it is sent to the host. This time delay is used to control the flow of data from the scanner.
Page 164 Programming Keyboard Wedge Intercharacter Delay — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. KEYBOARD WEDGE INTERCHARACTER DELAY = 20 MILLISECONDS KEYBOARD WEDGE INTERCHARACTER DELAY = 30 MILLISECONDS 5-116 Magellan...
Page 165 PC Keyboard Wedge and USB Keyboard Interfaces Keyboard Wedge Intercharacter Delay — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. KEYBOARD WEDGE INTERCHARACTER DELAY = 40 MILLISECONDS KEYBOARD WEDGE INTERCHARACTER DELAY = 60 MILLISECONDS 5-117...
Page 166 Programming Keyboard Wedge Intercharacter Delay — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. KEYBOARD WEDGE INTERCHARACTER DELAY = 80 MILLISECONDS KEYBOARD WEDGE INTERCHARACTER DELAY = 100 MILLISECONDS 5-118 Magellan...
Page 167: Quiet Interval
PC Keyboard Wedge and USB Keyboard Interfaces Quiet Interval This feature applies to PC Keyboard Wedge ONLY. NOTE Quiet Interval is the amount of time to look for keyboard activity before the scanner breaks the keyboard connection in order to transmit data to the host.
Page 168 Programming Quiet Interval — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. QUIET INTERVAL = 50 MILLISECONDS QUIET INTERVAL = 100 MILLISECONDS 5-120 Magellan 2200VS and 2300HS...
Page 169 PC Keyboard Wedge and USB Keyboard Interfaces Quiet Interval — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. QUIET INTERVAL = 200 MILLISECONDS QUIET INTERVAL = 500 MILLISECONDS 5-121 Product Reference Guide...
Page 170 Programming Quiet Interval — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. QUIET INTERVAL = ONE SECOND 5-122 Magellan 2200VS and 2300HS...
Page 171: Symbology Programming
Symbology Programming Symbology Programming If the scanner’s interface type must be changed, always be sure that interface configuration is the FIRST item scanned during a programming session. (Changing an interface type resets ALL other configuration items — including symbology programming NOTE —...
Page 172: Upc-A Number System Character Transmission
Programming UPC-A Number System Character Transmission Enables/disables transmission of a UPC-A number system character. This feature MUST be enabled for IBM interfaces for proper function. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1.
Page 173: Upc-A Check Character Transmission
UPC-A Enable UPC-A Check Character Transmission Enables/disables transmission of a UPC-A check character. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 174: Expand Upc-A To Ean-13
Programming Expand UPC-A to EAN-13 Enables/disables expansion of UPC-A labels to EAN/JAN-13. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 175: Upc/Ean Aim Id
UPC-A Enable UPC/EAN AIM ID This feature enables/disables transmission of the UPC/EAN AIM symbol- ogy identifier. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 176: Upc-A Label Id
Programming UPC-A Label ID This feature specifies a UPC-A label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, desig- nates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled. NOTE To set this feature: 1.
Page 177: Upc-A 2-Digit Supplemental Label Id
UPC-A Enable UPC-A 2-Digit Supplemental Label ID This feature specifies a UPC-A 2-Digit Supplemental label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.
Page 178: Upc-A 5-Digit Supplemental Label Id
Programming UPC-A 5-Digit Supplemental Label ID This feature specifies a UPC-A 5-Digit Supplemental label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, desig- nates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.
Page 179: Upc-A 128 Supplemental Label Id
UPC-A Enable UPC-A 128 Supplemental Label ID This feature specifies a UPC-A 128 Supplemental label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.
Page 180: Upc-E Enable
Programming UPC-E Enable Enables/disables the ability of the scanner to decode UPC-E labels. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 181: Upc-E Number System Character Transmission
UPC-E Enable UPC-E Number System Character Transmission Enables/disables transmission of a UPC-E number system character. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 182: Upc-E Check Character Transmission
Programming UPC-E Check Character Transmission Enables/disables transmission of a UPC-E check character. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 183: Expand Upc-E To Upc-A
UPC-E Enable Expand UPC-E to UPC-A Enables/disables expansion of UPC-E labels to UPC-A. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 184: Expand Upc-E To Ean-13
Programming Expand UPC-E to EAN-13 Enables/disables expansion of UPC-E labels to EAN/JAN-13. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 185: Upc-E Label Id
UPC-E Enable UPC-E Label ID This feature specifies a UPC-E label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.
Page 186: Upc-E 2-Digit Supplemental Label Id
Programming UPC-E 2-Digit Supplemental Label ID This feature specifies a UPC-E 2-Digit Supplemental label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, desig- nates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.
Page 187: Upc-E 5-Digit Supplemental Label Id
UPC-E Enable UPC-E 5-Digit Supplemental Label ID This feature specifies a UPC-E 5-Digit Supplemental label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.
Page 188: Upc-E 128 Supplemental Label Id
Programming UPC-E 128 Supplemental Label ID This feature specifies a UPC-E 128 Supplemental label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, desig- nates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.
Page 189: Enable
EAN-13 Enable EAN-13 Enable Enables/disables the ability of the scanner to decode EAN/JAN-13 labels. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 190: First Character Transmission
Programming EAN-13 First Character Transmission Enables/disables transmission of EAN/JAN-13 first character. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 191: Check Character Transmission
EAN-13 Enable EAN-13 Check Character Transmission Enables/disables transmission of an EAN/JAN-13 check character. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 192: Isbn Conversion Enable
Programming EAN-13 ISBN Conversion Enable Enables/disables conversion of EAN/JAN-13 labels starting with 978 to Bookland ISBN labels. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 193: Ean 13 Label Id
EAN-13 Enable EAN 13 Label ID This feature specifies an EAN 13 label ID to be added to bar code data. To set this feature: The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.
Page 194: 2-Digit Supplemental Label Id
Programming EAN-13 2-Digit Supplemental Label ID This feature specifies an EAN-13 2-Digit Supplemental label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, desig- nates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.
Page 195: 5-Digit Supplemental Label Id
EAN-13 Enable EAN-13 5-Digit Supplemental Label ID This feature specifies an EAN-13 5-Digit Supplemental label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.
Page 196: 128 Supplemental Label Id
Programming EAN-13 128 Supplemental Label ID This feature specifies an EAN-13 128 Supplemental label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, desig- nates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.
Page 197: Bookland Aim Id
EAN-13 Enable Bookland AIM ID This feature enables/disables transmission of the Bookland AIM symbol- ogy identifier. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 198: Bookland Label Id
Programming Bookland Label ID This feature specifies a Bookland label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, desig- nates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled. NOTE To set this feature: 1.
Page 199: Enable
EAN-8 Enable EAN-8 Enable Enables/disables the ability of the scanner to decode EAN/JAN-8 labels. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 200: Check Character Transmission
Programming EAN-8 Check Character Transmission Enables/disables transmission of an EAN/JAN-8 check character. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 201: Expand Ean-8 To Ean-13
EAN-8 Enable Expand EAN-8 to EAN-13 Enables/disables expansion of EAN/JAN-8 labels to EAN/JAN-13. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 202: Ean 8 Label Id
Programming EAN 8 Label ID This feature specifies an EAN 8 label ID to be added to bar code data. To set this feature: The programming feature, RS-232 Label ID Control, desig- nates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.
Page 203: 2-Digit Supplemental Label Id
EAN-8 Enable EAN-8 2-Digit Supplemental Label ID This feature specifies an EAN-8 2-Digit Supplemental label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.
Page 204: 5-Digit Supplemental Label Id
Programming EAN-8 5-Digit Supplemental Label ID This feature specifies an EAN-8 5-Digit Supplemental label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, desig- nates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.
Page 205: 128 Supplemental Label Id
EAN-8 Enable EAN-8 128 Supplemental Label ID This feature specifies an EAN-8 128 Supplemental label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.
Page 206: Decoding Levels
Programming EAN-8 Decoding Levels Decoding levels allow the decoder to be set to perform at one of four selectable levels: • Very Conservative — Slower scan time, virtually eleminates mis- reads. The most secure setting. • Slightly More Aggressive — Faster scanning, more aggressive, yet minimizes misreads.
Page 207 EAN-8 Enable EAN-8 Decoding Levels — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. EAN-8 DECODING LEVELS = VERY CONSERVATIVE EAN-8 DECODING LEVELS = SLIGHTLY MORE AGGRESSIVE 5-159 Product Reference Guide...
Page 208 Programming EAN-8 Decoding Levels — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. EAN-8 DECODING LEVELS = MODERATELY AGGRESSIVE EAN-8 DECODING LEVELS = VERY AGGRESSIVE 5-160 Magellan 2200VS and 2300HS...
Page 209: Other Upc/Ean Options
Other UPC/EAN Options Other UPC/EAN Options The following pages contain other selectable features for UPC/EAN sym- bologies: • UPC/EAN Reconstruction • Price Weight Check • Enable EAN Two Label • Addons • UPC-A and EAN-13 Decoding Levels 5-161 Product Reference Guide...
Page 210: Upc/Ean Reconstruction
Programming UPC/EAN Reconstruction Enables/disables the ability of the scanner to decode a class of UPC/EAN labels with voids. The label voids may be caused by printing defects or physical damage. This feature may be helpful in environments with in- store printed labels. Enabling this feature increases the potential of misreads.
Page 211: Price Weight Check
Other UPC/EAN Options Price Weight Check Enables/disables calculation and verification of price/weight check digits. Applies to all UPC-A and EAN/JAN-13 labels with eligible Number Sys- tem/First Character digits. Options are: • Disable • 4-digit price/weight • 5-digit price/weight • 4-digit European price/weight •...
Page 212 Programming Price Weight Check — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. PRICE WEIGHT CHECK = 4-DIGIT PRICE/WEIGHT PRICE WEIGHT CHECK = 5-DIGIT PRICE/WEIGHT 5-164 Magellan 2200VS and 2300HS...
Page 213 Other UPC/EAN Options Price Weight Check — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. PRICE WEIGHT CHECK = 4-DIGIT EUROPEAN PRICE/WEIGHT PRICE WEIGHT CHECK = 5-DIGIT EUROPEAN PRICE/WEIGHT 5-165 Product Reference Guide...
Page 214: Enable Ean Two Label
Programming Enable EAN Two Label Enables/disables the ability of the scanner to decode EAN two-label pairs. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 215: Addons
Other UPC/EAN Options Addons The scanner is capable of processing different types of addon codes, including: • 2-Digit Supplemental • 5-Digit Supplemental Options are provided on the following pages for your convenience: • Disable all addons — The scanner will not look for or read addons. •...
Page 216 Programming Addons — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. ADDONS = OPTIONAL 2-DIGIT AND 5-DIGIT SUPPLEMENTAL 5-168 Magellan 2200VS and 2300HS...
Page 217: Upc-A And Ean-13 Decoding Levels
Other UPC/EAN Options UPC-A and EAN-13 Decoding Levels Decoding levels allow the decoder to be set to perform at one of four selectable levels: • Very Conservative — Slower scan time, virtually eleminates mis- reads. The most secure setting. • Slightly More Aggressive —...
Page 218 Programming UPC-A and EAN-13 Decoding Levels — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. UPC-A/EAN-13 DECODING LEVELS = VERY CONSERVATIVE UPC-A/EAN-13 DECODING LEVELS = SLIGHTLY MORE AGGRESSIVE 5-170 Magellan...
Page 219 Other UPC/EAN Options UPC-A and EAN-13 Decoding Levels — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. UPC-A/EAN-13 DECODING LEVELS = MODERATELY AGGRESSIVE UPC-A/EAN-13 DECODING LEVELS = VERY AGGRESSIVE 5-171 Product Reference Guide...
Page 220: Gtin Enable
Programming GTIN Enable Enables/Disables the ability to convert UPCE, UPCA, EAN8, and EAN13 labels into the GTIN 14-character format. If add-on information is present on the base label prior to the conversion taking place, the add-on information will be appended to the converted GTIN bar code.
Page 221: Gtin Label Id
GTIN Enable GTIN Label ID This feature specifies a GTIN label ID to be added to bar code data when GTIN conversion is enabled. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled. NOTE To set this feature: 1.
Page 222: Gtin 2-Digit Supplemental Label Id
Programming GTIN 2-Digit Supplemental Label ID This feature specifies a GTIN label ID to be added to bar code data when GTIN conversion is enabled and 2-digit supplemental addon bar code labels are converted. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.
Page 223: Gtin 5-Digit Supplemental Label Id
GTIN Enable GTIN 5-Digit Supplemental Label ID This feature specifies a GTIN label ID to be added to bar code data when GTIN conversion is enabled and 5-digit supplemental addon bar code labels are converted. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.
Page 224: Gtin Code 128 Supplemental Label Id
Programming GTIN Code 128 Supplemental Label ID This feature specifies a GTIN label ID to be added to bar code data when GTIN conversion is enabled and Code 128 supplemental addon bar code labels are converted The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.
Page 225: Enable
RSS-14 Enable RSS-14 Enable Enables/disables the ability of the scanner to decode RSS-14 labels. This value-added feature is a factory-programmed option. Contact your dealer for information about upgrading your system to include this advanced capability. NOTE To set this feature: 1.
Page 226: Check Character Transmission
Programming RSS-14 Check Character Transmission Enables/disables transmission of the RSS-14 check character. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 227: Rss-14/Ean-128 Emulation
RSS-14 Enable RSS-14/EAN-128 Emulation Enables/disables the ability of RSS-14 to be transmitted as EAN-128. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 228: Component Enable
Programming RSS-14 2D Component Enable When this feature is enabled, the software will not decode an RSS-14 bar code with a 2D component associated with it, and the 2D component will be discarded. To set this feature: 1. Scan the SWITCH bar code. 2.
Page 229: Aim Id
RSS-14 Enable RSS-14 AIM ID This feature enables/disables transmission of the RSS-14 AIM symbology identifier. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 230: Label Id
Programming RSS-14 Label ID This feature specifies an RSS-14 label ID to be added to bar code data. To set this feature: The programming feature, RS-232 Label ID Control, desig- nates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.
Page 231: Rss Expanded Enable
RSS Expanded Enable RSS Expanded Enable Enables/disables the ability of the scanner to decode RSS-Expanded labels. This value-added feature is a factory-programmed option. Contact your dealer for information about upgrading your system to include this advanced capability. NOTE To set this feature: 1.
Page 232: Rss Expanded Ean-128 Emulation
Programming RSS Expanded EAN-128 Emulation Enables/disables EAN 128 emulation for RSS Expanded. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 233: Rss Expanded 2D Component Enable
RSS Expanded Enable RSS Expanded 2D Component Enable When this feature is enabled, the software will not decode an RSS Expanded bar code with a 2D component associated with it, and the 2D component will be discarded. To set this feature: 1.
Page 234: Rss Expanded Aim Id
Programming RSS Expanded AIM ID This feature enables/disables transmission of the RSS Expanded AIM symbology identifier. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 235: Rss Expanded Label Id
RSS Expanded Enable RSS Expanded Label ID This feature specifies an RSS Expanded label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.
Page 236: Rss Expanded Length Control
Programming RSS Expanded Length Control This feature specifies either variable-length or fixed-length decoding for RSS Expanded. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 237: Rss Expanded Maximum Label Length
RSS Expanded Enable RSS Expanded Maximum Label Length This feature specifies the maximum allowable length of an RSS Expanded label. Length in this case includes check and data characters. This applies when RSS Expanded Length Control is set to variable- length decoding.
Page 238: Rss Expanded Minimum Label Length
Programming RSS Expanded Minimum Label Length This feature specifies the minimum allowable length of an RSS Expanded label. Length in this case includes check and data characters. This applies when RSS Expanded Length Control is set to vari- able-length decoding. Minimum Label Length should be less than or equal to Maxi- NOTE mum Label Length.
Page 239: Rss Expanded Fixed Length 1
RSS Expanded Enable RSS Expanded Fixed Length 1 This feature specifies RSS Expanded first fixed length. This applies when RSS Expanded Length Control is set to fixed- length decoding. NOTE To set this feature: 1. Scan the SWITCH bar code. 2.
Page 240: Rss Expanded Fixed Length 2
Programming RSS Expanded Fixed Length 2 This feature specifies RSS Expanded second fixed length. This applies when RSS Expanded Length Control is set to fixed-length decoding. If Fixed Length 2 is set to 00 (zero), then Fixed Length 1 will apply.
Page 241: Code 39 Enable
Code 39 Enable Code 39 Enable Enables/disables the ability of the scanner to decode Code 39 labels. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 242: Code 39 Start Stop Character Transmission
Programming Code 39 Start Stop Character Transmission Enables/disables transmission of Code 39 start and stop characters. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1. Scan the SWITCH bar code. 2.
Page 243: Code 39 Check Character Calculation
Code 39 Enable Code 39 Check Character Calculation Enables/disables calculation and verification of an optional Code 39 check character. When disabled, any check character in label is treated as a data character. If check calculation is disabled, the risk is increased that a misread can occur.
Page 244: Code 39 Check Character Transmission
Programming Code 39 Check Character Transmission Enables/disables transmission of optional Code 39 check character. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 245: Code 39 Full Ascii
Code 39 Enable Code 39 Full ASCII Enables/disables the ability of the scanner to translate to Code 39 full ASCII labels. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 246: Code 39 Aim Id
Programming Code 39 AIM ID This feature enables/disables transmission of the Code 39 AIM symbology identifier. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 247: Code 39 Label Id
Code 39 Enable Code 39 Label ID This feature specifies a Code 39 label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.
Page 248: Code 39 Length Control
Programming Code 39 Length Control This feature specifies whether variable-length or fixed-length decoding will be set for Code 39. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 249: Code 39 Maximum Label Length
Code 39 Enable Code 39 Maximum Label Length This feature specifies the maximum allowable length of a Code 39 label. Length in this case includes check, data and ASCII characters, but does not include start, or stop characters. This feature applies when Code 39 Length Control is set to variable-length decoding.
Page 250: Code 39 Minimum Label Length
Programming Code 39 Minimum Label Length This feature specifies the minimum allowable length of a Code 39 label. Length in this case includes check, data and ASCII charac- ters, but does not include start, or stop characters. This fea- ture applies when Code 39 Length Control is set to variable- length decoding.
Page 251: Code 39 Fixed Length 1
Code 39 Enable Code 39 Fixed Length 1 This feature specifies Code 39 first fixed length. This applies when Code 39 Length Control is set to fixed-length decoding. The minimum decodable length is four when an optional check character is present. NOTE To set this feature: 1.
Page 252: Code 39 Fixed Length 2
Programming Code 39 Fixed Length 2 This feature specifies Code 39 second fixed length. This applies when Code 39 Length Control is set to fixed- length decoding. If Fixed Length 2 is set to 00, then Fixed Length 1 will apply NOTE To set this feature: 1.
Page 253: Code 39 Stitching
Code 39 Enable Code 39 Stitching Enables/disables stitching for Code 39 labels. When parts of a Code 39 bar code are presented to the scanner with this feature enabled, the bar code parts will be assembled by the scanner’s software, and the data will be decoded if all bar code proofing requirements are met.
Page 254: Pharmacode 39 Enable
Programming Pharmacode 39 Enable Enables/disables the ability of the scanner to decode Italian Pharmacode 39 labels. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 255: Pharmacode 39 Start Stop Character Transmission
Pharmacode 39 Enable Pharmacode 39 Start Stop Character Transmission Enables/ disables transmission of start and stop characters for Pharmacode This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1. Scan the SWITCH bar code. 2.
Page 256: Pharmacode 39 Check Character Transmission
Programming Pharmacode 39 Check Character Transmission Enables/disables transmission of Pharmacode 39 check character. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 257: Pharmacode 39 Label Id
Pharmacode 39 Enable Pharmacode 39 Label ID This feature specifies a Pharmacode 39 label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.
Page 258: Code 128 Enable
Programming Code 128 Enable Enables/disables the ability of the scanner to decode Code 128 labels. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 259: Code 128 Transmit Function Characters
Code 128 Enable Code 128 Transmit Function Characters Enables/disables transmission of Code 128 function characters 1, 2, 3, and 4. Disabled is the recommended setting for all interfaces. NOTE To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 260: Convert Code 128 To Code 39
Programming Convert Code 128 to Code 39 Enables/disables conversion of Code 128 labels to Code 39. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 261: Code 128 Aim Id
Code 128 Enable Code 128 AIM ID This feature enables/disables transmission of the Code 128 AIM symbol- ogy identifier. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 262: Code 128 Label Id
Programming Code 128 Label ID This feature specifies a Code 128 label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, desig- nates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.
Page 263: Code 128 Length Control
Code 128 Enable Code 128 Length Control This feature specifies whether variable-length or fixed-length decoding will be set for Code 128. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 264: Code 128 Maximum Label Length
Programming Code 128 Maximum Label Length This feature specifies the maximum allowable length of a Code 128 label. Length in this case includes function characters and data characters, but does not include function code change or check character. This feature applies when Code 128 Length Control is set to variable-length decoding.
Page 265: Code 128 Minimum Label Length
Code 128 Enable Code 128 Minimum Label Length This feature specifies the minimum allowable length of a Code 128 label. Length in this case includes function characters and data char- acters, but does not include function code change or check char- acter.
Page 266: Code 128 Fixed Length 1
Programming Code 128 Fixed Length 1 This feature specifies Code 128 first fixed length. This applies when Code 128 Length Control is set to fixed- length decoding. NOTE To set this feature: 1. Scan the SWITCH bar code. 2. Scan the bar code, below.
Page 267: Code 128 Fixed Length 2
Code 128 Enable Code 128 Fixed Length 2 This feature specifies Code 128 second fixed length. This applies when Code 128 Length Control is set to fixed- length decoding. If Fixed Length 2 is set to 00 (zero), then Fixed Length 1 will apply.
Page 268: Code 128 Stitching
Programming Code 128 Stitching Enables/disables stitching for Code 128 labels. When parts of a Code 128 bar code are presented to the scanner with this feature enabled, the bar code parts will be assembled by the scanner’s software, and the data will be decoded if all bar code proofing requirements are met.
Page 269: Enable
EAN-128 Enable EAN-128 Enable Enables/disables the ability of the scanner to decode EAN-128 labels. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 270: Ean 128 Aim Id
Programming EAN 128 AIM ID This feature enables/disables transmission of the EAN 128 AIM symbol- ogy identifier. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 271: Ean 128 Label Id
EAN-128 Enable EAN 128 Label ID This feature specifies an EAN 128 label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.
Page 272: Interleaved 2 Of 5 (I 2 Of 5) Enable
Programming Interleaved 2 of 5 (I 2 OF 5) Enable Enables/disables the ability of the scanner to decode Interleaved 2 of 5 labels. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 273: I 2 Of 5 Check Character Calculation
Interleaved 2 of 5 (I 2 OF 5) Enable I 2 of 5 Check Character Calculation Enables/disables calculation and verification of an optional Interleaved 2 of 5 check character. If check character calculation is disabled, the risk is increased that a misread can occur.
Page 274: I 2 Of 5 Check Character Transmission
Programming I 2 of 5 Check Character Transmission Enables/disables transmission of an optional Interleaved 2 of 5 check char- acter. This feature applies only when I 2 of 5 Check Character Calcu- lation is enabled. This item is ignored when the advanced fea- ture, Full Label Edit, is enabled.
Page 275: I 2 Of 5 Aim Id
Interleaved 2 of 5 (I 2 OF 5) Enable I 2 of 5 AIM ID This feature enables/disables transmission of the I 2 of 5 AIM symbology identifier. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 276: I 2 Of 5 Label Id
Programming I 2 of 5 Label ID This feature specifies an I 2 of 5 label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, desig- nates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.
Page 277: I 2 Of 5 Length Control
Interleaved 2 of 5 (I 2 OF 5) Enable I 2 of 5 Length Control This feature specifies whether variable-length or fixed-length decoding will be set for I 2 of 5. To set this feature: 1. Scan the SWITCH bar code. 2.
Page 278: I 2 Of 5 Maximum Label Length
Programming I 2 of 5 Maximum Label Length This feature specifies the maximum allowable length of an I 2 of 5 label. Length in this case includes check and data characters, but does not include start or stop characters. This feature applies when I 2 of 5 Length Control is set to variable-length decod- ing.
Page 279: I 2 Of 5 Minimum Label Length
Interleaved 2 of 5 (I 2 OF 5) Enable I 2 of 5 Minimum Label Length This feature specifies the minimum allowable length of an I 2 of 5 label. Length in this case includes check and data characters, but does not include start or stop characters.
Page 280: I 2 Of 5 Fixed Length 1
Programming I 2 of 5 Fixed Length 1 This feature specifies I 2 of 5 first fixed length. This applies when I 2 of 5 Length Control is set to fixed- length decoding. NOTE To set this feature: 1. Scan the SWITCH bar code. 2.
Page 281: I 2 Of 5 Fixed Length 2
Interleaved 2 of 5 (I 2 OF 5) Enable I 2 of 5 Fixed Length 2 This feature specifies I 2 of 5 second fixed length. This applies when I 2 of 5 Length Control is set to fixed-length decoding. If Fixed Length 2 is set to 00 (zero), then Fixed Length 1 will apply.
Page 282: I 2 Of 5 Stitching
Programming I 2 of 5 Stitching Enables/disables stitching for I 2 of 5 labels. When parts of an I 2 of 5 bar code are presented to the scanner with this feature enabled, the bar code parts will be assembled by the scanner’s software, and the data will be decoded if all bar code proofing requirements are met.
Page 283: Codabar Enable
Codabar Enable Codabar Enable Enables/disables the ability of the scanner to decode Codabar labels. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 284: Codabar Start Stop Character Transmission
Programming Codabar Start Stop Character Transmission Enables/disables transmission of Codabar start and stop characters. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 285: Codabar Start Stop Character Set
Codabar Enable Codabar Start Stop Character Set This feature selects the format of transmitted Codabar start/stop charac- ters. Options are: • ABCD/TN* E • ABCD/ABCD • abcd/tn* e • abcd/abcd To set this feature: 1. Scan the SWITCH bar code. 2.
Page 286 Programming Codabar Start Stop Character Set — continued Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. CODABAR START STOP CHARACTER = abcd/tn* e CODABAR START STOP CHARACTER = abcd/abcd 5-238 Magellan...
Page 287: Codabar Start Stop Character Match
Codabar Enable Codabar Start Stop Character Match Enables/disables the requirement that start and stop characters match. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 288: Codabar Check Character Calculation
Programming Codabar Check Character Calculation Enables/disables calculation and verification of an optional Codabar check character. If check character calculation is disabled, the risk is increased that a misread can occur. When disabled, any check characters in a bar code are treated as data characters. NOTE To set this feature: 1.
Page 289: Codabar Check Character Transmission
Codabar Enable Codabar Check Character Transmission Enables/disables transmission of an optional Codabar check character. Applies only when Codabar Check Character Calculation is enabled. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1.
Page 290: Codabar Aim Id
Programming Codabar AIM ID This feature enables/disables transmission of the Codabar AIM symbology identifier. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 291: Codabar Label Id
Codabar Enable Codabar Label ID This feature specifies a Codabar label ID to e added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.
Page 292: Codabar Length Control
Programming Codabar Length Control This feature specifies whether variable-length or fixed-length decoding will be set for Codabar. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 293: Codabar Maximum Label Length
Codabar Enable Codabar Maximum Label Length This feature specifies the maximum allowable length of a Codabar label. Length in this case includes start, stop or check and data charac- ters, but does not include full ASCII shift characters. This feature applies when Codabar Length Control is set to variable-length decoding.
Page 294: Codabar Minimum Label Length
Programming Codabar Minimum Label Length This feature specifies the minimum allowable length of a Codabar label. Length in this case includes start, stop or check and data characters, but does not include full ASCII shift characters. This feature applies when Codabar Length Control is set to variable-length decoding.
Page 295: Codabar Fixed Length 1
Codabar Enable Codabar Fixed Length 1 This feature specifies Codabar first fixed length. Length in this case includes start, stop or check and data charac- ters, but does not include full ASCII shift characters. This feature applies when Codabar Length Control is set to fixed-length decoding.
Page 296: Codabar Fixed Length 2
Programming Codabar Fixed Length 2 This feature specifies Codabar second fixed length. Length in this case includes start, stop or check and data characters, but does not include full ASCII shift characters. This feature applies when Codabar Length Control is set to fixed-length decoding.
Page 297: Codabar Stitching
Codabar Enable Codabar Stitching Enables/disables stitching for Codabar labels. When parts of a Codabar bar code are presented to the scanner with this feature enabled, the bar code parts will be assembled by the scanner’s software, and the data will be decoded if all bar code proofing requirements are met.
Page 298: Code 93 Enable
Programming Code 93 Enable Enables/disables the ability of the scanner to decode Code 93 labels. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 299: Code 93 Aim Id
Code 93 Enable Code 93 AIM ID This feature enables/disables transmission of the Code 93 AIM symbology identifier. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 300: Code 93 Label Id
Programming Code 93 Label ID This feature specifies a Code 93 label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, designates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.
Page 301: Code 93 Length Control
Code 93 Enable Code 93 Length Control This feature specifies whether variable-length or fixed-length decoding will be set for Code 93. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 302: Code 93 Maximum Label Length
Programming Code 93 Maximum Label Length This feature specifies the maximum allowable length of a Code 93 label. Length in this case includes data characters, but does not include start, stop, full ASCII shift, or check characters. This feature applies when Code 93 Length Control is set to vari- able-length decoding.
Page 303: Code 93 Minimum Label Length
Code 93 Enable Code 93 Minimum Label Length This feature specifies the minimum allowable length of a Code 93 label. Length in this case includes data characters, but does not include start, stop, full ASCII shift, or check characters. This fea- ture applies when Code 93 Length Control is set to variable- length decoding.
Page 304: Code 93 Fixed Length 1
Programming Code 93 Fixed Length 1 This feature specifies Code 93 first fixed length. This applies when Code 93 Length Control is set to fixed- length decoding. NOTE To set this feature: 1. Scan the SWITCH bar code. 2. Scan the bar code, below.
Page 305: Code 93 Fixed Length 2
Code 93 Enable Code 93 Fixed Length 2 This feature specifies Code 93 second fixed length. This applies when Code 93 Length Control is set to fixed-length decoding. If Fixed Length 2 is set to 00 (zero), then Fixed Length 1 will apply.
Page 306: Code 93 Stitching
Programming Code 93 Stitching Enables/disables stitching for Code 93 labels. When parts of a Code 93 bar code are presented to the scanner with this feature enabled, the bar code parts will be assembled by the scanner’s software, and the data will be decoded if all bar code proofing requirements are met.
Page 307: Msi/Plessey Enable
MSI/Plessey Enable MSI/Plessey Enable Enables/disables the ability of the scanner to decode MSI/Plessey labels. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 308: Msi/Plessey Check Character Calculation
Programming MSI/Plessey Check Character Calculation Enables/disables calculation and verification of optional MSI/Plessey check characters. If check character calculation is disabled, the risk is increased that a misread can occur. When disabled, any check characters in a bar code are treated as data characters. NOTE To set this feature: 1.
Page 309: Msi/Plessey Number Of Check Characters
MSI/Plessey Enable MSI/Plessey Number of Check Characters Specifies number of MSI/Plessey check characters to be calculated and verified. Check characters are always modulus 10. NOTE To set this feature: 1. Scan the SWITCH bar code. 2. Scan the bar code below representing the desired number of MSI/ Plessey check characters to be calculated and verified.
Page 310: Msi/Plessey Check Character Transmission
Programming MSI/Plessey Check Character Transmission Enables/disables transmission of optional MSI/Plessey check characters. This feature applies only when MSI/Plessey Check Character Calculation is enabled. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1.
Page 311: Msi/Plessey Aim Id
MSI/Plessey Enable MSI/Plessey AIM ID This feature enables/disables transmission of the MSI/Plessey AIM sym- bology identifier. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 312: Msi/Plessey Label Id
Programming MSI/Plessey Label ID This feature specifies an MSI/Plessey label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, desig- nates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled. NOTE To set this feature: 1.
Page 313: Msi/Plessey Length Control
MSI/Plessey Enable MSI/Plessey Length Control This feature specifies whether variable-length or fixed-length decoding will be set for MSI/Plessey. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 314: Msi/Plessey Maximum Label Length
Programming MSI/Plessey Maximum Label Length This feature specifies the maximum allowable length of an MSI/Plessey label. Length in this case includes check and data characters, but does not include start, stop or full ASCII shift characters. This feature applies when MSI/Plessey Length Control is set to variable-length decoding.
Page 315: Msi/Plessey Minimum Label Length
MSI/Plessey Enable MSI/Plessey Minimum Label Length This feature specifies the minimum allowable length of an MSI/Plessey label. Length in this case includes check and data characters, but does not include start, stop or full ASCII shift characters. This applies when MSI/Plessey Length Control is set to variable-length decoding.
Page 316: Msi/Plessey Fixed Length 1
Programming MSI/Plessey Fixed Length 1 This feature specifies MSI/Plessey first fixed length. This applies when MSI/Plessey Length Control is set to fixed-length decoding. NOTE To set this feature: 1. Scan the SWITCH bar code. 2. Scan the bar code, below. SET MSI/PLESSEY FIXED LENGTH 1 You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend...
Page 317: Msi/Plessey Fixed Length 2
MSI/Plessey Enable MSI/Plessey Fixed Length 2 This feature specifies MSI/Plessey second fixed length. This applies when MSI/Plessey Length Control is set to fixed- length decoding. If Fixed Length 2 is set to 00 (zero), then Fixed Length 1 will apply. NOTE To set this feature: 1.
Page 318: Msi/Plessey Stitching
Programming MSI/Plessey Stitching Enables/disables stitching for MSI/Plessey labels. When parts of an MSI/ Plessey bar code are presented to the scanner with this feature enabled, the bar code parts will be assembled by the scanner’s software, and the data will be decoded if all bar code proofing requirements are met. To set this feature: 1.
Page 319: Standard 2 Of 5 Enable
Standard 2 of 5 Enable Standard 2 of 5 Enable Enables/disables the ability of the scanner to decode Standard 2 of 5 labels. To set this feature: 1. Scan the SWITCH bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 320: Standard 2 Of 5 Check Character Calculation
Programming Standard 2 of 5 Check Character Calculation Enables/disables calculation and verification of an optional Standard 2 of 5 check character. If check character calculation is disabled, the risk is increased that a misread can occur. When disabled, any check character in a bar code is treated as data character.
Page 321: Standard 2 Of 5 Check Character Transmission
Standard 2 of 5 Enable Standard 2 of 5 Check Character Transmission Enables/disables transmission of an optional Standard 2 of 5 check charac- ter. This feature applies only when Standard 2 of 5 Check Charac- ter Calculation is enabled. This item is ignored when the advanced feature, Full Label Edit, is enabled.
Page 322: Standard 2 Of 5 Aim Id
Programming Standard 2 of 5 AIM ID This feature enables/disables transmission of the Standard 2 of 5 AIM symbology identifier. To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 323: Standard 2 Of 5 Label Id
Standard 2 of 5 Enable Standard 2 of 5 Label ID This feature specifies an Standard 2 of 5 label ID to be added to bar code data. The programming feature, RS-232 Label ID Control, desig- nates whether the Label ID is transmitted as a prefix or suffix or if Label ID is disabled.
Page 324: Standard 2 Of 5 Length Control
Programming Standard 2 of 5 Length Control This feature specifies whether variable-length or fixed-length decoding will be set for 2 of 5. Standard To set this feature: 1. Scan the SWITCH bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 325: Standard 2 Of 5 Maximum Label Length
Standard 2 of 5 Enable Standard 2 of 5 Maximum Label Length This feature specifies the maximum allowable length of a Standard 2 of 5 label. Length in this case includes check and data characters, but does not include start or stop characters. This feature applies when Standard 2 of 5 Length Control is set to variable- length decoding.
Page 326: Standard 2 Of 5 Minimum Label Length
Programming Standard 2 of 5 Minimum Label Length This feature specifies the minimum allowable length of an Standard 2 of 5 label. Length in this case includes check and data characters, but does not include start or stop characters. This feature applies when Standard 2 of 5 Length Control is set to variable-length decod- ing.
Page 327: Standard 2 Of 5 Fixed Length 1
Standard 2 of 5 Enable Standard 2 of 5 Fixed Length 1 This feature specifies Standard 2 of 5 first fixed length. This applies when Standard 2 of 5 Length Control is set to fixed-length decoding. NOTE To set this feature: 1.
Page 328: Standard 2 Of 5 Fixed Length 2
Programming Standard 2 of 5 Fixed Length 2 This feature specifies Standard 2 of 5 second fixed length. This applies when Standard 2 of 5 Length Control is set to fixed-length decoding. If Fixed Length 2 is set to 00 (zero), then Fixed Length 1 will apply.
Page 329: Standard 2 Of 5 Stitching
Standard 2 of 5 Enable Standard 2 of 5 Stitching Enables/disables stitching for Standard 2 of 5 labels. When parts of a Stan- dard 2 of 5 bar code are presented to the scanner with this feature enabled, the bar code parts will be assembled by the scanner’s software, and the data will be decoded if all bar code proofing requirements are met.
Page 330 Programming NOTES 5-282 Magellan 2200VS and 2300HS...
Page 331: Appendix A. Led/Beeper Indications & Controls
Appendix A LED/Beeper Indications & Controls shows the operator’s controls and indicators for both models. Figure A-1 The descriptions following identify the use or function of each compo- nent. Figure A-1. Scanner Controls and Indicators Speaker Model 2200VS Scan Window Volume/Tone Indicator Push Button...
Page 332: Green Led Indicator
Table A-1. Volume/Tone Push Button Functions PRESS FUNCTION COMMENT DURATION Alternatively, the scanner can be awakened by: Momentary (when Wakes scanner from Sleep - Moving an object through the scan zone. scanner is asleep) Mode - Scanning with an attached auxiliary scanner. Press the push button momentarily to increase speaker volume.
Page 333 Table A-2. Green LED Indications DURATION COMMENT INDICATION Good Read Scanner (Green) LED - bright flash Indicates a bar code has been read and decoded. Indication Scanner (Green) LED - Continuous Program Mode Indicates the scanner is in Label Programming flashing Indication Mode.
Page 334 NOTES Magellan 2200VS and 2300HS...
Page 335: Appendix B. Cable Information
Appendix B Cable Information Introduction The following pages contain pinout information, enabling you to create standard interface cables for use in interconnecting the scanner, external handheld scanner, and POS terminal. General Specifications Wire Requirements • Cable length should not exceed 15 feet. •...
Page 336: Connector Hardware
RS-232 Cable Pinout Scanner Connector Hardware RJ45, 10 Position Cable Pinout Table B-1. RS-232 Cable Pinouts PIN # FUNCTION DESCRIPTION Data Terminal Ready CTS in Clear To Send (input) No Connection RTS out Request To Send (output) RxD in Receive Data (Input) TxD out Transmit Data (output) No Connection...
Page 337: Ibm Cable Pinout
IBM Cable Pinout Scanner Connector Hardware RJ45, 10 Position Cable Pinout Table B-2 PIN # FUNCTION DESCRIPTION +5V pullup +5V pullup No Connection No Connection Serial I/O B Serial Data - No Connection Serial I/O A Serial Data + No Connection +5V out +5V out Ground...
Page 338: Oem Usb Cable Pinout
OEM USB Cable Pinout Scanner Connector Hardware RJ45, 10 Position Cable Pinout Table B-3 PIN # FUNCTION DESCRIPTION +5V pullup +5V pullup No Connection No Connection USB D- USB D- No Connection USB D+ USB D+ No Connection +5V out +5V out Signal Ground No Connection...
Page 339: Auxiliary Port
Auxiliary Port External Handheld Input Connector Hardware RJ45, 10 Position Cable Pinout Table B-4 PIN # FUNCTION DESCRIPTION Data Terminal Ready CTS in Clear To Send (input) No Connection - Reserved RTS out Request To Send (output) RxD in Receive Data (Input) TxD out Transmit Data (output) ~EAS_GOOD READ...
Page 340 NOTES Magellan 2200VS and 2300HS...
Page 341: Appendix C. Keypad
Appendix C Keypad Use the bar codes in this section to enter numbers and characters as you would select digits/characters from a keypad. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 342 Use the bar codes in this section to enter numbers and characters as you would select digits/characters from a keypad. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 343 Use the bar codes in this section to enter numbers and characters as you would select digits/characters from a keypad. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 344 Use the bar codes in this section to enter numbers and characters as you would select digits/characters from a keypad. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 345 Use the bar codes in this section to enter numbers and characters as you would select digits/characters from a keypad. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 346 Use the bar codes in this section to enter numbers and characters as you would select digits/characters from a keypad. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 347 Use the bar codes in this section to enter numbers and characters as you would select digits/characters from a keypad. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 348 Use the bar codes in this section to enter numbers and characters as you would select digits/characters from a keypad. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 349: Appendix D Host Commands
Appendix D Host Commands Accepting Commands from an RS-232 Scanner Host The scanner responds to the following RS-232 commands: COMMAND ASCII COMMENT Enable Scanner 0x45 Disable Scanner 0x44 Reset Scanner 0x52 Not On File Indication 0x46 Long series of beeps Beep Good Read Tone 0x42 Beeps if Good Read Beep is enabled...
Page 350 NOTES Magellan 2200VS and 2300HS...
Page 351: Appendix E Factory Defaults
Appendix E Factory Defaults The following table provides a listing of the most common factory settings for the interfaces shown. Table E-1. Factory Default Settings Table E-2 Wincor- Single RS-232 IBM 17 Nixdorf Cable Keybd Double Read (600ms (600ms (600ms) (600ms) (600ms) (600ms)
Page 352 Table E-2 Wincor- Single RS-232 IBM 17 Nixdorf Cable Keybd Good Read (mediu (mediu (mediu (mediu (mediu (medium (medium (medium Beep Fre- quency Good Read 8 (80ms) 8 (80ms) 8 (80ms) Beep Length (80ms) (80ms) (80ms) (80ms) (80ms) 3 (med- 3 (med- 3 (med- 3 (med-...
Page 353 Table E-2 Wincor- Single RS-232 IBM 17 Nixdorf Cable Keybd A (U.S.) Country Mode Keyboard 00 (no Wedge Inter- character delay) Delay 1 (10 Quiet Interval msec) Maximum 0 (no 0 (no 0 (no 0 (no 0 (no 0 (no 0 (no 0 (no Host-Transmit-...
Page 354 Table E-2 Wincor- Single RS-232 IBM 17 Nixdorf Cable Keybd 0 (dis- 0 (dis- (enable RS-232 Hard- ware Control able) able) flow) RS-232 Inter- 0 (none) character (none) (none) Delay RS-232 Soft- 0 (dis- 0 (dis- 0 (dis- 0 (dis- ware Flow able) able)
Page 355 Table E-2 Wincor- Single RS-232 IBM 17 Nixdorf Cable Keybd RS-232 NAK Character (NAK) (NAK) (NAK) RS-232 Retry (enable on ACK NAK (enable) (enable) Timeout RS-232 ACK (200ms NAK Timeout (200ms) (200ms) Value RS-232 ACK 3 resets 3 resets 3 resets NAK Retry Count RS-232 ACK...
Page 356 Table E-2 Wincor- Single RS-232 IBM 17 Nixdorf Cable Keybd Single Cable RS-232 Use (enable) Set Single 13 (CR) Cable RS-232 ETX Character (enable (enable UPC-A Enable (enable) (enable) (enable) (enable) (enable) (enable) UPC-A Num- 0 (dis- ber System (enable Character able) (enable)
Page 357 Table E-2 Wincor- Single RS-232 IBM 17 Nixdorf Cable Keybd UPC-E Num- ber System (enable (enable Character (enable) (enable) (enable) (enable) (enable) (enable) Transmission UPC-E Check 0 (dis- 0 (dis- 0 (dis- 0 (dis- 0 (dis- 0 (dis- Character able) able) able) able)
Page 358 Table E-2 Wincor- Single RS-232 IBM 17 Nixdorf Cable Keybd 4600("F 4600("F 4100("A 4600("F 4600("F" 4600("F" EAN 13 Label ") ") ") ") EAN-13 2-Digit 4600("F 4600("F 4100("A 4600("F 4600("F" 4600("F" Supplemental ") ") ") ") Label ID EAN-13 5-Digit 4600("F 4600("F 4100("A...
Page 359 Table E-2 Wincor- Single RS-232 IBM 17 Nixdorf Cable Keybd EAN-8 128 4646 4646 4200 4646 4646 4646 Supplemental ("FF") ("FF") ("B") ("FF") ("FF") ("FF") Label ID 0 (dis- 0 (dis- 0 (dis- 0 (dis- 0 (dis- 0 (dis- 0 (dis- 0 (dis- UPC/EAN Reconstruction...
Page 360 Table E-2 Wincor- Single RS-232 IBM 17 Nixdorf Cable Keybd 0 (dis- 0 (dis- 0 (dis- 0 (dis- 0 (dis- 0 (dis- 0 (dis- 0 (dis- RSS-14/EAN- 128 Emulation able) able) able) able) able) able) able) able) RSS-14 2D 0 (dis- 0 (dis- 0 (dis- 0 (dis-...
Page 361 Table E-2 Wincor- Single RS-232 IBM 17 Nixdorf Cable Keybd Expanded Min- imum Label Length Expanded Fixed Length 1 Expanded Fixed Length 2 0 (dis- Code 39 (enable (enable Enable (enable) able) (enable) (enable) (enable) (enable) Code 39 Start 0 (dis- 0 (dis- 0 (dis- 0 (dis-...
Page 362 Table E-2 Wincor- Single RS-232 IBM 17 Nixdorf Cable Keybd Code 39 Maxi- mum Label Length Code 39 Mini- mum Label Length Code 39 Fixed Length 1 Code 39 Fixed Length 2 Code 39 (enable (enable (enable) (enable) (enable) (enable) (enable) (enable) Stitching...
Page 363 Table E-2 Wincor- Single RS-232 IBM 17 Nixdorf Cable Keybd 0 (dis- 0 (dis- 0 (dis- 0 (dis- 0 (dis- Code 128 AIM able) able) able) able) able) 2300 2300 4B00 4233 2300 2300 Code 128 Label ID ("#") ("#") ("K") ("B3") ("#")
Page 364 Table E-2 Wincor- Single RS-232 IBM 17 Nixdorf Cable Keybd I 2 of 5 Check (enable (enable Character (enable) (enable) (enable) (enable) (enable) (enable) Transmission 0 (dis- 0 (dis- 0 (dis- 0 (dis- 0 (dis- I 2 of 5 AIM ID able) able) able)
Page 365 Table E-2 Wincor- Single RS-232 IBM 17 Nixdorf Cable Keybd Codabar Start 0 (dis- 0 (dis- 0 (dis- 0 (dis- 0 (dis- 0 (dis- 0 (dis- 0 (dis- Stop Charac- able) able) able) able) able) able) able) able) ter Match Codabar 0 (dis- 0 (dis-...
Page 366 Table E-2 Wincor- Single RS-232 IBM 17 Nixdorf Cable Keybd 2600 2600 4C00 2600 2600 2600 Code 93 Label ("&") ("&") ("L") ("&") ("&") ("&") Code 93 (vari- (vari- (vari- (vari- (vari- (vari- (vari- (vari- Length Control able) able) able) able) able) able)
Page 367 Table E-2 Wincor- Single RS-232 IBM 17 Nixdorf Cable Keybd 4000 4000 4F00 4000 4000 4000 MSI/Plessey Label ID ("@") ("@") ("O") ("@") ("@") ("@") MSI/Plessey (vari- (vari- (vari- (vari- (vari- (vari- Length Control able) able) able) able) able) able) MSI/Plessey Maximum Label Length...
Page 368 Table E-2 Wincor- Single RS-232 IBM 17 Nixdorf Cable Keybd Standard 2 of (vari- (vari- (vari- (vari- (vari- (vari- (vari- (vari- 5 Length Con- trol able) able) able) able) able) able) able) able) Standard 2 of 5 Maximum Label Length Standard 2 of 5 Minimum Label Length...
Page 369: Appendix F. Handheld Data Format Requirements
Maximum label lengths will be enforced for label validation (i.e. labels longer than the maximum label size will not be validated). • Standard Datalogic formats generally use a single prefix character. The specific formats are provided below. Product Reference Guide...
Page 370: Datalogic Handheld Data Format Requirements
Datalogic Handheld Data Format Requirements The following sections describe label transmission formats that are typi- cally observed in factory configurations of Datalogic handheld scanners. RSS-14 • Prefix must be ASCII characters ‘R4’ • Check character must be included in label •...
Page 371 UPC-A with 5-Digit Supplemental • Number system must be included in label data • Check digit must be included in label data and is assumed to be cor- rect • Prefix must be an ASCII character 'A' - total length including prefix must be 18 •...
Page 372 UPC-E with 2-Digit Supplemental • Number system must be included in label data. • Check digit must be included in label data and is assumed to be cor- rect. • Supplemental data is appended to base label. • Prefix must be an ASCII character 'E' - total length including prefix must be 11.
Page 373 EAN-8 • Check digit must be included in label data and is assumed to be cor- rect • Prefix must be an ASCII characters 'FF' - total length including pre- fix must be 10 • Example: 'FF00210126' EAN-8 with 2-Digit Supplemental •...
Page 374 EAN-13 • Check digit must be included in label data and is assumed to be cor- rect • Prefix must be an ASCII character 'F'- total length including prefix must be 14 • Example: 'F1101234567891' EAN-13 with 2-Digit Supplemental • Check digit must be included in label data and is assumed to be cor- rect •...
Page 375 Code 39 • Check character must be included in label data. • Label length including start, stop and check characters and exclud- ing prefix character must meet requirements imposed by the main scanner's fixed or variable label length control for this symbology type.
Page 376 Codabar • Check character must be included in label data. • Label length including check character and excluding prefix charac- ter must meet requirements imposed by the main scanner's fixed or variable label length control for this symbology type. • Prefix must be an ASCII character '%'.
Page 377 MSI/Plessey • Check character must be included in label data. • Label length including check character and excluding prefix charac- ter must meet requirements imposed by the main scanner's fixed or variable label length control for this symbology type. • Prefix must be an ASCII character '@'.
Page 378: Aim Formats
AIM Formats AIM specifies a 3-character string that is attached as a prefix to the label data for transmission. Because AIM specifies one identifier for UPC-A, UPC-E and EAN-13 labels, UPC-A, UPC-E and EAN-13 will be received from the handheld and transmitted by the scanner as EAN-13. The ']' character must be the first character received in the label transmission from the handheld.
Page 379: Digit Supplemental
2-Digit Supplemental • Supplemental data is appended to any EAN base label. • Prefix must be ASCII characters ']E1'. • length of Supplemental data including prefix must be 5. Total required length is 21 for EAN-13 and 16 for EAN-8. •...
Page 380 Code 128 Supplemental • Supplemental data is appended to any EAN base label. • Prefix must be ASCII characters ']C0'. • length of Supplemental data including prefix is variable but must be at least 9. • Examples: addon portion is highlighted data is underlined. 81000009 ']E00060992011187]C0 UPC-A Code 128 addon...
Page 381 Codabar • Check character must be included in label data. • Label length including check character and excluding prefix charac- ters must meet requirements imposed by the main scanner's fixed or variable label length control for this symbology type. • Prefix must be ASCII characters ']F0'.
Page 382 RSS-14 • Prefix must be ASCII characters ']e0'. • Check character must be included in label. • Label length excluding prefix characters must be 14 characters. • Example: ']e001044123456789'. RSS Expanded • Prefix must be ASCII characters ']e0'. • Label length excluding prefix characters must be at least 1 character. Maximum length is the maximum label size supported by the scan- ner.
Page 383 Code 128 / EAN128 • Prefix must be either ASCII characters ']C0', ']C1' or ']C2'. • Label length excluding prefix character must meet requirements imposed by the main scanner's fixed or variable label length control for this symbology type. • If EAN-128 Symbology is Enabled and prefix is ']C1', label will be identified as an EAN128 otherwise it is identified as a Code 128.
Page 384 NOTES F-16 Magellan 2200VS and 2300HS...
Page 385 NOTES F-17 Product Reference Guide...
Page 386 NOTES F-18 Magellan 2200VS and 2300HS...
Page 387: Ascii Character Set
ASCII Character Set The table on this page shows a set of ASCII characters and their corresponding Hex Values. The Hex Values in this table are needed for setting symbology specific label identifiers, as well as enabling custom prefix and suffix characters. ASCII / Hex Conversion Table ASCII ASCII...
Page 388 © 2002-2014 Datalogic ADC, Inc. • All rights reserved. • Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U. Datalogic ADC, Inc. 959 Terry Street Eugene |OR 97402...
