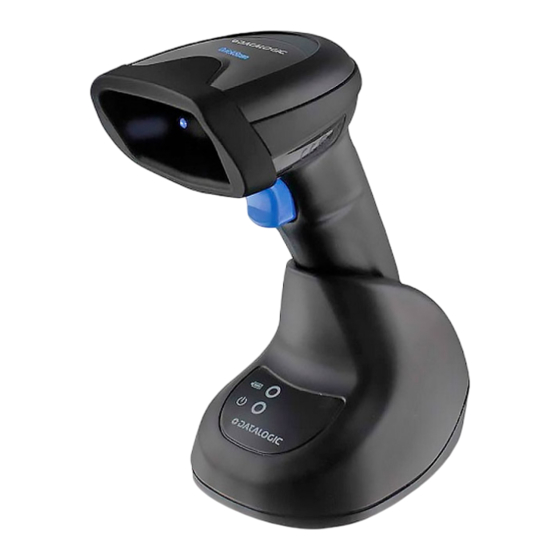

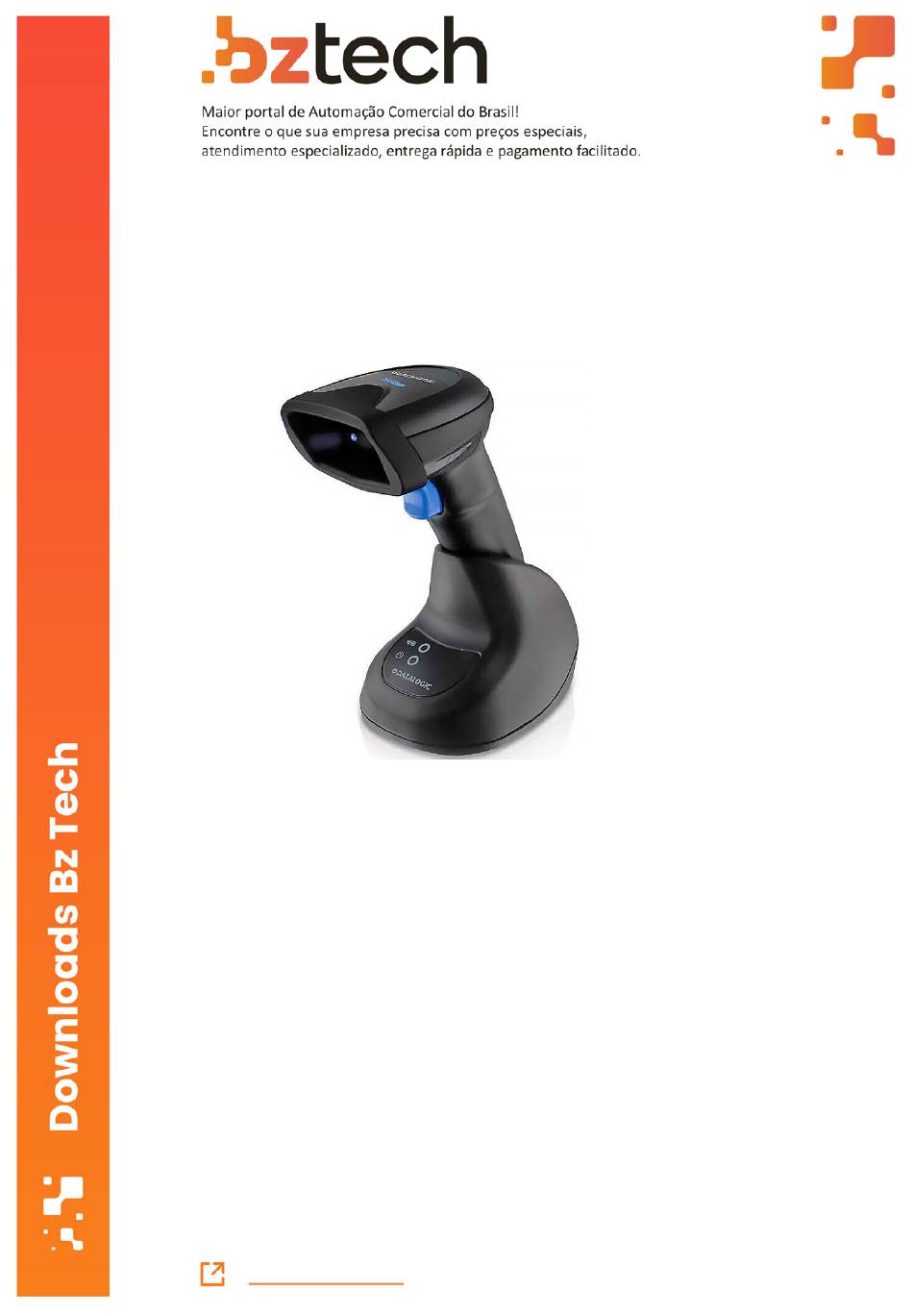

Page 1 Leitor Datalogic QuickScan QBT2500 O Datalogic QuickScan QBT2500 é o seu companheiro de confiança no checkout do PDV. Ele sabe muito bem a importância das leituras imediatas, seja qual for o código de barras independentemente de ser difícil de ler, mal impresso ou danificado.
Page 2 QuickScan™ 2500 Family PRODUCT REFERENCE GUIDE General Purpose Handheld Area Imager Bar Code Reader...
Page 3 QuickScan is a trademark of Datalogic S.p.A. and/or its affiliates, registered in the U.S. The Bluetooth word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks by Datalogic S.p.A. and/or its affiliates is under license. All other trademarks and brands are property of their respective owners.
Page 4: Table Of Contents
Battery Safety ........................6 Programming the Reader ....................8 Configuration Methods ........................8 Programming Bar Codes ......................8 Datalogic Aladdin™ ........................8 CHAPTER 2. SETUP ....................9 Unpacking ........................9 Setting Up the QuickScan™ QD/QW2500 Reader ..............9 Reader and LED Description ..................... 9 Connecting the Host Interface ..................
Page 5 TABLE OF CONTENTS Customizing Configuration Settings .................24 Using the Programming Bar Codes ....................24 Datalogic Aladdin™ Utility ........................ 25 Interface Settings ..........................25 Configuring Other Features ......................25 Software Version Transmission ....................... 26 Resetting the Product Configuration to Defaults ................26 Restore Custom Default Configuration ..................
Page 6 TABLE OF CONTENTS Case Conversion ........................78 Character Conversion .......................78 Global AIM ID ..........................79 GS1-128 AIM ID .........................79 LABEL ID ............................80 Label ID: Pre-loaded Sets ......................80 Label ID: Set Individually Per Symbology ................81 Label ID Control ........................81 Label ID Symbology Selection ....................82 READING PARAMETERS ....................
Page 7 TABLE OF CONTENTS EAN-13 ............................118 EAN-13 Enable/Disable ......................118 EAN-13 Check Character Transmission ................118 EAN-13 Flag 1 Character ......................119 EAN-13 to ISBN Conversion ....................119 EAN-13 to ISSN Conversion ....................120 EAN-8 ..............................121 EAN-8 Enable/Disable ......................121 EAN-8 Check Character Transmission ..................121 Expand EAN-8 to EAN-13 ......................122 UPC/EAN GLOBAL SETTINGS ......................123 UPC/EAN Price Weight Check ....................123 UPC/EAN Quiet Zones ......................124...
Page 8 Compressed 2 of 5 Set Length 2 ....................160 DATALOGIC 2 OF 5 ..........................161 Datalogic 2 of 5 Enable/Disable ....................161 Datalogic 2 of 5 Check Character Calculation ................161 Datalogic 2 of 5 Check Character Transmission ..............162 Datalogic 2 of 5 Length Control ....................162 Datalogic 2 of 5 Set Length 1 ....................163...
Page 9 TABLE OF CONTENTS Codabar Start/Stop Character Match ..................171 Codabar Quiet Zones ......................172 Codabar Length Control ......................173 Codabar Set Length 1 ......................173 Codabar Set Length 2 ......................174 ABC CODABAR ..........................175 ABC Codabar Enable/Disable ....................175 ABC Codabar Concatenation Mode ..................175 ABC Codabar Dynamic Concatenation Timeout ..............176 ABC Codabar Force Concatenation ..................176 ISBT 128 ............................177 ISBT 128 Concatenation ......................177...
Page 10 TABLE OF CONTENTS CHINA SENSIBLE CODE ........................202 China Sensible Code Enable / Disable ..................202 China Sensible Code Length Control ..................202 China Sensible Code Set Length 1 ..................203 China Sensible Code Set Length 2 ..................203 DATA MATRIX ..........................204 Data Matrix Enable / Disable ....................204 Data Matrix Square/Rectangular Style ..................204 Data Matrix Length Control ....................205 Data Matrix Set Length 1 ......................205...
Page 11 TABLE OF CONTENTS WIRELESS FEATURES ....................234 WIRELESS BEEPER FEATURES .....................235 Good Transmission Beep .......................235 Beeper Frequency ........................235 Beep Duration .........................236 Beep Volume ...........................237 Disconnect Beep ........................237 Docking (Connecting) Beep ....................238 Leash Alarm ..........................238 CONFIGURATION UPDATES ......................240 Automatic Configuration Update ....................240 Copy Configuration to Reader ....................240 Copy Configuration to Base Station ..................240 BATCH FEATURES ..........................241...
Page 12 TABLE OF CONTENTS Example: Setting a Prefix .......................273 Global AIM ID ...........................274 Label ID ............................275 Label ID: Pre-loaded Sets .......................275 Label ID: Set Individually Per Symbology ................277 Character Conversion ........................279 Scanning Features ....................... 280 Scan Mode ............................280 Scanning Active Time ........................280 Aiming Duration Time ........................282 Flash On Time ..........................283 Flash Off Time ..........................284...
Page 13 TABLE OF CONTENTS Interface Type PC AT PS/2, USB-Keyboard or USB-Keyboard for APPLE ......330 Interface Type PC AT PS/2, USB-Keyboard or USB-Keyboard for APPLE (continued) ..331 Interface Type PC AT PS/2 Alt Mode or USB-Keyboard Alt Mode ........332 Interface Type PC AT PS/2 Alt Mode or USB-Keyboard Alt Mode (continued) ....
Page 14: Preface
Programming can alternatively be performed using the Datalogic Aladdin™ Configura- tion application, which is available from the Datalogic website listed on the back cover of this manual. This multi-platform utility program allows device configuration using a PC.
Page 15: Manual Conventions
TECHNICAL SUPPORT Support Through the Website Datalogic provides several services as well as technical support through its website. Log on to (www.datalogic.com). For quick access, from the home page click on the search icon , and type in the name of the product you’re looking for.
Page 16: Chapter 1. Introduction
ABOUT THE READER The QuickScan 2500™ product series represents the hand-held entry level corded or cordless scanner by Datalogic. It has been specifically created for small to medium size Retailers, such as groceries and convenience stores, operating in both food and non- food sectors.
Page 17: Using The Quickscan™ 2500 Reader
To read a symbol or capture an image, simply aim the reader and pull the trigger. The QuickScan™ 2500 is a powerful omni-directional reader, so the orientation of the sym- bol is not important. Datalogic's unique 'Green Spot' for good-read feedback helps to improve productivity in noisy environments or in situations where silence is required.
Page 18: Quickscan™ 2500 Aiming System
QUICKSCAN™ 2500 AIMING SYSTEM QUICKSCAN™ 2500 AIMING SYSTEM The QuickScan™ QD2500, QW2500, QBT2500 and QM2500 normally function by cap- turing and decoding codes. The reader is equipped with an internal Motionix™ motion- sensing function which activates the aiming system on device motion. The intelligent aiming system indicates the field of view which should be positioned over the bar code: QuickScan QD/QBT/QM2500...
Page 19: Quickscan™ Qw2500
INTRODUCTION QuickScan QW2500 ™ ™ QuickScan QW2500’s Aiming System ™ Relative Size and Location of QuickScan QW2500’s Aiming System Pattern on 2D Matrix Symbol ™ Relative Size and Location of QuickScan QW2500’s Aiming System Pattern on Linear bar code QUICKSCAN™ 2500...
Page 20 QUICKSCAN™ 2500 AIMING SYSTEM A beam illuminates the label. The projected pattern of the aiming system will be smaller when the reader is closer to the bar code and larger when it is farther from the code. Symbologies with smaller bars or elements (mil size) should be read closer to the unit. Symbologies with larger bars or elements (mil size) should be read farther from the unit.
Page 21: Battery Safety
Use only the authorized power supplies, battery pack, chargers, and docks supplied by your Datalogic reseller. The use of any other power supplies can damage the device and void your warranty. Do not disassemble or modify the battery. The battery contains safety and protection devices, which, if damaged, may cause the battery to generate heat, explode or ignite.
Page 22 BATTERY SAFETY CAUTION: Only in case of long storage, to avoid deep discharge of the bat- tery it is recommended to partially recharge the battery every three months to keep the charge status at a medium level. As a reference, run a fast recharge for 20 minutes every three months on unused products to avoid any performance deterioration of the cell.
Page 23: Programming The Reader
Aladdin also facilitates image capturing. In addition, Aladdin makes it easy to upgrade the handheld’s firmware, to attain the benefits of new reader features. Reference the Datalogic Aladdin™ Online Help for more details. Aladdin is available for download free of charge on the Datalogic website...
Page 24: Chapter 2. Setup
CHAPTER 2 SETUP UNPACKING Check carefully to ensure the reader and any cables or accessories ordered are present and undamaged. If any damage occurred during shipment, contact " Technical Support" on page xiv SETTING UP THE QUICKSCAN™ QD/QW2500 READER Follow the steps provided in this section to connect and get your reader up and commu- nicating with its host: 1.
Page 25: Connecting The Host Interface
SETUP CONNECTING THE HOST INTERFACE The reader kit you ordered to match your interface should provide a compatible cable for your installation. If this is not so, contact " Technical Support" on page xiv The reader can communicate using the interfaces illustrated on page 22 For corded versions, connect the reader cable by inserting the cable into the handle as shown in...
Page 26: Keyboard Wedge Connection (Quickscan™ Qd2590 Only)
CONNECTING THE HOST INTERFACE Keyboard Wedge Connection (QuickScan QD2590 only) ™ The Keyboard Wedge cable has a ‘Y’ connection from the scanner. Connect the female to the male end from the keyboard and the remaining end at the keyboard port at the terminal/PC.
Page 27: Stand Installation
SETUP STAND INSTALLATION Hands-Free Stand An accessory is available which holds the QD/QW2500 reader at a convenient angle (except those with integrated stand), allowing hands free scanning of items. It can also be used as a holder. The holder “cup” can be positioned in any of the angles ™...
Page 28: End-Cap Cover
END-CAP COVER Figure 6. Adjusting the Stand Arm END-CAP COVER NOTE: For QuickScan™ QD2500, to use the Stand Autosense™ (STD-AUTO- QD25-xx) it is mandatory to remove the End-cap. See the paragraph below. End-cap cover disassembly procedure 1. Using a small screwdriver or a similar tool pull out the End-Cap from the scanner plastic enclosure.
Page 29: Setting Up The Quickscan™ Qbt/Qm2500 Reader
The LEDs on the base will indicate the status of the battery. For information about the LEDs see on page 292. "Technical Specifications" NOTE: Before using the battery, read "Battery Safety" on page 6. Datalogic recommends annual replacement of rechargeable battery packs to ensure maximum performance. QUICKSCAN™ 2500...
Page 30: Replacing The Battery Pack
REPLACING THE BATTERY PACK REPLACING THE BATTERY PACK NOTE: Before using the battery, read " Battery Safety" on page 6 . Datalogic recommends annual replacement of rechargeable battery packs to ensure maximum performance. Use the following procedure to charge the reader’s battery: 1.
Page 31: Base Station Installation
SETUP BASE STATION INSTALLATION The base station/charger may be set up in desk application standalone or with the addi- tional tilting platform, which allows to adjust the inclination of the scanner to provide the most comfortable use depending on the needs. Figure 7.
Page 32: Scanner And Radio Base Leds
SCANNER AND RADIO BASE LEDS SCANNER AND RADIO BASE LEDS A specific LED on the QBT/QM2500 Scanner provides information about: good reading result, battery status and charging status (with USB Type-C only). The Battery Status information can be easily retrieved by double-tapping with your fingers on top of the head of the scanner.
Page 33 SETUP Two LEDs on the BC2090 Radio Base provide information about the Base as well as bat- tery charging status, as illustrated in the following table: Table 2 - Radio Base LEDs STATUS Green On = Base is powered Power ON / Data Green Blinking = Base receives data and commands from the Host or the Reader.
Page 34: Connecting The Base Station
Connector AC/DC Adapter I/F Cable DC Power Datalogic QuickScan™ Cord QBT2500 Securing the DC Power Cord (Optional) The DC power cord for the adapter can be secured to the bottom of the base in order to maximize the mechanical retention of the cable as shown in Figure 11 Figure 11.
Page 35: Power Connection
SETUP Most connections plug directly into the host device as shown in Figure 12 on page 20 Keyboard Wedge interface cables have a ‘Y’ connection where its female end mates with the male end of the cable from the keyboard and the remaining end at the key- board port on the terminal/PC as shown in Figure 13 on page 20 Figure 12.
Page 36: System And Network Layouts
SYSTEM AND NETWORK LAYOUTS SYSTEM AND NETWORK LAYOUTS Stand Alone Layouts Figure 15 - Single Reader Layout QBT2500 HOST CRADLE Figure 16 - Multiple Stand Alone Layout Many stand alone connections can operate in the same physical area without interfer- ence, provided all readers and cradles in the system have different addresses.
Page 37: Interface Selection
. See note at page 11 • Datalogic Magellan Scanners' specific interface CONFIGURING THE INTERFACE Scan the programming bar code from the following section which selects the appropri- ate interface type to match the system the reader will be connected to. Next, proceed to the corresponding chapter in this manual (also listed in the table) to configure any desired settings and features associated with that interface.
Page 38 Select RS-232 OPOS USB-COM (simulates RS-232 standard interface) $P,HA12,P Select USB-COM-STD a. Not available for QW2500 and QD2520. b. Download the correct USB Com driver from www.datalogic.com. USB FOR TERMINALS USB HID POS $P,HA44,P Select USB HID POS USB Toshiba TEC...
Page 39: Customizing Configuration Settings
SETUP KEYBOARD USB Keyboard with standard key encoding $P,HA35,P Select USB Standard Keyboard USB Keyboard with alternative key encoding $P,HA2B,P Select USB Alternative Keyboard USB-Composite (combines USB-KBD emulation and USB-COM $P,HA4D,P Select USB-Composite AT, PS/2 with standard key encoding $P,HA29,P Select KBD-AT AT, PS/2 with alternate key encoding $P,HA26,P...
Page 40: Datalogic Aladdin™ Utility
Datalogic Aladdin™ is a multi-platform utility program providing a quick and user- friendly configuration method via the RS-232/USB-COM interface. The Aladdin utility is available on the Datalogic website. Aladdin allows you to program the reader by select- ing configuration commands through a user-friendly graphical interface running on a PC.
Page 41: Software Version Transmission
SETUP Software Version Transmission The software version of the device can be transmitted over the RS-232, Keyboard and USB interfaces by scanning the following label. Transmit Software Version Resetting the Product Configuration to Defaults Restore Custom Default Configuration If you aren't sure what programming options are in your reader, or you've changed some options and want to restore the Custom Default Configuration that may have been saved in the reader, scan the Restore Custom Default Configuration bar code below.
Page 42: Chapter 3. Configuration With Bar Codes
CHAPTER 3 CONFIGURATION WITH BAR CODES This and following sections provide programming bar codes to configure your reader by changing the default settings. For details about additional methods of programming, see " Customizing Configuration Settings" on page 24 NOTE: You must first enable your QuickScan to read bar codes in order to use this section.
Page 43: Symbology-Specific Parameters
CONFIGURATION WITH BAR CODES Symbology-specific parameters: define 1D Symbologies, starting on page 111 2D Symbologies, starting on page 196 options for all symbologies and provides the programming bar codes necessary for con- figuring these features. NOTE: You must first enable your reader to read bar codes in order to use this section.
Page 44: Global Interface Features
GLOBAL INTERFACE FEATURES ENTER/EXIT PROGRAMMING MODE GLOBAL INTERFACE FEATURES The following interface features are configurable by all interface types. To set features specific to your interface, turn to that section of this manual. Host Commands — Obey/Ignore This option specifies whether the reader will obey or ignore host commands. When set to ignore, the reader will ignore all host commands except those necessary for: •...
Page 45: Rs-232 Interface
CONFIGURATION | RS-232 INTERFACE Not available for QW2500 and QD2520 Use the programming bar codes in this chapter if modifications to the standard RS-232 interface settings are necessary to meet your system’s requirements. Additional settings which apply to both the RS-232 and USB interfaces are available in RS-232/USB-COM Settings, starting on page 36 SECTION CONTENTS...
Page 46: Rs-232 Standard Settings
RS-232 STANDARD SETTINGS ENTER/EXIT PROGRAMMING MODE RS-232 STANDARD SETTINGS Baud Rate Baud rate is the number of bits of data transmitted per second. Set the reader's baud rate to match the baud rate setting of the host device. With an improper baud rate set- ting, data may not reach the host correctly.
Page 47: Data Bits
ENTER/EXIT PROGRAMMING MODE RS-232 INTERFACE Data Bits This parameter allows the reader to interface with devices requiring a 7-bit or 8-bit ASCII protocol for sending and receiving data. $CR2DA00 7 Data Bits $CR2DA01  8 Data Bits NOTE: Handheld and base station models support the 8-bit ASCII protocol. The 7-bit ASCII protocol support is subject to specific firmware release.
Page 48: Parity
RS-232 STANDARD SETTINGS ENTER/EXIT PROGRAMMING MODE Parity This feature specifies parity required for sending and receiving data. A parity check bit is the most significant bit of each ASCII coded character. Select the parity type according to host device requirements. •...
Page 49: Handshaking Control
ENTER/EXIT PROGRAMMING MODE RS-232 INTERFACE Handshaking Control The data interface consists of an RS-232 port designed to operate either with or without the hardware handshaking lines, Request to Send (RTS), and Clear to Send (CTS). Hand- shaking Control includes the following options: •...
Page 50: Rs-232/Usb-Com Interfaces
CONFIGURATION | RS-232/USB-COM INTERFACES SECTION CONTENTS • Intercharacter Delay • ACK NAK Timeout Value • Beep On ASCII BEL • ACK NAK Retry Count • Beep On Not on File • ACK NAK Error Handling • ACK NAK Options • Indicate Transmission Failure •...
Page 51: Rs-232/Usb-Com Settings
ENTER/EXIT PROGRAMMING MODE RS-232/USB-COM INTERFACES RS-232/USB-COM SETTINGS Intercharacter Delay This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero (0) to 990 millisec- onds in 10ms increments.
Page 52: Beep On Ascii Bel
RS-232/USB-COM SETTINGS ENTER/EXIT PROGRAMMING MODE Beep On ASCII BEL When this parameter is enabled, the reader issues a beep when a <BEL> character is detected on the RS-232 serial line. <BEL> is issued to gain a user's attention to an illegal entry or other important event.
Page 53: Ack Nak Options
ENTER/EXIT PROGRAMMING MODE RS-232/USB-COM INTERFACES ACK NAK Options This enables/disables the ability of the reader to support the RS-232 ACK/NAK protocol. When configured, the reader and/or host sends an “ACK” when it receives data prop- erly, and sends “NAK” when the data is in error. Options are: •...
Page 54: Ack Character
RS-232/USB-COM SETTINGS ENTER/EXIT PROGRAMMING MODE ACK Character This setting specifies an ASCII character or hex value to be used as the ACK character. ASCII characters or any hex value from 0 to 0xFF can be selected. See " ACK Character" on for more detailed programming instructions.
Page 55: Ack Nak Timeout Value
ENTER/EXIT PROGRAMMING MODE RS-232/USB-COM INTERFACES ACK NAK Timeout Value This option specifies the amount of time the reader waits for an ACK character from the host following label transmission. The selectable timeout range is 200 milliseconds to 15,000ms (15 seconds) in 200ms increments. A selection of 0 disables the timeout. See "...
Page 56: Ack Nak Error Handling
RS-232/USB-COM SETTINGS ENTER/EXIT PROGRAMMING MODE ACK NAK Error Handling This feature specifies the method the reader uses to handle receive errors detected while waiting for an ACK character from the host. Options are: • Ignore errors detected • Process error as valid ACK character •...
Page 57: Disable Character
ENTER/EXIT PROGRAMMING MODE RS-232/USB-COM INTERFACES Disable Character Specifies the value of the RS-232 host command used to disable the reader. ASCII characters or any hex value from 0 to 0xFF can be selected. See " Disable Character" for more detailed programming instructions. on page 267 Setting to previously defined characters such as XON, XOFF, or host com- mands conflicts with normal operation of these characters.
Page 58: Keyboard Interface
CONFIGURATION | KEYBOARD INTERFACE SECTION CONTENTS OUNTRY starting on page 44 • Setting Country Mode THER EYBOARD ARAMETERS starting on page 59 • Encoding Type • Keyboard Send Control Characters • ALT Output Type • Wedge Quiet Interval • Caps Lock State •...
Page 59: Country Mode
COUNTRY MODE This feature specifies the country/language supported by the keyboard. The Country Mode setting is ignored if the interface uses alternate key encoding. SETUP ON PC TO USE ALT UNIVERSAL 1. Open Registry Edit 2. Set EnableHexNumpad to 1 as follows: 3.
Page 60: Setting Country Mode
COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Setting Country Mode $CKBCO00  United States $CKBCO01 French International (Belgian French) $CKBCO02 United Kingdom $CKBCO03 Danish $CKBCO04 French (France) $CKBCO05 German $CKBCO06 Italian PRODUCT REFERENCE GUIDE...
Page 61 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Setting Country Mode (continued) $CKBCO07 Norwegian $CKBCO08 Portuguese (Portugal) $CKBCO09 Spanish $CKBCO0A Swedish $CKBCO0B Swiss French $CKBCO0C Japanese ASCII $CKBCO0D Hungarian QUICKSCAN™ 2500...
Page 62 COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Setting Country Mode (continued) $CKBCO0E Czech $CKBCO0F SlovaK $CKBCO10 Romanian $CKBCO11 Croatian $CKBCO12 Polish_214 $CKBCO13 French Canadian Win7 $CKBCO14 Lithuanian PRODUCT REFERENCE GUIDE...
Page 63 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Setting Country Mode (continued) $CKBCO17 Vietnamese $CKBCO18 Russian $CKBCO19 Arabic 101 $CKBCO1A Chinese ASCII $CKBCO1B Thai-Kedmanee $CKBCO1C Albanian $CKBCO1D Arabic 102 QUICKSCAN™ 2500...
Page 64 COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Setting Country Mode (continued) $CKBCO1E Arabic 102 AZERTY $CKBCO1F Azeri Cyrillic $CKBCO20 Azeri Latin $CKBCO21 Belarusian $CKBCO22 Bosnian Cyrillic $CKBCO23 Bosnian Latin $CKBCO24 Bulgarian Cyrillic PRODUCT REFERENCE GUIDE...
Page 65 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Setting Country Mode (continued) $CKBCO25 Bulgarian Latin $CKBCO26 Canadian French (Legacy) $CKBCO27 Canadian Multilingual $CKBCO28 Chinese (Simplified) $CKBCO29 Chinese (Traditional) $CKBCO2A Czech Programmers $CKBCO2B Czech QWERTY QUICKSCAN™ 2500...
Page 66 COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Setting Country Mode (continued) $CKBCO2C Dutch Netherland $CKBCO2D Estonian $CKBCO2E Faeroese $CKBCO2F Finnish $CKBCO30 French (Canada) 2000/XP $CKBCO31 French (Canada) 95/98 $CKBCO32 Galician PRODUCT REFERENCE GUIDE...
Page 67 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Setting Country Mode (continued) $CKBCO33 Greek $CKBCO34 Greek Latin $CKBCO35 Greek Polytonic $CKBCO36 Greek220 $CKBCO37 Greek220 Latin $CKBCO38 Greek319 $CKBCO39 Greek319 Latin QUICKSCAN™ 2500...
Page 68 COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Setting Country Mode (continued) $CKBCO3A Hebrew Israel $CKBCO3B Hungarian_101KEY $CKBCO3C Icelandic $CKBCO3D Irish $CKBCO3E Italian_142 $CKBCO3F Japanese (Shift-JIS) $CKBCO40 Kazakh PRODUCT REFERENCE GUIDE...
Page 69 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Setting Country Mode (continued) $CKBCO41 Korean (Hangul) $CKBCO42 Korean ASCII $CKBCO43 Kyrgyz Cyrillic $CKBCO44 Latin America $CKBCO45 Latvian $CKBCO46 Latvian QWERTY $CKBCO47 Lithuanian_IBM QUICKSCAN™ 2500...
Page 70 COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Setting Country Mode (continued) $CKBCO48 Macedonian -FYROM $CKBCO49 Maltese_47KEY $CKBCO4A Mongolian-Cyrillic $CKBCO4B Polish Programmer $CKBCO4C Portuguese Brazil $CKBCO4D Portuguese Brazilian ABNT $CKBCO4E Portuguese Brazilian ABNT2 PRODUCT REFERENCE GUIDE...
Page 71 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Setting Country Mode (continued) $CKBCO4F Romanian Legacy $CKBCO50 Romanian Programmer $CKBCO51 Romanian Standard $CKBCO52 Russian Typewriter $CKBCO53 Serbian Cyrillic $CKBCO54 Serbian Latin $CKBCO55 Slovak QWERTY QUICKSCAN™ 2500...
Page 72 COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Setting Country Mode (continued) $CKBCO56 Slovenian $CKBCO57 Spanish Variation $CKBCO58 Swiss German $CKBCO59 Tatar $CKBCO5A Turkish F $CKBCO5B Turkish Q $CKBCO5C Ukrainian PRODUCT REFERENCE GUIDE...
Page 73 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Setting Country Mode (continued) $CKBCO5D US Dvorak $CKBCO5E US Dvorak Left Hand $CKBCO5F US Dvorak Right Hand $CKBCO60 US English (Mac) $CKBCO61 US English (North American) $CKBCO62 US International $CKBCO63 Uzbek Cyrillic QUICKSCAN™ 2500...
Page 74: Other Keyboard Parameters
OTHER KEYBOARD PARAMETERS ENTER/EXIT PROGRAMMING MODE OTHER KEYBOARD PARAMETERS Encoding Type $CENCO00  Encoding Type = Don’t Use Encoding $CENCO03 Encoding Type = UTF_8 $CENCO04 Encoding Type = Windows 874 $CENCO05 Encoding Type = Windows 932 $CENCO06 Encoding Type = Windows 936 $CENCO07 Encoding Type = Windows 949 $CENCO08...
Page 75 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Encoding Type (continued) $CENCO09 Encoding Type = Windows 1250 $CENCO0A Encoding Type = Windows 1251 $CENCO0B Encoding Type = Windows 1252 $CENCO0C Encoding Type = Windows 1253 $CENCO0D Encoding Type = Windows 1254 $CENCO0E Encoding Type = Windows 1255 $CENCO0F Encoding Type = Windows 1256 QUICKSCAN™...
Page 76 OTHER KEYBOARD PARAMETERS ENTER/EXIT PROGRAMMING MODE Encoding Type (continued) $CENCO10 Encoding Type = Windows 1257 $CENCO11 Encoding Type = Windows 1258 $CENCO12 Encoding Type = Windows 20866 $CENCO31 Encoding Type = Windows 54936 $CENCO13 Encoding Type = ISO 8859-1 $CENCO14 Encoding Type = ISO 8859-2 $CENCO15 Encoding Type = ISO 8859-3...
Page 77 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Encoding Type (continued) $CENCO16 Encoding Type = ISO 8859-4 $CENCO17 Encoding Type = ISO 8859-5 $CENCO18 Encoding Type = ISO 8859-6 $CENCO19 Encoding Type = ISO 8859-7 $CENCO1A Encoding Type = ISO 8859-8 $CENCO1B Encoding Type = ISO 8859-9 $CENCO1C Encoding Type = ISO 8859-10 QUICKSCAN™...
Page 78 OTHER KEYBOARD PARAMETERS ENTER/EXIT PROGRAMMING MODE Encoding Type (continued) $CENCO1D Encoding Type = ISO 8859-11 $CENCO1E Encoding Type = ISO 8859-13 $CENCO1F Encoding Type = ISO 8859-14 $CENCO20 Encoding Type = ISO 8859-15 $CENCO21 Encoding Type = ISO 8859-16 $CENCO22 Encoding Type = MS-DOS 437 $CENCO23 Encoding Type = MS-DOS 737...
Page 79 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Encoding Type (continued) $CENCO24 Encoding Type = MS-DOS 775 $CENCO25 Encoding Type = MS-DOS 850 $CENCO26 Encoding Type = MS-DOS 852 $CENCO27 Encoding Type = MS-DOS 855 $CENCO28 Encoding Type = MS-DOS 857 $CENCO29 Encoding Type = MS-DOS 860 $CENCO2A Encoding Type = MS-DOS 861 QUICKSCAN™...
Page 80 OTHER KEYBOARD PARAMETERS ENTER/EXIT PROGRAMMING MODE Encoding Type (continued) $CENCO2B Encoding Type = MS-DOS 862 $CENCO2C Encoding Type = MS-DOS 863 $CENCO2D Encoding Type = MS-DOS 865 $CENCO2E Encoding Type = MS-DOS 866 $CENCO2F Encoding Type = MS-DOS 869 $CENCO30 Encoding Type = Mac CP10000 PRODUCT REFERENCE GUIDE...
Page 81: Alt Output Type
ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE ALT Output Type This option specifies the encode type of ALT Mode when the reader sends Output Key- board Data in Alt Mode. (Be aware that the reader may switch automatically between ALT mode & Normal Keyboard Scancode, to correctly display some characters that are not present in the current Keyboard Country).
Page 82: Caps Lock State
OTHER KEYBOARD PARAMETERS ENTER/EXIT PROGRAMMING MODE Caps Lock State This option specifies the format in which the reader sends character data. This applies to Keyboard Wedge interfaces. This does not apply when an alternate key encoding key- board is selected. This does not apply to USB Keyboard. $CKBCL00 ...
Page 83: Keyboard Numeric Keypad
ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Keyboard Numeric Keypad This feature specifies if numeric characters will be sent using the standard keys or the numeric keypad. $CKBKP00  Keyboard Numeric Keypad = Standard Keys $CKBKP01 Keyboard Numeric Keypad = Numeric Keypad Keyboard Send Control Characters This feature is used by the Keyboard Wedge and USB Keyboard interfaces.
Page 84: Wedge Quiet Interval
OTHER KEYBOARD PARAMETERS ENTER/EXIT PROGRAMMING MODE Wedge Quiet Interval This option specifies the amount of time to look for keyboard activity before the reader breaks the keyboard connection in order to transmit data to host. The selectable range for this feature is from 0 to 990ms in 10ms increments. See " Wedge Quiet Interval"...
Page 85: Intercode Delay
ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Intercode Delay Specifies the delay between labels transmitted to the host for this interface. The select- able range for this feature is from 0 to 99 seconds. See " Intercode Delay" on page 271 more detailed programming instructions To configure this feature, scan the ENTER/EXIT PRO- GRAMMING MODE bar code above, then the bar code at left followed by the digits from the Alphanu-...
Page 86: Usb Keyboard Speed
OTHER KEYBOARD PARAMETERS ENTER/EXIT PROGRAMMING MODE USB Keyboard Speed This option specifies the USB poll rate for a USB Keyboard. NOTE: This feature applies ONLY to the USB Keyboard interface. $CKBSP01  USB Keyboard Speed = 1ms $CKBSP02 USB Keyboard Speed = 2ms $CKBSP03 USB Keyboard Speed = 3ms $CKBSP05...
Page 87: Usb-Oem Interface
CONFIGURATION | USB-OEM INTERFACE SECTION CONTENTS • USB-OEM Device Usage QUICKSCAN™ 2500...
Page 88: Usb-Oem Device Usage
ENTER/EXIT PROGRAMMING MODE USB-OEM Device Usage The USB-OEM protocol allows for the reader to be identified as one of two different types of bar code reader. Depending on what other reader you may already have con- nected to a USB-OEM POS, you may need to change this setting to enable all devices to communicate.
Page 89: Ibm 46Xx Interface
CONFIGURATION | IBM 46XX INTERFACE Not available for QW2500 and QD2520 SECTION CONTENTS • IBM 46xx Interface Options QUICKSCAN™ 2500...
Page 90: Ibm 46Xx Interface Options
ENTER/EXIT PROGRAMMING MODE IBM 46xx Interface Options This setting provides for an interface specific control mechanism. Options are: • Obey — Obey Scanner Configuration Host Commands • Ignore — Ignore Scanner Configuration Host Commands $CIFO100  Interface Options = Obey Scanner Configuration Host Commands $CIFO102 Interface Options = Ignore Scanner Configuration...
Page 91: Data Format
CONFIGURATION | DATA FORMAT SECTION CONTENTS LOBAL ETTINGS starting on page 77 • Global Prefix/Suffix • Global AIM ID • Case Conversion • GS1-128 AIM ID • Character Conversion ABEL starting on page 80 • • Label ID Symbology Selection Label ID: Set Individually Per Symbology •...
Page 92: Global Settings
GLOBAL SETTINGS ENTER/EXIT PROGRAMMING MODE GLOBAL SETTINGS Global Prefix/Suffix Up to 20 ASCII characters may be added as a prefix (in a position before the bar code data) and/or as a suffix (in a position following the bar code data). See in “Ref- page 273 erences”...
Page 93: Case Conversion
ENTER/EXIT PROGRAMMING MODE DATA FORMAT Case Conversion This feature allows conversion of the case of all alphabetic characters to upper or lower case. NOTE: Case conversion affects ONLY scanned bar code data, and does not affect Label ID, Prefix, Suffix, or other appended data. $CLFCA00 ...
Page 94: Global Aim Id
GLOBAL SETTINGS ENTER/EXIT PROGRAMMING MODE Global AIM ID NOTE: This feature enables/disables addition of AIM IDs for all symbology types. AIM label identifiers (as opposed to custom characters you select yourself as with label identifiers) can be included with scanned bar code data. See for more detailed pro- gramming instructions.
Page 95: Label Id
ENTER/EXIT PROGRAMMING MODE DATA FORMAT LABEL ID A Label ID is a customizable code of up to three ASCII characters (each can be one of hex 0x01-0xFF), used to identify a bar code (symbology) type. It can be appended previous to or following the transmitted bar code data depending upon how this option is enabled.
Page 96: Label Id: Set Individually Per Symbology
LABEL ID ENTER/EXIT PROGRAMMING MODE Label ID: Set Individually Per Symbology This feature configures a Label ID individually for a single symbology. NOTE: This setting requires the scanning of bar codes from multiple sec- tions. See " Label ID: Set Individually Per Symbology" on page 277 for more detailed programming instructions.
Page 97: Label Id Symbology Selection
ENTER/EXIT PROGRAMMING MODE DATA FORMAT Label ID Symbology Selection This option selects the symbology for which a Label ID is to be configured. See " Label ID: for full instructions. Set Individually Per Symbology" on page 277 Make a mistake? Scan the CANCEL bar code to abort and not save the entry string.
Page 98 LABEL ID ENTER/EXIT PROGRAMMING MODE Label ID Symbology Selection (continued) $C32ID Set EAN-13/P2 Label ID Character(s) $C35ID Set EAN-13/P5 Label ID Character(s) $CISID Set ISBN Label ID Character(s) $CINID Set ISSN Label ID Character(s) $C8BID Set EAN-8 Label ID Character(s) $C82ID Set EAN-8 P2 Label ID Character(s) $C85ID...
Page 99 ENTER/EXIT PROGRAMMING MODE DATA FORMAT Label ID Symbology Selection (continued) $CXBID Set GS1 DataBar Expanded Label ID Character(s) $CLBID Set GS1 DataBar Limited Label ID Character(s) $CC3ID Set Code 39 Label ID Character(s) $CP3ID Set Code 32 Label ID Character(s) $CCCID Set Code 39 CIP HR Label ID Character(s) $CC8ID...
Page 100 Label ID Symbology Selection (continued) $CHRID Set Interleaved 2 of 5 CIP HR Label ID Character(s) $CD2ID Datalogic 2 of 5 Label ID Character(s) $CS2ID Standard 2 of 5 Label ID Character(s) $CU2ID Industrial 2 of 5 Label ID Character(s)
Page 101 ENTER/EXIT PROGRAMMING MODE DATA FORMAT Label ID Symbology Selection (continued) $CC1ID Code 11 Label ID Character(s) $CMSID MSI Label ID Character(s) $CPLID Plessey Label ID Character(s) $CALID Anker Plessey Label ID Character(s) $CCMID Set Matrix 2 of 5 Label ID Character(s) QUICKSCAN™...
Page 102: Reading Parameters
CONFIGURATION | READING PARAMETERS SECTION CONTENTS CANNING EATURES starting on page 88 • Scan Mode • Stand Mode/Object Detection Sensitivity • Scanning Active Time • Stand Mode/Object Detection Illumination Off Time • Flash On Time • Corded Stand Mode • Flash Off Time •...
Page 103: Scanning Features
ENTER/EXIT PROGRAMMING MODE READING PARAMETERS SCANNING FEATURES Scan Mode Selects the reader’s scan operating mode. See in “References” for descriptions. page 280 $CSNRM00  Scan Mode = Trigger Single $CSNRM01 Scan Mode = Trigger Hold Multiple $CSNRM02 Scan Mode = Trigger Pulse Multiple $CSNRM03 Scan Mode = Flashing $CSNRM04...
Page 104: Scanning Active Time
SCANNING FEATURES ENTER/EXIT PROGRAMMING MODE Scanning Active Time This setting specifies the amount of time that the reader stays in scan ON state once the state is entered. The range for this setting is from 1 to 255 seconds in 1-second incre- ments.
Page 105: Flash Off Time
ENTER/EXIT PROGRAMMING MODE READING PARAMETERS Flash Off Time This feature specifies the OFF time for the indicator LED while in Flash Mode. The select- able range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond incre- ments. See in “References”...
Page 106 SCANNING FEATURES ENTER/EXIT PROGRAMMING MODE Double Read Timeout (continued) $CSNDR32 Double Read Timeout = 0.5 Second $CSNDR3C  Double Read Timeout = 0.6 Second $CSNDR46 Double Read Timeout = 0.7 Second $CSNDR50 Double Read Timeout = 0.8 Second $CSNDR5A Double Read Timeout = 0.9 Second $CSNDR64 Double Read Timeout = 1 Second PRODUCT REFERENCE GUIDE...
Page 107: Stand /Base Detection Behavior (Quickscan™ Qd2500 Only)
ENTER/EXIT PROGRAMMING MODE READING PARAMETERS ™ Stand /Base Detection Behavior (QuickScan QD2500 only) Specifies the behavior of the reader when stationary in a stand. There are two condi- tions which cause the reader to switch to Stand Mode/Object Detection: • The reader is configured to switch to Stand Mode/Object Detection when station- ary.
Page 108: Stand Mode/Object Detection Indication (Stand Mode Flash)
SCANNING FEATURES ENTER/EXIT PROGRAMMING MODE Stand Mode/Object Detection Indication (Stand Mode Flash) This operation is useful for indicating when the reader is in Stand Mode. If enabled, the blue indicator will blink when Stand Mode scanning is active. $CSMFL00  Stand Mode/Object Detection Indication = Disable $CSMFL01 Stand Mode/Object Detection Indication = Enable...
Page 109: Stand Mode/Object Detection Illumination Off Time
ENTER/EXIT PROGRAMMING MODE READING PARAMETERS Stand Mode/Object Detection Illumination Off Time Specifies the amount of time reader illumination stays off after pulling the trigger when in Stand Mode/Object Detection. The configurable range is 01 to 32 by 01 in increments of 500ms (500ms to 16 seconds).
Page 110: Dock Detection Beep
SCANNING FEATURES ENTER/EXIT PROGRAMMING MODE Dock Detection Beep If enabled, when the Handheld reader is placed in a dock (base station or corded stand), it will beep. $CDDBE00  Dock Detection Beep = Disable $CDDBE01 Dock Detection Beep = Enable PRODUCT REFERENCE GUIDE...
Page 111: Led And Beeper Indicators
ENTER/EXIT PROGRAMMING MODE READING PARAMETERS LED AND BEEPER INDICATORS Power On Alert Disables or enables the indication (from the Beeper) that the reader is receiving power. $CBPPU00 Power On Alert = Disable (No Audible Indication) $CBPPU01  Power On Alert = Power-up Beep Good Read Beep Type Specifies whether the good read beep has a mono or bitonal beep sound.
Page 112: Good Read Beep Frequency
LED AND BEEPER INDICATORS ENTER/EXIT PROGRAMMING MODE Good Read Beep Frequency Adjusts the good read beep to sound at a selectable low, medium or high frequency, selectable from the list below. (Controls the beeper’s pitch/tone.) $CBPFR00 Good Read Beep Frequency = Low $CBPFR01 Good Read Beep Frequency = Medium $CBPFR02...
Page 113: Good Read Beep Length
ENTER/EXIT PROGRAMMING MODE READING PARAMETERS Good Read Beep Length $CBPLE06 Good Read Beep Length = 60 msec $CBPLE08  Good Read Beep Length = 80 msec $CBPLE0A Good Read Beep Length = 100 msec $CBPLE0C Good Read Beep Length = 120 msec $CBPLE0E Good Read Beep Length = 140 msec $CBPLE10...
Page 114: Good Read Beeper Volume
LED AND BEEPER INDICATORS ENTER/EXIT PROGRAMMING MODE Good Read Beeper Volume Selects the beeper volume (loudness) upon a good read beep. There are three select- able volume levels. $CBPVO00 Good Read Beeper Volume = Beeper Off $CBPVO01 Good Read Beeper Volume = Low $CBPVO02 Good Read Beeper Volume = Medium $CBPVO03...
Page 115: Silent Mode (Not Available For Qw2500)
ENTER/EXIT PROGRAMMING MODE READING PARAMETERS Silent Mode (not available for QW2500) If needed, audible indications can be disabled by scanning the labels below. Please note that some important audible notifications are not muted in silent mode and other notifications are replaced by visual indications. All changes in audible notifications are summarized here: •...
Page 116: Good Read Led Duration
LED AND BEEPER INDICATORS ENTER/EXIT PROGRAMMING MODE Good Read LED Duration This feature specifies the amount of time that the Good Read LED remains on following a good read. The good read LED on time can be set within a range of 100 milliseconds to 25,500 milliseconds (0.1 to 25.5 seconds) in 100ms increments.
Page 117: Good Read: When To Indicate
ENTER/EXIT PROGRAMMING MODE READING PARAMETERS Good Read: When to Indicate This feature specifies when the reader will provide indication (beep and/or flash its green LED) upon successfully reading a bar code. $CBPIN00  Indicate Good Read = After Decode $CBPIN01 Indicate Good Read = After Transmit $CBPIN02 Indicate Good Read =...
Page 118: Green Spot Duration
LED AND BEEPER INDICATORS ENTER/EXIT PROGRAMMING MODE Green Spot Duration Specifies the duration of the good read pointer beam after a good read. $CLSSP00 Green Spot Duration = Disable (Green Spot is Off) $CLSSP01  Green Spot Duration = Short (300 msec) $CLSSP02 Green Spot Duration = Medium (500 msec) $CLSSP03...
Page 119: Illuminator Intensity
ENTER/EXIT PROGRAMMING MODE READING PARAMETERS Illuminator Intensity With the following settings the illumination intensity can modified if needed. $CLADI00 Set Illumination Intensity Level = Low $CLADI01 Set Illumination Intensity Level = Mid-Low $CLADI02 Set Illumination Intensity Level = Mid $CLADI03 Set Illumination Intensity Level = Mid-High $CLADI04 ...
Page 120: Camera Control
CAMERA CONTROL ENTER/EXIT PROGRAMMING MODE CAMERA CONTROL Aiming Pointer Enables/disables the aiming pointer for all symbologies. $CTAAP00 Aiming Pointer = Disable $CTAAP01  Aiming Pointer = Enable $CTAAP02 Aiming Pointer = Green Spot Aiming Duration Timer Specifies the frame of time the aiming pointer remains on after decoding a label, when in trigger single mode.The range for this setting is from 1 to 255 seconds in 1-second increments.
Page 121: Pick Mode
Pick Mode = Enable Mobile Phone Mode This mode is useful for scanning bar codes displayed on a mobile phone. Other options for this feature can be configured using the Datalogic Aladdin application. $CSNPE00 Mobile Phone Mode = Disable $CSNPE01 ...
Page 122: Mobile Phone Saturation Rate
CAMERA CONTROL ENTER/EXIT PROGRAMMING MODE Mobile Phone Saturation Rate This specifies the minimum number of saturated pixels (every 1000 pixels) in the image in order to activate the Mobile Phone mode. $CSNPS00  Mobile Phone Saturation Rate = 00 $CSNPS01 Mobile Phone Saturation Rate = 01 $CSNPS02 Mobile Phone Saturation Rate = 02...
Page 123: Decode Negative Image
Decode Negative Image = Disable $CIPVR01 Decode Negative Image = Enable Image Capture For information and a list of options for Image Capture, use the Datalogic Aladdin con- figuration application, available for free download from the Datalogic Scanning website. QUICKSCAN™ 2500...
Page 124: Multiple Label Reading
MULTIPLE LABEL READING ENTER/EXIT PROGRAMMING MODE MULTIPLE LABEL READING In standard (default) mode, when the reader’s aiming system is activated (by a trigger pull, motion or other method depending on the mode), it acquires and processes each image in the area in front of it (the Volume). In this case, the reader stops processing the image once it decodes a label.
Page 125: Multiple Labels Ordering By Code Length
ENTER/EXIT PROGRAMMING MODE READING PARAMETERS Multiple Labels Ordering by Code Length Specifies the transmission ordering by code length, when Multiple Labels per Frame is enabled. $CSNMT00  Multiple Labels Ordering = Disable $CSNMT01 Multiple Labels Ordering = Transmit Increasing Length Order $CSNMT02 Multiple Labels Ordering = Transmit Decreasing Length Order...
Page 126: 1D Symbologies
CONFIGURATION | 1D SYMBOLOGIES SECTION CONTENTS ISABLE YMBOLOGIES starting on page 112 5 (I 2 OUPON ONTROL NTERLEAVED • starting on page 112 • starting on page 146 UPC-A 5, F NTERLEAVED EBRABAN • starting on page 113 • ODELS starting on page UPC-E 5 CIP HR...
Page 127: Disable All Symbologies
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES DISABLE ALL SYMBOLOGIES Scan this label to disable all symbologies. Disable All Symbologies COUPON CONTROL Coupon Control This feature is used to control the method of processing coupon labels. Options are: • Allow all — allow all coupon bar codes to be decoded •...
Page 128: Upc-A
UPC-A ENTER/EXIT PROGRAMMING MODE UPC-A The following options apply to the UPC-A symbology. UPC-A Enable/Disable When disabled, the reader will not read UPC-A bar codes. $CABEN00 UPC-A = Disable $CABEN01  UPC-A = Enable UPC-A Check Character Transmission Enable this option to transmit the check character along with UPC-A bar code data. $CABCT00 UPC-A Check Character Transmission = Don’t Send $CABCT01...
Page 129: Expand Upc-A To Ean-13
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Expand UPC-A to EAN-13 Expands UPC-A data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13. $CAB3B00  UPC-A to EAN-13 = Don’t Expand $CAB3B01 UPC-A to EAN-13 = Expand UPC-A Number System Character Transmission This feature enables/disables transmission of the UPC-A number system character.
Page 130: Upc-E
UPC-E ENTER/EXIT PROGRAMMING MODE UPC-E The following options apply to the UPC-E symbology. UPC-E Enable/Disable When disabled, the reader will not read UPC-E bar codes. $CEBEN00 UPC-E = Disable $CEBEN01  UPC-E = Enable UPC-E Check Character Transmission Enable this option to transmit the check character along with UPC-E bar code data. $CEBCT00 UPC-E Check Character Transmission = Don’t Send $CEBCT01...
Page 131: Expand Upc-E To Ean-13
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Expand UPC-E to EAN-13 Expands UPC-E data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13. $CEB3B00  UPC-E to EAN-13 = Don’t Expand $CEB3B01 UPC-E to EAN-13 = Expand Expand UPC-E to UPC-A Expands UPC-E data to the UPC-A data format.
Page 132: Gtin Formatting
UPC-E ENTER/EXIT PROGRAMMING MODE GTIN Formatting This feature enables/disables the ability to convert UPC-E, UPC-A, EAN-8, and EAN-13 labels into the GTIN 14-character format. $CGBEN00  GTIN Formatting = Disable $CGBEN01 GTIN Formatting = Enable PRODUCT REFERENCE GUIDE...
Page 133: 118
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES EAN-13 The following options apply to the EAN-13 symbology. EAN-13 Enable/Disable When disabled, the reader will not read EAN-13 bar codes. $C3BEN00 EAN-13 = Disable $C3BEN01  = Enable EAN-13 EAN-13 Check Character Transmission Enable this option to transmit the check character along with EAN-13 bar code data. $C3BCT00 EAN-13 Check Character Transmission = Don’t Send $C3BCT01...
Page 134: Ean-13 Flag 1 Character
EAN-13 ENTER/EXIT PROGRAMMING MODE EAN-13 Flag 1 Character Enables/disables transmission of an EAN/JAN-13 Flag1 character. The Flag 1 character is the first character of the label $C3BF100 EAN-13 Flag 1 Char = Don’t transmit $C3BF101  EAN-13 Flag 1 Char = Transmit EAN-13 to ISBN Conversion This option enables/disables conversion of EAN-13/JAN-13 Bookland labels starting with 978 to ISBN labels.
Page 135: Ean-13 To Issn Conversion
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES EAN-13 to ISSN Conversion Enables/disables conversion of EAN/JAN-13 Bookland labels starting with 977 to ISSN labels. $C3BIN00  ISSN = Disable $C3BIN01 ISSN = Enable QUICKSCAN™ 2500...
Page 136: 121
EAN-8 ENTER/EXIT PROGRAMMING MODE EAN-8 The following options apply to the EAN-8 symbology. EAN-8 Enable/Disable When disabled, the reader will not read EAN-8 bar codes. $C8BEN00 EAN-8 = Disable $C8BEN01  = Enable EAN-8 EAN-8 Check Character Transmission Enable this option to transmit the check character along with EAN-8 bar code data. $C8BCT00 EAN-8 Check Character Transmission = Don’t Send $C8BCT01...
Page 137: Expand Ean-8 To Ean-13
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Expand EAN-8 to EAN-13 Enable this option to expand EAN-8/JAN-8 labels to EAN-13/JAN-13. $C8B3B00  EAN-8 to EAN-13 = Don’t Expand $C8B3B01 EAN-8 to EAN-13 = Expand QUICKSCAN™ 2500...
Page 138: Upc/Ean Global Settings
UPC/EAN GLOBAL SETTINGS ENTER/EXIT PROGRAMMING MODE UPC/EAN GLOBAL SETTINGS This section provides configuration settings for UPC-A, UPC-E, EAN 13 and EAN 8 sym- bologies, and affects all of these unless otherwise marked for each feature description. UPC/EAN Price Weight Check This feature enables/disables calculation and verification of price/weight check digits.
Page 139: Upc/Ean Quiet Zones
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES UPC/EAN Quiet Zones This feature specifies the number of quiet zones for UPC/EAN labels. Quiet zones are blank areas at the ends of a bar code, typically 10 times the width of the narrowest bar or space in the label.
Page 140: Add-Ons
UPC/EAN GLOBAL SETTINGS ENTER/EXIT PROGRAMMING MODE Add-Ons The following features apply to optional add-ons. NOTE: Contact Customer Support for advanced programming of optional and conditional add-ons. Optional Add-ons The reader can be enabled to optionally read the following add-ons (supplementals): •...
Page 141: Optional Add-On Timer
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Optional Add-On Timer This option sets the time the reader will look for an add-on when an add-on fragment has been seen and optional add-ons are enabled. $CADOT01 Optional Add-on Timer = 10ms $CADOT02 Optional Add-on Timer = 20ms $CADOT03 Optional Add-on Timer = 30ms $CADOT05...
Page 142: Gs1 Databar™ Omnidirectional
GS1 DATABAR™ OMNIDIRECTIONAL ENTER/EXIT PROGRAMMING MODE GS1 DATABAR™ OMNIDIRECTIONAL The following options apply to the GS1 DataBar Omnidirectional (formerly RSS-14) sym- bology. GS1 DataBar Omnidirectional Enable/Disable When disabled, the reader will not read GS1 DataBar Omnidirectional bar codes. $C4BEN00  GS1 DataBar Omnidirectional = Disable $C4BEN01 GS1 DataBar Omnidirectional = Enable...
Page 143: Gs1 Databar™ Expanded
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES GS1 DATABAR™ EXPANDED The following options apply to the GS1 DataBar Expanded (formerly RSS Expanded) sym- bology. GS1 DataBar Expanded Enable/Disable When disabled, the reader will not read GS1 DataBar Expanded bar codes. $CXBEN00  GS1 DataBar Expanded = Disable $CXBEN01 GS1 DataBar Expanded = Enable...
Page 144: Gs1 Databar Expanded Length Control
GS1 DATABAR™ EXPANDED ENTER/EXIT PROGRAMMING MODE GS1 DataBar Expanded Length Control This feature specifies either variable length decoding or fixed length decoding for the GS1 DataBar Expanded symbology. For variable-length decoding, a minimum length may be set. Variable Length: For fixed-length decoding, two different lengths may be set. Fixed Length: $CXBLC00 ...
Page 145: Gs1 Databar Expanded Set Length 2
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES GS1 DataBar Expanded Set Length 2 This feature specifies one of the bar code lengths for " GS1 DataBar Expanded Length . Length 2 is the maximum label length if in Variable Length Mode, Control" on page 129 or the second fixed length if in Fixed Length Mode.
Page 146: Gs1 Databar™ Limited
GS1 DATABAR™ LIMITED ENTER/EXIT PROGRAMMING MODE GS1 DATABAR™ LIMITED The following options apply to the GS1 DataBar Limited (formerly RSS Limited) symbol- ogy. GS1 DataBar Limited Enable/Disable When disabled, the reader will not read GS1 DataBar Limited bar codes. $CLBEN00 ...
Page 147: Code 39
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES CODE 39 The following options apply to the Code 39 symbology. Code 39 Enable/Disable When disabled, the reader will not read Code 39 bar codes. $CC3EN00 Code 39 = Disable $CC3EN01  Code 39 = Enable Code 39 Check Character Calculation Enable this option to enable/disable calculation and verification of an optional Code 39 check character.
Page 148: Code 39 Check Character Transmission
CODE 39 ENTER/EXIT PROGRAMMING MODE $CC3CC08 Code 39 Check Character Calculation = Enable Daimler Chrysler Check Code 39 Check Character Transmission Enable this option to transmit the check character along with Code 39 bar code data. $CC3CT00 Code 39 Check Character Transmission = Don’t Send $CC3CT01 ...
Page 149: Code 39 Full Ascii
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Code 39 Full ASCII In Code 39 decoding, this enables/disables the translation of Code 39 characters to Code 39 full-ASCII characters. $CC3FA00  Code 39 Full ASCII = Disable $CC3FA01 Code 39 Full ASCII = Enable Code 39 Quiet Zones This feature specifies the number of quiet zones for Code 39 labels.
Page 150: Code 39 Length Control
CODE 39 ENTER/EXIT PROGRAMMING MODE Code 39 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 39 symbology. For variable-length decoding, a minimum length may be set. Variable Length: For fixed-length decoding, two different lengths may be set. Fixed Length: $CC3LC00 ...
Page 151: Code 39 Set Length 2
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Code 39 Set Length 2 This feature specifies one of the bar code lengths for " Code 39 Length Control" on page . Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 152: Trioptic Code
TRIOPTIC CODE ENTER/EXIT PROGRAMMING MODE TRIOPTIC CODE The following options apply to the trioptic symbology. Trioptic Code Enable/Disable When disabled, the reader will not read Trioptic Code bar codes. $CCTEN00  Trioptic Code = Disable $CCTEN01 Trioptic Code = Enable CODE 39 DANISH PPT The following options apply to the Code 39 Danish PPT symbology.
Page 153: Code 39 Pzn
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES CODE 39 PZN The following options apply to the Code 39 PZN symbology. Code 39 PZN Enable/Disable When disabled, the reader will not read Code 39 PZN bar codes. $CPZEN00  Code 39 PZN = Disable $CPZEN01 Code 39 PZN = Enable CODE 39 LA POSTE...
Page 154: Code 32 (Italian Pharmaceutical)
CODE 32 (ITALIAN PHARMACEUTICAL) ENTER/EXIT PROGRAMMING MODE CODE 32 (ITALIAN PHARMACEUTICAL) The following options apply to the Code 32 symbology. Code 32 Enable/Disable When disabled, the reader will not read Code 32 bar codes. $CP3EN00  Code 32 = Disable $CP3EN01 Code 32 = Enable Code 32 Feature Setting Exceptions...
Page 155: Code 32 Start/Stop Character Transmission
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Code 32 Start/Stop Character Transmission Enable this option to enable/disable transmission of Code 32 start and stop characters. $CP3SS00  Code 32 Start/Stop Character Transmission = Don’t Transmit $CP3SS01 Code 32 Start/Stop Character Transmission = Transmit CODE 39 CIP HR (FRENCH PHARMACEUTICAL) The following options apply to the Code 39 CIP HR symbology.
Page 156: Code 128
CODE 128 ENTER/EXIT PROGRAMMING MODE CODE 128 The following options apply to the Code 128 symbology. Code 128 Enable/Disable Enables/Disables ability of the reader to decode Code 128 labels. $CC8EN00 Code 128 = Disable $CC8EN01  Code 128 = Enable Expand Code 128 to Code 39 This feature enables/disables expansion of Code 128 labels to Code 39 labels.
Page 157: Code 128 Check Character Transmission
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Code 128 Check Character Transmission Enable this option to transmit the check character along with Code 128 bar code data. $CC8CT00  Code 128 Check Character Transmission = Don’t Send $CC8CT01 Code 128 Check Character Transmission = Send Code 128 Function Character Transmission Enables/disables transmission of Code128 function characters 1, 2, 3, and 4.
Page 158: Code 128 Quiet Zones
CODE 128 ENTER/EXIT PROGRAMMING MODE Code 128 Quiet Zones This feature specifies the number of quiet zones for Code 128 labels. Quiet zones are blank areas at the ends of a bar code and are typically 10 times the width of the narrow- est bar or space in the label.
Page 159: Code 128 Set Length 1
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Code 128 Set Length 1 This feature specifies one of the bar code lengths for " Code 128 Length Control" on page . Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 160: Gs1-128
GS1-128 ENTER/EXIT PROGRAMMING MODE GS1-128 The following options apply to the GS1-128 symbology. (Also known as USS-128, GTIN- 128, UCC-128.) GS1-128 Enable This option enables/disables the ability of the reader to translate GS1-128 labels to the GS1-128 data format. Options are: •...
Page 161: Interleaved 2 Of 5 (I 2 Of 5)
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES INTERLEAVED 2 OF 5 (I 2 OF 5) The following options apply to the I 2 of 5 symbology. CAUTION: When reading this symbology, the settings for I 2 of 5 Length Control AND I 2 of 5 Check Character Calculation MUST be enabled to increase decoding safety.
Page 162: I 2 Of 5 Check Character Calculation
INTERLEAVED 2 OF 5 (I 2 OF 5) ENTER/EXIT PROGRAMMING MODE I 2 of 5 Check Character Calculation This option enables/disables calculation and verification of an optional I 2 of 5 check character. $CI2CC00  I 2 of 5 Check Character Calculation = Disable $CI2CC01 I 2 of 5 Check Character Calculation = Calculate Std Check (Modulo 10 no AR)
Page 163: I 2 Of 5 Check Character Transmission
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES I 2 of 5 Check Character Calculation (continued) $CI2CC10 I 2 of 5 Check Character Calculation = Calculate Bosch Check $CI2CC20 I 2 of 5 Check Character Calculation = Calculate Italian Post Check I 2 of 5 Check Character Transmission Enable this option to transmit the check character along with I 2 of 5 bar code data.
Page 164: I 2 Of 5 Length Control
INTERLEAVED 2 OF 5 (I 2 OF 5) ENTER/EXIT PROGRAMMING MODE I 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the I 2 of 5 symbology. For variable-length decoding, a minimum length may be set. Variable Length: For fixed-length decoding, two different lengths may be set.
Page 165: I 2 Of 5 Set Length 2
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES I 2 of 5 Set Length 2 This feature specifies one of the bar code lengths for " I 2 of 5 Length Control" on page . Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 166: Interleaved 2 Of 5, Febraban (Desk Models Only)
INTERLEAVED 2 OF 5, FEBRABAN (DESK MODELS ONLY) ENTER/EXIT PROGRAMMING MODE INTERLEAVED 2 OF 5, FEBRABAN (DESK MODELS ONLY) Interleaved 2 of 5, Febraban format Enable / Disable NOTE: Interleaved 2 of 5 shall be enabled before enabling Febraban variant. Enables/Disables ability of reader to decode Interleaved 2 of 5, Febraban format.
Page 167: Matrix 2 Of 5
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES MATRIX 2 OF 5 The following options apply to the Matrix 2 of 5 symbology. Matrix 2 of 5 Enable/Disable When disabled, the reader will not read Matrix 2 of 5 bar codes. $CM2EN00  Matrix 2 of 5 = Disable $CM2EN01 Matrix 2 of 5 = Enable...
Page 168: Matrix 2 Of 5 Check Character Transmission
MATRIX 2 OF 5 ENTER/EXIT PROGRAMMING MODE Matrix 2 of 5 Check Character Transmission This feature enables/disables transmission of an optional Matrix 2 of 5 check character. $CM2CT00 Matrix 2 of 5 Check Character Transmission = Don’t Send $CM2CT01  Matrix 2 of 5 Check Character Transmission = Send Matrix 2 of 5 Length Control...
Page 169: Matrix 2 Of 5 Set Length 1
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Matrix 2 of 5 Set Length 1 This feature specifies one of the bar code lengths for " Standard 2 of 5 Length Control" on . Length 1 is the minimum label length if in Variable Length Mode, or the first page 156 fixed length if in Fixed Length Mode.
Page 170: Standard 2 Of 5
STANDARD 2 OF 5 ENTER/EXIT PROGRAMMING MODE STANDARD 2 OF 5 The following options apply to the Standard 2 of 5 symbology. Standard 2 of 5 Enable/Disable When disabled, the reader will not read Standard 2 of 5 bar codes. $CS2EN00 ...
Page 171: Standard 2 Of 5 Check Character Transmission
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Standard 2 of 5 Check Character Transmission This feature enables/disables transmission of an optional Standard 2 of 5 check charac- ter. $CS2CT00 Standard 2 of 5 Check Character Transmission = Don’t Send $CS2CT01  Standard 2 of 5 Check Character Transmission = Send Standard 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the...
Page 172: Standard 2 Of 5 Set Length 1
STANDARD 2 OF 5 ENTER/EXIT PROGRAMMING MODE Standard 2 of 5 Set Length 1 This feature specifies one of the bar code lengths for " Standard 2 of 5 Length Control" on . Length 1 is the minimum label length if in Variable Length Mode, or the first page 156 fixed length if in Fixed Length Mode.
Page 173: Compressed 2 Of 5
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES COMPRESSED 2 OF 5 The following options apply to the Compressed 2 of 5 symbology. Compressed 2 of 5 Enable/Disable When disabled, the reader will not read Compressed 2 of 5 bar codes. $CC2EN00  Compressed 2 of 5 = Disable $CC2EN01 Compressed 2 of 5 = Enable...
Page 174: Compressed 2 Of 5 Check Character Transmission
COMPRESSED 2 OF 5 ENTER/EXIT PROGRAMMING MODE Compressed 2 of 5 Check Character Transmission This feature enables/disables transmission of an optional Compressed 2 of 5 check char- acter. $CC2CT00 Compressed 2 of 5 Check Character Transmission = Don’t Send $CC2CT01 ...
Page 175: Compressed 2 Of 5 Set Length 1
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Compressed 2 of 5 Set Length 1 This feature specifies one of the bar code lengths for " Compressed 2 of 5 Length Control" . Length 1 is the minimum label length if in Variable Length Mode, or the on page 159 first fixed length if in Fixed Length Mode.
Page 176: Datalogic 2 Of 5
DATALOGIC 2 OF 5 The following options apply to the Datalogic 2 of 5 symbology. Datalogic 2 of 5 Enable/Disable When disabled, the reader will not read Datalogic 2 of 5 bar codes. $CD2EN00  Datalogic 2 of 5 = Disable...
Page 177: Datalogic 2 Of 5 Check Character Transmission
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Datalogic 2 of 5 Check Character Transmission Enable this option to transmit the check character along with Datalogic 2 of 5 bar code data. $CD2CT00 Datalogic 2 of 5 Check Character Transmission = Don’t Send $CD2CT01 ...
Page 178: Datalogic 2 Of 5 Set Length 1
Alphanu- meric characters in Appendix D, Keypad represent- Select Datalogic 2 of 5 Set Length 2 Setting ing your desired character(s). End by scanning the $CD2L2 ENTER/EXIT bar code again. Make a mistake? Scan the CANCEL bar code to abort and not save the entry string.
Page 179: Industrial 2 Of 5
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES INDUSTRIAL 2 OF 5 The following options apply to the Industrial 2 of 5 symbology. Industrial 2 of 5 Enable/Disable When disabled, the reader will not read Industrial 2 of 5 bar codes. $CU2EN00  Industrial 2 of 5 = Disable $CU2EN01 Industrial 2 of 5 = Enable...
Page 180: Industrial 2 Of 5 Check Character Transmission
INDUSTRIAL 2 OF 5 ENTER/EXIT PROGRAMMING MODE Industrial 2 of 5 Check Character Transmission Enables/disables transmission of an Industrial 2 of 5 check character. $CU2CT00 Industrial 2 of 5 Check Character Transmission = Don’t Send $CU2CT01  Industrial 2 of 5 Check Character Transmission = Send Industrial 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the...
Page 181: Industrial 2 Of 5 Set Length 1
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Industrial 2 of 5 Set Length 1 This feature specifies one of the bar code lengths for " Industrial 2 of 5 Length Control" on . Length 1 is the minimum label length if in Variable Length Mode, or the first page 165 fixed length if in Fixed Length Mode.
Page 182: Iata
IATA ENTER/EXIT PROGRAMMING MODE IATA The following options apply to the IATA symbology. IATA Enable/Disable Enables/Disables the ability of the reader to decode IATA labels. $CIAEN00  IATA = Disable $CIAEN01 IATA = Enable IATA Check Character Transmission Enables/Disables calculation and verification of an optional IATA check character. $CIACT00 IATA Check Character Transmission = Don’t Send...
Page 183: Follett 2 Of 5
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES FOLLETT 2 OF 5 The following options apply to the Follett 2 of 5 symbology. Follett 2 of 5 Enable/Disable Enables/Disables ability of reader to decode Follett 2 of 5 labels. $CF2EN00  Follett 2 of 5 = Disable $CF2EN01 Follett 2 of 5 = Enable QUICKSCAN™...
Page 184: Codabar
CODABAR ENTER/EXIT PROGRAMMING MODE CODABAR The following options apply to the Codabar symbology. Codabar Enable/Disable When disabled, the reader will not read Codabar bar codes. $CCBEN00  Codabar = Disable $CCBEN01 Codabar = Enable Codabar Check Character Calculation This option enables/disables calculation and verification of an optional Codabar check character.
Page 185: Codabar Check Character Transmission
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Codabar Check Character Transmission Enable this option to transmit the check character along with Codabar bar code data. NOTE: This feature is valid only when Codabar Check Character Calculation is enabled. $CCBCT00 Codabar Check Character Transmission = Don’t Send $CCBCT01 ...
Page 186: Codabar Start/Stop Character Set
CODABAR ENTER/EXIT PROGRAMMING MODE Codabar Start/Stop Character Set This option specifies the format of transmitted Codabar start/stop characters. $CCBSC00 Codabar Check Character Set = ABCD/TN*E $CCBSC01 Codabar Check Character Set = ABCD/ABCD $CCBSC02 Codabar Check Character Set = abcd/tn*e $CCBSC03 ...
Page 187: Codabar Quiet Zones
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Codabar Quiet Zones This feature specifies the number of quiet zones for Codabar labels. Quiet zones are blank areas at the ends of a bar code and are typically 10 times the width of the narrow- est bar or space in the label.
Page 188: Codabar Length Control
CODABAR ENTER/EXIT PROGRAMMING MODE Codabar Length Control This feature specifies either variable length decoding or fixed length decoding for the Codabar symbology. For variable-length decoding, a minimum length may be set. Variable Length: For fixed-length decoding, two different lengths may be set. Fixed Length: $CCBLC00 ...
Page 189: Codabar Set Length 2
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Codabar Set Length 2 This feature specifies one of the bar code lengths for " Codabar Length Control" on page . Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 190: Abc Codabar
ABC CODABAR ENTER/EXIT PROGRAMMING MODE ABC CODABAR The following options apply to the ABC Codabar symbology. ABC Codabar Enable/Disable Enables/Disables ability of reader to decode ABC Codabar labels. $CCBAB00  ABC Codabar = Disable $CCBAB01 ABC Codabar = Enable ABC Codabar Concatenation Mode Specifies the concatenation mode between Static and Dynamic.
Page 191: Abc Codabar Dynamic Concatenation Timeout
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES ABC Codabar Dynamic Concatenation Timeout This parameter specifies the timeout in 10-millisecond ticks used by the ABC Codabar Dynamic Concatenation Mode. The timeout can be set within a range of 05 to 255 in 10ms increments. A setting of zero specifies no delay. To configure this feature, scan the ENTER/EXIT PRO- GRAMMING MODE bar code above, then the bar code at left followed by the digits from the Alphanu-...
Page 192: Isbt 128
ISBT 128 ENTER/EXIT PROGRAMMING MODE ISBT 128 The following options apply to the ISBT 128 symbology. ISBT 128 Concatenation Enables/disables ISBT 128 concatenation of 2 labels. $CI8CE00  ISBT 128 Concatenation = Disable $CI8CE01 ISBT 128 Concatenation = Enable ISBT 128 Concatenation Mode Specifies the concatenation mode between Static and Dynamic.
Page 193: Isbt 128 Dynamic Concatenation Timeout
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES ISBT 128 Dynamic Concatenation Timeout Specifies the timeout used by the ISBT 128 Dynamic Concatenation Mode. $CI8DT05 ISBT 128 Dynamic Concatenation Timeout = 50 msec $CI8DT0A ISBT 128 Dynamic Concatenation Timeout = 100 msec $CI8DT14 ...
Page 194: Isbt 128 Force Concatenation
ISBT 128 Force Contatenation = Disable $CI8FC01 ISBT 128 Force Concatenation = Enable ISBT 128 Advanced Concatenation Options NOTE: Use the Datalogic Aladdin configuration application or Contact Cus- tomer Support to set up pairs of label types for concatenation. PRODUCT REFERENCE GUIDE...
Page 195: Code 11
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES CODE 11 The following options apply to the Code 11 symbology. Code 11 Enable/Disable When disabled, the reader will not read Code 11 bar codes. $CC1EN00  Code 11 = Disable $CC1EN01 Code 11 = Enable Code 11 Check Character Calculation This option enables/disables calculation and verification of optional Code 11 check character.
Page 196: Code 11 Check Character Transmission
CODE 11 ENTER/EXIT PROGRAMMING MODE Code 11 Check Character Transmission This feature enables/disables transmission of an optional Code 11 check character. $CC1CT00 Code 11 Check Character Transmission = Don’t Send $CC1CT01  Code 11 Check Character Transmission = Send Code 11 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 11 symbology.
Page 197: Code 11 Set Length 1
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Code 11 Set Length 1 This feature specifies one of the bar code lengths for " Code 11 Length Control" on page . Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 198: Code 93
CODE 93 ENTER/EXIT PROGRAMMING MODE CODE 93 The following options apply to the Code 93 symbology. Code 93 Enable/Disable Enables/Disables ability of reader to decode Code 93 labels. $CC9EN00  Code 93 = Disable $CC9EN01 Code 93 = Enable Code 93 Check Character Calculation This option enables/disables calculation and verification of optional Code 93 check character.
Page 199: Code 93 Check Character Transmission
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Code 93 Check Character Transmission This feature enables/disables transmission of an optional Code 93 check character. $CC9CT00  Code 93 Check Character Transmission = Don’t Send $CC9CT01 Code 93 Check Character Transmission = Send Code 93 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 93 symbology.
Page 200: Code 93 Set Length 1
CODE 93 ENTER/EXIT PROGRAMMING MODE Code 93 Set Length 1 This feature specifies one of the bar code lengths for " Code 93 Length Control" on page . Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 201: Code 93 Quiet Zones
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Code 93 Quiet Zones This feature specifies the number of quiet zones for Code 93 labels. Quiet zones are blank areas at the ends of a bar code and are typically 10 times the width of the narrow- est bar or space in the label.
Page 202: Msi
ENTER/EXIT PROGRAMMING MODE The following options apply to the MSI symbology. MSI Enable/Disable Enables/Disables ability of reader to decode MSI labels. $CMSEN00  MSI = Disable $CMSEN01 MSI = Enable MSI Check Character Calculation Enables/Disables calculation and verification of an optional MSI check character. $CMSCC00 MSI Check Character Calculation = Disable $CMSCC01...
Page 203: Msi Check Character Transmission
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES MSI Check Character Transmission Enables/disables transmission of an MSI check character. $CMSCT00 MSI Check Character Transmission = Don’t Send $CMSCT01  MSI Check Character Transmission = Send MSI Length Control This feature specifies either variable length decoding or fixed length decoding for the MSI symbology.
Page 204: Msi Set Length 1
ENTER/EXIT PROGRAMMING MODE MSI Set Length 1 This feature specifies one of the bar code lengths for " MSI Length Control" on page 188 Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 205: Plessey
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES PLESSEY The following options apply to the Plessey symbology. Plessey Enable/Disable Enables/Disables ability of reader to decode Plessey labels. $CPLEN00  Plessey = Disable $CPLEN01 Plessey = Enable Plessey Check Character Calculation Enables/Disables calculation and verification of a Plessey check character. $CPLCC00 Plessey Check Character Calculation = Disable $CPLCC01...
Page 206: Plessey Check Character Transmission
PLESSEY ENTER/EXIT PROGRAMMING MODE Plessey Check Character Transmission Enables/disables transmission of a Plessey check character. $CPLCT00 Plessey Check Character Transmission = Don’t Send $CPLCT01  Plessey Check Character Transmission = Send Plessey Length Control This feature specifies either variable length decoding or fixed length decoding for the Plessey symbology.
Page 207: Plessey Set Length 1
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Plessey Set Length 1 This feature specifies one of the bar code lengths for " Plessey Length Control" on page . Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 208: Bc412
BC412 ENTER/EXIT PROGRAMMING MODE BC412 The following options apply to the BC412 symbology. BC412 Enable/Disable Enables/Disables ability of reader to decode BC412 labels. $CBCEN00  BC412 = Disable $CBCEN01 BC412 = Enable BC412 Check Character Calculation Enable this option to enable/disable calculation and verification of an optional BC412 check character.
Page 209: Bc412 Length Control
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES BC412 Length Control This feature specifies either variable length decoding or fixed length decoding for the BC412 symbology. For variable-length decoding, a minimum length may be set. Variable Length: For fixed-length decoding, two different lengths may be set. Fixed Length: $CBCLC00 ...
Page 210: Bc412 Set Length 1
BC412 ENTER/EXIT PROGRAMMING MODE BC412 Set Length 1 This feature specifies one of the bar code lengths for " BC412 Length Control" on page . Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 211: Symbologies
CONFIGURATION | SYMBOLOGIES SECTION CONTENTS GLOBAL FEATURES • starting on page 197 PDF417 ZTEC • starting on page 200 • starting on page 212 PDF417 HINA ENSIBLE ICRO • starting on page • starting on page 214 QR C ATRIX •...
Page 212: 2D Global Features
2D GLOBAL FEATURES The following features are common to all, or in some cases, most of the available 2D symbologies. Default settings are indicated at each feature/option with a green arrow. Also reference Appendix B, Standard Defaults for a listing of the most widely used set of standard factory settings.
Page 213: 2D Maximum Decoding Time
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES 2D Maximum Decoding Time This feature specifies the maximum amount of time the software will spend attempting to decode a 2D label. The selectable range is 10 milliseconds to 2.55 milliseconds. $CDETM0A 2D Maximum Decoding Time = 100 msec $CDETM14 2D Maximum Decoding Time = 200 msec $CDETM23...
Page 214: 2D Structured Append
2D GLOBAL FEATURES ENTER/EXIT PROGRAMMING MODE 2D Structured Append Enables/disables ability of reader to append multiple 2D Codes labels in a structured format. The structured append property is globally applied to the following symbolo- gies, if these are enabled: • Data Matrix •...
Page 215: Aztec Code
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES AZTEC CODE Aztec Code Enable / Disable Enables/disables the ability of the reader to decode Aztec Code labels. $CAZEN00 Aztec Code = Disable $CAZEN01  Aztec Code = Enable Aztec Code Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology.
Page 216: Aztec Code Set Length 1
AZTEC CODE ENTER/EXIT PROGRAMMING MODE Aztec Code Set Length 1 Specifies one of the bar code lengths for " Aztec Code Length Control" on page 200 Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 217: China Sensible Code
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES CHINA SENSIBLE CODE China Sensible Code Enable / Disable Enables/disables the ability of the reader to decode China Sensible Code labels. $CCSEN00  China Sensible Code = Disable $CCSEN01 China Sensible Code = Enable China Sensible Code Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology.
Page 218: China Sensible Code Set Length 1
CHINA SENSIBLE CODE ENTER/EXIT PROGRAMMING MODE China Sensible Code Set Length 1 Specifies one of the bar code lengths for " China Sensible Code Length Control" on page . Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 219: Data Matrix
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES DATA MATRIX Data Matrix Enable / Disable Enables/disables ability of reader to decode Data Matrix labels. $CDMEN00 Data Matrix = Disable $CDMEN01  Data Matrix = Enable Data Matrix Square/Rectangular Style Specifies the options available when reading Data Matrix with different form factors. Choices are: •...
Page 220: Data Matrix Length Control
DATA MATRIX ENTER/EXIT PROGRAMMING MODE Data Matrix Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology. Variable Length: For variable length decoding, a minimum and maximum length may be set. Fixed Length: For fixed length decoding, two different lengths may be set. $CDMLC00 ...
Page 221: Data Matrix Set Length 2
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES Data Matrix Set Length 2 This feature specifies one of the bar code lengths for " Data Matrix Length Control" on . Length 2 is the maximum label length if in Variable Length Mode, or the sec- page 205 ond fixed length if in Fixed Length Mode.
Page 222: Gs1 Dotcode
GS1 DOTCODE ENTER/EXIT PROGRAMMING MODE GS1 DOTCODE The following options apply for the DotCode barcode decoding DotCode Enable This options enables/disables the ability of the reader to decode DotCode barcodes. $CDCEN01 DotCode = Enable $CDCEN00  DotCode = Disable DotCode High Resolution Enable This options improves the decoding performance for very small module size barcodes, e.g.
Page 223: Dotcode Position-Based Decoding
DotCode Position-based Decoding = Enable $CDCCP00  DotCode Position-based Decoding = Disable Additional Options To improve performances the following additional settings are available using Aladdin configuration utility, downloadable from www.datalogic.com. • Dot Size • Fixed Length or Variable Length •...
Page 224: Maxicode
MAXICODE ENTER/EXIT PROGRAMMING MODE MAXICODE Maxicode Enable / Disable Enables/disables ability of reader to decode Maxicode labels. $CMXEN00  Maxicode = Disable $CMXEN01 Maxicode = Enable Maxicode Primary Message Transmission Enables/disables the transmission of only the Primary Message when the Secondary Message is not readable.
Page 225: Maxicode Length Control
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES Maxicode Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology. Variable Length: For variable length decoding, a minimum and maximum length may be set. Fixed Length: For fixed length decoding, two different lengths may be set. $CMXLC00 ...
Page 226: Maxicode Set Length 2
MAXICODE ENTER/EXIT PROGRAMMING MODE Maxicode Set Length 2 This feature specifies one of the bar code lengths for " Maxicode Length Control" on page . Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 227: Pdf417
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES PDF417 PDF417 Enable / Disable Enables/disables the ability of the reader to decode PDF417 labels. $CP4EN00 PDF417 = Disable $CP4EN01  PDF417 = Enable PDF417 Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology.
Page 228: Pdf417 Set Length 1
PDF417 ENTER/EXIT PROGRAMMING MODE PDF417 Set Length 1 Specifies one of the bar code lengths for " . Length 1 PDF417 Length Control" on page 212 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 229: Micro Pdf417
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES MICRO PDF417 Micro PDF417 Enable / Disable Enables/disables the ability of the reader to decode Micro PDF417 labels. $CMIEN00 Micro PDF417 = Disable $CMIEN01  Micro PDF417 = Enable Micro PDF417 Code 128 GS1-128 Emulation Specifies which AIM ID to use for Micro PDF labels when doing Code 128 or GS1-128 emulation.
Page 230: Micro Pdf417 Length Control
MICRO PDF417 ENTER/EXIT PROGRAMMING MODE Micro PDF417 Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology. Variable Length: For variable length decoding, a minimum and maximum length may be set. Fixed Length: For fixed length decoding, two different lengths may be set. $CMILC00 ...
Page 231: Micro Pdf417 Set Length 2
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES Micro PDF417 Set Length 2 This feature specifies one of the bar code lengths for " Micro PDF417 Length Control" on . Length 2 is the maximum label length if in Variable Length Mode, or the sec- page 215 ond fixed length if in Fixed Length includes the bar code’s data characters only.
Page 232: Qr Code
QR CODE ENTER/EXIT PROGRAMMING MODE QR CODE QR Code Enable / Disable Enables/disables the ability of the reader to decode QR Code labels. $CQREN00 QR Code = Disable $CQREN01  QR Code = Enable QR Code Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology.
Page 233: Qr Code Set Length 1
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES QR Code Set Length 1 This feature specifies one of the bar code lengths for " QR Code Length Control" on page . Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 234: Micro Qr Code
MICRO QR CODE ENTER/EXIT PROGRAMMING MODE MICRO QR CODE Micro QR Code Enable / Disable Enables/disables the ability of the reader to decode Micro QR Code labels. $CMQEN00  Micro QR Code = Disable $CMQEN01 Micro QR Code = Enable Micro QR Code Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology.
Page 235: Micro Qr Code Set Length 1
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES Micro QR Code Set Length 1 This feature specifies one of the bar code lengths for " Micro QR Code Length Control" on . Length 1 is the minimum label length if in Variable Length Mode, or the first page 219 fixed length if in Fixed Length Mode.
Page 236: Ucc Composite
UCC COMPOSITE ENTER/EXIT PROGRAMMING MODE UCC COMPOSITE UCC Optional Composite Timer Specifies the amount of time the system will wait for the stacked part of a UCC Compos- ite label before transmitting the linear label without an add-on. The UCC Optional Com- posite Timer can be set within a range of 10 to 300 msec.
Page 237: Postal Code Selection
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES Postal Code Selection Enables/disables the ability of the reader to decode labels of a specific postal symbol- ogy. • Disable All Postal Codes • Australia Post • Postnet • Japan Post • Planet • • Royal Mail •...
Page 238: Postnet Bb Control
UCC COMPOSITE ENTER/EXIT PROGRAMMING MODE Postal Code Selection (continued) $CPOEN07 Postal Code Selection = Enable IMB $CPOEN08 Postal Code Selection = Enable Sweden Post $CPOEN09 Postal Code Selection = Enable Portugal Post Postnet BB Control Controls the ability of the reader to decode B and B' fields of Postnet labels. $CPOBB00 ...
Page 239: Ocr Decoding
CONFIGURATION | OCR DECODING The QX25 bar code family is equipped with an Optical Character Recognition feature. This section describes how to configure the Datalogic bar code reader to enable OCR decoding. The QX25 models support the following OCR font types: •...
Page 240: Ocr Decoding Predefined Templates
ENTER/EXIT PROGRAMMING MODE OCR Decoding Predefined Templates The following selections are exclusive, enabling one template automatically disables the others. $COCEN00000000  OCR Predefined Template = Disable OCR Function $COCEN00000001 OCR Predefined Template = EU Identity Card OCR $COCEN00000002 OCR Predefined Template = IATA Passport OCR $COCEN00000004 OCR Predefined Template = Italian Post OCR Payment $COCEN00000008...
Page 241: Motion Features
CONFIGURATION | MOTION FEATURES SECTION CONTENTS OTION EATURES starting on page 226 • Motionless Timeout • High Motion Immunity • Motion Sensitivity • Motion Aiming Control • DOF Enhancement (Not available for QW2500) • Use this chapter to configure motion settings for the handheld. Reference Appendix B, for a listing of standard factory settings.
Page 242: Motionless Timeout
ENTER/EXIT PROGRAMMING MODE Motionless Timeout The period of time that must expire without detecting any motion, before the reader is assumed to be in a motionless condition. The selectable setting is from 500 to 25,500 milliseconds in 100 millisecond increments. This option relates to such features as Aimer On and Stand Mode/Object Detection scanning with respect to motion.
Page 243: High Motion Immunity
ENTER/EXIT PROGRAMMING MODE MOTION FEATURES High Motion Immunity When set to triggerless scanning mode (e.g. Flashing, Always On, Stand Mode/Object Detection, etc.) the reading capabilities can be modified according to two main goals: • increased performance for rapidly moving barcodes - Enable High Motion Immunity: •increased performance for distant barcodes - Disable High Motion Immunity: Depending on specific environmental conditions, application requirements, or expected performance, choose the best solution.
Page 244: Dof Enhancement (Not Available For Qw2500)
ENTER/EXIT PROGRAMMING MODE DOF Enhancement (Not available for QW2500) When DOF Enhancement is enabled improves the reading performances. $CSNDE00  Enhance product DOF = Disable $CSNDE01 Enhance product DOF = Enable $CSNDE02 Enhance product DOF = Auto PRODUCT REFERENCE GUIDE...
Page 245: Power Management
CONFIGURATION | POWER MANAGEMENT SECTION CONTENTS OWER starting on page 231 • Powerdown Timeout ATTERY ROFILES starting on page 232 • Battery Profiles • Battery Information These parameters refer to Mobile units only. QUICKSCAN™ 2500...
Page 246: Power Save
POWER SAVE ENTER/EXIT PROGRAMMING MODE POWER SAVE Powerdown Timeout The Powerdown Timeout feature sets the time for automatically switching the unit off when the imager has been idle. $CSLPS00 Powerdown Timeout = Disable $CSLPS01 Powerdown Timeout = 10 minutes $CSLPS02 Powerdown Timeout = 20 minutes $CSLPS03 ...
Page 247: Battery Profiles
ENTER/EXIT PROGRAMMING MODE POWER MANAGEMENT BATTERY PROFILES Battery Profiles QuickScan 2500 provides the user the ability to select different usage profiles to better configure the reader with respect to specific needs. By default, the Maximum Perfor- mance profile is selected and provides high snappiness and max reading capability. The user can then decide to exploit specific features when others are considered less important, for instance: fast battery recharge instead of battery health, maximum read- ing performance instead of battery autonomy, etc.
Page 248: Battery Information
Fast Charge • Reduced recharge time (approx. 20%) • Motionix™ disabled • Scan-While-Charging disabled (Trigger Single) Battery Information By using Datalogic Aladdin utility, additional battery data can be retrieved, i.e.: • HH Serial Number • Charge % • Health % •...
Page 249: Wireless Features
CONFIGURATION | WIRELESS FEATURES SECTION CONTENTS IRELESS EEPER EATURES starting on page 235 • • Good Transmission Beep Disconnect Beep • • Beeper Frequency Docking (Connecting) Beep • • Beep Duration Leash Alarm • Beep Volume ONFIGURATION PDATES starting on page 240 •...
Page 250: Wireless Beeper Features
WIRELESS BEEPER FEATURES ENTER/EXIT PROGRAMMING MODE WIRELESS BEEPER FEATURES Several options are available to configure beeper behavior for wireless operation. Good Transmission Beep Enables/disables the Good Transmission Beep indication. When enabled, a beep occurs when a Label is correctly transmitted to the base. $CBTAB00 Good Transmission Beep = Disable $CBTAB01...
Page 251: Beep Duration
ENTER/EXIT PROGRAMMING MODE WIRELESS FEATURES Beep Duration This feature controls the duration of radio-specific beep indications. $CBTBD06 Beep Duration = 60 msec $CBTBD08  Beep Duration = 80 msec $CBTBD0A Beep Duration = 100 msec $CBTBD0C Beep Duration = 120 msec $CBTBD0E Beep Duration = 140 msec $CBTBD10...
Page 252: Beep Volume
WIRELESS BEEPER FEATURES ENTER/EXIT PROGRAMMING MODE Beep Volume Selects the beeper volume (loudness) of radio-specific beep indications. There are three selectable volume levels. $CBTBV00 Beep Volume = Low $CBTBV01 Beep Volume = Medium $CBTBV02  Beep Volume = High Disconnect Beep Enables/disables the beep indication that a handheld has become disconnected from a Base Station.
Page 253: Docking (Connecting) Beep
ENTER/EXIT PROGRAMMING MODE WIRELESS FEATURES Docking (Connecting) Beep Enables/disables a beep indication when the handheld is placed in the Base Station. $CBTCB00 Docking Beep = Disable $CBTCB01  Docking Beep = Enable Leash Alarm This setting specifies the number of seconds to sound the Leash Mode beeps (three per second) when the handheld goes out of range.
Page 254 WIRELESS BEEPER FEATURES ENTER/EXIT PROGRAMMING MODE Leash Alarm (continued) $CBTLB04 Leash Alarm = 4 Seconds $CBTLB05 Leash Alarm = 5 Seconds $CBTLB0A Leash Alarm = 10 Seconds $CBTLB19 Leash Alarm = 25 Seconds $CBTLB1E Leash Alarm = 30 Seconds PRODUCT REFERENCE GUIDE...
Page 255: Configuration Updates
ENTER/EXIT PROGRAMMING MODE WIRELESS FEATURES CONFIGURATION UPDATES Automatic Configuration Update When this feature is enabled, a reader and its linked Base Station can automatically ensure they stay in sync with regard to application hardware and/or configuration. See for more information on this feature. page 286 $CBTCU00 Automatic Configuration Update = Disable...
Page 256: Batch Features
BATCH FEATURES ENTER/EXIT PROGRAMMING MODE BATCH FEATURES Batch Mode This option specifies whether to store labels in the handheld while disconnected from the base. Options are as follows: • Disabled — The handheld will not store/batch labels. • Automatic — The handheld will store labels to RAM when the handheld goes out of range and is disconnected from the remote device.
Page 257: Erase Batch Memory
ENTER/EXIT PROGRAMMING MODE WIRELESS FEATURES Erase Batch Memory When the reader is configured in Manual Batch Mode, use the following bar code to erase any labels stored in batch memory. NOTE: Do not scan an ENTER/EXIT PROGRAMMING MODE label in conjunc- tion with this bar code.
Page 258: Direct Radio Autolink
DIRECT RADIO AUTOLINK ENTER/EXIT PROGRAMMING MODE DIRECT RADIO AUTOLINK Direct Radio Autolink This feature enables/disables the ability to link a wireless handheld to a base station without scanning the Unlink label first. $CBTDL00  Direct Radio Link = Unlink Label Required $CBTDL01 Direct Radio Link = Automatic Unlinking PRODUCT REFERENCE GUIDE...
Page 259: Rf Address Stamping
ENTER/EXIT PROGRAMMING MODE WIRELESS FEATURES RF ADDRESS STAMPING These features allow configuration of source radio data inclusion. Source Radio Address Transmission Enables/disables the ability of source radio address information to be transmitted to the host and, if so, at what position with respect to the label data. See in “Refer- page 286 ences”...
Page 260: Bluetooth-Only Features
BLUETOOTH-ONLY FEATURES ENTER/EXIT PROGRAMMING MODE BLUETOOTH-ONLY FEATURES The features in this section are valid only for QuickScan™ Bluetooth models. NOTE: Changing the configuration parameters described in this section may cause a temporary loss of the Bluetooth connection between the Reader and the remote device.
Page 261 ENTER/EXIT PROGRAMMING MODE WIRELESS FEATURES NOTE: Changing the BT Security Level setting will unlink the Reader from the remote device. $CBTSL01  BT Security Level = Level 1 - lowest $CBTSL02 BT Security Level = Level 2 $CBTSL03 BT Security Level = Level 3 - highest QUICKSCAN™...
Page 262: Wi-Fi Channels Exclusion
If the specific 802.11 standard and the frequency channels used by the Wi-Fi equipment are known, select the corresponding combination from the list of pro- gramming labels below or use the Datalogic Aladdin tool. With this setting, the Reader and the remote Bluetooth device avoid using the Bluetooth frequency channels that overlap with the already occupied Wi-Fi channels.
Page 263 ENTER/EXIT PROGRAMMING MODE WIRELESS FEATURES Wi-Fi Channels Exclusion (continued) $CBTWF00000000001FFFFFC000 WiFi Ch. Exclusion = 802.11b_g ch.4 $CBTWF0000000003FFFFF80000 WiFi Ch. Exclusion = 802.11b_g ch.5 $CBTWF000000007FFFFF000000 WiFi Ch. Exclusion = 802.11b_g ch.6 $CBTWF0000000FFFFFE0000000 WiFi Ch. Exclusion = 802.11b_g ch.7 $CBTWF000001FFFFFC00000000 WiFi Ch. Exclusion = 802.11b_g ch.8 $CBTWF00003FFFFF8000000000 WiFi Ch.
Page 264 BLUETOOTH-ONLY FEATURES ENTER/EXIT PROGRAMMING MODE Wi-Fi Channels Exclusion (continued) $CBTWF1FFFFFC0000000000000 WiFi Ch. Exclusion = 802.11b_g ch.12 $CBTWF7FFFF800000000000000 WiFi Ch. Exclusion = 802.11b_g ch.13 $CBTWF7F800000000000000000 WiFi Ch. Exclusion = 802.11b_g ch.14 $CBTWF000000007FFFFF3FFFFF WiFi Ch. Exclusion = 802.11b_g ch.1 and 6 $CBTWF00FFFFFE0000003FFFFF WiFi Ch.
Page 265 ENTER/EXIT PROGRAMMING MODE WIRELESS FEATURES Wi-Fi Channels Exclusion (continued) $CBTWF1FFFFFC0000007FFFFF0 WiFi Ch. Exclusion = 802.11b_g ch.2 and 12 $CBTWF1FFFFFCFFFFFE0000000 WiFi Ch. Exclusion = 802.11b_g ch.7 and 12 $CBTWF0FFFFF03FFFF81FFFFE0 WiFi Ch. Exclusion = 802.11b_g ch.2 and 7 and 12 $CBTWF000001FFFFFCFFFFFE00 WiFi Ch. Exclusion = 802.11b_g ch.3 and 8 $CBTWF7FFFF8000000FFFFFE00 WiFi Ch.
Page 266 BLUETOOTH-ONLY FEATURES ENTER/EXIT PROGRAMMING MODE Wi-Fi Channels Exclusion (continued) $CBTWF7F800000001FFFFFC000 WiFi Ch. Exclusion = 802.11b_g ch.4 and 14 $CBTWF7F803FFFFF8000000000 WiFi Ch. Exclusion = 802.11b_g ch.9 and 14 $CBTWF7F803FFFFF9FFFFFC000 WiFi Ch. Exclusion = 802.11b_g ch.4 and 9 and 14 $CBTWF000FFFFFE3FFFFF80000 WiFi Ch. Exclusion = 802.11b_g ch.5 and 10 $CBTWF0000000001FFFFFFFFFF WiFi Ch.
Page 267: Bluetooth Discoverable Mode Timeout
ENTER/EXIT PROGRAMMING MODE WIRELESS FEATURES Bluetooth Discoverable Mode Timeout It defines how long the scanner is discoverable after reading the "Link HID" or "Link SPP" label. $CBTDT00 Discoverable Mode Timeout = 1 minute $CBTDT01 Discoverable Mode Timeout = 2 minutes $CBTDT02 ...
Page 268: Bluetooth Friendly Name
BLUETOOTH-ONLY FEATURES ENTER/EXIT PROGRAMMING MODE Bluetooth Friendly Name You can set a meaningful name for QBT2500 that will appear in the application during device discovery. To set a new Bluetooth Friendly Name, scan the barcode below and follow the instruc- tions.
Page 269: Bluetooth Hid Features
ENTER/EXIT PROGRAMMING MODE WIRELESS FEATURES BLUETOOTH HID FEATURES Before connecting the Reader to a Bluetooth HID host device, the keyboard emulation used for label transmission can be configured using the parameters described in this section, plus the following parameters: • "...
Page 270: Features For Star Models Only
FEATURES FOR STAR MODELS ONLY ENTER/EXIT PROGRAMMING MODE FEATURES FOR STAR MODELS ONLY The features in this section are valid only for the Quickscan | QM250X Star model: • " STAR Radio Protocol Timeout" on page 255 • " STAR Radio Transmit Mode" on page 256 STAR Radio Protocol Timeout This parameter sets the valid wait time before transmission between the handheld reader and Base Station is considered failed.
Page 271: Star Radio Transmit Mode
ENTER/EXIT PROGRAMMING MODE WIRELESS FEATURES STAR Radio Transmit Mode Specifies the transmission protocol for Star communications. Options are: • ACK from cradle to scanner — signals a good transmission as soon as the Base Sta- tion receives a label • ACK when sent to host —...
Page 272: Star System Speed
3. place the Reader into the Base. The Reader and the Base will now be linked at the new programmed speed. This feature can also be programmed using the Datalogic Aladdin tool: 1. set the STAR System Speed to “High speed” or “Low speed” through Aladdin;...
Page 273: Star Frequency Agility
NOTE: It is possible to configure the STAR system to use a fixed channel with different frequency from the default one. Please contact Datalogic Technical Support for information about this feature. Please refer to Table 5 on page 259 for valid combinations of this feature with the STAR System Speed configuration parameter.
Page 274 Table 5 Supported combinations of STAR System Speed and STAR Frequency Agility configuration parameters FIXED CHANNEL SYSTEM FREQUENCY DIFFERENT FROM SPEED AGILITY DEFAULT 433 MHz Model Low Speed High Speed 910 MHz Model Low Speed High Speed PRODUCT REFERENCE GUIDE...
Page 275: Chapter 4. References
CHAPTER 4 REFERENCES This section contains explanations and examples of selected bar code features. See " for the actual bar code labels. Configuration with Bar Codes" on page 27 SECTION CONTENTS RS-232 P ARAMETERS on page 261 • Baud Rate •...
Page 276: Rs-232 Parameters
RS-232 PARAMETERS RS-232 PARAMETERS RS-232 ONLY Not available for QW2500 and QD2520 Baud Rate Baud rate is the number of bits of data transmitted per second. Set the reader's baud rate to match the baud rate setting of the host device. With an improper baud rate set- ting, data may not reach the host correctly.
Page 277: Rs-232/Usb Com Parameters
REFERENCES RS-232/USB COM PARAMETERS Intercharacter Delay This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero (0) to 990 millisec- onds in 10ms increments. A setting of zero specifies no delay. To set the delay: 1.
Page 278: Ack Nak Options
RS-232/USB COM PARAMETERS ACK NAK Options This enables/disables the ability of the reader to support the RS-232 ACK/NAK protocol. When configured, the reader and/or host sends an “ACK” when it receives data prop- erly, and sends “NAK” when the data is in error. Options are: •...
Page 279: Nak Character
REFERENCES NAK Character This setting specifies an ASCII character or hex value to be used as the NAK character. ASCII characters or any hex value from 0 to 0xFF can be selected. NOTE: Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these characters.
Page 280: Ack Nak Timeout Value
RS-232/USB COM PARAMETERS ACK NAK Timeout Value This option specifies the amount of time the reader waits for an ACK character from the host following label transmission. The selectable timeout range is 200 milliseconds to 15,000ms (15 seconds) in 200ms increments. A selection of 0 disables the timeout. To set this value: 1.
Page 281: Ack Nak Retry Count
REFERENCES ACK NAK Retry Count This feature specifies the number of times the reader retries a label transmission due to a retry condition. The selectable range is from 1 to 254 retries. A selection of 0 disables the count, and a selection of 255 specifies unlimited retries. To set this feature: 1.
Page 282: Disable Character
RS-232/USB COM PARAMETERS Disable Character Specifies the value of the RS-232 host command used to disable the reader. ASCII characters or any hex value from 0 to 0xFF can be selected. NOTE: Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these characters.
Page 283: Enable Character
REFERENCES Enable Character Specifies the value of the RS-232 host command used to enable the reader. ASCII characters or any hex value from 0 to 0xFF can be selected. NOTE: Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these characters.
Page 284: Keyboard Interface (Not Available For Qw2500/Qd2520)
KEYBOARD INTERFACE (NOT AVAILABLE FOR QW2500/QD2520) KEYBOARD INTERFACE (NOT AVAILABLE FOR QW2500/ QD2520) Wedge Quiet Interval Specifies the amount of time the reader looks for keyboard activity before it breaks the keyboard connection in order to transmit data to host. The range is from 0 to 990ms in 10ms increments.
Page 285: Intercharacter Delay
REFERENCES Intercharacter Delay This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero (0) to 990 millisec- onds in 10ms increments. A setting of zero specifies no delay. NOTE: This feature applies ONLY to the Keyboard Wedge interface.
Page 286: Intercode Delay
KEYBOARD INTERFACE (NOT AVAILABLE FOR QW2500/QD2520) Intercode Delay Specifies the delay between labels transmitted to the host for this interface. The select- able range for this feature is from 0 to 99 seconds. Follow these instructions to set this feature: 1.
Page 287: Data Format
ID code will be transmitted before the scanned bar code data. 00 - 20 Characters (ASCII) NOTE: Additional advanced editing is available. See the Advanced format- ting features in the Datalogic Aladdin configuration software, or contact " Technical Support" on page xiv for more information. Please Keep In Mind...
Page 288: Global Prefix/Suffix
DATA FORMAT Global Prefix/Suffix Up to 20 ASCII characters may be added as a prefix (in a position before the bar code data) and/or as a suffix (in a position following the bar code data) as indicated. Figure 18 Prefix and Suffix Positions OR...
Page 289: Global Aim Id
REFERENCES Global AIM ID NOTE: This feature enables/disables addition of AIM IDs for all symbology types. AIM label identifiers (as opposed to custom characters you select yourself as with label identifiers) can be included with scanned bar code data. AIM label identifiers consist of three characters as follows: •...
Page 290: Label Id
Code 93 & 260000 550000 Code 11 434500 620000 Code 128 230000 540000 Code 32 410000 580000 Code 39 2A0000 560000 Datalogic 2of5 730000 730000 EAN13 460000 420000 EAN13 P2 460000 4C0000 EAN13 P5 460000 4D0000 EAN8 464600 410000 EAN8 P2...
Page 291 REFERENCES SYMBOLOGY USA LABEL ID SET EU LABEL ID SET ISSN 6E0000 6E0000 400000 5A0000 730000 500000 UPCA 410000 430000 UPCA P2 410000 460000 UPCA P5 410000 470000 UPCE 450000 440000 UPCE P2 450000 480000 UPCE P5 450000 490000 OCR-A 6F0000 246F00 OCR-B...
Page 292: Label Id: Set Individually Per Symbology
DATA FORMAT Label ID: Set Individually Per Symbology To configure a Label ID individually for a single symbology: 1. Scan the ENTER/EXIT bar code. 2. Select Label ID position as either BEFORE (Enable as Prefix) or AFTER (Enable as suffix) by scanning the appropriate bar code in the section " Label ID Control"...
Page 293 REFERENCES Label ID: Set Individually Per Symbology — continued Table 17 Label ID Examples STEP ACTION EXAMPLES Scan the ENTER/EXIT bar code (Reader enters Programming Mode) Determine placement of the Label ID characters BEFORE or AFTER with regard to Enable as Prefix Enable as Suffix Enable as Prefix Enable as Suffix...
Page 294: Character Conversion
DATA FORMAT Character Conversion Character conversion is an eight byte configuration item. The eight bytes are 4 character pairs represented in hexadecimal ASCII values. The first character in the pair is the char- acter that will be converted. The second character in the pair is the character to convert to.
Page 295: Scanning Features
REFERENCES SCANNING FEATURES Scan Mode Selects the scan operating mode for the reader. Selections are: Trigger Single: When the trigger is pulled, scanning is activated until one of the follow- ing occurs: • Stand Mode/Object Detection has elapsed • a label has been read •...
Page 296 SCANNING FEATURES 3. Scan the ENTER/EXIT PROGRAMMING MODE bar code to enter Programming Mode. 4. Scan the bar code: SELECT SCANNING ACTIVE TIME SETTING on page 89 5. Scan the appropriate three digits from the keypad in , that represent Appendix D the duration which was determined in the steps above.
Page 297: Aiming Duration Time
REFERENCES Aiming Duration Time Specifies the frame of time the aiming pointer remains on after decoding a label, when in trigger single mode. The range for this setting is from 1 to 255 seconds in 1-second increments. Follow these instructions to set this feature: 1.
Page 298: Flash On Time
SCANNING FEATURES Flash On Time This feature specifies the ON time for the indicator LED while in Flash Mode. The select- able range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond incre- ments. Follow these instructions to set this feature. 1.
Page 299: Flash Off Time
REFERENCES Flash Off Time This feature specifies the OFF time for the indicator LED while in Flash Mode. The select- able range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond incre- ments. Follow these instructions to set this feature. 1.
Page 300: Led And Beeper Indicators
LED AND BEEPER INDICATORS LED AND BEEPER INDICATORS Good Read LED Duration This feature specifies the amount of time that the Good Read LED remains on following a good read. The good read LED on time can be set within a range of 10 milliseconds to 2,550 milliseconds (0.001 to 2.55 seconds) in 100ms increments.
Page 301: Rf Features
REFERENCES RF FEATURES Automatic Configuration Update When this feature is enabled, the base station and reader will keep their configurations synchronized. If a reader's configuration is altered by reading programming labels, this change is automatically transferred and updated in a linked base station. Likewise, if the base station's configuration is changed using Aladdin or by host commands, then the reader's configuration will automatically be updated if this feature is enabled.
Page 302: Star Radio Protocol Timeout
RF FEATURES STAR Radio Protocol Timeout This parameter sets the valid wait time before transmission between the handheld reader and Base Station is considered failed. When setting this parameter, take into consideration the radio traffic (number of read- ers in the same area). The selectable range for this feature is from 02 to 25 seconds. Follow these instructions to set this feature: 1.
Page 303: Symbologies
REFERENCES SYMBOLOGIES Set Length Length Control allows you to select either variable length decoding or fixed length decoding for the specified symbology. Variable Length: For variable length decoding, a minimum and maximum length may be set. Fixed Length: For fixed length decoding, two different lengths may be set. Set Length 1 This feature specifies one of the bar code lengths for a given symbology.
Page 304: Set Length 2
SYMBOLOGIES Set Length 2 This feature specifies one of the bar code lengths for a given symbology. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. Reference the to view the selectable range (num- 1D Symbologies, starting on page 111 ber of characters) for the symbology being set.
Page 305: Chapter 5. Message Formatting
CHAPTER 5 MESSAGE FORMATTING MESSAGE FORMATTING NOTE: Message Formatting is available for QM2500 models only. A message from the Host to the base must follow these rules: • If Address stamping options or address delimiter are enabled on the base, the Host replay must have address field and delimiter too.
Page 306: Led And Beeper Control
LED AND BEEPER CONTROL The format of the ACK from Host message (used for transmission mode 02) is: [Scanner_Addr] [Scanner_Addr_delimiter] MESSAGE <CR> The format of a generic message From Host to HH is: [Scanner_Addr] [Scanner_Addr_delimiter] DC2 MESSAGE <CR> where DC2 is ASCII 0x12 (^R) character. [Items in square brackets are optional.] LED AND BEEPER CONTROL The LED control escape sequences are intended to activate the LEDs for short periods of...
Page 307: Appendix A. Technical Specifications
Skew Tolerance ™ QuickScan QD2500: 35° H x 22° V Field of View ™ QuickScan QW2500: 33° H x 25° V ™ QuickScan QD2500: minimum 15% (Datalogic Test Chart) ™ QuickScan QW2500: minimum 20% (15% with specific configuration) QUICKSCAN™ 2500...
Page 308 Drop Resistance surface. Trigger Resistance Withstands 10 Mhits ESD Protection 16 KV Protection Class IP52 Cable Length Refer to www.datalogic.com PHYSICAL CHARACTERISTICS Black Color White Height 14.8 cm (5.8”) Dimensions Length 12.6 cm (4.96”) Width 6.8 cm (2.7”) Weight (without cable) 145.0 g / 5.1 oz...
Page 309 TECHNICAL SPECIFICATIONS Table 28 QBT/QM2500 Technical Specifications ELECTRICAL CHARACTERISTICS Gun TypeC Port: 5V +/- 5% Power Supply Cradle Port: 4.5V to 14V Cradle Only: 45mA @5V (Operating) Cradle with gun during recharge: 500mA (5V USB Host Power Supply) 1100mA (5V Type-C Host Power Supply) Consumption 500mA (12V External Power Supply) (Typical)
Page 310 QUICKSCAN™ 2500 TECHNICAL SPECIFICATIONS OPTICAL CHARACTERISTICS +/- 65° Skew Tolerance 35° x 22° Field of View PCS (Datalogic Test minimum 15% Chart) ENVIRONMENTAL CHARACTERISTICS Operating 0 °C to + 50 °C / +32° F to +122 °F Temperature Storage -40 °C to + 70 °C / -40 ° F to +158 °F...
Page 311: Common Reading Characteristics
TECHNICAL SPECIFICATIONS COMMON READING CHARACTERISTICS ™ Table 29 Reading Characteristics QuickScan QD/QBT/QM2500 ™ QUICKSCAN QD2500 DOF - DEPTH OF FIELD (TYPICAL) Symbology DOF range 5 mil: 0.5 to 25.0 cm / 0.2 to 9.8 in Code 39 10 mil: 0.5 to 38.0 cm / 0.2 to 14.9 in EAN/UPCA 13 mils: 0.5 to 51.0 cm / 0.2 to 20.1in PDF417...
Page 312: Decoding Capabilities
Interleaved 2 of 5; Standard 2 of 5; Interleaved 2 of 5 CIP (HR); Interleaved 2 of 5 Febraban (for desk models only); Industrial 2 of 5; Discrete 2 of 5; Datalogic 2 of 5 (China Post Code/ Chinese 2 of 5); IATA 2 of 5 Air cargo code; Follet 2 of 5;...
Page 313: Led And Beeper Indications
TECHNICAL SPECIFICATIONS LED AND BEEPER INDICATIONS The reader’s beeper sounds and its illumination flashes or changes color to indicate var- ious functions or errors on the reader. A “Green Spot” also lights to indicate a good read. The tables below list these indications. Table 31LED and Beeper Indications INDICATION BEEPER...
Page 314: User Indications For Qbt/Qm2500 (Gun Only)
USER INDICATIONS FOR QBT/QM2500 (GUN ONLY) USER INDICATIONS FOR QBT/QM2500 (GUN ONLY) Table 33 User Indications for QBT/QM2500 Gun STATUS GOOD READ LED BATTERY LED BUZZER Rising Beeps’ Power-up Sequence ↔ USB Enumeration Phase 250 msec 250 msec OFF Depends on Power Cable and spe- USB Suspend cific configurations Idle...
Page 315 TECHNICAL SPECIFICATIONS STATUS GOOD READ LED BATTERY LED BUZZER Solid with programmable duration (3 s default) and then OFF Green (charge = 50% - Battery Status indications 100%) when not charging, using double tap Amber (charge = 2% - 50%) Red forced loop (charge less than 2%) a.
Page 316: User Indications For Bc2090 Base Stations
USER INDICATIONS FOR BC2090 BASE STATIONS USER INDICATIONS FOR BC2090 BASE STATIONS Table 34 User Indications for BC2090 Base Stations STATUS TRANSMISSION LEDS CHARGING LEDS Power-up Solid ON ↔ USB Enumeration 250 msec 250 msec OFF Depends on Power Cable and specific con- USB Suspend figurations Idle...
Page 317: Programming Mode
TECHNICAL SPECIFICATIONS PROGRAMMING MODE The following indications ONLY occur when the reader is in Programming Mode. INDICATION DESCRIPTION BEEPER Enter Programming A valid programming label LED blinks continu- Reader sounds four low fre- Mode has been scanned. ously quency beeps. Reader sounds three times at Rejection of Label Label has been rejected.
Page 318 WARNING: Only official Datalogic cables are allowed for installation and use. Non-standard P/N or wrong cable connection may lead to scanner and/or host port permanent damage. Please refer to Datalogic Technical Support to get information about the cable's P/N most suitable for your application. PRODUCT REFERENCE GUIDE...
Page 319: Cleaning Procedure
WARNING: Be sure to turn off power and unplug the device from electrical outlet before cleaning. CAUTION: DO NOT use abrasive pads or cleaning agents. Common Cleaning Solutions The cleaners and disinfectants listed below are recommended for use on Datalogic’s Quickscan 2500 Enclosures: CLEANERS DISINFECTANTS Formula 409®...
Page 320: Cleaning Enclosure And Window Surfaces
CLEANING PROCEDURE Cleaning enclosure and window surfaces 1. Moisten a soft cloth with a recommended cleaning solution. Be sure to apply the solution to your cloth first. Wring excessive liquid from the cloth. 2. Use the cloth to wipe down the surface of the unit. Use cotton swabs, lightly moistened, to reach in corners and crevices.
Page 321: Scanner And Cradle Deep Cleaning
TECHNICAL SPECIFICATIONS Scanner and cradle deep cleaning In case some hard grime, grease or liquid residual are present on electrical contacts, a deeper cleaning may be needed. If the above procedure is not enough to guarantee proper working of the system, the use of isopropyl alcohol is suggested (minimum 70%). In this case it is suggested to use a cotton tipped applicator with isopropyl alcohol, gen- tly wiping along the pins of the electrical connection.
Page 322: Appendix Bstandard D Efaults
APPENDIX B STANDARD D EFAULTS The most common configuration settings are listed in the “Default” column of the table below. Page references are also provided for feature descriptions and programming bar codes for each parameter. A column has also been provided for recording of your pre- ferred default settings for these same configurable features.
Page 323 STANDARD DEFAULTS PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER Indicate Transmission Failure Enable Disable Character ‘D’ Enable Character ‘E’ KEYBOARD WEDGE U.S. Keyboard Setting Country Mode Encoding Type Don't Use Encoding ALT Output Type ALT Unicode Caps Lock State Caps Lock OFF Numlock Numlock Key Unchanged Keyboard Numeric Keypad...
Page 324 PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER READING PARAMETERS Scan Mode Trigger Simple Scanning Active Time 5 seconds Flash On Time 10 = Flash is ON for 1 second Flash Off Time 06 = Flash is OFF for 600ms Double Read Timeout 0.6 second Stand /Base Detection Behavior Switch to Stand Mode/Object Detection...
Page 325 STANDARD DEFAULTS PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER Mobile Phone Saturation Rate Decode Negative Image Disable Multiple Labels per Frame Disable Multiple Labels Ordering by Code Random Order Symbology Multiple Labels Ordering by Code Disable Length CODE SELECTION - 1D SYMBOLOGIES Code EAN/UPC Coupon Control Enable only UPC/EAN...
Page 326 PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER ISSN EAN-13 to ISSN Conversion Disable EAN 8 EAN-8 Enable/Disable Enable EAN-8 Check Character Transmis- Send sion Expand EAN-8 to EAN-13 Don’t Expand UPC/EAN Global Settings UPC/EAN Price Weight Check Disable UPC/EAN Quiet Zones Two Modules ADD-ONS Optional Add-ons...
Page 327 STANDARD DEFAULTS PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER Code 39 Check Character Transmis- Send sion Code 39 Start/Stop Character Trans- Don’t transmit mission Code 39 Full ASCII Disable Code 39 Quiet Zones Small Quiet Zones on two sides Code 39 Length Control Variable Code 39 Set Length 1 Code 39 Set Length 2...
Page 328 PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER Code 128 Length Control Variable Code 128 Set Length 1 Code 128 Set Length 2 GS1-128 GS1-128 Enable Transmit in Code 128 Data Format INTERLEAVED 2 of 5 I 2 of 5 Enable/Disable Disable I 2 of 5 Check Character Calculation Disable I 2 of 5 Check Character Transmis-...
Page 329 Datalogic 2 of 5 Check Character Send Transmission Datalogic 2 of 5 Length Control Variable Length Datalogic 2 of 5 Set Length 1 6 characters Datalogic 2 of 5 Set Length 2 50 characters INDUSTRIAL 2 of 5 Industrial 2 of 5 Enable/Disable...
Page 330 PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER FOLLET 2 OF 5 Follett 2 of 5 Enable/Disable Disable CODABAR Codabar Enable/Disable Disable Codabar Check Character Calcula- Disable tion Codabar Check Character Transmis- Send sion Codabar Start/Stop Character Transmit Transmission Codabar Start/Stop Character Set abcd/abcd Codabar Start/Stop Character Match Don’t Require Match...
Page 331 STANDARD DEFAULTS PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER Code 11 Check Character Transmis- Send sion Code 11 Length Control Variable Code 11 Set Length 1 4 characters Code 11 Set Length 2 50 characters CODE 93 Code 93 Enable/Disable Disable Code 93 Check Character Calculation Enable Check C and K Code 93 Check Character Transmis-...
Page 332 PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER BC412 Length Control Variable BC412 Set Length 1 1 character BC412 Set Length 2 50 characters CODE SELECTION - 2D SYMBOLOGIES 2D Maximum Decoding Time 350 msec 2D Structured Append Disable 2D Normal/Inverse Symbol Control Normal AZTEC CODE Aztec Code Enable / Disable...
Page 333 STANDARD DEFAULTS PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER Maxicode Primary Message Trans- Disable mission Maxicode Length Control Variable Maxicode Set Length 1 1 character Maxicode Set Length 2 0145 characters PDF417 PDF417 Enable / Disable Enable PDF417 Length Control Variable PDF417 Set Length 1 1 character PDF417 Set Length 2...
Page 334 PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER MOTION FEATURES Motionless Timeout 2 seconds Motion Sensitivity Medium High Motion Immunity Disable Motion Aiming Control Enable DOF Enhancement (Not available for Disable QW2500) POWER MANAGEMENT Powerdown Timeout 30 minutes Battery Profiles Maximum Performance WIRELESS FEATURES Good Transmission Beep Enable...
Page 335: Default Exceptions
Code Standard 2/5 Label ID Character(s) Codabar Label ID Character(s) Code 128 Label ID Character(s) GS1-128 Label ID Character(s) Datalogic 2 of 5 Label ID Character(s) ISBT 128 Label ID Character(s) UPCE P2 Label ID Character(s) UPCE/P5 Label ID Character(s)
Page 336 DEFAULT EXCEPTIONS PARAMETER DEFAULT EXCEPTION GS1 DataBar 14 (Omnidirectional) Label ID Character(s) E GS1 DataBar Expanded Label ID Character(s) GS1 DataBar Limited Label ID Character(s) Character Conversion CR to ` Interface: RS232-OPOS Baud Rate 115200 Baud Transmission Label ID Code Prefix GS1-128 AIM ID Disable...
Page 337: Appendix C. Sample Barcodes
APPENDIX C SAMPLE BARCODES The sample bar codes in this appendix are typical representations for their symbology types. SAMPLE BARCODES 1D Barcodes UPC-A EAN-13 Code 39 Code 128 QUICKSCAN™ 2500...
Page 338 SAMPLE BARCODES Interleaved 2 of 5 12345678901231 Code 32 Codabar Code 93 Code 11 PRODUCT REFERENCE GUIDE...
Page 339: Gs1 Databar™ (Rss)
SAMPLE BARCODES GS1 Databar™ (RSS) GS1 DataBar™ variants must be enabled to read the barcodes below (see " DataBar™ Omnidirectional" on page 127 GS1 DataBar™ Expanded Stacked 10293847560192837465019283746029478450366523 GS1 DataBar™ Expanded 1234890hjio9900mnb GS1 DataBar™ Limited 08672345650916 GS1 Databar™ (-14) GS1 DataBar™ Omnidirectional Truncated 55432198673467 GS1 DataBar™...
Page 340: 2D Barcodes
SAMPLE BARCODES 2D Barcodes Aztec Data Matrix China Sensible MaxiCode Test Message PDF417 ABCabc Micro PDF 417 BV17453 PRODUCT REFERENCE GUIDE...
Page 341 SAMPLE BARCODES QR Code 35900G9 2D Barcodes (continued) Micro QR Code 123456 UCC Composite QUICKSCAN™ 2500...
Page 342: Appendix Dkeypad
APPENDIX D KEYPAD Use the bar codes in this appendix to enter numbers as you would select digits/charac- ters from a keypad. PRODUCT REFERENCE GUIDE...
Page 343 KEYPAD QUICKSCAN™ 2500...
Page 344: Appendix E. Scancode Tables
APPENDIX E SCANCODE TABLES CONTROL CHARACTER EMULATION Control character emulation selects from different scancode tables as listed in this appendix. Each of the control character sets below are detailed by interface type in the tables. These apply to Wedge and USB Keyboard platforms. Control Character 00 : Characters from 00 to 0x1F are sent as control character Ctrl+Keys, special keys are located from 0x80 to 0xA1.
Page 345 SCANCODE TABLES QUICKSCAN™ 2500...
Page 346: Interface Type Pc At Ps/2, Usb-Keyboard Or Usb-Keyboard For Apple
INTERFACE TYPE PC AT PS/2, USB-KEYBOARD OR USB-KEYBOARD FOR APPLE (CONTINUED) PRODUCT REFERENCE GUIDE...
Page 347 SCANCODE TABLES QUICKSCAN™ 2500...
Page 348: Interface Type Pc At Ps/2 Alt Mode Or Usb-Keyboard Alt Mode
INTERFACE TYPE PC AT PS/2 ALT MODE OR USB-KEYBOARD ALT MODE (CONTINUED) PRODUCT REFERENCE GUIDE...
Page 349: Digital Interface
SCANCODE TABLES QUICKSCAN™ 2500...
Page 350: Ibm31Xx 102-Key
IBM31XX 102-KEY PRODUCT REFERENCE GUIDE...
Page 351 SCANCODE TABLES QUICKSCAN™ 2500...
Page 352: Ibm Xt
IBM XT PRODUCT REFERENCE GUIDE...
Page 353 SCANCODE TABLES QUICKSCAN™ 2500...
Page 354: Microsoft Windows Codepage 1252
MICROSOFT WINDOWS CODEPAGE 1252 MICROSOFT WINDOWS CODEPAGE 1252 Windows-1252 is a character encoding of the Latin alphabet, used by default in the leg- acy components of Microsoft Windows in English and some other Western languages. PRODUCT REFERENCE GUIDE...
Page 355: Appendix F. Ascii Chart
APPENDIX F ASCII CHART ASCII ASCII ASCII ASCII Char. Char. Char. Char. ‘ “ & ’ < > QUICKSCAN™ 2500...
Page 357 © 2022-2023 Datalogic S.p.A. and /or its affiliates • All rights reserved • Without limiting the rights under copyright, no part of this documentation may be repro- duced, stored in or introduced into a retrieval system, or transmitted in any form or by any means, or for any purpose, without the express written permission of Data- logic S.p.A.
