Omron R3 Opti Instruction Manual

2. Preparation
2.1 Installing/Replacing the Batteries
1.
Remove the battery cover.
Wrist Blood 1) Push the hook on the bottom of
the battery cover.
Pressure Monitor
2) Pull the cover off the main unit.
Model R3 Opti
Instruction Manual
2.
Insert two 1.5V "AAA" alkaline (LR03)
batteries as indicated in the battery
IM-HEM-6200-RU-04-10/2011
compartment and then replace the
5329516-3C
battery cover.
Introduction
Notes:
Thank you for purchasing the OMRON R3 Opti Wrist Blood Pressure Monitor.
• If the battery low symbol (
The OMRON R3 Opti is a compact and easy to use blood pressure monitor,
then replace both batteries at the same time.
operating on the oscillometric principle. It measures your blood pressure and
• The measurement values continue to be stored in memory even after
pulse rate simply and quickly. For comfortable controlled inflation without the
the batteries are replaced.
need of pressure pre-setting or re-inflation the devices uses its advanced
Disposal of used batteries should be carried out in accordance with the
"IntelliSense" technology.
national regulations for the disposal of batteries.
Intended Use
This product is designed to measure the blood pressure and pulse rate of
2.2 Setting the Date and Time
people within the range of the designated wrist cuff, following the instructions in
this instruction manual.
1.
Set the monitor to the correct date and time before
It is mainly designed for general household use. Please read the Important
Safety Information in this instruction manual before using the unit.
taking a measurement for the first time.
Please read this instruction manual thoroughly before using the unit. Press the
Please keep for future reference.
For specific information about your own blood pressure, CONSULT YOUR
DOCTOR.
Important Safety Information
Consult your doctor prior to using in pregnancy or if diagnosed with arrhythmia
or arteriosclerosis.
Please read this section carefully before using the unit.
Warning:
• Indicates a potentially hazardous situation which, if not avoided, could result
in death or serious injury.
(General Usage)
• Always consult your doctor. Self-diagnosis of measurement results and
self-treatment are dangerous.
• People with severe blood flow problems, or blood disorders, should consult a
doctor before using the unit, as cuff inflation can cause internal bleeding. Year
(Battery Usage)
• If battery fluid should get in your eyes, immediately rinse with plenty of clean
water. Consult a doctor immediately.
Caution:
• Indicates a potentially hazardous situation which, if not avoided, may result in
minor or moderate injury to the user or patient or damage to the equipment or
other property.
(General Usage)
2. Press the O/I START button to store the setting.
• Do not leave the unit unattended with infants or persons who cannot express
their consent.
Notes:
• Do not use the unit for any purpose other than measuring blood pressure.
• To reset the date and time, hold down the
• Do not disassemble the unit or wrist cuff.
is off.
• Do not inflate the wrist cuff over 299 mmHg.
• Do not use a mobile phone or other devices that emit electromagnetic fields, • If the batteries have been removed for 30 seconds or more, the date
near the unit. This may result in incorrect operation of the unit. and time setting will need to be reset.
• Do not operate unit in a moving vehicle (car, airplane). • If the date and time are not set, "-:--" appears during or after
(Battery Usage)
measurement.
• If battery fluid should get on your skin or clothing, immediately rinse with
plenty of clean water.
• Use only two "AAA" alkaline (LR03) batteries with this unit. Do not use other
3. Using the Unit
types of batteries.
• Do not insert the batteries with their polarities incorrectly aligned.
3.1 Applying the Wrist Cuff
• Replace old batteries with new ones immediately. Replace both batteries at
the same time.
Do not apply over clothing.
• Remove the batteries if the unit will not be used for three months or more.
• Do not use new and used batteries together.
General Precautions
1.
Place the wrist cuff over your wrist.
• Do not apply strong shocks and vibrations to or drop the unit.
• Do not take measurements after bathing, drinking alcohol, smoking,
exercising or eating.
• Do not inflate the wrist cuff when it is not wrapped around your wrist.
• Do not wash the wrist cuff or immerse it in water.
• Read and follow the "Important information regarding Electro Magnetic
Compatibility (EMC)" in the Technical Data Section.
• Read and follow the "Correct Disposal of This Product" in the Technical Data
Section when disposing of the device and any used accessories or optional
parts.
2.
Wrap the wrist cuff around your wrist.

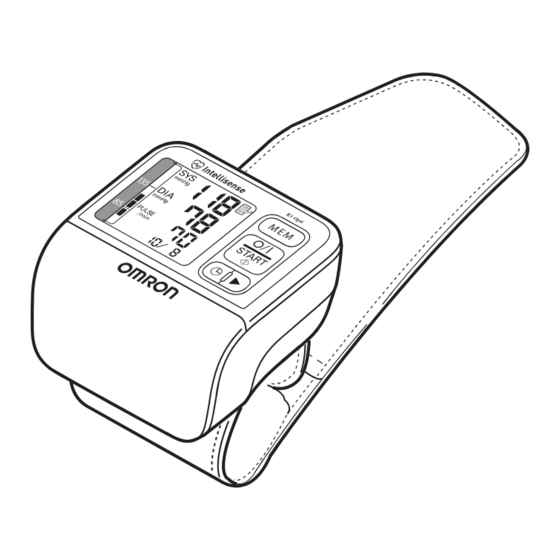

1. Overview
Your thumb should face upward.
Main unit:
A
C
B D
Make sure that the wrist cuff does not cover
E
the protruding part of the wrist bone (ulna) on
F
the outside of the wrist.
G
A. Display E. O/I START ( ) button
B. Battery compartment cover F. SET ( ) button
Notes:
C. Wrist cuff G. Date/Time setting ( ) button
• You can take a measurement on either
D. MEM (Memory) button
your left or right wrist.
Display:
H I
J
K • Wrap the wrist cuff securely around the
wrist for taking accurate measurements.
L
M
N
O
S R Q P
• The blood pressure can differ between the right
H. Systolic blood pressure O. Battery low symbol
arm and the left arm, and therefore also the
I. Diastolic blood pressure
P. Date/Time display measured blood pressure values can be
J. Memory symbol
Q. Heartbeat symbol
different. Omron recommends to always use
K. Average value symbol (Flashes during measurement.)
the same arm for measurement. If the values
L. Irregular heartbeat symbol
R. Deflation symbol
between the two arms differ substantially,
M. Pulse display S. Blood pressure level indicator
please check with your physician which arm to
N. Movement error symbol
use for your measurement.
3.2 How to Sit Correctly
To take a measurement, you need to be relaxed and comfortably seated, under
comfortable room temperature. No eating, smoking or exercising 30 minutes
before taking a measurement.
• Sit on a chair with your feet flat on the floor.
2
Sit upright with your
back straight.
1
) appears on the display, turn the unit off
Relax your wrist and hand.
button.
Do not bend Do not clench
1) Push the button to change.
your wrist back. your fist.
• Hold down to advance the
digit rapidly.
3.3 Taking a Reading
2) Push the button to confirm.
Next setting appears.
Notes:
• To cancel a measurement, press the O/I START button at any time
during measurement.
• Remain still while taking a measurement.
1.
Press the O/I START button.
The wrist cuff will start to inflate automatically.
START INFLATE
Month
Day
Hour
Minute
button while the power
2.
Undo the wrist cuff and remove the unit.
3.
Press the O/I START button to turn off the monitor.
The monitor automatically stores the measurement in its memory.
It will automatically turn off after two minutes.
Important:
• Recent research suggests that the following
values can be used as a guide to high blood
pressure for measurements taken at home.
Systolic Blood Pressure Above 135 mmHg
Diastolic Blood Pressure Above 85 mmHg
This criteria is for home blood pressure
measurement.
• Your blood pressure monitor includes an irregular
heartbeat feature. Irregular heartbeats can influence
the results of the measurement. The irregular
heartbeat algorithm automatically determines if the
measurement is usable or needs to be repeated. If
the measurement results are affected by irregular
heartbeats but the result is valid, the result is shown
together with the irregular heartbeat symbol (
the irregular heartbeats cause the measurement to
be invalid, no result is shown. If the irregular
heartbeat symbol ( ) is shown after you have taken a measurement,
repeat the measurement. If the irregular heartbeat symbol (
shown frequently, please make your doctor aware of it.
ulna
3.4 Using the Memory Function
The monitor automatically stores the result up to 60 sets. It can also
calculate an average reading based on the measurements from the last
three readings taken within 10 minutes. If there are only two readings in
memory for that period, the average will be based on two readings. If
there is one reading in memory for that period, the average will be
based on one reading.
Notes:
• If the memory is full, the monitor will delete the oldest readings.
• When viewing the reading taken without setting the date and time,
"-:--" is displayed instead of the date and time.
Average Value
View the Average View Previous Reading
Value • The Memory number
• If the previous reading appears for a second
was taken without before the pulse rate is
setting the date and displayed. The newest
time, the average set is numbered "1",
value is not calculated.
To delete all the values stored in memory
When the memory symbol ( ) appears, first press the MEM button. Then
while holding it down, press the O/I START button simultaneously for about
2-3 seconds.
The cuff should be at the First Second
same level as your heart.
Note: You cannot partially delete the stored readings.
4. Troubleshooting and Maintenance
4.1 The Icons and Error Messages
Error Display Cause Remedy
Remove the wrist cuff. Wait
2-3 minutes and then take
Do not use your other hand
Irregular or weak pulses another measurement.
to support the wrist cuff.
are detected. Repeat the steps in section
This can result in inaccurate
3.3. If this error continues to
measurement results.
appear, contact your doctor.
Movement during Carefully read and repeat the
measurement. steps in section 3.3.
You should replace them with
Blink The batteries are low. new ones ahead of time.
Refer to section 2.1.
Do not bend
You should replace them with
The batteries are
your wrist forward.
new ones at once.
Lit
exhausted.
Refer to section 2.1.
Cuff is over inflated.
Carefully read and repeat the
steps listed under section 3.3.
Movement during
measurement.
DEFLATE COMPLETE
An Er mark with a
code/number indicates Consult your OMRON
the device has a retail outlet or distributor.
hardware failure.
Alternating
date/time
display
Note: The irregular heartbeat symbol ( ) may also be displayed with error
messages.
4.2 Troubleshooting
Problem Cause Remedy
Measure while in the
The wrist cuff is not at
correct posture. Refer
heart level.
to section 3.2.
The cuff is wrapped Wrap the cuff correctly.
snugly around the Refer to section 3.1.
wrist.
The reading is
Relax and try taking the
extremely low (or
Your arms and
high). measurement again.
shoulders are tense.
Refer to section 3.3.
Remain still and do not
Movement or talking talk during
during measurement. measurement. Refer to
section 3.3.
Consult your OMRON
Wrist cuff pressure Air is leaking from the
retail outlet or
does not rise. wrist cuff.
distributor.
Apply the cuff correctly
). If so that it is securely
Wrist cuff deflates too The wrist cuff is
wrapped around the
soon. loose.
wrist. Refer to section
3.1.
) is
Blood pressure readings
constantly vary with time
of day and how relaxed
The blood pressure is different each time.
you are. Take several
The reading is extremely low (or high).
deep breaths and try to
remain relaxed before
taking a measurement.
The unit loses power The batteries are Replace the batteries
during measurement. drained. with new ones.
The batteries are Replace the batteries
drained. with new ones.
Nothing happens
when you press the
The batteries have
Insert the batteries with
buttons.
been inserted
the correct (+/-) polarity.
incorrectly.
Previous Reading
• Press the O/I START button and repeat
measurement.
• If the problem continues, try replacing the
Other problems.
batteries with new ones.
If this still does not solve the problem, contact
Alternating
your OMRON retail outlet or distributor.
date/time display
View Readings Stored
in Memory
• Hold down to view
readings rapidly.
4.3 Maintenance
Important information regarding Electro Magnetic Compatibility (EMC)
To protect your unit from damage, please avoid the following:
With the increased number of electronic devices such as PC's and mobile
• Subjecting your unit to extreme temperatures, humidity, (cellular) telephones, medical devices in use may be susceptible to
electromagnetic interference from other devices. Electromagnetic interference
or direct sunlight.
may result in incorrect operation of the medical device and create a potentially
• Washing the cuff or exposing the cuff or unit to water.
unsafe situation.
• Disassembling the unit.
Medical devices should also not interfere with other devices.
• Subjecting the unit to strong shocks or vibrations.
In order to regulate the requirements for EMC (Electro Magnetic Compatibility)
Dropping the Unit.
with the aim to prevent unsafe product situations, the EN60601-1-2:2007
• Cleaning the unit with volatile liquids. standard has been implemented. This standard defines the levels of immunity to
electromagnetic interferences as well as maximum levels of electromagnetic
emissions for medical devices.
This medical device manufactured by OMRON HEALTHCARE conforms to this
EN60601-1-2:2007 standard for both immunity and emissions.
Nevertheless, special precautions need to be observed:
• Do not use mobile (cellular) telephones and other devices, which generate
strong electrical or electromagnetic fields, near the medical device. This may
result in incorrect operation of the unit and create a potentially unsafe situation.
Recommendation is to keep a minimum distance of 7 m. Verify correct operation
of the device in case the distance is shorter.
Further documentation in accordance with EN60601-1-2:2007 is available at OMRON
HEALTHCARE EUROPE at the address mentioned in this instruction manual.
Documentation is also available at www.omron-healthcare.com.
• The unit should be cleaned with a soft, dry cloth.
Correct Disposal of This Product
• Use a soft, moistened cloth and soap to clean the cuff.
(Waste Electrical & Electronic Equipment)
• Keep the unit in its storage case when not in use.
This marking shown on the product or its literature, indicates that it
• Fold the cuff into the storage case.
should not be disposed of, with other household wastes at the end
Do not store the unit in the following situations: of its working life. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, please separate
• If the unit is wet.
this from other types of wastes and recycle it responsibly to
• Locations exposed to extreme temperatures, humidity,
promote the sustainable reuse of material resources.
direct sunlight, dust or corrosive vapours.
Household users should contact either the retailer where they purchased this
• Locations exposed to vibrations, shocks or where it will
product, or their local government office, for details of where and how they can
be at risk of falling.
take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions
of the purchase contract. This product should not be mixed with other commercial
Calibration and Service
wastes for disposal.
• The accuracy of this blood pressure monitor has been
This product does not contain any hazardous substances.
carefully tested and is designed for a long service life.
• It is generally recommended to have the unit inspected
Manufacturer
every two years to ensure correct functioning and
accuracy. Please consult your authorised OMRON
dealer or the OMRON Customer Service at the address
given on the packaging or attached literature.
EU-representative
5. Technical Data
Exclusive
distributor in
Product Description Wrist Blood Pressure Monitor
Russia & importer
Model OMRON R3 Opti (HEM-6200-RU)
Display LCD Digital Display
Production Facility
Measurement Method Oscillometric method
Measurement Range Pressure: 0 mmHg to 299 mmHg
Pulse: 40 to 180 beats/min.
Accuracy Pressure: ±3 mmHg
Pulse: ±5% of reading
Inflation Automatic inflation by pump
Deflation Automatic rapid deflation
Memory 60 Measurements
Power Source 2 "AAA" alkaline (LR03) batteries 1.5V
Battery Life Approx. 300 measurements with new alkaline
batteries at a room temperature of 23˚C
Applied Part = Type B
Protection Against Internally powered ME equipment
Electric Shock
Operating temperature/ +10˚C to +40˚C / Maximum: 30 to 85% RH
Humidity
Storage temperature/ -20˚C to +60˚C / Maximum: 10 to 95% RH /
Humidity/ Air pressure 700-1060 hPa
Console Weight Approximately 117g without batteries
Outer Dimensions Approximately 71 (w) mm × 41 (h) mm × 70 (d) mm
without the wrist cuff
Measurable Approximately 13.5 to 21.5 cm
circumference of wrist
Cuff Material Nylon and polyester
Package Content Main unit, storage case, two "AAA" alkaline (LR03)
batteries, instruction manual, guarantee card, blood
pressure pass
Note: Subject to technical modification without prior notice.
• This device fulfils the provisions of EC directive 93/42/EEC (Medical Device
Directive).
• This blood pressure monitor is designed according to the European Standard
EN1060, Non-invasive sphygmomanometers Part 1: General Requirements
and Part 3: Supplementary requirements for electromechanical blood
pressure measuring systems.
• This OMRON product is produced under the strict quality system of OMRON
HEALTHCARE Co. Ltd., Japan. The Core component for OMRON blood
pressure monitors, which is the Pressure Sensor, is produced in Japan.
OMRON HEALTHCARE Co., Ltd.
53, Kunotsubo, Terado-cho, Muko, Kyoto,
617-0002 JAPAN
OMRON HEALTHCARE EUROPE B.V.
Scorpius 33, 2132 LR Hoofddorp
THE NETHERLANDS
www.omron-healthcare.com
ComplectService Ltd.
13-14 building, 26 B. Tishinskiy per.
Moscow 123557, RUSSIA
www.csmedica.ru
OMRON (DALIAN) CO., LTD.
Dalian, CHINA
Made in China
12K2607
