Summary of Contents for COMPRO TN900R

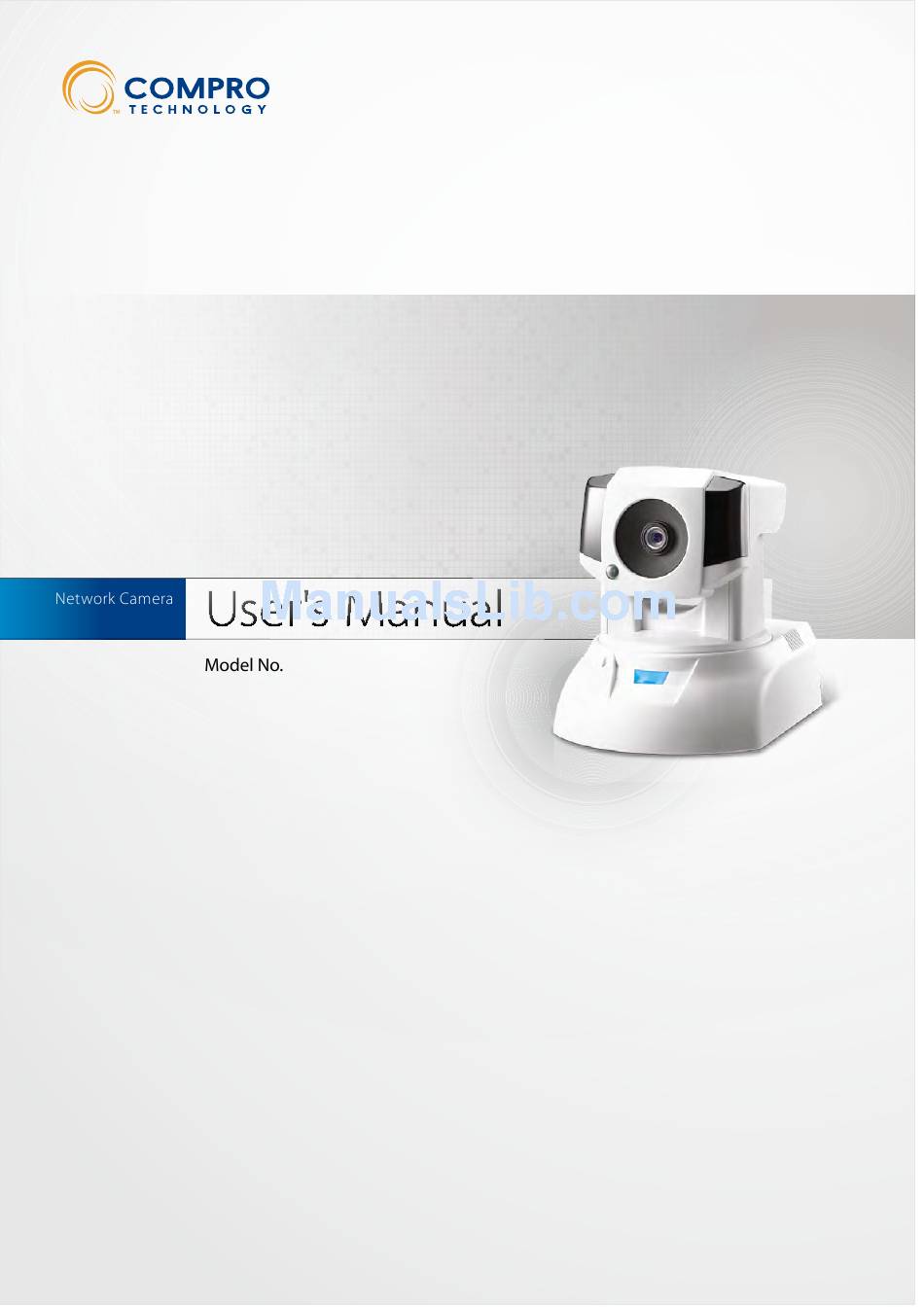

- Page 1 TN900R TN900RW V1-140422...
- Page 2 The information in this document is subject to change without notice. COMPRO reserves the right to make revisions to this publication without obligation to notify any person or entity of any such changes.
-
Page 3: Table Of Contents
TN900R/TN900RW Key Features ........ - Page 4 TN900R/TN900RW Technical Specifications ........
- Page 5 Contents Examples of Port Forwarding Setup on Routers ........11-1 Abocom WAA813rn Port Forwarding Setup .
- Page 6 TN900R/TN900RW - User’ s Manual...
-
Page 7: Chapter 1: Important Notices
Chapter 1: Important Notices Chapter 1: Important Notices Compro TN900R/TN900RW FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer- ence in a residential installation. -
Page 8: About This Manual
TN900R/TN900RW - User’ s Manual About this Manual This manual is only intended for the users of Compro TN900R and TN900RW network camera. Conventions in this Manual While you are using this manual, pay attention to some symbols and notations that are used to draw atten-... -
Page 9: Chapter 2: Product Overview
Chapter 2: Product Overview Chapter 2: Product Overview Package Contents Please check the package contents on your hand. If anything is missing, please don’t hesitate to contact your local distributor. Figure 2-1. Parts list Network Camera RJ-45 LAN Cable Power adapter (5V, 2A) and power cable Quick Start Guide Installation CD Wall mount plate... -
Page 10: Features
• Dropbox cloud storage support • Smart Motion Detection • Built-in microphone and speaker for smartphone two-way audio • Upgradable Compro 802.11 b/g/n wireless adapter (TN900RW package includes.) System Requirements For viewing PC: • Computer with 2.8GHz dual-core processor and 2GB memory or above • Operating system: Windows XP SP3, Vista SP1, Windows 7, Windows 8, Mac OS X 10.6 (LiveView in M-JPEG... -
Page 11: Camera Layout
AUDIO AUDIO WPS/RESET WPS/RESET DC5V DC5V Figure 2-2. Front and rear view of TN900R/TN900RW 1. IR transmitter 2. IR LEDs x 5 (12 in total) 3. Light sensor 4. Lens 5. IR LEDs x 6 (12 in total) 6. Microphone 7. -
Page 12: Led Status Indicator
TN900R/TN900RW - User’ s Manual LED Status Indicator The LED status indicator comprises a blue LED and a red LED. When you turn on the power of IP camera, the camera will start booting procedure. The IR LEDs and LED status indicator will be lit in the following patterns: 1. -
Page 13: Chapter 3: Installation
If your package include a wireless adaptor, please plug it into the USB port of network camera for wire- less reception. The camera’s USB port only supports the wireless adapters from Compro. Do not use any other USB adapters on Compro IP cameras. You must setup the network camera with Ethernet cable connected then go to wireless setup.
