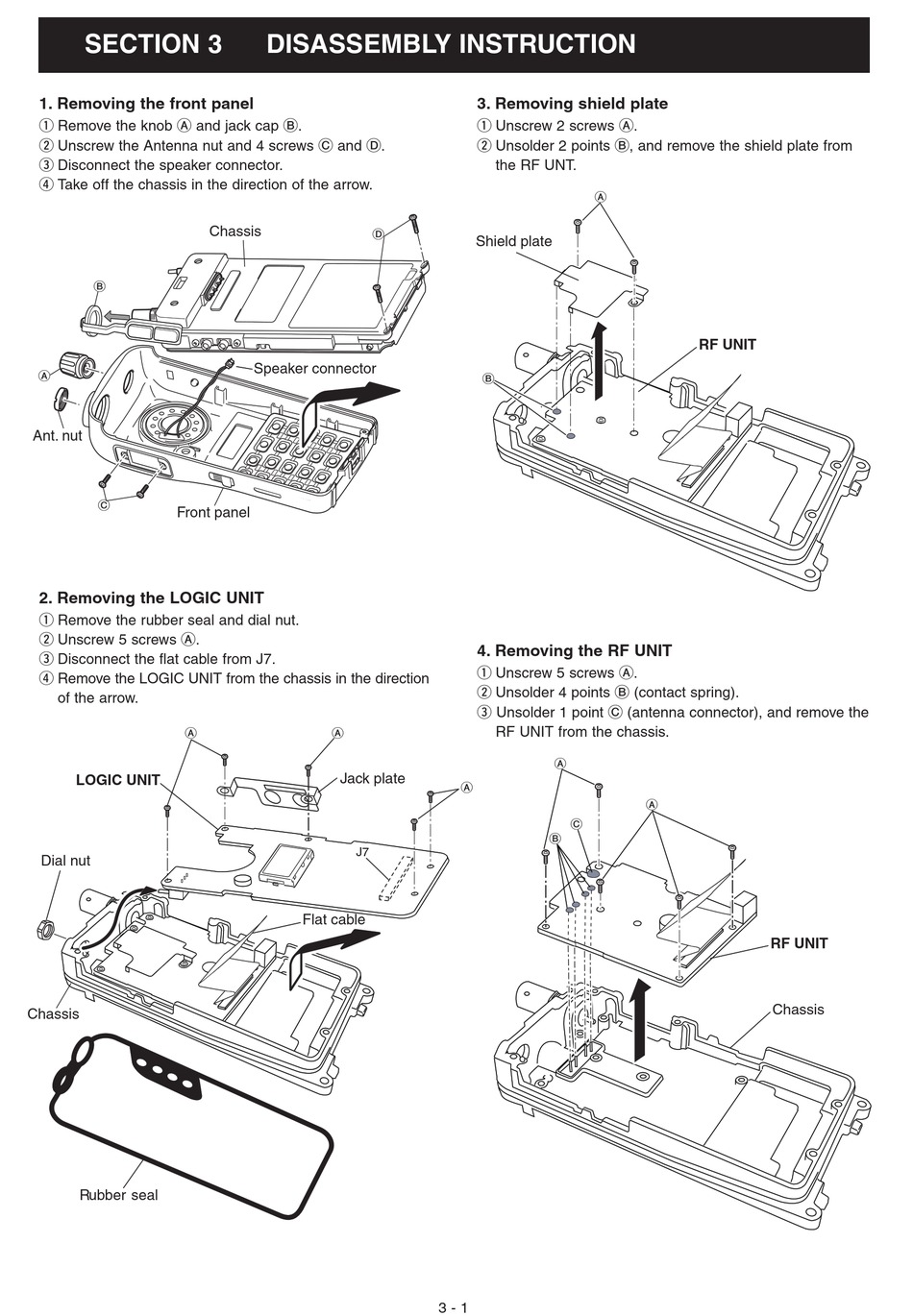

Disassembly Instruction - Icom IC-V85 Service Manual

SECTION 3
1. Removing the front panel
q Remove the knob A and jack cap B.
w Unscrew the Antenna nut and 4 screws C and D.
e Disconnect the speaker connector.
r Take off the chassis in the direction of the arrow.
B
A
Ant. nut
C
Front panel
2. Removing the LOGIC UNIT
q Remove the rubber seal and dial nut.
w Unscrew 5 screws A.
e Disconnect the flat cable from J7.
r Remove the LOGIC UNIT from the chassis in the direction
of the arrow.
A
LOGIC UNIT
Dial nut
Chassis
Rubber seal

DISASSEMBLY INSTRUCTION

Chassis
D
Speaker connector
A
Jack plate
J7
Flat cable
3. Removing shield plate
q Unscrew 2 screws A.
w Unsolder 2 points B, and remove the shield plate from
the RF UNT.
A
Shield plate
B
4. Removing the RF UNIT
q Unscrew 5 screws A.
w Unsolder 4 points B (contact spring).
e Unsolder 1 point C (antenna connector), and remove the
RF UNIT from the chassis.
A
A
C
B
3 - 1
RF UNIT
A
RF UNIT
Chassis
