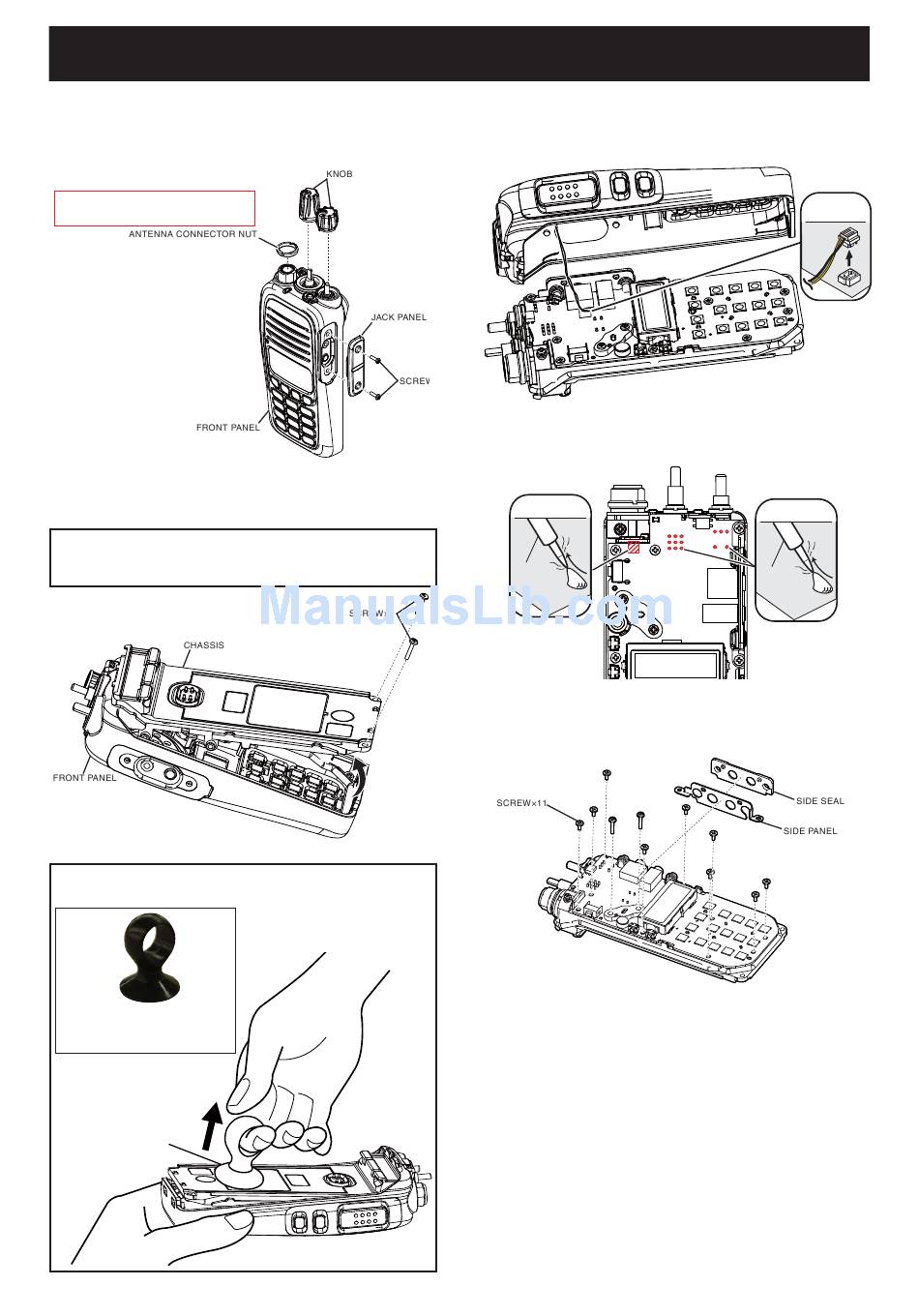

SECTION 3.

1. REMOVING THE FRONT PANEL

1) Remove the antenna connector nut and 2 knobs.
2) Remove 2 screws and jack panel.
Remove with;
"ICOM Driver (K)" (8960000110)
3) Remove 2 screws from the bottom of the CHASSIS.
4) Lift the bottom of the CHASSIS up in the direction
of the arrow.
BE CAREFUL when you disassemble the front panel from
the transceiver body. Otherwise the speaker cable and the
connector may be cut.
For easy separation of the CHASSIS
Use a suction lifter to lift the bottom of the CHASSIS up.
Suction lifter
• Part name : EA950R-2
• Manufacture : ESCO CO.LTD
Suction lifter
DISASSEMBLY INSTRUCTION
(Continued to the right above)
5) CAREFULLY lift the chassis out of the front panel
and turn it over in order to unplug the speaker cable.

2. REMOVING THE MAIN UNIT

1) Unsolder total of 15 points as shown.
UNSOLDER
Solder
remover
2) Remove 11 screws and the side panel and side
seal from the MAIN UNIT.
3) Remove the MAIN UNIT from the chassis.
3-1
SPEAKER
CABLE
UNSOLDER
Solder
remover
